| Product Name: |
Edge Diamond Cutting Blade for Marble |
| Diameter: |
350mm |
| Uesd: |
Wet Cutting |
| Feature: |
Fast Cutting Efficiency |
| Quality: |
European Standard |
| Price: |
Competitive and Best Price |
| Graininess: |
150# |
| Thickness: |
10mm |
| Customized: |
Customized |
| Kind: |
Diamond Edge Saw Blade and Segment |
Product Description

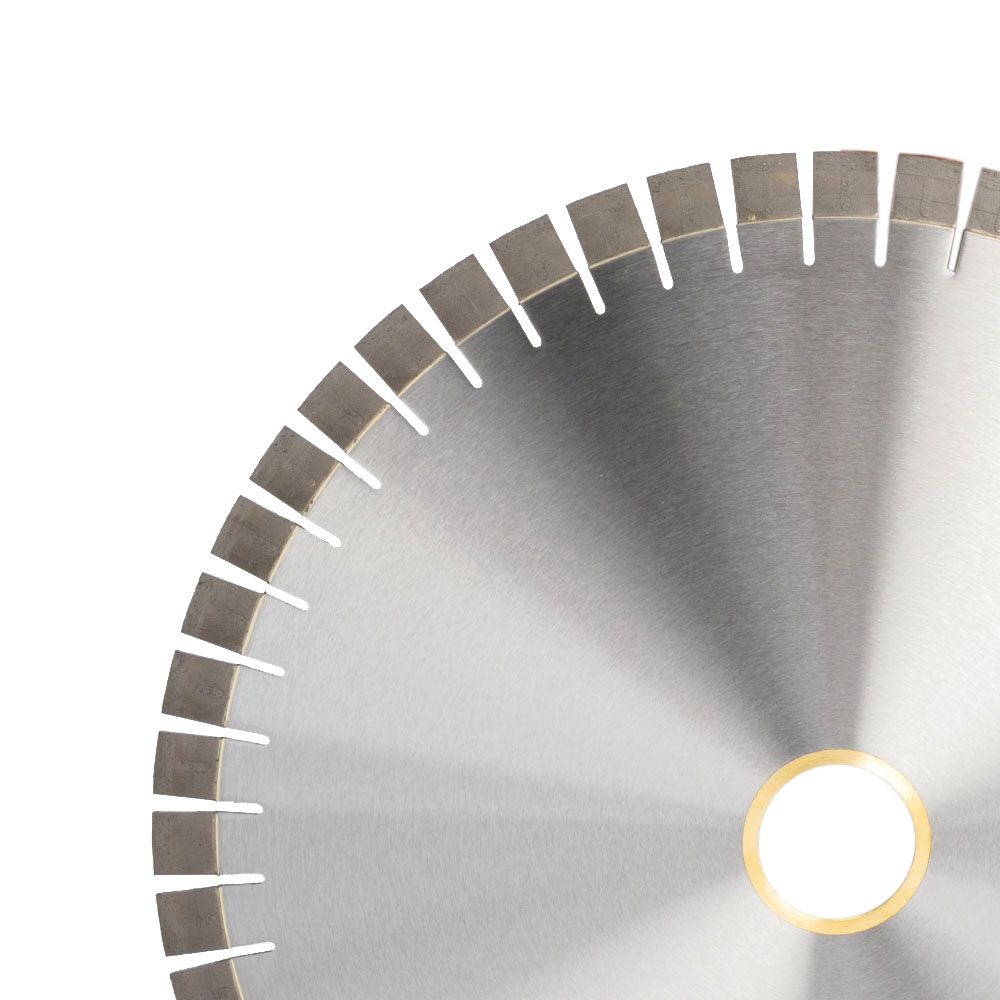

Block Cutting Segment And Blade For Granite:
1 The blade has good sharpness and high efficiency at the process of cutting, meanwhile, it has a long lifespan
2 Good cutting result: smooth cutting, flat surface and even size
3 Stable cutting ,narrow cutting gap, stone waste reduction
4 M-Shape segment is easy for diamond opening
| Diameter(mm ) | Steel core(mm) | Segment size(mm) | No. |
| 900 | 5.0 | 24*7.0/6.2*13(15,20) | 64 |
| 1000 | 5.0 | 24*7.0/6.2*13(15,20) | 70 |
| 1200 | 5.5 | 24*7.4/6.6*13(15,20) | 80 |
| 1400 | 6.0 | 24*8.0/7.2*13(15,20) | 92 |
| 1400 | 6.5 | 24*8.4/7.6*13(15,20) | 92 |
| 1600 | 7.2 | 24*9.2/8.4*13(15,20) | 108 |
| 1800 | 7.5 | 24*10/9.2*13(15,20) | 120 |
| 2000 | 8.0 | 24*11/10*15(20) | 128 |
| 2200 | 9.0 | 24*11/10*15(20) | 132 |
| 2500 | 9.0 | 24*12/11*15(20) | 140 |
| 2700 | 9.0 | 24*12/11*15(20) | 140 |
| 3000 | 9.3 | 24*13/12*15(20) | 160 |
| 3500 | 9.5 | 24*13.5/12.5*15(20) | 180 |
Block Cutting Segment And Blade For Marble:
1:The blade is good in sharpness and efficiency at the process of cutting, meanwhite, it has a long-life span
2:Good cutting result: smooth cutting, flat surface and even size
3:Stable cutting, narrow cutting gap, stone waste reduction.
| Diameter | Steel core | Segment size(mm) | Segment Number |
| 900 | 5.0 | 24*7.5*10(13) | 64 |
| 1000 | 5.0 | 24*7.5*10(13) | 70 |
| 1200 | 5.5 | 24*8.0*10(13) | 80 |
| 1400 | 6.0 | 24*8.5*10(13) | 92 |
| 1600 | 7.0 | 24*9.5*10(13) | 108 |
| 1800 | 7.5 | 24*10*10(13) | 120 |
| 2000 | 8.0 | 24*11*10(13) | 128 |
| 2200 | 8.0 | 24*11*10(13) | 132 |
| 2500 | 9.0 | 24*12.5*10(13) | 140 |
| 2700 | 9.0 | 24*12.5*10(13) | 140 |
| 3000 | 9.3 | 24*13*10(13) | 160 |
Splitting Blade And Segment:
1:The blade is good in sharpness and efficiency at the processing of cutting, meanwhile, it has a long lifespan.
2:Excellent comprehensive cutting performance
3:Application: granite, marble
| Diameter(mm) | Steel Core(mm) | Segment Size For Granite(mm) | Segment Size For Marble(mm) | NO. |
| 400 | 2.6 | 40*3.6*15(20) | 40*3.8*10 | 28 |
| 450 | 3.0 | 40*4.0*15(20) | 40*4.2*10 | 32 |
| 500 | 3.0 | 40*4.0*15(20) | 40*4.2*10 | 36 |
| 550 | 3.6 | 40*4.6*15(20) | 40*5.0*10 | 40 |
| 600 | 3.6 | 40*4.6*15(20) | 40*5.0*10 | 42 |
| 650 | 4.0 | 40*5.0*15(20) | 40*5.5*10 | 46 |
| 700 | 4.0 | 40*5.0*15(20) | 40*5.5*10 | 50/42 |
| 750 | 4.0 | 40*5.0*15(20) | 40*5.5*10 | 54/46 |
| 800 | 4.5 | 40*6.0*15(20) | 40*6.0*10 | 57/46 |
| 850 | 4.5 | 40*6.0*15(20) | 40*6.0*10 | 58 |
Edge Cutting Blade And Segment
1:Ideal edge trimming quality whth better blade continuity and narrower segment gap.
2:Better cutting sharpness and trimming efficiency
3:Application: marble, granite, sandstone etc
| Diameter(mm) | Steel Core(mm) | NO. |
| 300 | 2.2 | 21 |
| 350 | 2.2 | 24 |
| 400 | 2.6 | 29 |
| 450 | 3.0 | 32 |
Other specifications are available upon request.
Silent and non-silent blades are available for choice.
Edge Cutting Blade For Ceramic
1:Good continuity, effectively reduce the distance between teeth, cutting edge does not collapse
2:The blade is good in sharpness and efficiency at the process of cutting
3:Application: ceramic, microglass
| Diameter(mm) | Steel Core(mm) | Segment Size | No |
| 300 | 1.8 | 41.3/38.8*2.4*10 | 23 |
| 350 | 2.2 | 42.7/40.3*3.0*10 | 26 |
Other specifications are available upon request.
Silent and non-silent blades are available for choice.
Diamond Arrayed Cutting Blade And Segment
1:Cutting efficiency improves 30% more, energy consumption reduces 30%
2:Good cutting result and fast cutting
3:This type of blade can effectively reduce noise and protect the environment
4:This product can be wide used on various power machines and envionment
5:Application: granite
| Diameter(mm) | Steel Core(mm) | Segment Size(mm) | NO |
| 300 | 2.2 | 43/40*3.2*12(15,20) | 21 |
| 350 | 2.2 | 43/40*3.2*12(15,20) | 24 |
| 400 | 2.6 | 43/40*3.6*12(15,20) | 28 |
| 450 | 3.0 | 43/40*4.2*12(15,20) | 32 |
Other specifications are available upon request.
Silent and non-silent blades are available for choice.
Horizontal Cutting Blade and Segment
1:The blade is good in sharpness and efficiency at the processing of cutting meanwhile, it has a long lifespan.
2:Excellent comprehensive cutting performance
3:Application: granite, marble
| Diameter(mm) | Steel core(mm) | Segment size for granite(mm) | Segment size for marble(mm) | NO. |
| 350 | 7.5/3.0 | 40*4.4*10(15) | 40*4.6*10 | 21 |
| 400 | 7.5/3.0 | 40*4.4*10(15) | 40*4.6*10 | 24 |
| 450 | 7.5/3.0 | 40*4.4*10(15) | 40*4.6*10 | 26 |
| 500 | 7.5/3.5 | 40*5.0*10(15) | 40*5.5*10 | 30 |
| 550 | 4.0 | 40*6.0*10(15) | 40*6.0*10 | 32 |
| 600 | 4.0 | 40*6.0*10(15) | 40*6.0*10 | 36 |
| 650 | 4.0/4.5 | 40*6.0*10(15) | 40*6.0*10 | 40 |
Other specifications are available upon request.
Silent and non-silent blades are available for choice.
Laser Blade For Stone
1:The blade is good in sharpness and efficiency at the processing of cutting, meanwhile, it has a long lifespan.
2:Widely used for stone cutting
| Diameter(mm) | Segment dimension(mm) |
| 105 | 32*2.2*10(2) |
| 115 | 32*2.2*10(2) |
| 125 | 32*2.2*10(2) |
| 150 | 32*2.2*10(2) |
| 180 | 32*2.6*10(2) |
| 200 | 32*2.6*10(2) |
| 230 | 32*2.8*10(2) |
| 250 | 32*2.8*10(2) |
| 300 | 40*3.2*10(2) |
| 350 | 40*3.2*10(2) |
| 400 | 40*3.2*10(2) |
Other specifications are available upon request.
Silent and non-silent blades are available for choice.
Laser Blade For Concrete
1:The blade is good in sharpness and efficiency at the processing of cutting, meanwhile, it has a long lifespan.
2:Widely used for concrete cutting
| Diameter(mm) | Segment dimension(mm) |
| 300 | 40*3.2*12(2) |
| 350 | 40*3.2*12(2) |
| 400 | 40*3.6*12(2) |
| 450 | 40*3.6*12(2) |
| 500 | 40*4.0*12(2) |
| 600 | 40*4.0*12(2) |
Other specifications are available upon request.
Laser Blade For Asphalt
1:The blade is good in sharpness and efficiency at the processing of cutting, meanwhile, it has a long lifespan.
2:Widely used for asphalt cutting
| Diameter(mm) | Segment Dimension(mm) |
| 300 | 40*3.2*12(2) |
| 350 | 40*3.2*12(2) |
| 400 | 40*3.6*12(2) |
| 450 | 40*3.6*12(2) |
| 500 | 40*4.0*12(2) |
| 600 | 40*4.0*12(2) |
Other specifications are available upon request.

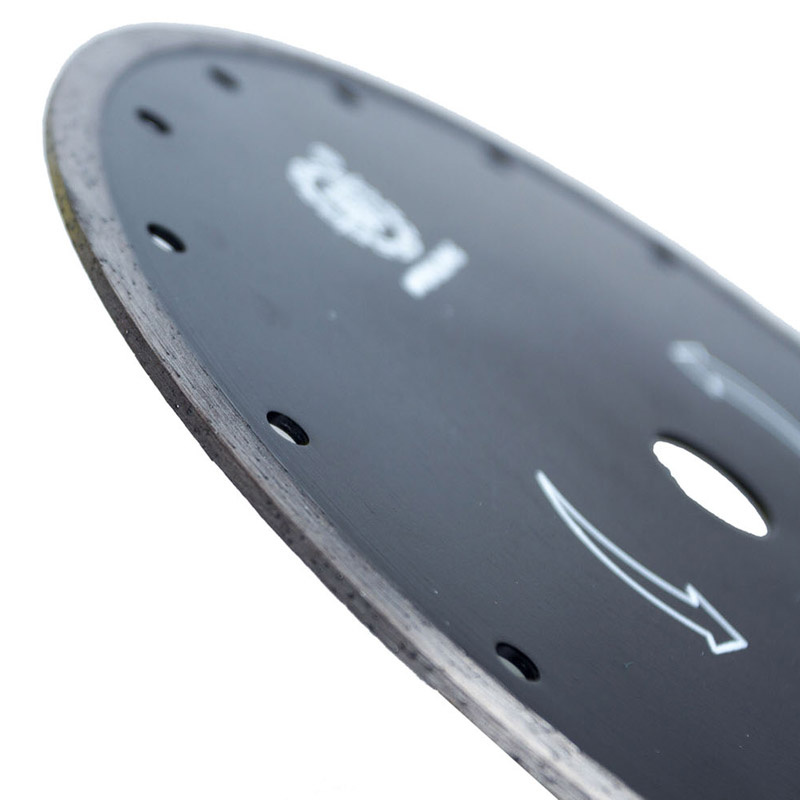

Continuous Rim Blade
1:Good continuity, good cutting sharpness and high cutting efficiency.
2:This product is widely used for cutting and nondestructive grooving on marble, granite, ceramic, tile, concrete, decorative material, used on manual cutting machine.
3:Suitable for wet cutting.
| Diameter(mm) | Segment dimension(mm) | Born(mm) |
| 105 | 1.8*8.0 | 16/20/22.23/25.4/50 |
| 110 | 1.8*8.0 | 16/20/22.23/25.4/50 |
| 115 | 1.8*8.0 | 16/20/22.23/25.4/50 |
| 125 | 2.0*8.0 | 16/20/22.23/25.4/50 |
| 150 | 2.2*8.0 | 16/20/22.23/25.4/50 |
| 180 | 2.4*8.0 | 16/20/22.23/25.4/50 |
| 200 | 2.6*8.0 | 16/20/22.23/25.4/50 |
| 230 | 2.8*8.0 | 16/20/22.23/25.4/50 |
Other specifications are available upon request.
Dry Cutting Blade
1:Fast cutting speed and small cutting gap
2:High cutting efficiency and no chipping
3:This product is widely used for cutting and nondestructive grooving on marble, granite, ceramic, tile, concrete, decorative material, used on manual cutting machine.
| Diameter(mm) | Segment Dimension(mm) | Born/mm | No. |
| 105 | 1.8*8.0 | 16/20/22.23/25.4/50 | 8 |
| 115 | 1.8*8.0 | 16/20/22.23/25.4/50 | 9 |
| 125 | 1.8*8.0 | 16/20/22.23/25.4/50 | 10 |
| 150 | 2.2*8.0 | 16/20/22.23/25.4/50 | 12 |
| 180 | 2.2*8.0 | 16/20/22.23/25.4/50 | 14 |
| 200 | 2.6*8.0 | 16/20/22.23/25.4/50 | 16 |
| 230 | 2.6*8.0 | 16/20/22.23/25.4/50 | 16 |
Other specifications are available upon request.

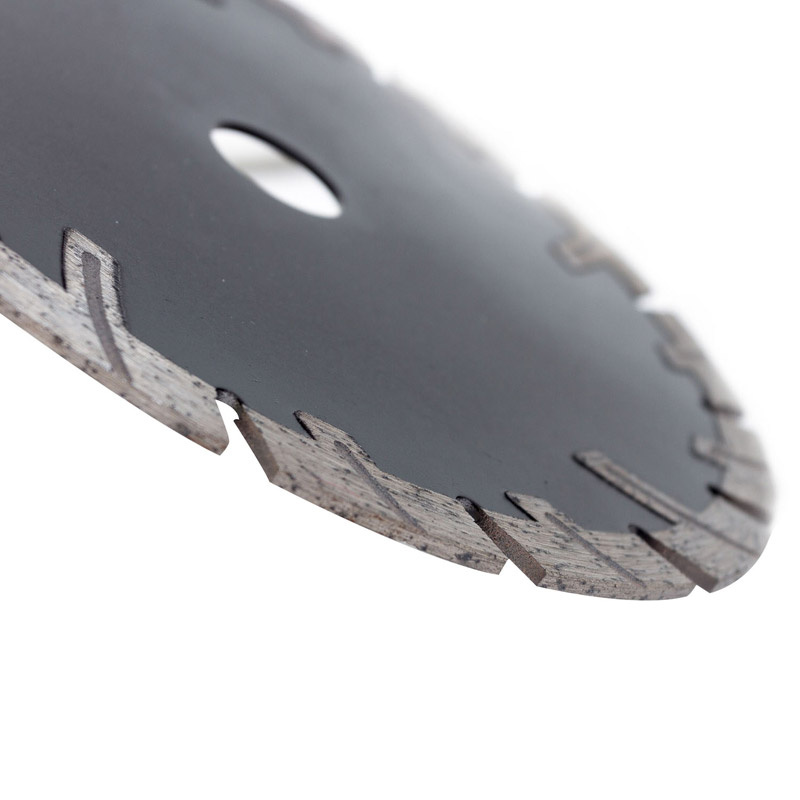

Teeth-protection blade
1:Fast cutting speed and small cutting gap
2:High cutting efficiency and no chipping
3:This product is widely used for cutting and nondestructive grooving on marble, granite, ceramic, tile, concrete, decorative material, used on manual cutting machine.
4:wet/dry cutting
| Diameter(mm) | Segment size(mm) | Core | Long segment number/short segment number |
| 105 | 1.8*8.0 | 16/20/22.23/25.4/50 | 9(3+6) |
| 115 | 1.8*10.0 | 16/20/22.23/25.4/50 | 9(3+6) |
| 125 | 2.0*10.0 | 16/20/22.23/25.4/50 | 9(3+6) |
| 150 | 2.2*10.0 | 16/20/22.23/25.4/50 | 12(4+8) |
| 180 | 2.4*10.0 | 16/20/22.23/25.4/50 | 15(5+10) |
| 230 | 2.8*10.0 | 16/20/22.23/25.4/50 | 21(7+14) |
Other specifications are available upon request.
Turbo Saw Blade
1:Fast cutting speed and small cutting gap and high cutting efficiency.
2:This product is widely used for cutting and nondestructive grooving on marble, granite, ceramic, tile, concrete, decorative material, used on manual cutting machine.
3:Suitable for wet/dry cutting
| Diameter(mm) | Segment Dimension(mm) | Born/mm |
| 105 | 1.8*8.0 | 16/20/22.23/25.4/50 |
| 115 | 1.8*10.0 | 16/20/22.23/25.4/50 |
| 125 | 2.0*10.0 | 16/20/22.23/25.4/50 |
| 150 | 2.3*10.0 | 16/20/22.23/25.4/50 |
| 180 | 2.5*10.0 | 16/20/22.23/25.4/50 |
| 200 | 2.6*8.0 | 16/20/22.23/25.4/50 |
| 230 | 2.6*10.0 | 16/20/22.23/25.4/50 |
Other specifications are available upon request.
