| Prod Model: |
QSQ2200/2500/3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Type For Fold-Bending Machine: |
Hydraulic Fold-Bend Machine |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Quality: |
High Performance |
| Feature: |
Fast Cutting Efficiency |
| Used: |
Granite, Basalt, Sandstone, Marble Ect. |
| Price: |
Competitive and Best Price |
| Cutting Life: |
Long |
| Brand: |
Wanlong |
| Max Dia Of Blade: |
3000mm |
| Product Name: |
Bridge Cutting Machine |
| Usage: |
Sandstone and Limestone |
| Application: |
Mining |
| Source Voltage: |
380V |
| Automation: |
Automatic |
| Type: |
Bridge Cutting Machine |
| Certification: |
Natural Stone Cutting Machine |
Product Description

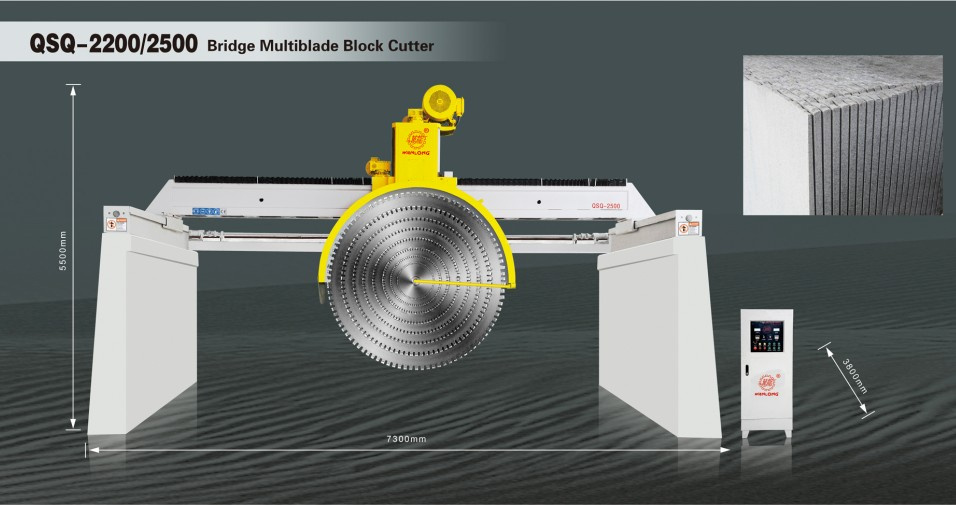

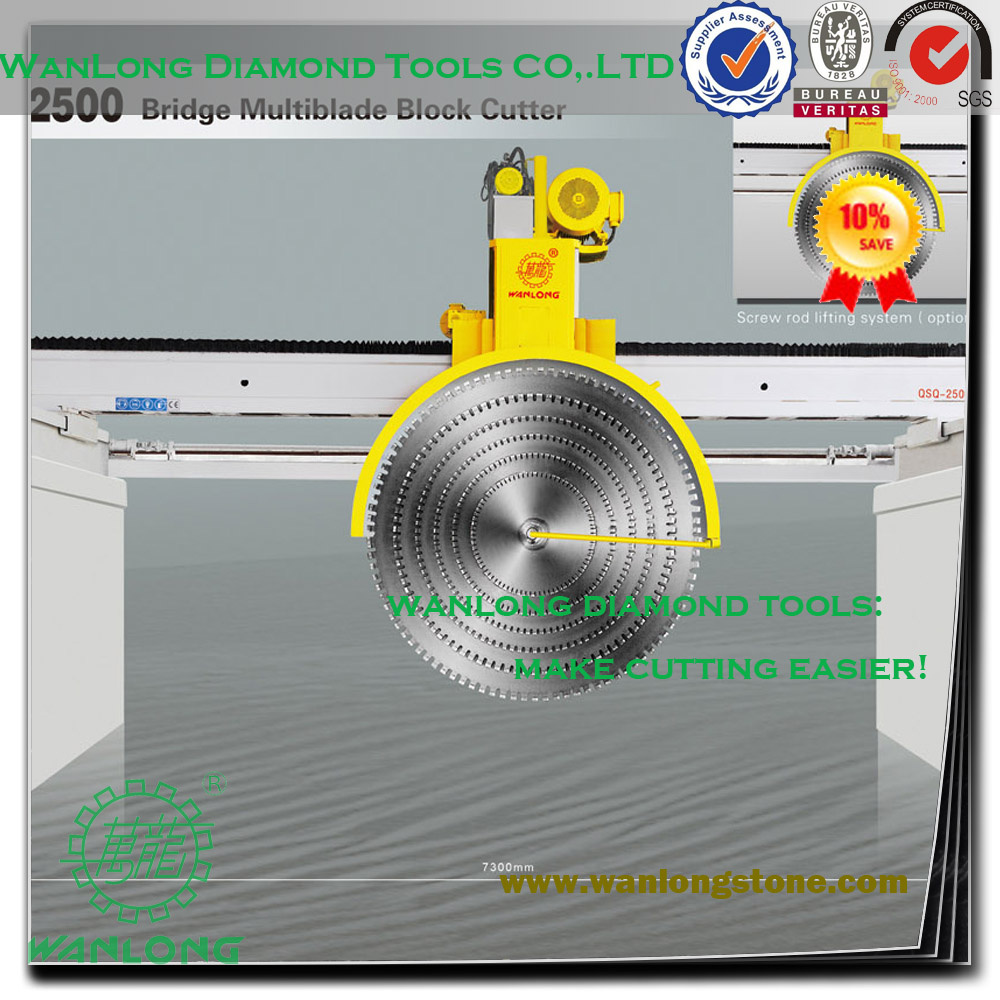

Bridge Multiblade Block Cutter (QSQ2200/2500/3000)
High efficiency for cutting block into slabs with multi-blade combination, this machine is the ideal equipment for producing large slabs.
Comparing with normal single blade cutting machine, this machine has following advantages:
Trolley is not necessary when cutting/ You can lie the block on the ground/cutting several blocks of different sizes at one time.
The crossbeam movement on the side beams. There precise cutting and less maintenance are available by this machine.
The machine can take multi-blades(2500/2000/1600/1200/800mm, 2200/2000/1800/1600/1370/1160/950/740/530mm). Daily production capacity for MID-hard granite can be 170sqm while the single blade life is only 30sqm.
Mechanical system
Wide-span crossbeam of bridge structure, large block cutting available
Crossbeam is made of strong cast iron to avoid distortion after long-term use
Dustproof design of the slide track ensures the precise guide movement & long lifespan
Double V-Shape guide rails enhance the smooth cutting and movement
Precise movement of cutting head in horizontal direction by precision rack & gear
Guide rail on the crossbeam is in oil bath and protected from water and dust
Electrical system
Cross movement of the cutting head on the crossbeam is driven by motor equipped with OMRON rotary encoder by which the precision is guaranteed
Installed with Panasonic frequency transducer and OMRON PLC, programmable and fully automatic, stability and flexibility guaranteed
Friendly human-machine interface design, easy operation
C. E. Certificate NO. -CN. CE. 0177-05108.
Technical Parameter
| QSQ-2200
| QSQ-2500
| QSQ-3000
|
Max. blade diameter/mm
| 2200
| 2500
| 3000
|
Max. cutting length/mm
| 3200
| 3000
| 2500
|
Max. cutting width/mm
| 1800
| 1800
| 1800
|
Max. cutting height/mm
| 950
| 1100
| 1350
|
Max. No. of blades
| 9 | 5 | 1 |
Main motor power/kw
| 45 | 45 | 45 |
Power requirement
| 3Phs380V50Hz
| | |
Overall dimension (LxWxH)/mm
| 7300X3800X5500
| 7300X3800X5500
| 7300X3800X6100
|
Total Weight/kg
| 10, 000
| 11, 000
| 12, 000
|
