| Prod Model: |
BL-22G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Stone, Rock and Concrete Cutting |
| Voltage: |
380V / 50Hz |
| Power: |
11 - 75 Kw |
| Rotation Angle: |
360 Degree |
| Application: |
Stone Saw |
| Type: |
Fixed |
| Power Source: |
Electricity |
| Saw Type: |
Wire Saw |
| Brand: |
Bestlink |
Product Description

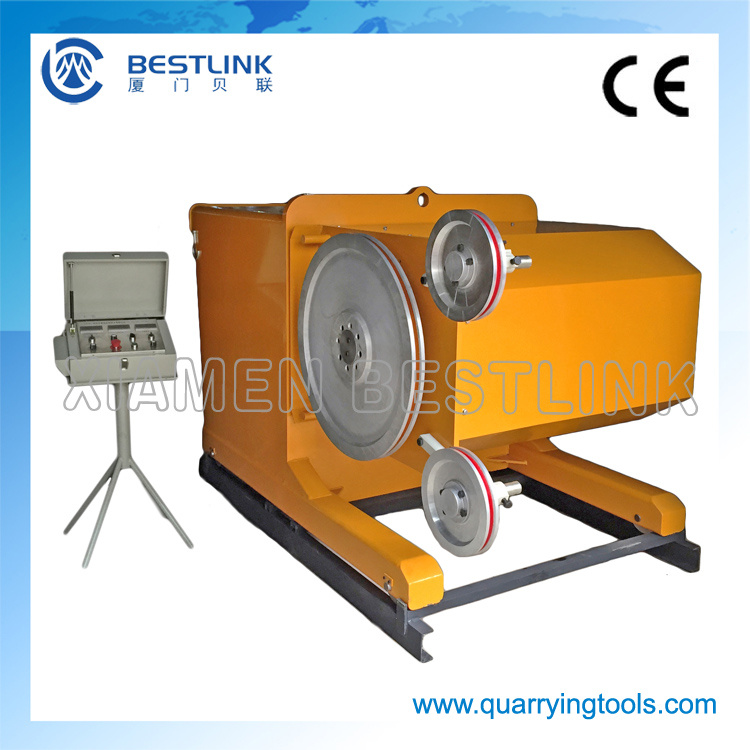

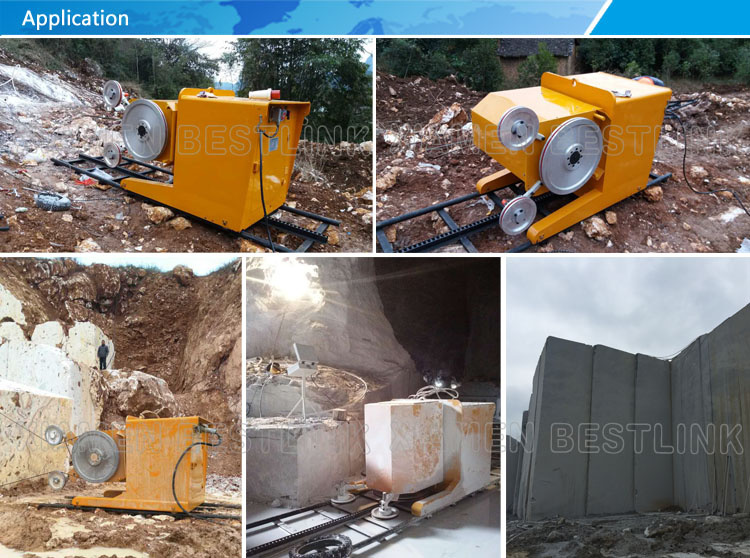

Bestlink Diamond Wire Saw Machine for QuarryingProducts Feature: This BL Series Diamond wire saw can apply horizontal, vertical and acclivity and other direction cutting in the quarry. Diamond wire saw can exploit large specification and regular blocks, the cutting fact is smooth and less hurt to the block, the thin crack of the stone operation can improve the working condition and increase the safety factor.
Advantage: 1.The wire tension and cutting current is closed loop automatic controlled by PLC and inverter.
2.The cutting process can be automatic controlled accurately.
3.The movement and rotation of the cutting head is driven by motor with position Limitation Protection.
4.Machine protection functions including: wire broken, Machine overload, cutting finished, and others malfunction happened.
5.Display an saving with digitization: the value of cutting current, linear speed and moving speed indicated on the panel, and the cutting time can be saved.
6. The machine without phase request. It is needn't to change and distinguish .
Main Technical Date:| Type | BL-11G | BL-15G | BL-18.5G | BL-22G | BL-30G | BL-37G | BL-45G | BL-55G | BL-75G |
| Driving Motor Power (kw) | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 |
| Flywheel's Diameter(mm) | 550 | 550 | 650 | 650 | 800 | 800 | 800 | 800 | 1000 |
| Linear Wire Speed(m/s) | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 |
| Towable length of wire (m) | 10-20 | 10-30 | 10-35 | 10-40 | 20-50 | 20-80 | 20-100 | 20-120 | 20-150 |
| Feeding Power (kw) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
| Sideways range (manual)(mm) | | | 200 | 200 | 450 | 450 | 450 | 450 | 650 |
| Rotation Angle (Degree celsius) | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 |
| Machine Travelling speed (m/h) | 0-30 | 0-30 | 0-30 | 0-30 | 0-32 | 0-32 | 0-32 | 0-32 | 0-32 |
| Length of Rail | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 |
| Power (AC V/Hz) | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| Working Temperature Range | -15~40 | -15~40 | -15~40 | -15~40 | -15~40 | -15~40 | -15~40 | -15~40 | -15~40 |
| Weight (Tons) | 0.35 | 0.37 | 0.6 | 0.7 | 2.1 | 2.3 | 2.6 | 2.9 | 3.1 |
Xiamen Bestlink Factory Co., Ltd.Is committed to providing the best drilling and cutting machines, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project.Our company is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in China.
Since 1985, we have produced and supplied high quality Split AG Non-Explosive Demolition Agent to our worldwide customers in the quarrying and demolition industries.
From early 2000, we have made a start in the study and developed the Hydraulic Rocks and Concrete Splitters by patent inventions, and reached a great success in the domestic and overseas market.Now, we are only a producer and exporter just now from China.
In 2004, we developed and produced the patented products:Hydraulic Rock Drill, Stone holes Groover, Stone Crack Expander and Hydraulic Rock Breaker.We offer a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities.
Now, quality products are being exported to more than 45 countries and regions all over the world including the USA and Europe with high reputation.
We are continually looking for ways to develop drilling and cutting technology for quarrying and demolition, and hoping to be the world No.1 company about quality and prices of hydraulic Splitters and Expansive Cement within 5 years.Thank you very much for your support and wish to get your deep interest and be your best partner.
