| Prod Model: |
HD142A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| External Diameter: |
225-525mm |
| Hole Range: |
254-800mm |
| Mining Object: |
Metallic and Non-Metallic Ore Excavator |

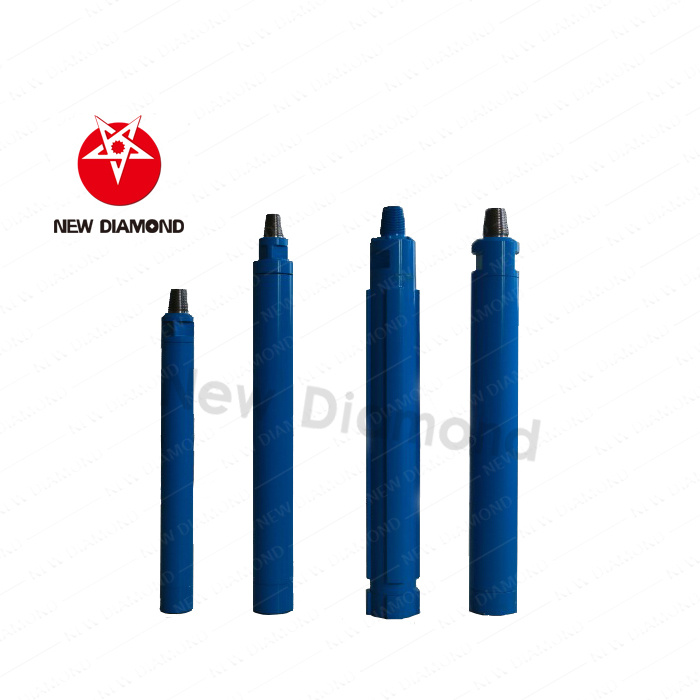

Product Description
It has the following characteristics:
1. Using the latest rock drilling theory, optimizing the inside structure and the size of the air distribution, to make the DTH hammer obtain the optimal energy transfer and make it achieve faster drilling speed and lower air consumption.
2. For such projects as the drill bit break, retrieving very difficult, we specially designed a safe and reliable anti-shedding device for the bit.
3. The check valve can be replaced to the one with bigger ail controlling hole to provide more efficent cuttings discharge.
4. The top sub and the drive chuck have special thread, which can achieve an easier disassemble.
Our advantages:
We have advanced production equipments & talented researchers & technicians & rich experiences in R & D and production.
We use the best quality raw materials.
We adopt advanced production technology & strict testing procedure.
We passed ISO9001 quality management system certification.
We accept OEM manufacturing and produce on your design.
Questions you may be interested in
About payment:
T/T(Telegraphic Transfer), Western Union, L/C at sight
About delivery time:
Based on your order quantity, generally it takes 20-25days for production
Only need 2 or 3 days if it's available in our stock.
About shipping:
Trail order, we suggest Courier express like DHL/UPS/TNT/FEDEX or by air,
Bulk order, we suggest by sea.
About quality control:
We have our experienced QC Dep
There will be strict inspection and testing for every oeder before shipping out.
About aftersale services:
Our sales team and technical Dep will be available at any time,
We'll offer services in time to handle the case (eg. Free replacement will provide once there is really quality problem exits).
Length (Less bit) | Weight (Less bit) | External diameter | Bit Shank | HoleRange | Connection Thread |
| 1388mm | 102.00kg | Φ142mm | DHD360 | Φ155-Φ195 | API3 1/2"Reg |
| Working Pressure | Impact rate at 1.7Mpa | Recommended rotation speed | Air consumption |
| 1.0Mpa | 1.8Mpa | 2.4Mpa |
| 1.0-2.5Mpa | 25HZ | 20-30r/min | 9m³/min | 18m³/min | 26m³/min |
Hunan New Diamond Machinery and Equipment Co., Ltd is a modern high-tech enterprise, specialized in researching and manufacturing rock drilling equipments and pneumatic tools.
We mainly produce:
1.1-2" Low-Middle Air Pressure DTH Hammer
2.3-12" High Air Pressure DTH Hammer (with/without Foot Valve)
3. Big Hole High Air Pressure DTH Hammer
4. Reverse Circulation Hammer
5. Down The Hole Bit
6. Overburden Drilling
7. Hole Opener Bit
8. Thread Button Bit
9. The Others (Shank Adapter, Coupling Sleeves, Drill Tube, Adapters etc. )
After 2 years' development, we are now having a production base covers 80 acres, with more than 300 skilled technicians works in. Our products are widely applied to earthmoving engineering, mining exploitation, oil drilling, water well drilling and pile foundation engineering etc. With rich experience in R & D and production, excellent management team, strong innovation creativity and production scale, our company has achieved great success continuously by the excellent quality products, which have been well accepted by end users and the brand has received extensive positive feedback from international markets and products have been exported to the United States, Australia, Brazil, South Africa, South Korea and other countries. Now we become to one of the most famous enterprises in drill industry in China, and we have the most complete product line, the most abundant series, and the most widely types.
