| Prod Model: |
U112H |
| Frequency Response(-3dB): |
50Hz-18kHz |
| Woofer: |
1X12"(300mm)/3.5" Voice Coil Woofer |
| Driver: |
1X1.4"(36mm)/3" Voice Coil Tweeter |
| Rated Power: |
450W RMS, 1800W Peak |
| Sensitivity: |
97dB 1 Watt/1 Meter |
| Impedance: |
8 Ohms Nominal |
| Maximum Spl: |
124dB Continuous, 130dB Peak |
| Dispersion(-6dB): |
90°X40° |
| Crossover Frequencies: |
1.5kHz Passive |
| Certificate: |
Ce, RoHS, CCC |
| Amplification Type: |
Passive |
| Usage: |
Multi-Purpose Hall, Moving Performance, Clubs |
| Speaker Material: |
Plywood |
| Structure: |
Two-Way Loudspeaker System |
| Function: |
Stage Loudspeaker |

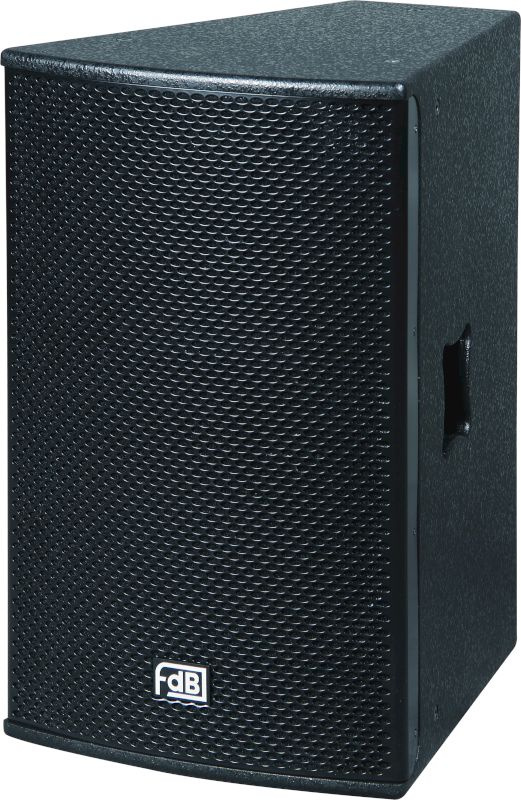

Product Description
Features:
The U112H is the ideal general-purpose loudspeaker with a wide frequency response, suitable for all kinds of mid-field theater and live venue applications that require professional sound quality. 1. Compact Two-way Passive System
2. Multi-angle Plywood Enclosure
3. Mid-high Frequency's Sensitivity Can Be Adjusted
4. Rotatable 90 °x40 ° Horn
5. Flexible Mounting Options
6. Top Hat Fitting for Tripod
Applications:
1.Multi-purpose Halls
2.High-end Hotels
3.Clubs
4. Live Sound Reinforcement
5. Stage MonitorDetailed Images
Main Product Introduction:
1.Line Array System: LA series
2. Monitor System : MR series

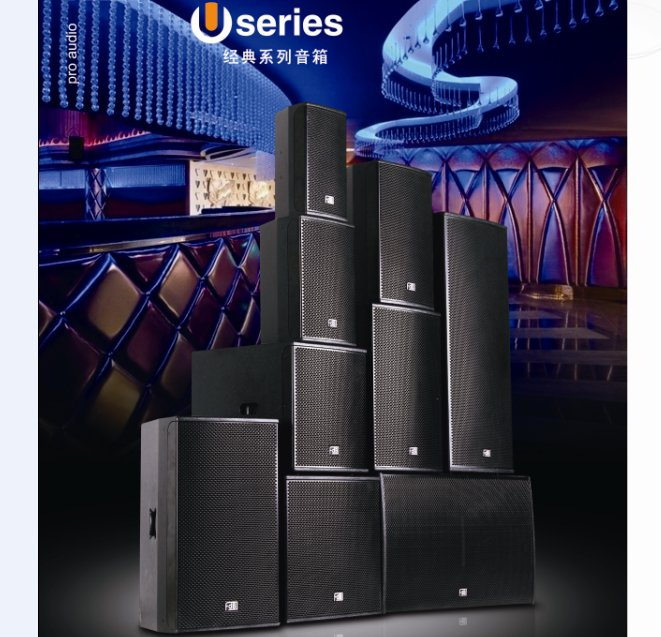

3. PA two-way loudspeaker system: U series,QS series, FT series
4. Multi-purpose MINI System: MINI series
5. Column system: K series
6. Plastic system: CX series
7. Long through system: LT series
8. Karaoke sytem: IW series, PR series and KW series
9. Active Series: KS and U Active series
10. Electronice products: amplifier and processor
Factory Introduction:
FDB Audio Manufacture Co., Ltd is specialized in researching, developing and manufacturing in PRO audio products. The main products are professional transducers(HF driver & woofer), speaker cabinets and electronic products like amplifiers and processors.
FDB Audio adopts the world' S top-aided software and advanced techonoloy, owns advanced production equipments and testing apparatus, establishes cooperation development mechanisms with a number of world top grade materials and accessories manufacturers. Some important materials are imported from abroad, like voice coil, diaphragm and paper cone.
FDB Audio has established and strictly enforced the standard quality management system in accordance with ISO 9001: 2008. "Strictly enforce sound processes and standards, full quality control and customer satisfaction" is the quality policy. Mr. Harry Xia is the boss of FDB Audio, graduated from Physical department of Zhenzhou University. He is engineer, has done proaudio district more than 20 years. He once worked for R&D department of the state-run speaker factory in Henan province about 3 years after graduating university, then worked for a Taiwan speaker factory in Guangdong about 2 years. After that, he joined Elder Audio as the sole engineer, factory manager and also one shareholder of this factory, once cooperated with BOSE, Thoman and Proel, they developed new models together. He worked for Elder audio about 9 years, quitted by the end of 2005 and established FDB Audio in Jan of 2006.

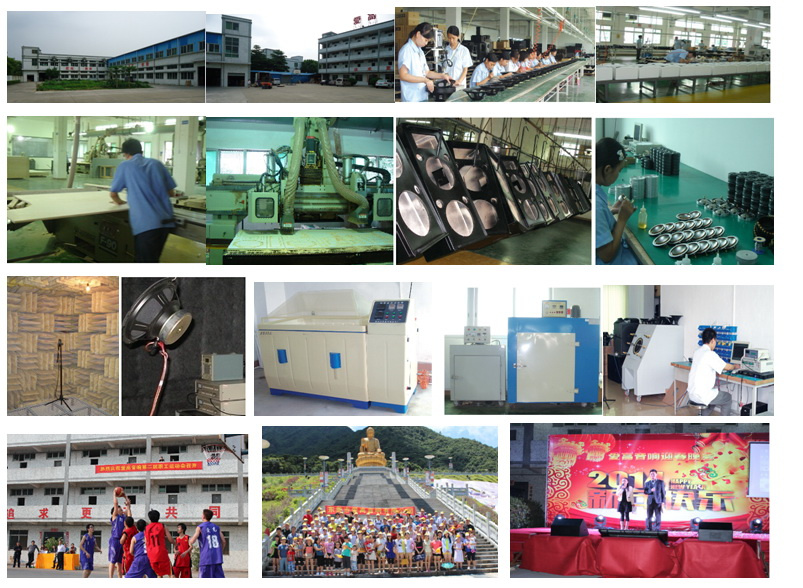

During 9 years effort, FDB Audio has gained good feedbacks from local and overseas market. The customers said " The quality is very stable, reliability and consistency are very good".Factory Pictures:
Factory Contacts:Tel: 0086-(0)769- 22781217-826
Direct:0086-(0)769-89820683
Fax: 0086-(0)769-22781297
Web: www.fdbaudio.com Warmly welcome OEM & ODM business ! | FREQUENCY RESPONSE(-3dB) | 50 Hz-18kHz |
| DRIVERS | 1×12"(300mm)/3"voice coil LF |
| 1×1.4"(36mm)/3"voice coil HF |
| RATED POWER | 450W RMS,1800W peak |
| SENSITIVITY | 97dB 1watt/1 metre |
| MAXIMUM SPL | 124dB continuous,130dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 90°×40° |
| CROSSOVER FREQUENCIES | 1.5kHz passive |
| PACKING SIZE | 530mmx495mmx710mm |
| NET WEIGHT | 25.8kg/pc |
| GROSS WEIGHT | 30.2 kg/pc |
FDB Audio Manufacture Co., Ltd is specialized in researching, developing and manufacturing in PRO audio products. The main products are professional transducers(HF driver & woofer), speaker cabinets and electronic products like amplifiers and processors.
FDB Audio adopts the world' S top-aided software and advanced techonoloy, owns advanced production equipments and testing apparatus, establishes cooperation development mechanisms with a number of world top grade materials and accessories manufacturers. Some important materials are imported from abroad, like voice coil, diaphragm and paper cone.
FDB Audio has established and strictly enforced the standard quality management system in accordance with ISO 9001: 2008. "Strictly enforce sound processes and standards, full quality control and customer satisfaction" is the quality policy.
Mr. Harry Xia is the boss of FDB Audio, graduated from Physical department of Zhenzhou University. He Is engineer, Has done proaudio district more than 20 years. He once worked for R&D department of the state-run speaker factory in Henan province about 3 years after graduating university, then worked for a Taiwan speaker factory in Guangdong about 2 years. After that, he joined Elder Audio as the sole engineer, factory manager and also one shareholder of this factory, once cooperated with BOSE, Thoman and Proel, they developed new models together. He worked For Elder audio About 9 years, quitted by the end of 2005 and established FDB Audio in Jan of 2006.
During 11 years effort, FDB Audio Has gained good feedbacks from local and overseas market. The customers said " The quality is very stable, reliability and consistency are very good
