| Prod Model: |
LA5312 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Response(-3db): |
50Hz-18kHz |
| Woofer: |
1X12"(300mm)/3" Voice Coil Woofer |
| Mediant: |
2X5"(132mm) 1.5" Vc Neodymium Mediant |
| Driver: |
2X1"(25mm)/1.7" Vc Neodymium Tweeter |
| Rated Power: |
600W RMS, 2400W Peak |
| Impedance: |
8 Ohms Nominal |
| Sensitivity: |
102db 1 Watt/1 Meter |
| Maximum Spl: |
130db Continuous, 136db Peak |
| Dispersion(-6db): |
Horizontal Coverage 90° |
| Crossover Frequencies: |
600Hz, 1.3kHz Passive |
| Amplification Type: |
Passive |
| Usage: |
Multi-Purpose Hall, Conference Room |
| Speaker Material: |
Plywood |
| Structure: |
3-Way Design Line Array |
| Function: |
Stage Loudspeaker |
Product Description

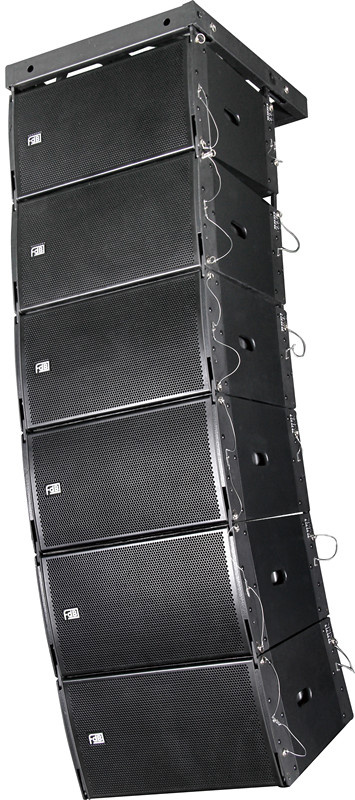

Features:The LA5312 is a three-way line array loudspeaker for long throw distance sound reinforcement,use the LA5312 flying frame which can be flown in vertical columns up to 16 cabinets. LA5312 is a 3-way design housing fitted with one 12" LF drivers, two 5" MID drivers and two 1" HF driver coupled to 1"×6" line array horn. The cylindrical wave segments of each cabinet can couple without gaps and sum up coherently. Splay angles between adjacent cabinets can be set in the range from 0° to 8°Applications:1.Multi-purpose Halls
2.outdoor moving performance
3. Clubs
4. churches
5. Live Events
Main Product Introduction: 1.Line Array System: LA series
2. Monitor System : MR series
3. PA two-way loudspeaker system: U series,QS series, FT series
4. Multi-purpose MINI System: MINI series
5. Column system: K series
6. Plastic system: CX series
7. Long through system: LT series
8. Karaoke sytem: IW series, PR series and KW series
9. Active Series: KS and U Active series
10. Electronice products: amplifier and processor
Factory Introduction:FDB Audio Manufacture Co., Ltd is specialized in researching, developing and manufacturing in PRO audio products. The main products are professional transducers(HF driver & woofer), speaker cabinets and electronic products like amplifiers and processors.
FDB Audio adopts the world' S top-aided software and advanced techonoloy, owns advanced production equipments and testing apparatus, establishes cooperation development mechanisms with a number of world top grade materials and accessories manufacturers. Some important materials are imported from abroad, like voice coil, diaphragm and paper cone.
FDB Audio has established and strictly enforced the standard quality management system in accordance with ISO 9001: 2008. "Strictly enforce sound processes and standards, full quality control and customer satisfaction" is the quality policy.
Mr. Harry Xia is the boss of FDB Audio, graduated from Physical department of Zhenzhou University. He is engineer, has done proaudio district more than 20 years. He once worked for R&D department of the state-run speaker factory in Henan province about 3 years after graduating university, then worked for a Taiwan speaker factory in Guangdong about 2 years. After that, he joined Elder Audio as the sole engineer, factory manager and also one shareholder of this factory, once cooperated with BOSE, Thoman and Proel, they developed new models together. He worked for Elder audio about 9 years, quitted by the end of 2005 and established FDB Audio in Jan of 2006.
During 9 years effort, FDB Audio has gained good feedbacks from local and overseas market. The customers said " The quality is very stable, reliability and consistency are very good".

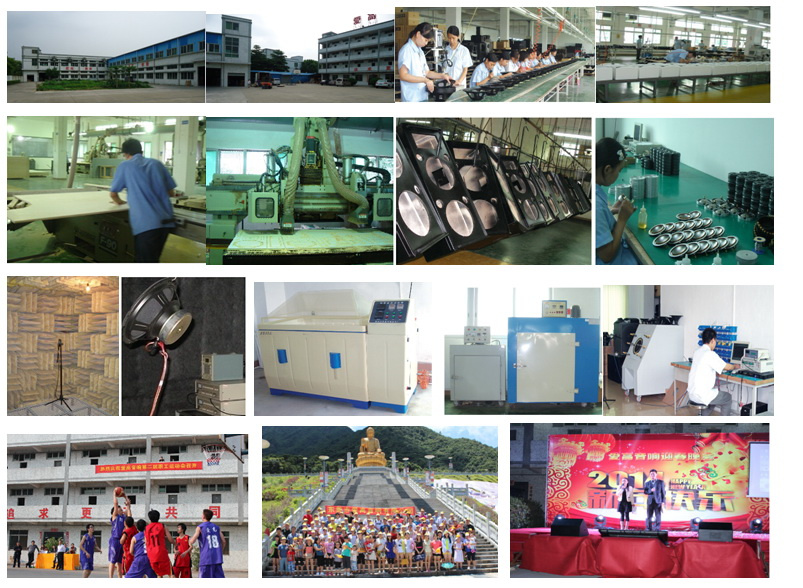

Factory Pictures:
Factory Contacts:Tel: 0086-(0)769- 22781217-826
Direct:0086-(0)769-89820683
Fax: 0086-(0)769-22781297
Web: www.fdbaudio.com Warmly welcome OEM & ODM customers ! | MODEL | LA5312 ( Full range speaker) |
| FREQUENCY RESPONSE(-3dB) | 50Hz-18kHz |
| DRIVERS | 1×12"(300mm)/3"voice coil LF |
| 2×5"(132mm)/1.5"voice coil MF |
| 2×1"(25mm)/1.7"voice coil HF |
| RATED POWER | 400W RMS,1600W peak |
| SENSITIVITY | 100dB 1watt/1 metre |
| MAXIMUM SPL | 126 dB continuous,132 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | Horizontal coverage:100° |
| | Varies, depending on array length and configuration |
| CROSSOVER FREQUENCIES | 800Hz, 2.2kHz passive |
| INPUT CONNECTORS | 2×Speakon NL8 |
| PACKING SIZE | 775mm×600mm×990mm(Flight case/Pair) |
| 662mm×497mm×822mm |
| NET WEIGHT | 42.7 kg/pc |
| GROSS WEIGHT | 122 kg/(Flight case/Pair) |
| 46.2 kg/pc(Carton/pc) |
| | |
| MODEL | LA118B (Subwoofer) |
| FREQUENCY RESPONSE(-3dB) | 40Hz-300Hz |
| DRIVERS | 1×18"(460mm)/4"voice coil LF |
| RATED POWER | 600W RMS,2400W peak |
| SENSITIVITY | 99dB 1watt/1 metre |
| MAXIMUM SPL | 127dB continuous,133 dB peak |
| IMPEDANCE | 8 ohms nominal |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKING SIZE | 775m×860mm×775mm(Flight case/pc) |
| 895mm×795mm×615mm |
| NET WEIGHT | 71.5 kg/pc |
| GROSS WEIGHT | 108.5 kg/(Flight case/pc) |
| 77.5 kg/pc |
FDB Audio Manufacture Co., Ltd is specialized in researching, developing and manufacturing in PRO audio products. The main products are professional transducers(HF driver & woofer), speaker cabinets and electronic products like amplifiers and processors.
FDB Audio adopts the world' S top-aided software and advanced techonoloy, owns advanced production equipments and testing apparatus, establishes cooperation development mechanisms with a number of world top grade materials and accessories manufacturers. Some important materials are imported from abroad, like voice coil, diaphragm and paper cone.
FDB Audio has established and strictly enforced the standard quality management system in accordance with ISO 9001: 2008. "Strictly enforce sound processes and standards, full quality control and customer satisfaction" is the quality policy.
Mr. Harry Xia is the boss of FDB Audio, graduated from Physical department of Zhenzhou University. He Is engineer, Has done proaudio district more than 20 years. He once worked for R&D department of the state-run speaker factory in Henan province about 3 years after graduating university, then worked for a Taiwan speaker factory in Guangdong about 2 years. After that, he joined Elder Audio as the sole engineer, factory manager and also one shareholder of this factory, once cooperated with BOSE, Thoman and Proel, they developed new models together. He worked For Elder audio About 9 years, quitted by the end of 2005 and established FDB Audio in Jan of 2006.
During 11 years effort, FDB Audio Has gained good feedbacks from local and overseas market. The customers said " The quality is very stable, reliability and consistency are very good
