| Price: | US $ 55-60/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

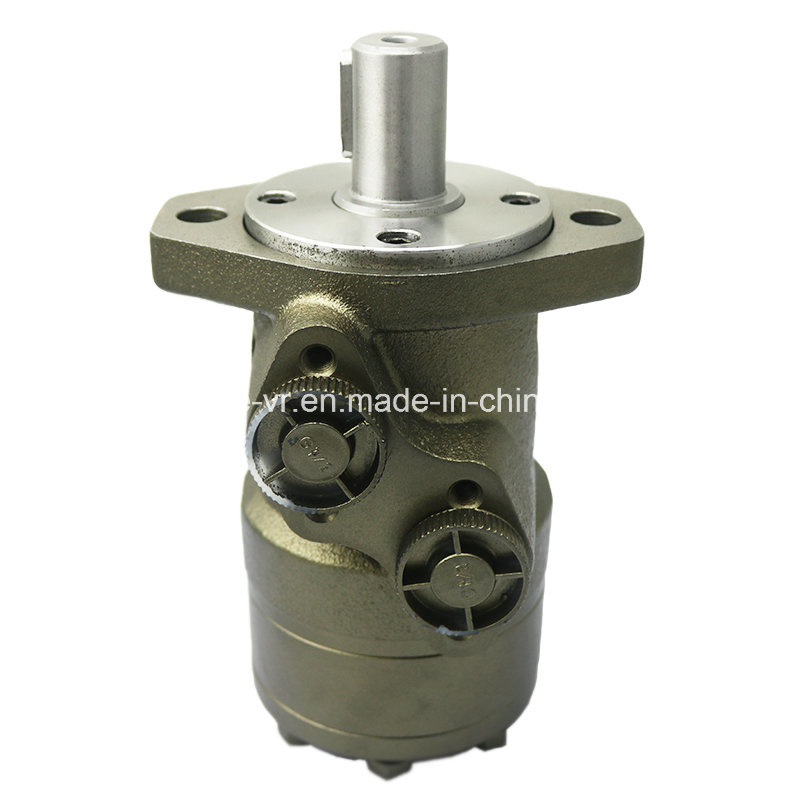

| Prod Model: | omr36ml/r |
|---|---|
| Material: | Cast Iron |
| Structural: | Gear |
| Application: | Plastic Machine, Agriculture Machine |
| Warranty: | One Year |

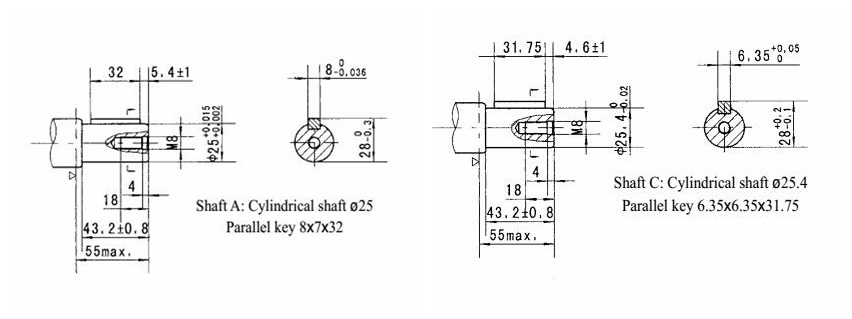

| Cylindrical Shaft: | 25mm/25.4mm/32mm |
| Usage: | Hydraulic Oil |

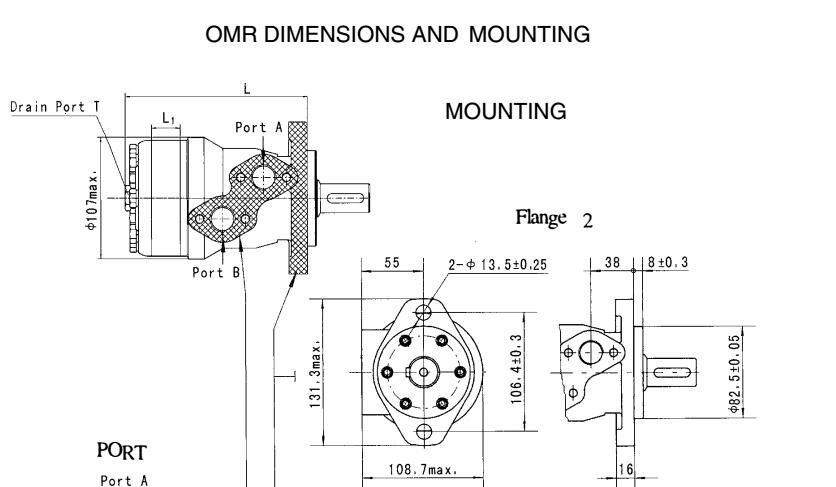

| Flange: | 2 Bolts/4bolts |
| Flange Diameter: | 106.4mm |
| Port: | G1/2 |
| Drain Case Port: | G/4 |
| OMR 36 | OMR 50 | OMR 80 | OMR 100 | OMR 125 | OMR 160 | OMR 200 | OMR 250 | OMR 315 | OMR 375 | ||
| Displacement (cc/rev) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max speed rate (rpm) | cont | 1250 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int | 1520 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max pressure (Mpa) | cont | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| Max torque (n.m) | cont | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| Max flow (L/min) | cont | 45 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int | 55 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
Danliss hydraulic motor application:
1.Warraty: one Year from out of my factory.
2.For all your inquires about us or our products, we will reply you in detail within 24 hours.
3. We offer OEM services. Can print your own logo on product if your quantity enough.
3.We have sales who have engage in hydraulic industry about 8years to help you custom-made the sales solution.
4.We have engineers who has the rich experience in hydraulic product and system to help you solve all the problems of technical.
5. Payment term: T/T, Paypa, western union.
