Prod Model: |
BMR160 |
Material: |
Cast Iron |
Structural: |
Gear |
Application: |
Plastic Machine, Agriculture Machine |
Warranty: |
One Year |

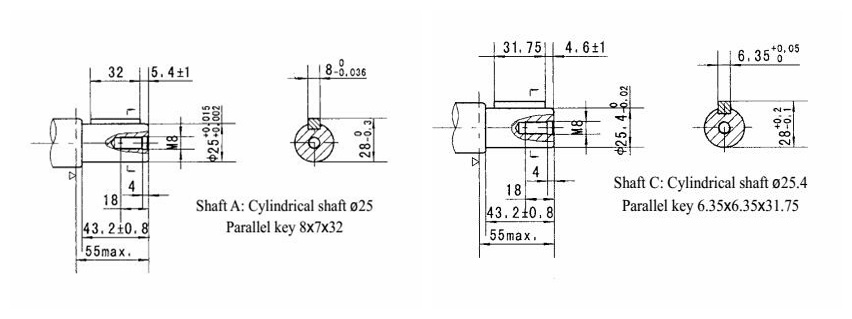

Cylindrical Shaft: |
25mm/25.4mm/32mm |
Usage: |
Hydraulic Oil |
Flange: |
2 Bolts/4bolts |
Flange Diameter: |
106.4mm |
Port: |
G1/2 |
Drain Case Port: |
G/4 |
Product Description

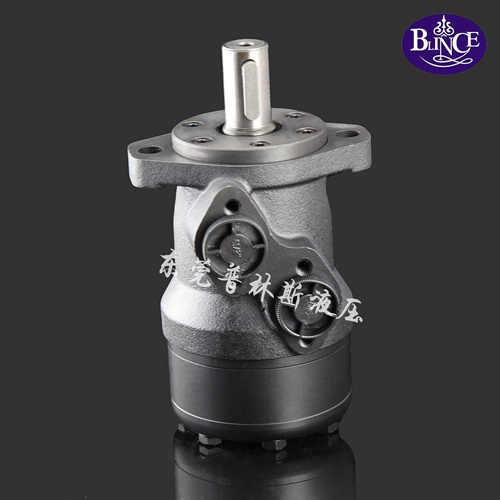

Injection molding machine parts BMR hydraulic motors
OMr/BMR hydraulic motor specification:Features:
- Displacement: 51.7 - 401.9 cm3/rev;
- Rotational speed range: 5 - 775 rpm;
- Maximum pressure: 140/225 (continuous/peak);
- Maximum power: 4 - 10 kW.
Advantages:
- Low starting pressure;
- Reinforced shaft seals;
- Possibility of serial and parallel combination of motors;
- Low noise level;
- Compact design and easy installation;
- Shaft ball bearing.
| OMR 36 | OMR 50 | OMR 80 | OMR 100 | OMR 125 | OMR 160 | OMR 200 | OMR 250 | OMR 315 | OMR 375 |
Displacement (cc/rev) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 |
Max speed rate (rpm) | cont | 1250 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
int | 1520 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 |
Max pressure (Mpa) | cont | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
int | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 |
Max torque (n.m) | cont | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
int | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 |
Max flow (L/min) | cont | 45 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
int | 55 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |

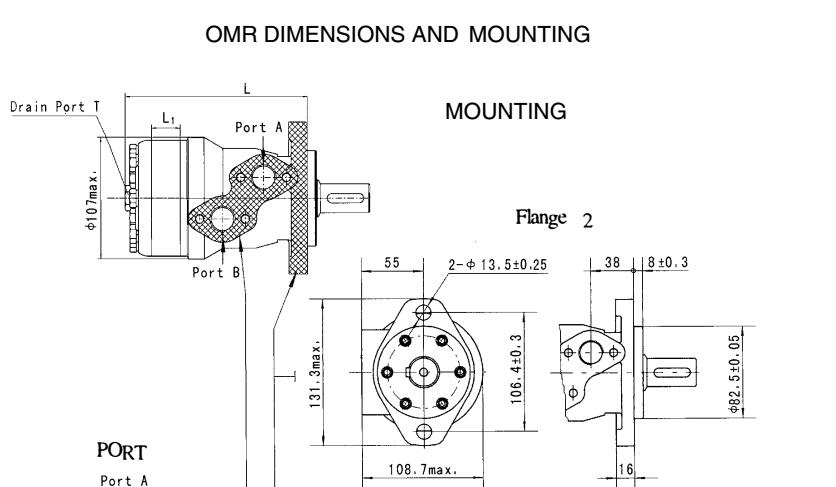

OMR/MR hydraulic motor mounting dimension:

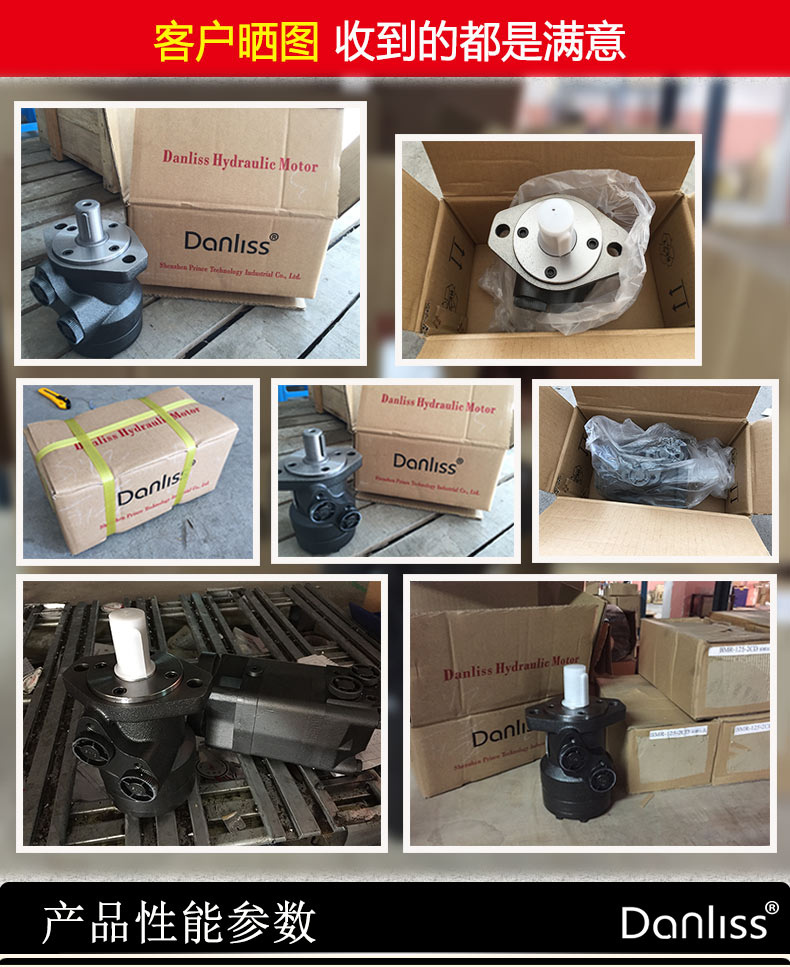

OMR/BMR hydraulic motor package detail:
Danliss hydraulic motor application:
About company:Shenzhen Blince Technology Industrial Co., Ltd. Located in Shenzhen China, specialize in hydraulic product' development, marketing and production for more than 10 years.
Blince main production
Orbit motor: OMM/OMP/OMPH/OMR/OMRS/OMH/OMT/OMS/OMV/OMK6/OMER series replace danfoss and eaton model.
Radial Piston Motor: NHM 1/2/3/6/8/11/16/31
Hydraulic pump: Yuken series PV2R, Vickers series V/VQ, and also pump cartridge kits.
Steering control unit: Replace danfoss OSPC ON/OR, OSPB ON/OR
Our product widely application for fishing machinery, agricultural machinery, engineering machinery, mining machinery, industrial machinery, aviation and transport machinery etAbout service: 1.Warraty: one Year from out of my factory.
2.For all your inquires about us or our products, we will reply you in detail within 24 hours.
3. We offer OEM services. Can print your own logo on product if your quantity enough.
3.We have sales who have engage in hydraulic industry about 8years to help you custom-made the sales solution.
4.We have engineers who has the rich experience in hydraulic product and system to help you solve all the problems of technical.
5. Payment term: T/T, Paypa, western union.
How to contact?:
Phone:+8613560881920
Whatsapplication:008613560881920
Tel: +86-769-85156586
Fax: +86-769-851580786
