| Prod Model: |
FY-M |
| Pulling Force: |
157-9680kn |
| Oil Area: |
24.54-1302cm2 |
| Tensioning: |
251-14980kn |
| Pressure: |
60.7-125MPa |
Product Description

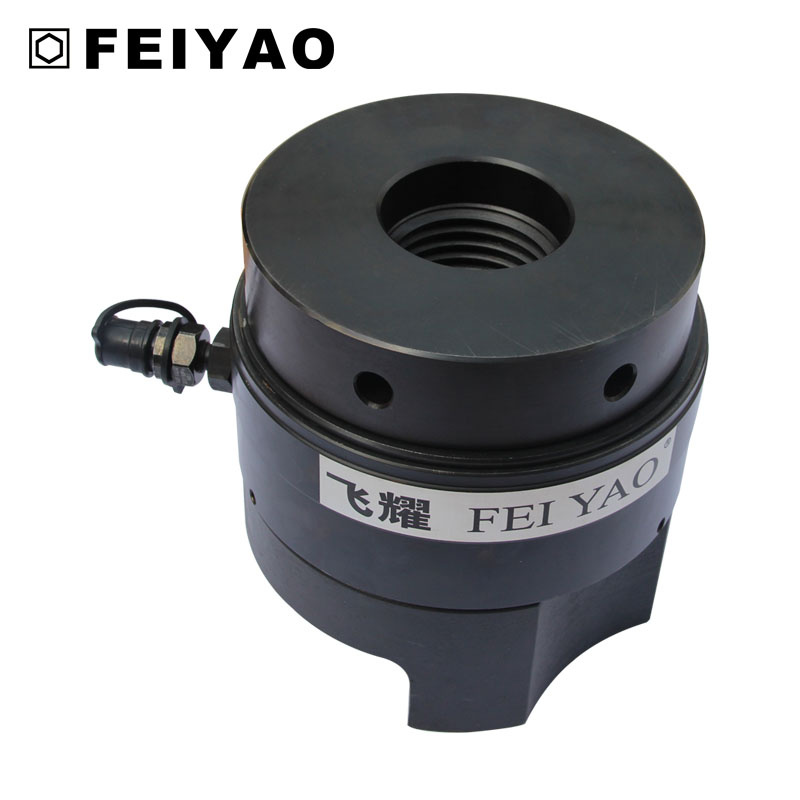

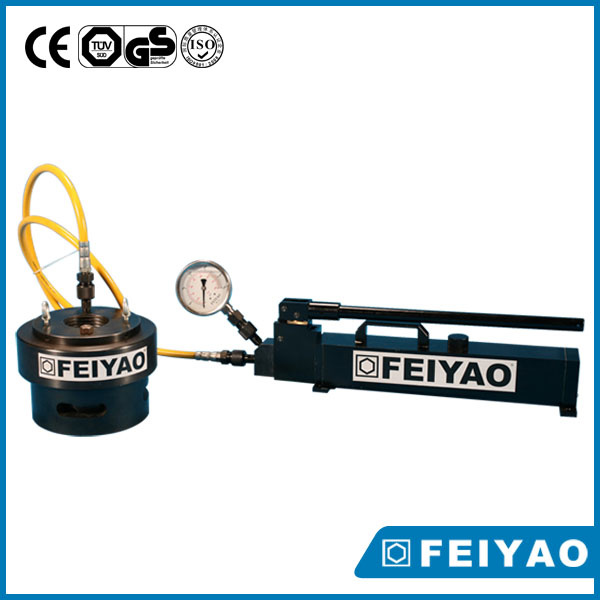

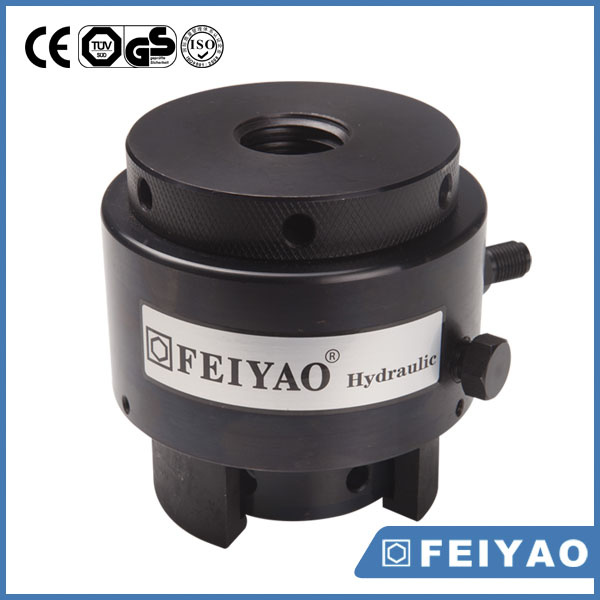

Bolt Tightening Device Hydraulic TensionerFeatures:1. High precision, fast speed and safe
2. Wide range application for various bolts
3. Simply to operated
Hydraulic bolt tensioners was wildly application scope, involving various industrial fields,Metallurgy, mining, oil chemical industry, reactor, engine, pump, motor, compressor, heat exchanger, large transmission equipment, port machinery and material handling, wind power generation, etc

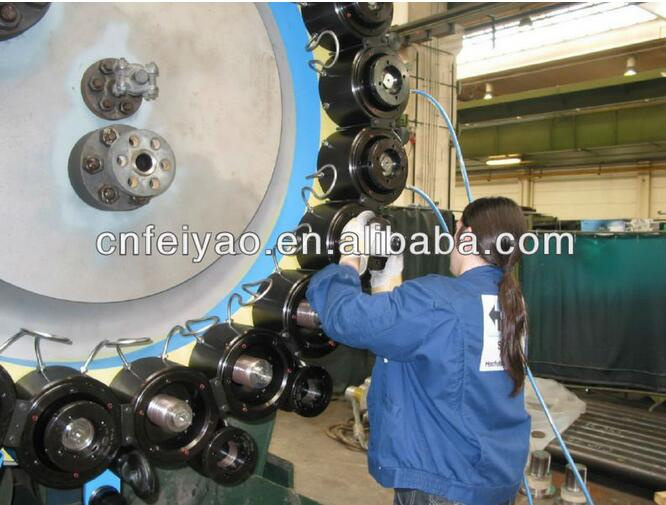

Accurate and Fast - Simultaneous multiple tensioning
Reliable- Robust Cylinders designed through multiple engineering calculations
Quality and Safe - high strengths materials of aircraft grade alloys
Quick and Easy - Incorporating quick disconnects nipples
Wide tooling range for different bolt/stud sizes up to 500 Ton

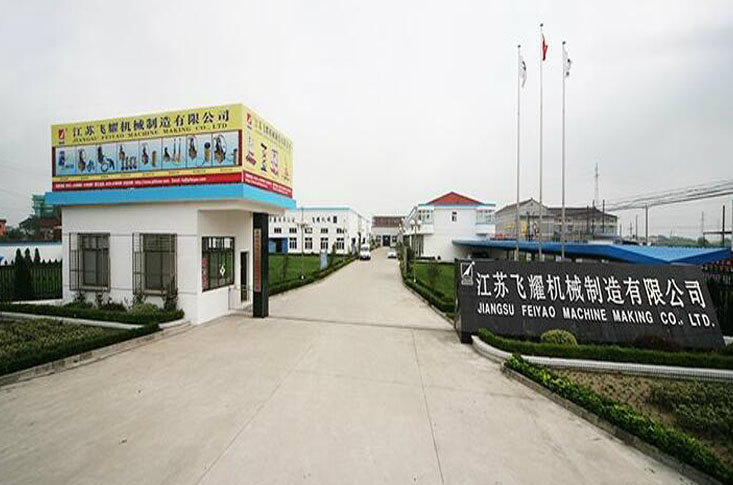

Brief introduction of FEIYAO
Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.
Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.
We warmly welcome all overseas customers to talk with us about business or other cooperations.

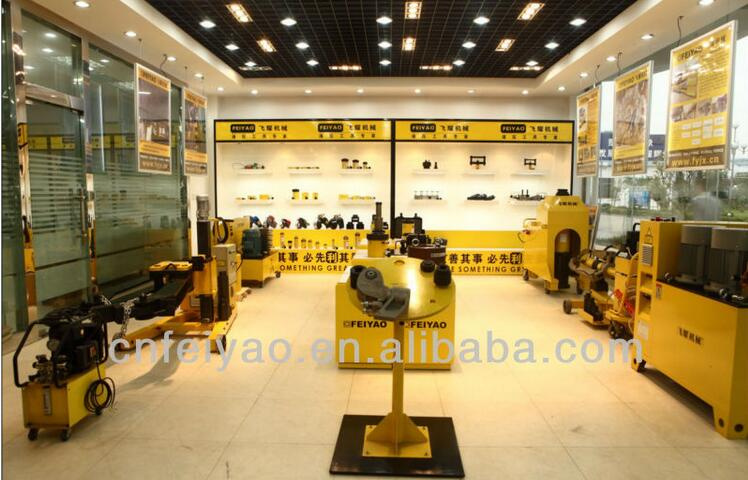

Any phone call, E-mali, Fax from you would be a beginning of happy cooperation. Showroom

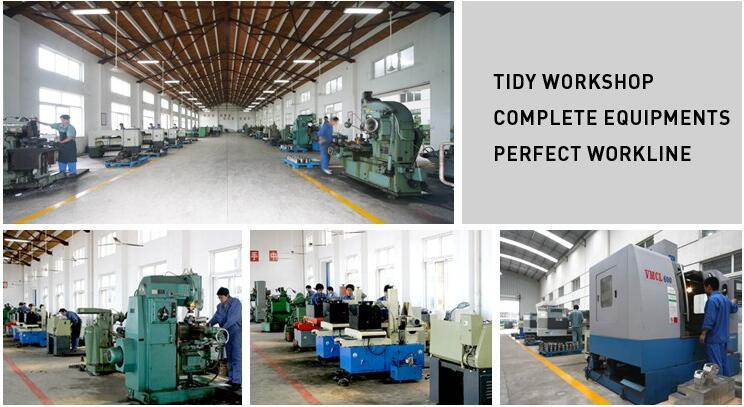

Workshop
For more information please visit our website:www.fyhydraulic.cn We are professional manufacturer, offer you competitive price.If you have any questions about these products , please contact us ,we will try our best to help you ! CONTACT USJiangsu Feiyao Machinery Manufacturing Co.,LtdContact person: Miss. Bella LiangTel+86-180-3679-7771
Office: +86 523 86183388 I Fax: +86 823 86186999 IHydraulic Tools Manufacturing Leader !
Jiangsu Canete Machinery Manufacturing Co.,Ltd
Factory: No.199, Jinger Road, Economic Development Zone,Taizhou City,Jiangsu of China.Parameter information| model |
adaptable
(M)
|
oil area
(cm 3 )
|
pressure
Mpa
|
pulling force
KN
|
tensioning
KN
|
| FY-M 3.5 | M30Χ3.5 | 24.54 | 60.7 | 157 | 251 |
| FY-M 4 | M36X4 | 30.60 | 71.8 | 230 | 366 |
| FY-M 4 | M39X4 | 35.6 | 73.66 | 275 | 401 |
| FY-M 4.5 | M42X4.5 | 50.34 | 59.4 | 315 | 502 |
| FY-M 5 | M48X5 | 53.00 | 73.35 | 415 | 659 |
| FY-M 5.5 | M56X5.5 | 68.9 | 79.1 | 576 | 909 |
| FY-M 6 | M64X6 | 94.2 | 68 | 762 | 1198 |
| FY-M 6 | M72 X6 | 125 | 76.3 | 991 | 1551 |
| FY-M 6 | M80 X6 | 159.54 | 72.7 | 1247 | 1946 |
| FY-M 6 | M90 X6 | 213.5 | 69.8 | 1605 | 2504 |
| FY-M 6 | M100 X6 | 226 | 74.3 | 2011 | 3136 |
| FY-M 6 | M110 X6 | 275.5 | 74.57 | 2469 | 3834 |
| FY-M 3 | M120 X6 | 371 | 66.3 | 2911 | 4614 |
| FY-M 6 | M130 X6 | 388.58 | 74.9 | 3346 | 5452 |
| FY-M 6 | M140 X6 | 452.16 | 75.2 | 3832 | 6361 |
| FY-M 6 | M150 X6 | 647.60 | 60.6 | 4415 | 7329 |
| FY-M 6 | M160 X6 | 371 | 61.89 | 5184 | 8377 |
| FY-M 6 | M170 X6 | 803 | 63.3 | 5811 | 9237 |
| FY-M 6 | M180 X6 | 876 | 35.4 | 6617 | 10410 |
| FY-M 6 | M190 X6 | 1036 | 82 | 7395 | 11624 |
| FY-M 6 | M200 X6 | 1170 | 81 | 8221 | 12928 |
| FY-M 6 | M210 X6 | 1236 | 95 100 | 8850 | 13890 |
| FY-M 6 | M220 X6 | 1302 | 100 125 | 9680 | 14980 |
Concentrate on the design and manufacture of hydraulic products, Jiangsu Feiyao Machinery Manufacturing Co., Ltd is a professional hydraulic manufacturer who integratesR&D, marketing, customer service and import & export. With strict and efficient manufacturing&operation system and perfect quality control and guarantee system, FEIYAO provides a full range of engineering solutions for customers.
Relies on advanced research and application technology and with joint effort of domestic professionals, FEIYAO has developed high-end hydraulic products (already has a number of invention patents) and capacity of customizing a variety of scientific and reasonable solutions in rich product lines. Through continual innovations in designs and applications, FEIYAO provides high-quality hydraulicproducts for customers.
Based on the advanced computer control technology, in the past decades, FEIYAO has been devoted itself to providing customers with engineering solutions in the heavy load, high precision control, multi logical action and multi-point control fields, etc., and offering safe&efficient equipment and services in all kinds of applications like multi-point synchronous push, translation, lifting, stretching, walking, asymmetric component weighing, tension, space adjustment, intelligent walking, handling large equipment.
At present, the company's products have been widely used in many industries at home and abroad, such as the construction and maintenance of roads and bridges, installation and moving of offshore oil platform, historic buildings, sports gymnasiums, blast furnaces, power equipment and ocean shipping manufacturing.
The synchronous hydraulic lifting systems have made a great contribution to the bridgelifting and maintenance in China, which has won praise from numerous bridge construction enterprises!
