| Price: | US $ 0.89-2.76/Piece |
|---|---|
| Min Order: | 2000/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | AS-A1014 |
|---|---|
| Pressure: | Pn16 |
| Screw: | Stainless Steel |
| Accessory Cover: | Stainless Steel |
| Thread Stardard: | ISO228(BS2779) |
| Working Temp.: | -20c to + 120c |
| Certificate: | Ce |
| Sealing: | Teflon PTFE |
| O-Ring: | NBR |
| Handle: | Zinc Alloy Handle |
| Finishing: | Chrome Plated |
| Connection Form: | Thread |
| Usage: | Heating Pipeline |
| Size: | 1/2inch |
| Situation: | Household, Industrial |
| Hot Or Cold: | Hot and Cold |

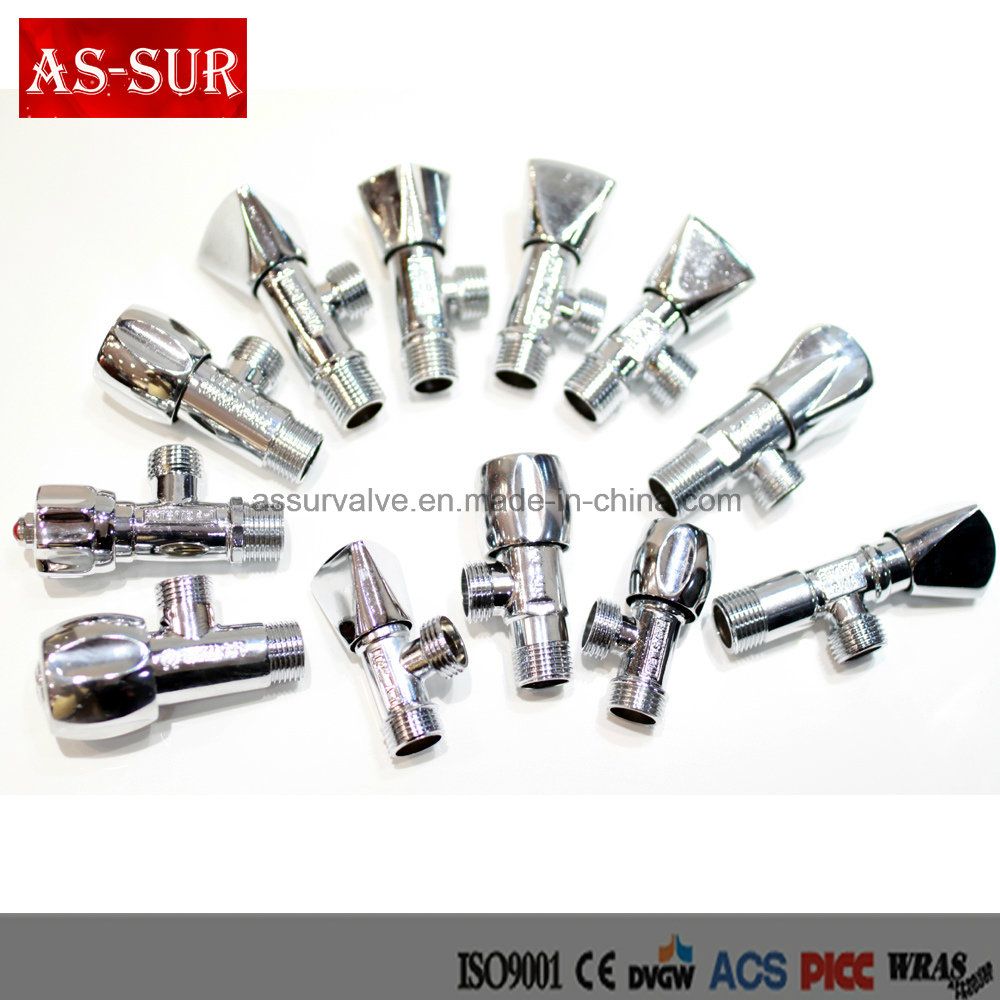

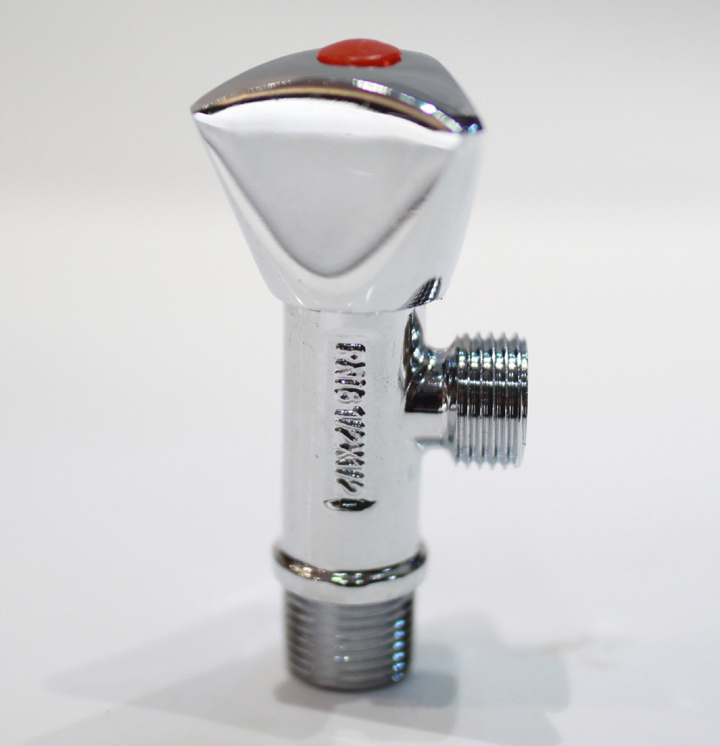

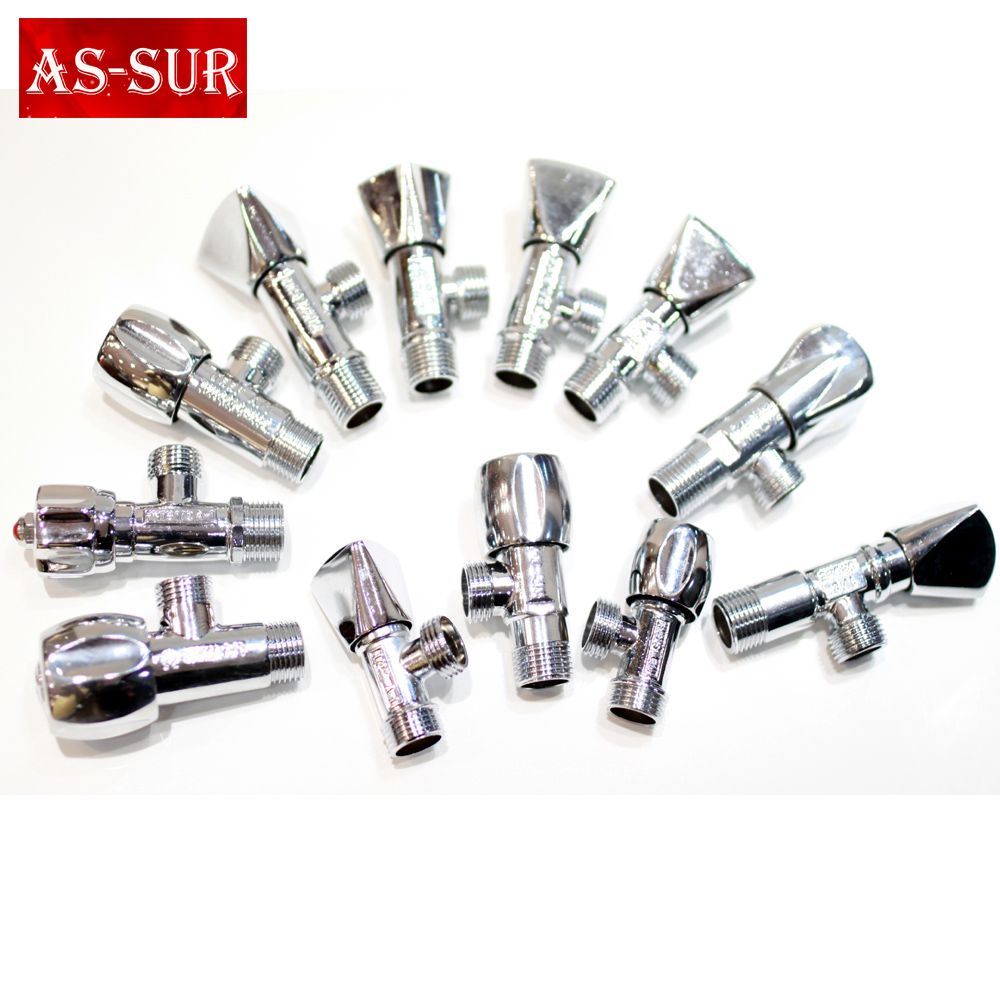

| Brass Angle Valve with Ceramic Cartridge | ||||
| Item Code | Item Des. | Size | Weight Grams | Pcs/Ctn |
| AS-A1014 | Brass Body,Brass cartridge, Zinc alloy handle, BSP thread,Polished and Chrome Plated | 1/2" | 180G 200G 220G | 100 |
| Product Name | Toilet brass angle valve | |||
| Material of Parts | Brass Body +Zinc Alloy Handle | |||
| Material Composition | Cu 59%-1 | |||
| Cartridge | Ceramic Core/Brass Core | |||
| Cartridge Life cycle | 500,000 cycles of on and off | |||
| Product Craftwork | Gravity Casting | |||
| Thickness of Plating | Chrome>0.25um | |||
| Surface Finishing | Polished/Chrome | |||
| Air pressure Testing | 0.60+/-0.05Mpa | |||
| Water Pressure Testing | 1.6Mpa | |||
| Max. Flowrate | 1.5-2.5gmp/m@80psi/5.7-9.5L | |||
| Quality Guarantee | 3 years | |||
| DN1 | DN | A | H | L1 | L1 |
| 1/2" | 1/2" | 10 | 42 | 52 | 76 |
| NO. | Part Name | Material | NO. | Part Name | Material |
| 1 | Body | Brass | 7 | Plastic Gasket | ABS |
| 2 | Handle | Zinc Alloy | 8 | Up Insert | Ceramics |
| 3 | Accessory Cover | Stainless Steel | 9 | Low Insert | Ceramics |
| 4 | Screw | Brass | 10 | Circlip | Stainless Steel |
| 5 | Seat | Brass | 11 | Washer | Silicagel |
| 6 | O Ring | NBR | 12 | O Ring | NBR |
| Basic Dates | |||||
| 1.Brass Material Used | |||||
| HPB57%-3 HPB59%-1 | CW614N CW617N | CuZn39Pb3 CuZn40Pb2 | Lead Free Copper | C3604 | |
| 2.BasicTechnical Dates | |||||
| Type Of Thread | Surface Treatment | Temperature | Pressure | Medium | 100% Leakage Testing |
| ISO228/BSP/NPT/JIS | Orgianl Color Nickel Plated Polished Chrome | 0≤T≤ 120ºC | 1.6MPA | Water/oil/gas | |
