| Price: | US $ 0.873-1.245/Piece |
|---|---|
| Min Order: | 2000/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | AS-BB007 |
|---|---|
| Ball: | Brass Ball |
| Stem: | Brass Stem |
| Nozzle: | Brass |
| Thread Stardard: | ISO228(BS2779),Bsp,NPT,JIS |
| Working Temp.: | -20c to + 120c |
| Certificate: | Ce |
| Sealing: | Teflon PTFE |
| O-Ring: | NBR |
| Handle: | Iron Handle with Plastic Cover |
| Finishing: | Nickle Plated |
| Material: | Brass |
| Connection Form: | Thread |
| Channel: | Straight Through Type |
| Structure: | Fixed Ball Valve |
| Type: | Fixed Ball Valve |
| Application: | Household Usage |

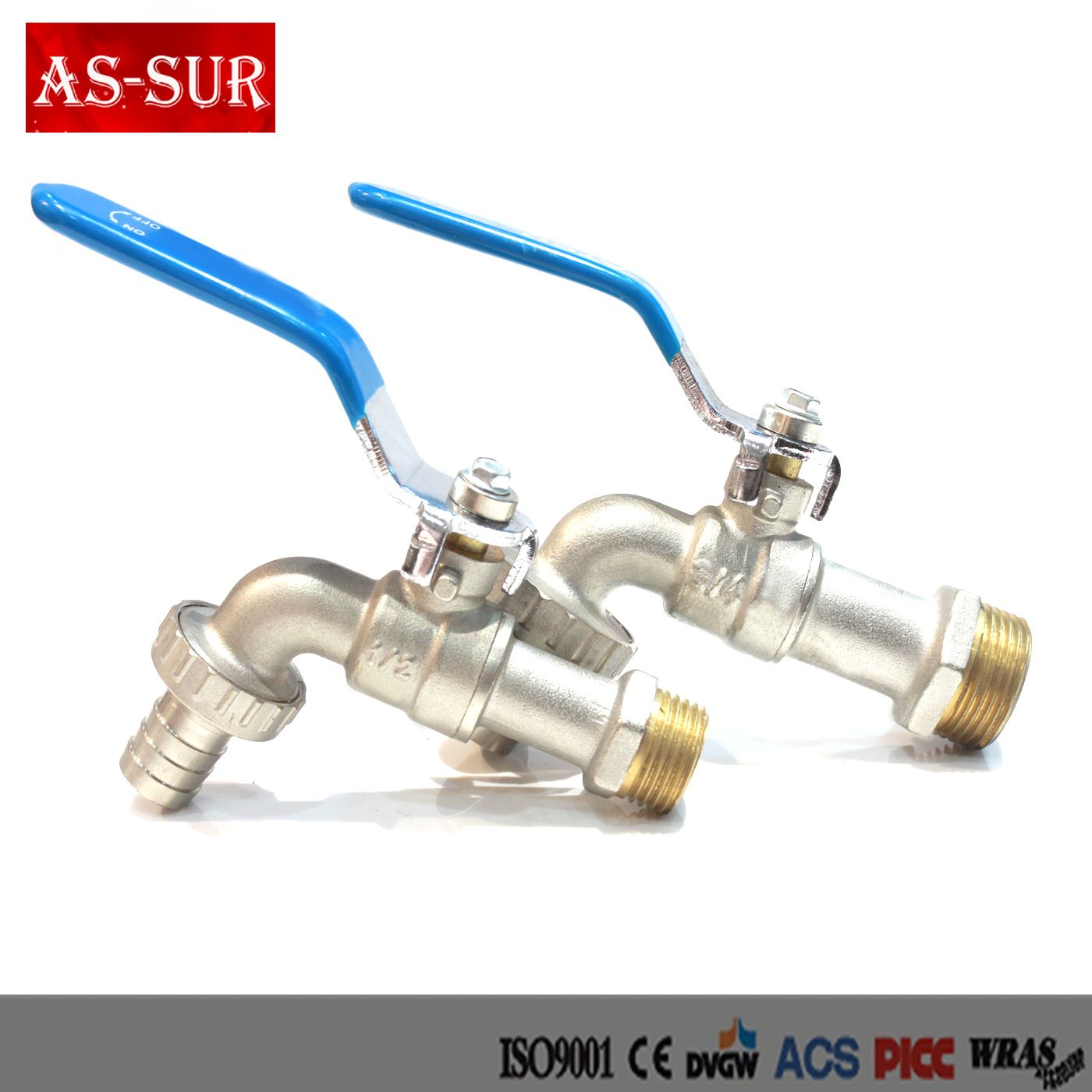

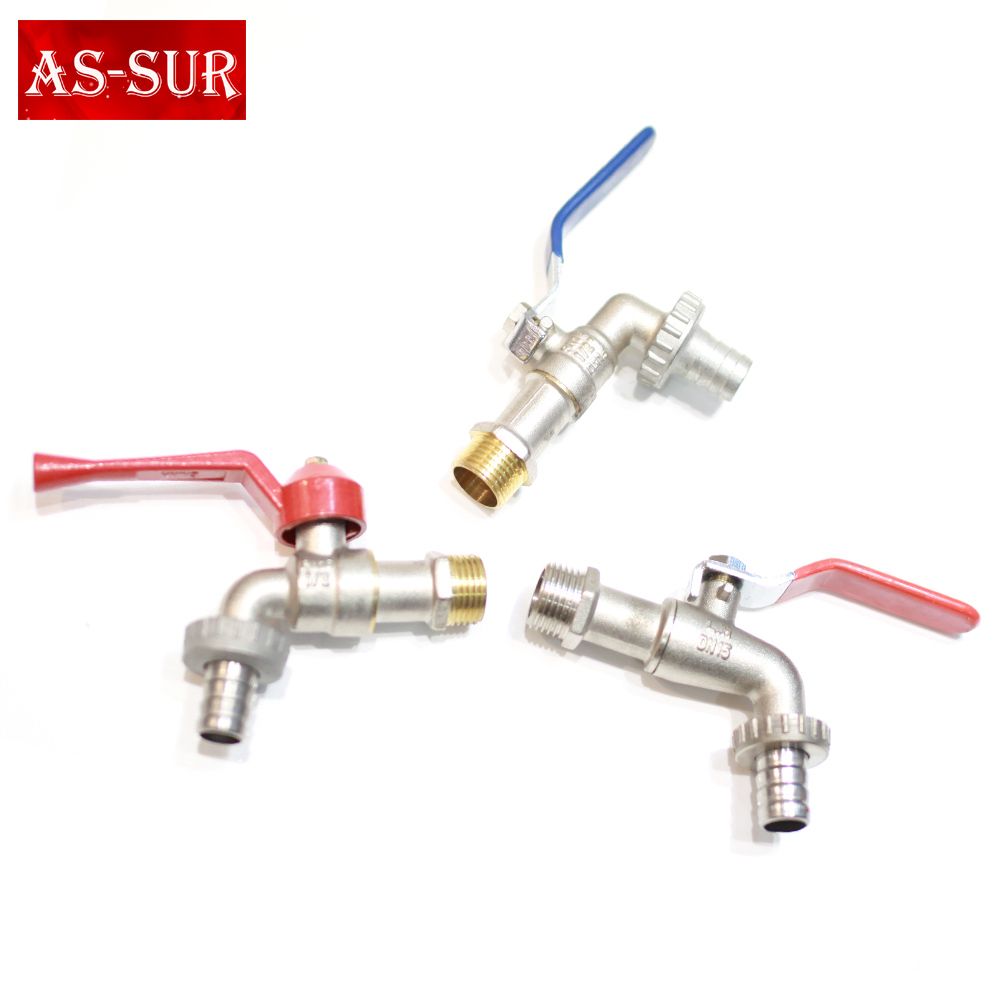

| brass bibcock/Taps | |||
| Item Code | Item Des. | Size | Weight |
| AS-BB007 | Brass Body,Brass ball,brass stem, PTEF seat, steel handle with plastic cover, brass Nozzle BSP thread,Nickle palted | 1/2"x3/4" | 180G |
| 3/4"x1" | 290G | ||
| 1"x1 1/4" | 360G | ||
| Basic Dates | |||||
| 1.Brass Material Used | |||||
| HPB57%-3 HPB59%-1 | CW614N CW617N | CuZn39Pb3 CuZn40Pb2 | Lead Free Copper | C3604 | |
| 2.BasicTechnical Dates | |||||
| Type Of Thread | Surface Treatment | Temperature | Pressure | Medium | 100% Leakage Testing |
| ISO228/BSP/NPT/JIS | Orgianl Color Nickel Plated Polished Chrome | 0≤T≤ 120ºC | 1.6MPA | Water/oil/gas | |
| 3.Description Of Parts | |||||
| Ball | Stem | Sealing | Handle | Nut | |
| Brass Ball With Chrome Plated | Brass/Iron | PTFE(Teflon) | Iron Handle Aluminum Handle Butterfly Handle | Brass/Steel/Iron | |
| Iron Ball With Chrome Plated | |||||
