| Prod Model: |
BTF-RU-013 |
| Name: |
High Speed Steam Copper Connector Rotary Joint Un |
| Connection: |
Male |
| Shape: |
Equal |
| Head Code: |
Round |
| Model Number: |
OEM |
| Process: |
Casting Machine |
| Quality Control: |
100% Inspection Before Packing |
| Surface: |
Coating, Painting, Plating, Polishing, or to Orde |
Product Description

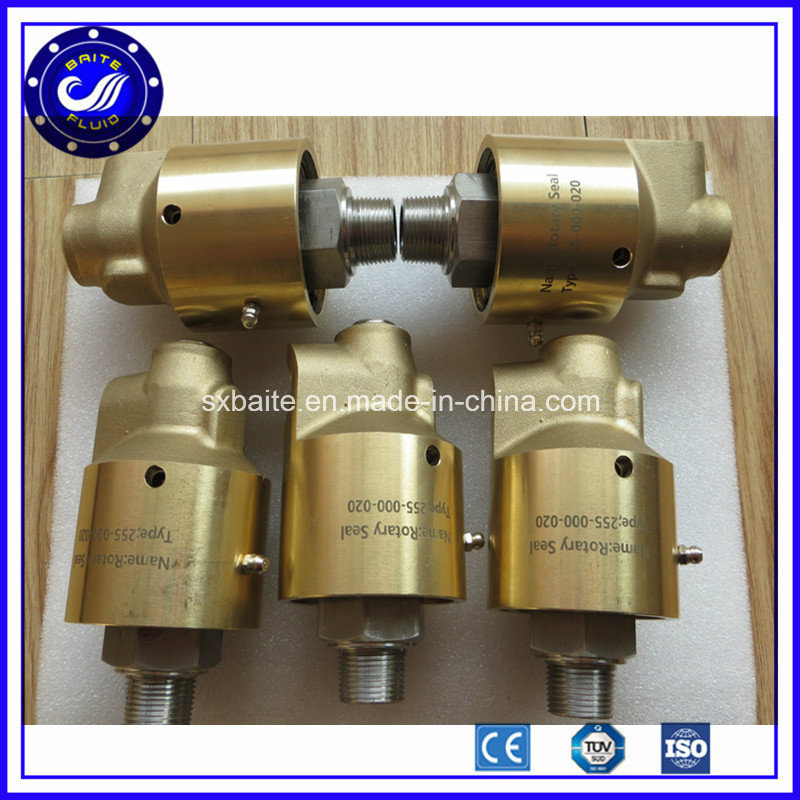

brass high speed steam copper connector rotary joint union for printing machine parts
Rotary Unions and Rotary Joints Rotating Unions and Rotary Joints (also known as rotary swivels, rotary couplings) are precision mechanical devices used to transfer fluid from a stationary source, such as a supply pipe, into a rotating piece of machinery. Rotating Unions and Rotary Joints are used in numerous manufacturing processes to cool, heat, or transfer fluid (pneumatic or hydraulic) power.

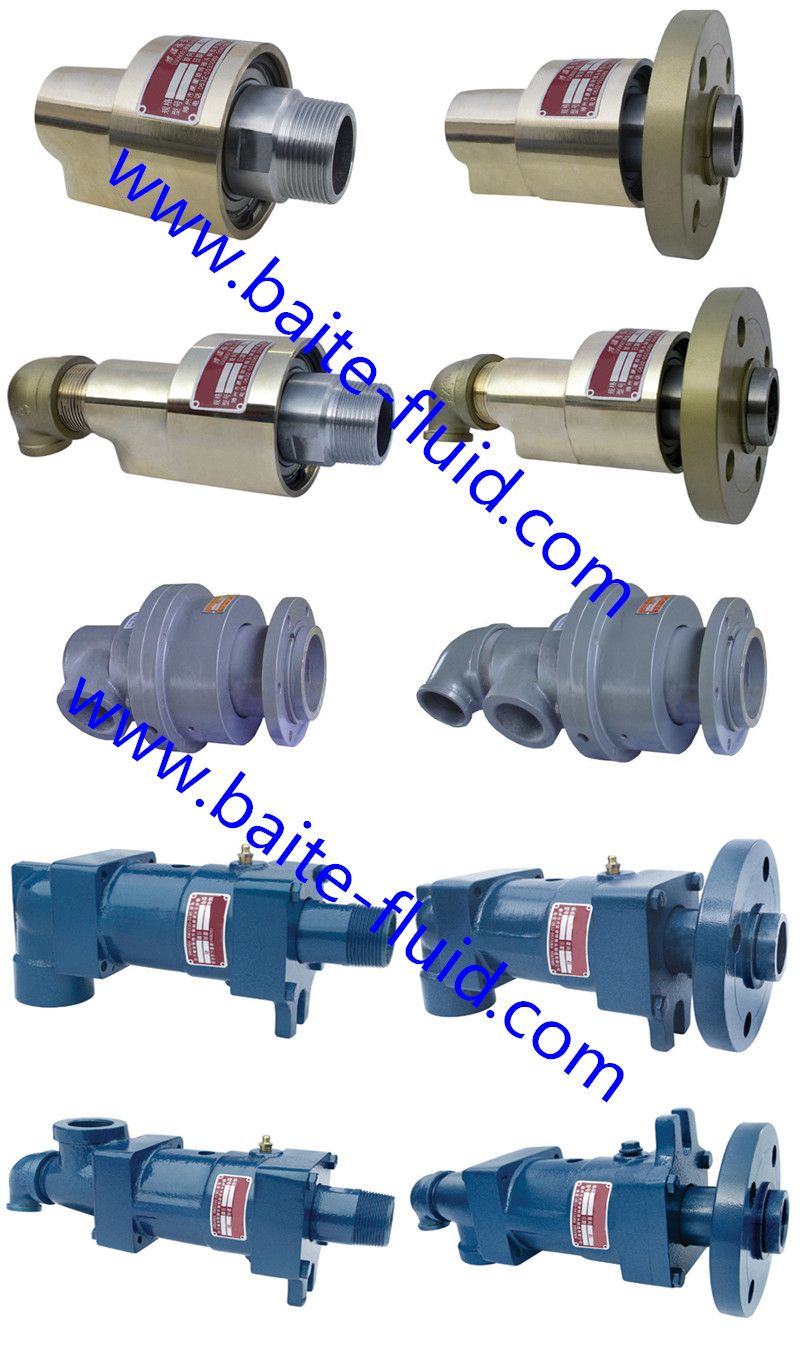

Main Product
Product Specifications Performance | Product type | H series | D series | Q series |
| Rotating direction | Left / Right | Left / Right | Left / Right |
| Maximum rotating speed | 3000r/min | 500r/min | 300r/min |
| Maximum temperature | 220ºC | 300ºC | 350ºC |
| Maximum pressure | 1.8Mpa | 1.8Mpa | 2.0Mpa |
| Medium | water, air, salt water | Water, steam, oil, air | Saturated steam ,superheated steam ,superheated water, heat transfer oil |
| Service | ODM,OEM | ODM,OEM | ODM,OEM |
Product Details

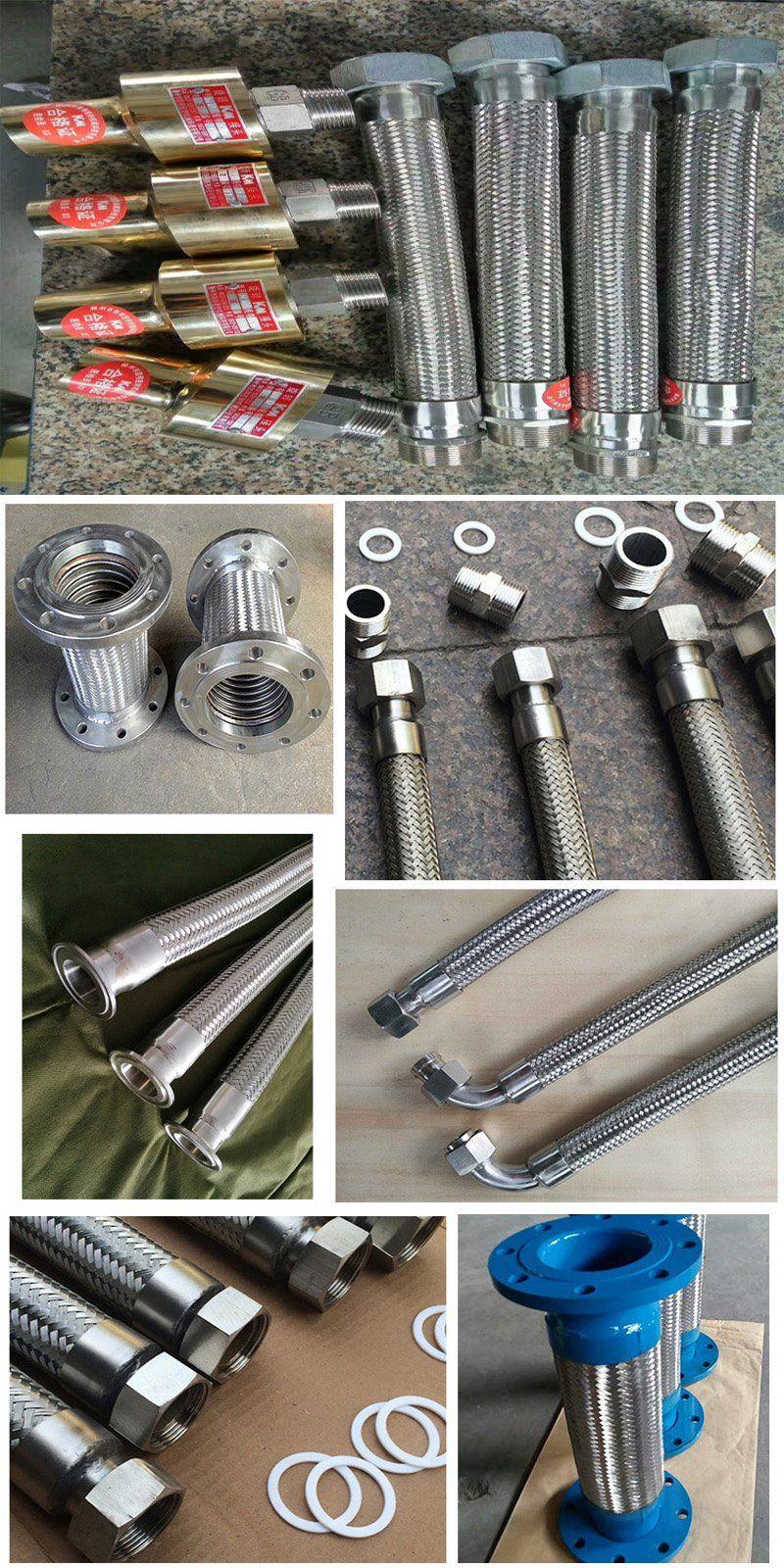

Related Products
Quality AssuranceRaw material inspection(5steps)- Raw materials testing is to ensure the raw material conforming to the order requirements.Process testing(10steps)-Each processing step testing is to guarantee each step product qualified.Factory testing(6steps)-Assure 100% product qualified rate to meet customer's requirementsContact Us
Shanxi Baite Fluid Machinery Co., Ltd ( Baite-Fluid, BTF ) is one of the professional domestic and foreign manufacturer and trader in forgings, pneumatic products and machined parts. Baite-Fluid is located in Shanxi Province, in north area of China and has been served over 10 years with rich resources of industrial raw material & power supply in a variety of industries. The company has always been to innovation management and technology, keeping the management, technical level and quality level with the world.
Our products are as below:
1. Standard Flanges.
2. Wind tubine tower connecting flange, wind power tower flanges.
3. Forged Steel Rings, seamless steel rolled rings.
4. Various of large forging parts, large size flange for GB, ANSI, DIN, JIS, EN1092-1 standard and OEM drawing accordingly.
4. Pneumatic cylinder, solenoid valve, manifold, FRL and other pneumatic tube and fittings.
5. Machinery parts.
6. Stamped parts.
7. Oil lubricator system.
They are widely used in power plants, petroleum, chemical industry, building materials, water treatment, urban construction and other industries. The products are well solid in domestic and foreign to get the praise from users.
Today our aim is to provide all of our customers with VALUE of the products instead of only low prices. Based on years of experience, fluent communication and professional quality control, we guarantee on time response, on time delivery and cost saving to meet customers' expectation. In a word, you can find one station service here for 24 hours.
Welcome to contact us right away for more information, our team will be always ready to prepare a quotation for your present or future projects.
