| Prod Model: |
2w pneumatic solenoid valve BTF-SV-032 |
| Medium: |
Air, Water, Gas, Oil |
| Structure: |
2/2 Way Direct Acting Diaphragm |
| Temperature: |
-5~120c |
| Fluid Pressure: |
0~1.0MPa |
| Valve Specification: |
2W Solenoid Valves |
| Name: |
Washing Machine Solenoid Valve |
| Certification: |
ISO Ce |
| Connection Form: |
Thread |
| Type: |
Direct Acting |
| Valve Structure: |
Direct Action Diaphragm Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Household Usage |
Product Description

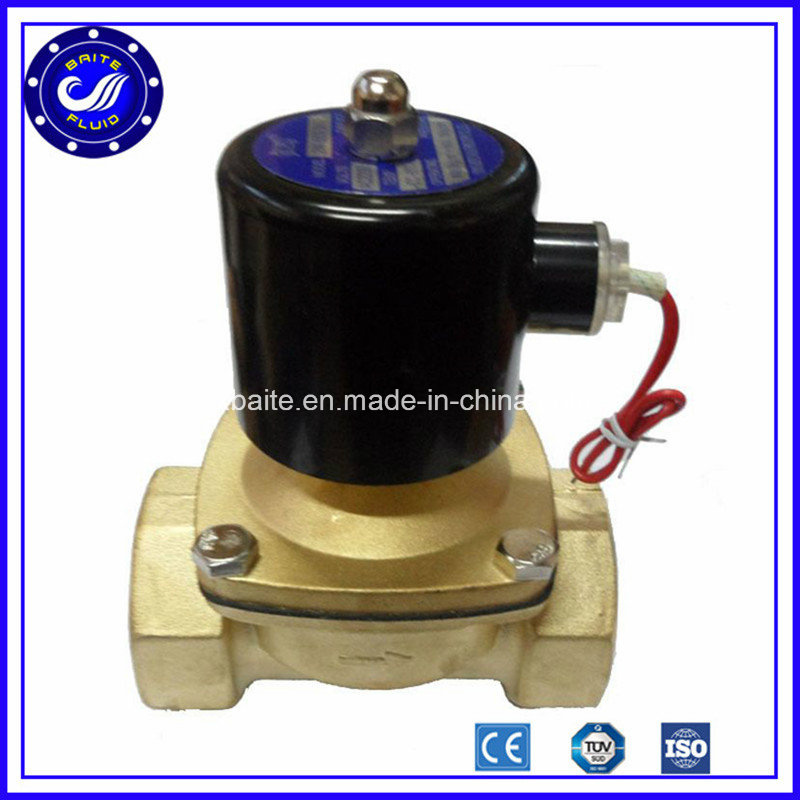

high temperature 1/2 inch pneumatic water solenoid valve washing machine solenoid valve

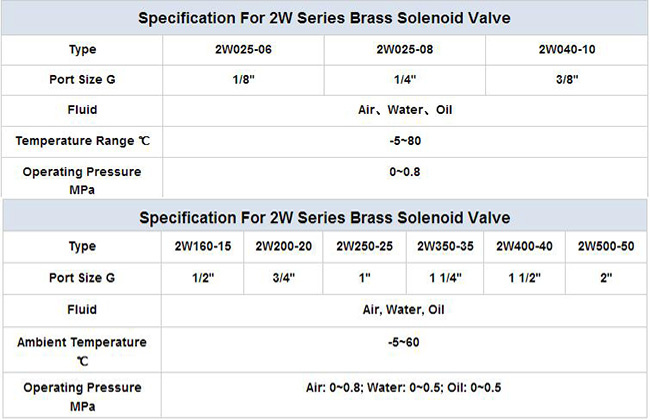

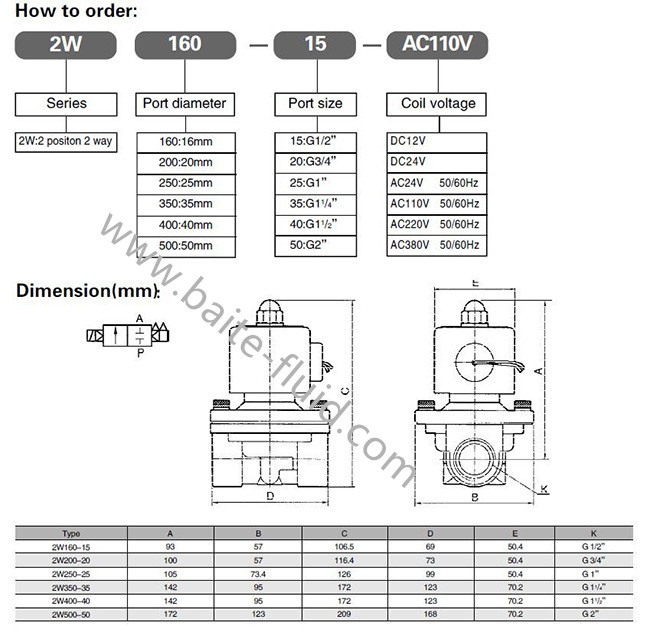

Product Features1. Direct acting and normally closed type 2/2 way solenoid valve. Its high sensibility allows it to change direction quickly; 2. It has wide pressure range, including extra high pressure (X), high pressure (H), standard , large volume(L) and extra large volume (T) to choose from; 3. It is compact, small size and light weight. It is easy to install and dismantle. 4. The valve body is made of brass. Its coil has a Heat resistance classification of Class B. The standard seal material is FPM-F. Please contact us if other material are required. 5. The protection class of the coil is IP65 and there is a choice for grommet or terminal electrical entry .Product specifications
Product Description

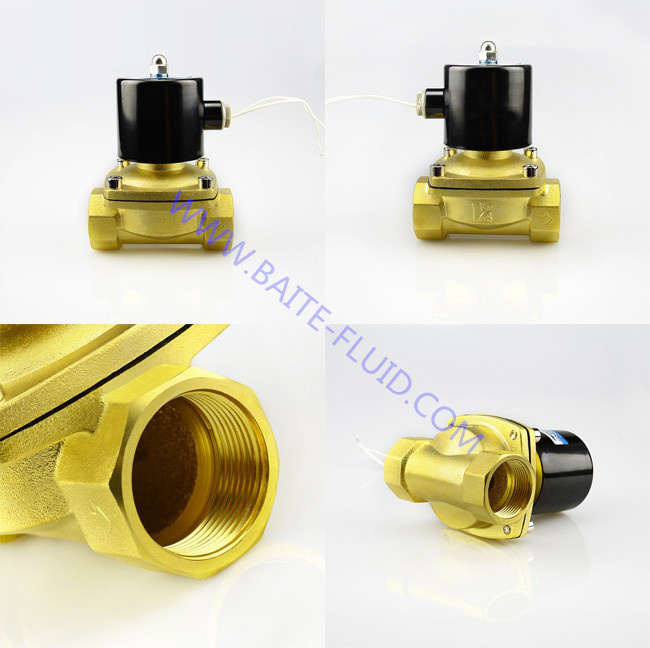

Product Details

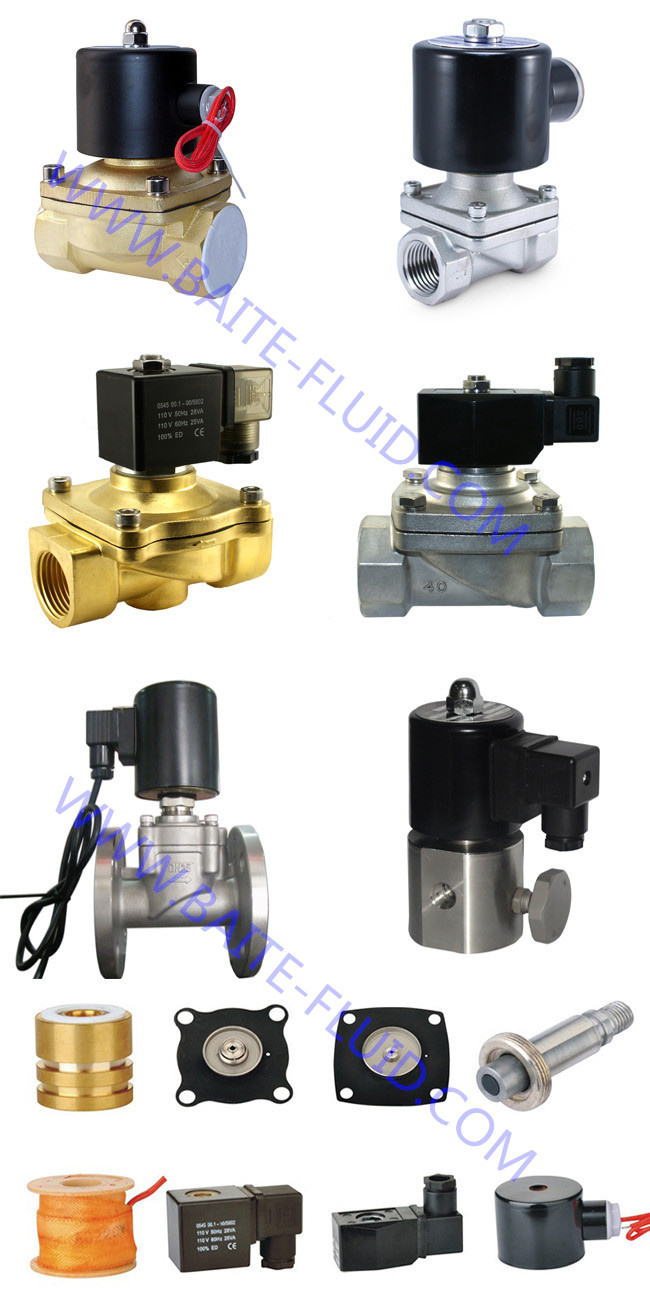

Related Products

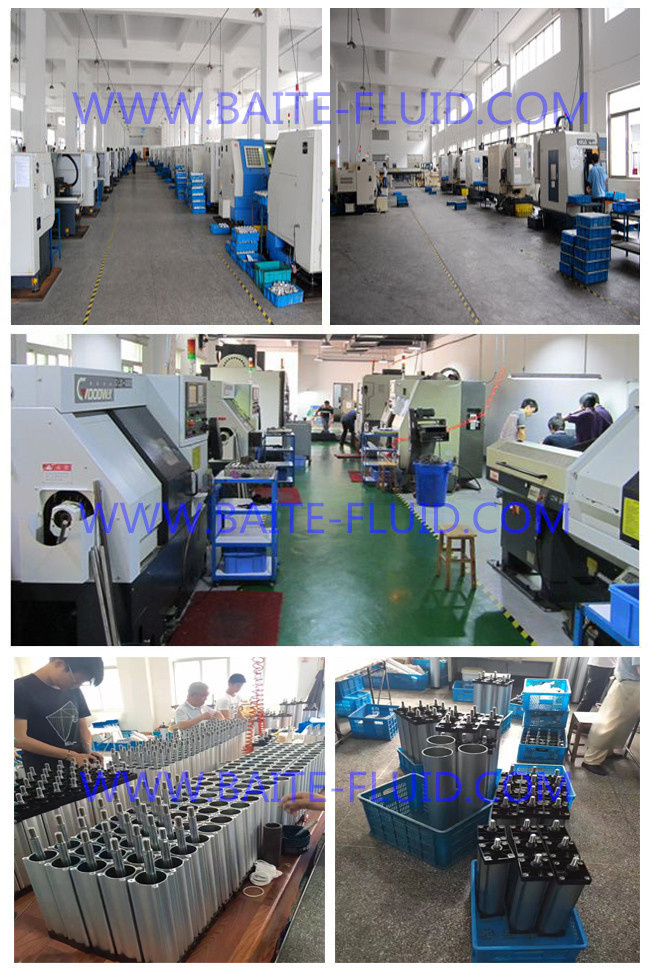

Production Workshop
Quality AssuranceMain Equipment:automatic coil winding machine, precision automatic die-casting machine, precision extrusion machine, forging machine, CNC machine, milling machine, turning and milling machine, four-axle CNC milling machine, injection machine, vulcanizing machine, surface treatment, electro coating line, automatic painting line, sealing parts pressing machine, as well as 200 testing devices like projectors, direct-reading spectrometer, 3D measuring apparatus, salt spray testing machine, and 10 automatic processing lines.Perfect Inspection Process: Raw material inspection (5steps)- Raw materials testing is to ensure the raw material conforming to the order requirements.Process testing(10steps)-Each processing step testing is to guarantee each step product qualified.Factory testing(6steps)-Assure 100% product qualified rate to meet customer's requirementsContact Us
All products can be customerized designed . We will supply professional service within 24 hours .Welcome to contact .
Shanxi Baite Fluid Machinery Co., Ltd ( Baite-Fluid, BTF ) is one of the professional domestic and foreign manufacturer and trader in forgings, pneumatic products and machined parts. Baite-Fluid is located in Shanxi Province, in north area of China and has been served over 10 years with rich resources of industrial raw material & power supply in a variety of industries. The company has always been to innovation management and technology, keeping the management, technical level and quality level with the world.
Our products are as below:
1. Standard Flanges.
2. Wind tubine tower connecting flange, wind power tower flanges.
3. Forged Steel Rings, seamless steel rolled rings.
4. Various of large forging parts, large size flange for GB, ANSI, DIN, JIS, EN1092-1 standard and OEM drawing accordingly.
4. Pneumatic cylinder, solenoid valve, manifold, FRL and other pneumatic tube and fittings.
5. Machinery parts.
6. Stamped parts.
7. Oil lubricator system.
They are widely used in power plants, petroleum, chemical industry, building materials, water treatment, urban construction and other industries. The products are well solid in domestic and foreign to get the praise from users.
Today our aim is to provide all of our customers with VALUE of the products instead of only low prices. Based on years of experience, fluent communication and professional quality control, we guarantee on time response, on time delivery and cost saving to meet customers' expectation. In a word, you can find one station service here for 24 hours.
Welcome to contact us right away for more information, our team will be always ready to prepare a quotation for your present or future projects.
