Prod Model: |
DQ2200/2500/2800 |
Max. Cut Length: |
2800/3000/3300mm |
Max. Cut Depth: |
950/1100/1250mm |
Max. Blade Size: |
2200/2500/2800mm |
Max. Cut Width: |
2200mm |
Spindle Motor: |
45-55kw |
Lifting Stroke: |
1100/1350mm |
Weight: |
11000-12000 Kg |
Type: |
Laser Cutting Machine |
Usage: |
Marble |
Application: |
Stone Industry |
Source Voltage: |
380V |
Automation: |
Automatic |
Product Description
Model NO. : DQ2200/2500/2800
Using these keywords can search more machine:
Stone Block Cutting Machine, Granite Machine, Stone Block Cutter, Multi Blades Block Cutter, Stone Cutter, Stone Cutting Machine, Stone Processing Machine, Granite Cutting Machine, etc.
Specification
Model | Unit | 2200 | 2500 | 2800 |
Max. blade size | mm | Φ2200 | Φ2500 | Φ2800 |
Max. cut length | mm | 2800 | 3300 | 3000 |
Max. cut width | mm | 2000 | 2000 | 2000 |
Max. cut depth | mm | 950 | 1100 | 1250 |
Spindle motor | Kw | 45 | 45 | 45 |
Total power | Kw | 52 | 52 | 52 |
Size (L×W×H) | mm | 7×4.3×5.3 | 7.8×4.3×5.5 | 7.3×4.3×5.8 |
Weight | Kg | 11000 | 11500 | 12000 |
Details

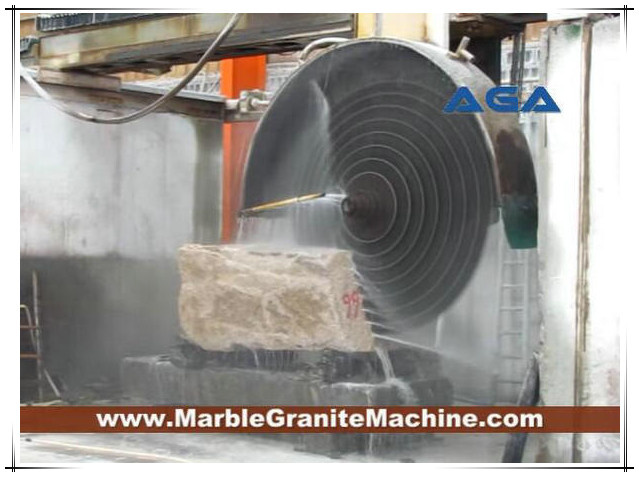

* The block cutter is widely use for cutting granite and other stone blocks into slabs.
* The machine bridge structure is made of very strong cast iron, and the body use high quality of raw material of iron and steel, ensuring stable running.
* The equipment is applicable for cutting granite, marble, sandstone, limestone, etc.
* It can carry multi blades and cut many slabs at once, the thickness of each slab is the same, very efficient.
* The machine is microcomputer control and works by program automatically.

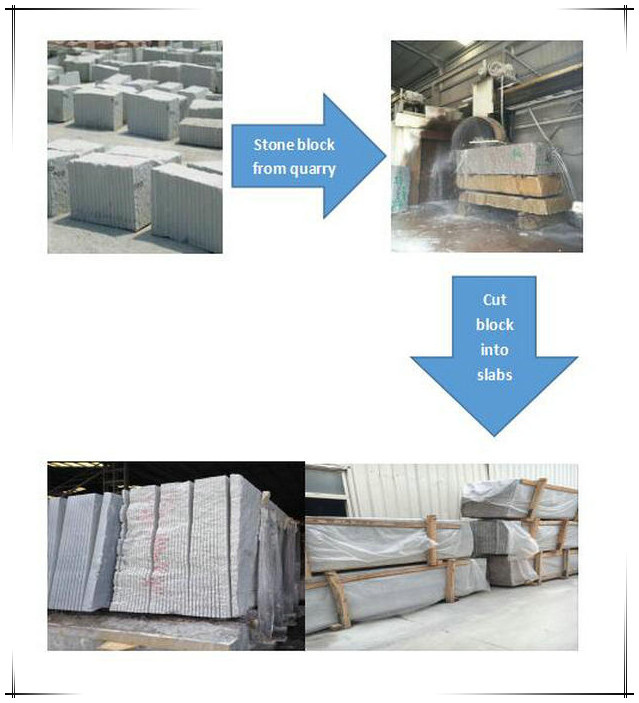

Stone slabs produce process

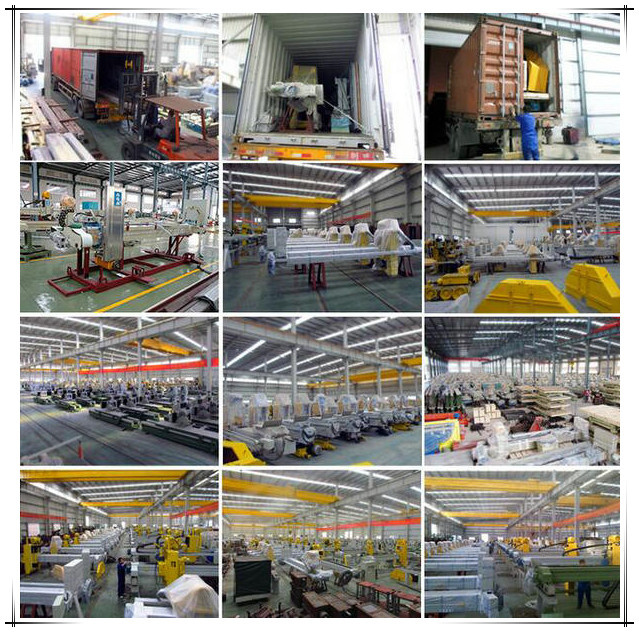

Factory show

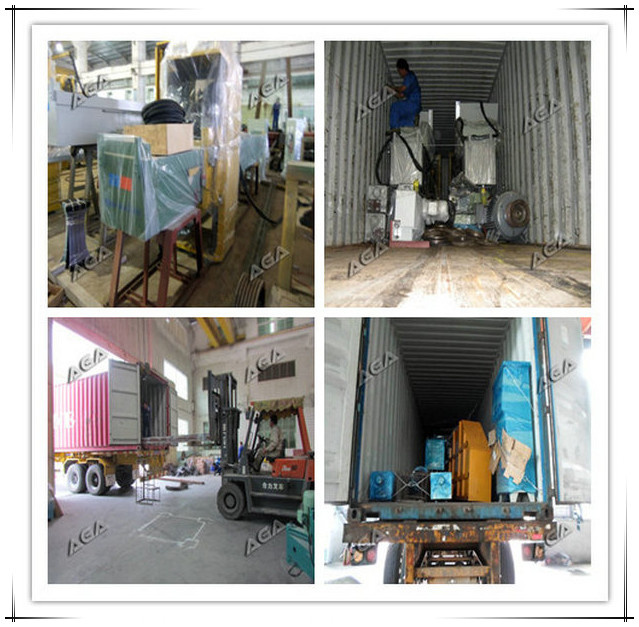

Packing show
Plastic packing
AGA team
Everyone in AGA works by heart, for each customer, we try our best to serve our clients and help customers to obtain the best return on the investment.
Our guarantee & after sale service
AGA insists on equipments high quality and advanced technology to assist customers in their pursuit of a true competitive advance.
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) When receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.
