Building Material Galvanized Welded Wire Mesh

Prod Model:	WW013
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wire Diammer:	0.5-3.0mm
Opening Size:	1/4''-4''
Width:	0.5-1.8m
Length:	30m/Roll or as Requested
Weave Style:	Plain Weave
Surface Type:	Galvanized ,PVC Coated
Material:	Low-Carbon Iron Wire
Weave Technique:	Plain Weave
Application:	Filter
Type:	Welded Mesh
Condition:	New
Hole Shape:	Square ,Rectangle
Mesh Size:	1/4''-4''
Surface Treatment:	Galvanized,PVC Coated
Color:	Silver ,Green,Black
Certification:	SGS

Product Description

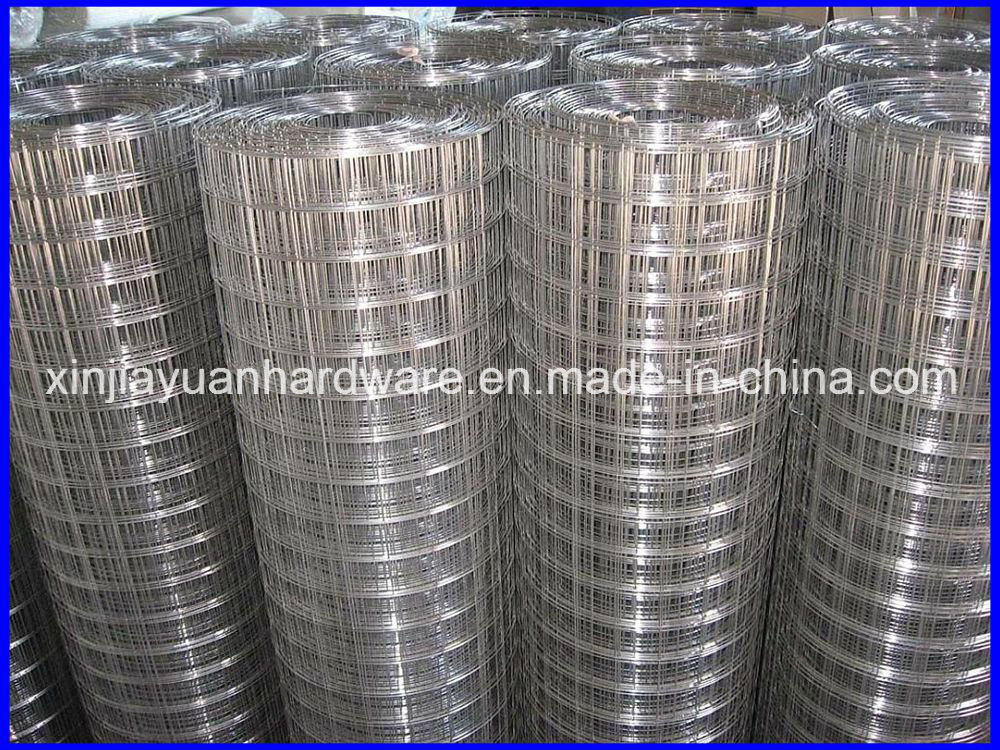

Hot dip galvanized/PVC coated welded wire mesh

Product Specification

Specification List of Welded Wire Mesh
Opening		Wire Diameter
In inch	In metric unit(mm)
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.

Welded fencing mesh
Opening		Wire Diameter
In inch	In metric unit(mm)
2''*3''	50mm*75mm	2.0mm,2.mm,1.65mm
3''*3''	75mm*756mm	2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2''*4''	50mm*100mm	2.11mm,2.5mm
4''*4''	100mm*100mm	2.0mm,2.5mm

PVC Coated Welded Mesh
Opening		Wire Diameter
In inch	In metric unit(mm)
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21
3/4" x 3/4"	19mm x 19mm	16,17,18,19,20,21
1" x 1"	25.4mm x 25.4mm	15,16,17,18,19,20
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.2m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.

Surface treatment
 Hot dipped galvanizing after weaving
 Weaving with hot dipped galvanized iron wire
 Electric galvanizing after weaving
Weaving with electric galvanized iron wire
 PVC coated welded wire mesh
Packing
Packed in waterproof roll ,then on pallet or as requested .

Application
Welded wire mesh is used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.
Welded wire mesh can be processed into wire mesh fence which can be used in Garden,yard,ground,railway,highway
