| Prod Model: |
W-002 |
| Size: |
Dn50-1200 |
| Connection Form: |
Wafer |
| Structure: |
Centre Sealing |
| Seal Form: |
Force Sealed |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Working Temperature: |
Medium Temperature (',120??C
|
| Material Of Seal Surface: |
Soft Sealed |
| Application: |
Water Industrial Usage |
Product Description
Specifications
1.DN50-1200(2"~48")
2.PN10/16(150/200PSI)
3.API, ANSI, ASME, DIN, BS,JIS, ISO approved
4.material:CI,DI,WCB,SS,ALB,brass,etc.

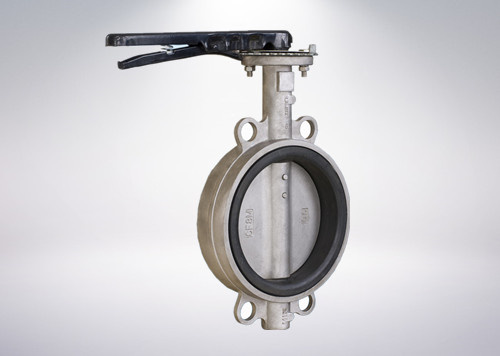

Wafer Type Butterfly Valve with Handle, Wormgear, Pneumatic, Electric Driver
Features:
1.Small in size and light in weight. Easy installation and maintenance. It can be mounted wherever needed.
2.Simple and compact construction, quick 90 degree on-off operation.
3.Flow curve tending to straight line. Excellent regulation performance.
4.Long service life. Standing the test of thousands opening/closing operation.
5.Wide selection of materials, applicable for various media.
Standard:
Design standard |
Face to face |
End flange |
Test & inspection |
MSS SP-67
API609
EN593
|
API609
ISO5752 series 20
BS5155
|
DIN PN10/16/25
ANSI B 16.1
BS4504
ISO PN10/16
JIS B 2212/2213
BS 10 table D
BS 10 table E |
API 598 |
Performance:
PN(MPa) |
DN(mm) |
Testing Pressure
(MPa) |
Applicable Temp. °C
|
Applicable Medium |
Shell |
Sealing |
1.0/1.6 |
DN50 ~ DN1000 |
1.5 |
1.1 |
-45~ 150 |
Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids,
Alkalis, etc. |
Material List:
Part Name |
Material |
Body | CI/DI/WCB/SS |
| Disc | DI/ALB/WCB/MONEL/CF8/CF8M |
| Stem | SS416/SS304/SS316/WCB |
| Seat | EPDM/BUNA/NBR/NR/PTFE/HYPALON/VITON/NEOPRENE |
Tianjin Tangfa Watts Valve Co., Ltd. is one of the biggest valve supplier in China. We specialize in designing, manufacturing and marketing of various low pressure valves.

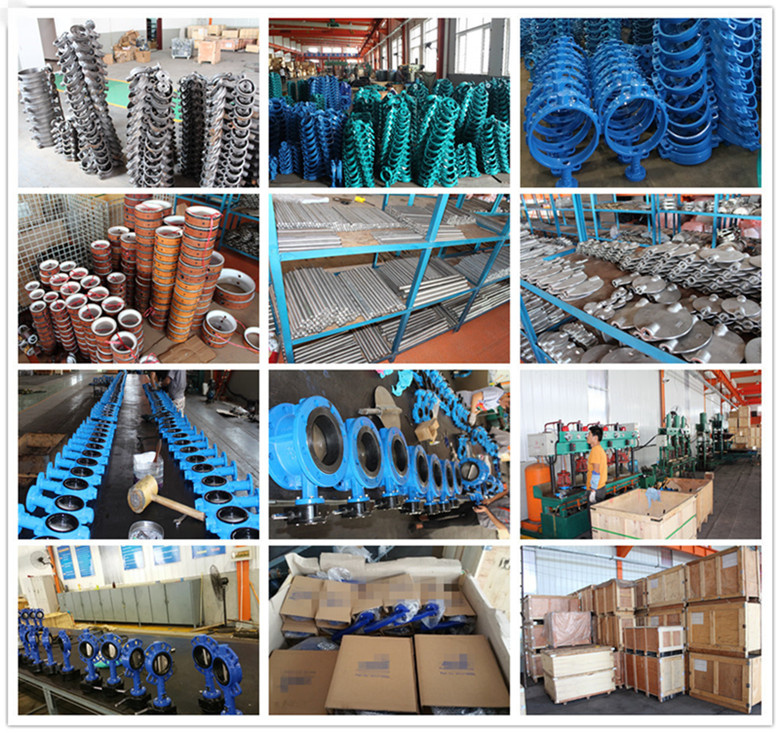

Our factory covering 80, 000m2 with the registered capital USD14, 14 million, owns modernized factory buildings, production and testing equipments and strong engineering capability. It passed ISO9001: 2008, CE Certification. Our valves are widley used in most of big water projects of China and overseas.
Our Product:
1. Butterfly valve: Wafer type, Flanged type, Lug type
2. Gate valve: Non rising and rising stem type resilient gate valve, solid wedge gate valve
3. Check valve: Dual plate wafer check valve, Swing check valve.
4. Globe valve, Ball Valve, Y-Strainer, Rubber Expansion Joint and Flanges.
We offer technical expertise and willingness to work with the customer.
