Non Rising Stem Soft Seat Gate Valves
| Price: |
US $ 22-25/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
TFW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn50-900 |
| Connection Form: |
Flange |
| Material: |
Cast Iron |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Water Industrial Usage |
Product Description

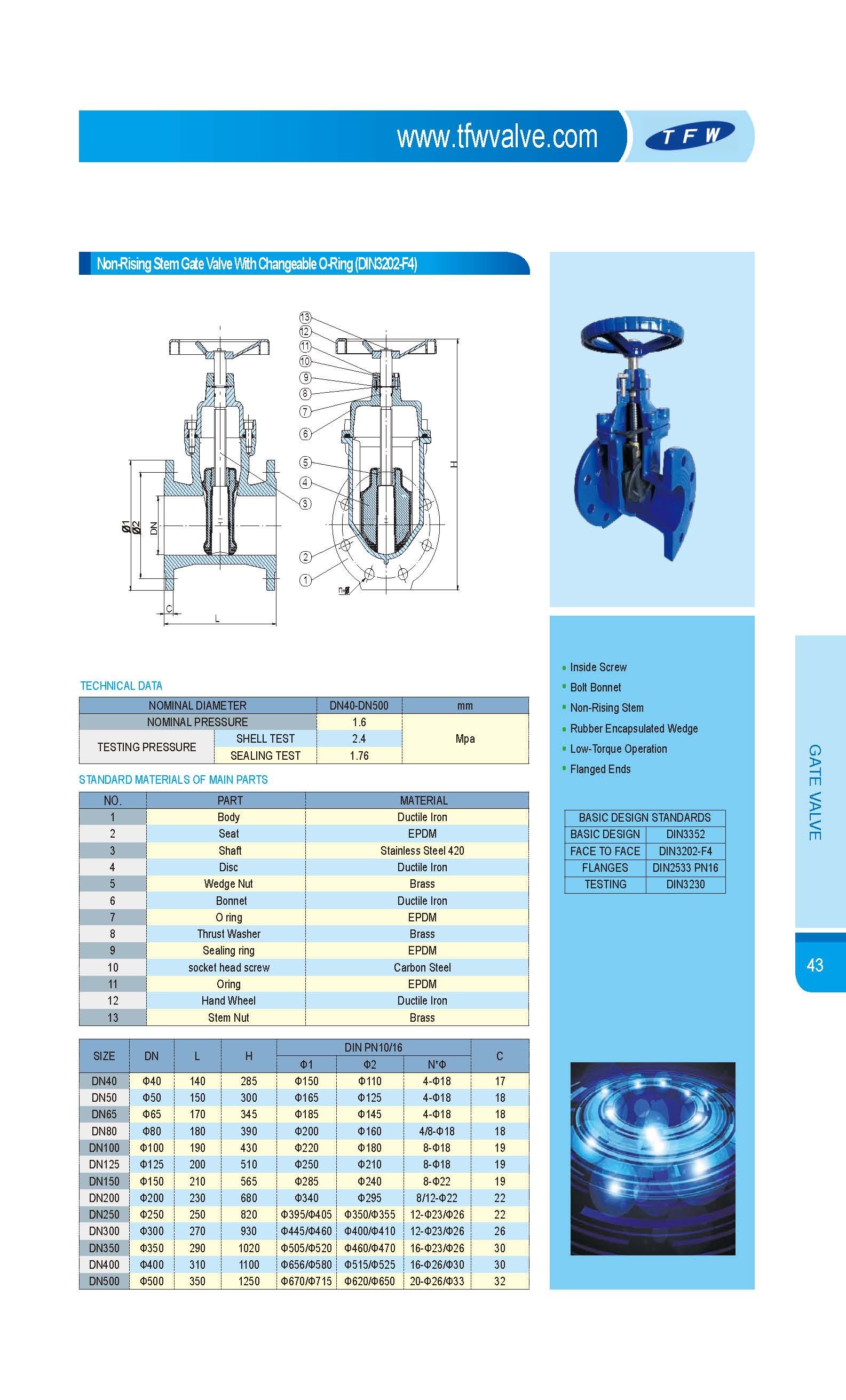

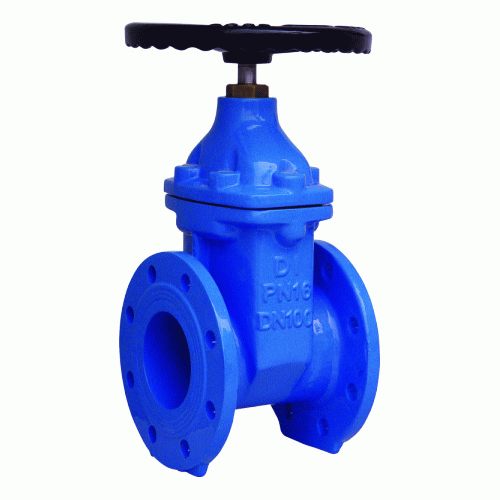

DIN3202 F4 series gate valve
Valve type: Non-rising stem resilient soft seat.
Applicable size: DN50 to DN900
Applicable pressure: PN10, PN16
Design standard: DIN 3202
We also can offer DIN3202 F5/ BS5163 series gate valve.
Operator method: Electric, pneumatic, hydraulic actuator and worm wheel. Please contact us directly for more information.
1) Product information: The gate valves supplied are mainly used for adjusting water,
Steam, oil, gas, and natural gas in chemical industries
2) Standards: AWWA, DIN3352 F4/F5, BS5163, BS5150
3) Connection type: Flanged type, push-on type, mechanical joint type, plain ends
Type, PVC socket
4) Material:
A) Body: Ductile iron GGG500-7
B) Wedge: DI, core fully vulcanized with NBR or EPDM rubber
C) Wedge nut: Brass
D) Stem: Stainless steel,Brass
E) Gasket: NBR
F) Bonnet: GGG500-7
G) O-ring: NBR
H) Washer: Carbon steel or stainless steel
5) Size: 50-600mm/2" - 24"
6) Pressure rate: PN10, PN16
7) Coating:
A) Fusion-bonded epoxy 200-250 microns inside and outside
B) Coating as per customers' requirement
|
DN |
L |
H |
DIN PN10/16 |
C |
weight |
|
mm |
inch |
Ø1 |
Ø2 |
n×Ø |
|
40 |
1"1/2 |
140 |
285 |
Ø150 |
Ø110 |
4-Ø18 |
17 |
9.5kgs |
|
50 |
2" |
150 |
300 |
Ø165 |
Ø125 |
4-Ø18 |
18 |
12.5kgs |
|
65 |
2"1/2 |
170 |
345 |
Ø185 |
Ø145 |
4-Ø18 |
18 |
15.5kgs |
|
80 |
3" |
180 |
390 |
Ø200 |
Ø160 |
4/8-4-Ø18 |
18 |
21kgs |
|
100 |
4" |
190 |
460 |
Ø220 |
Ø180 |
8-Ø18 |
19 |
27kgs |
|
125 |
5" |
200 |
510 |
Ø250 |
Ø210 |
8-Ø18 |
19 |
35kgs |
|
150 |
6" |
210 |
565 |
Ø285 |
Ø240 |
8-Ø22 |
19 |
56kgs |
|
200 |
8" |
230 |
680 |
Ø340 |
Ø295 |
8/12-Ø22 |
22 |
80kgs |
|
250 |
10" |
250 |
820 |
Ø395/Ø405 |
Ø350/Ø355 |
12-Ø23/Ø26 |
22 |
120kgs |
|
300 |
12" |
270 |
930 |
Ø445/Ø460 |
Ø400/Ø410 |
12-Ø23/Ø26 |
26 |
175kgs |
|
350 |
14" |
290 |
1020 |
Ø505/Ø520 |
Ø460/Ø470 |
16-Ø23/Ø26 |
30 |
186kgs |
|
400 |
16" |
310 |
1100 |
Ø656/Ø580 |
Ø515/Ø525 |
16-Ø26/Ø30 |
30 |
280kgs |
|
500 |
20" |
350 |
1250 |
Ø670/Ø715 |
Ø620/Ø650 |
20-Ø26/Ø33 |
32 |
350kgs |
|
TECHNICAL DATA |
|
|
|
|
|
|
|
|
NOMINAL DIAMETER |
DN40-DN500 |
mm |
|
NOMINAL PRESSURE |
1.6 |
Mpa |
|
TESTING PRESSURE |
SHEEL TEST |
2.4 |
|
|
|
|
|
|
|
SEALING TEST |
1.76 |
Tianjin Tangfa Watts Valve Co., Ltd. is one of the biggest valve supplier in China. We specialize in designing, manufacturing and marketing of various low pressure valves.
Our factory covering 80, 000m2 with the registered capital USD14, 14 million, owns modernized factory buildings, production and testing equipments and strong engineering capability. It passed ISO9001: 2008, CE Certification. Our valves are widley used in most of big water projects of China and overseas.
Our Product:
1. Butterfly valve: Wafer type, Flanged type, Lug type
2. Gate valve: Non rising and rising stem type resilient gate valve, solid wedge gate valve
3. Check valve: Dual plate wafer check valve, Swing check valve.
4. Globe valve, Ball Valve, Y-Strainer, Rubber Expansion Joint and Flanges.
We offer technical expertise and willingness to work with the customer.
