| Prod Model: |
BWT-3500 |
| Gross Motor: |
23kw |
| Water Consumption: |
4m3/H |
| Gross Weight: |
8000kgs |
| Usage: |
Onyx Onyx Limestone Sandstone |
| Application: |
Stone Industry |
| Source Voltage: |
380V |
| Automation: |
Automatic |
| Type: |
Diamond Wire Saw Machine |
Product Description
Description:

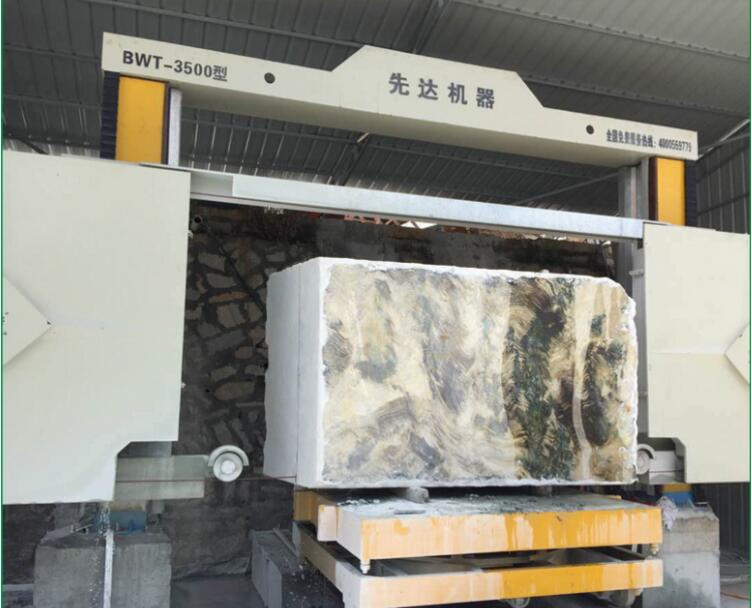

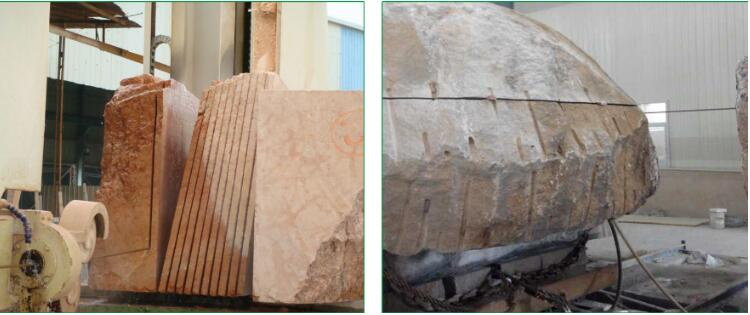

DIAMOND WIRE SAW BLOCK TRIMMING MACHINE XIANDA BWT-3500 adopts computer digital control, four-spindle linkage with stable cutting, used to frimming the six surfaces of the stone block, also can cut the block to slab, which is the ideal equipment for cutting the block, and trimming stone block.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Keywords: diamond wire saw machine, block cutting machine, stone trimming machine

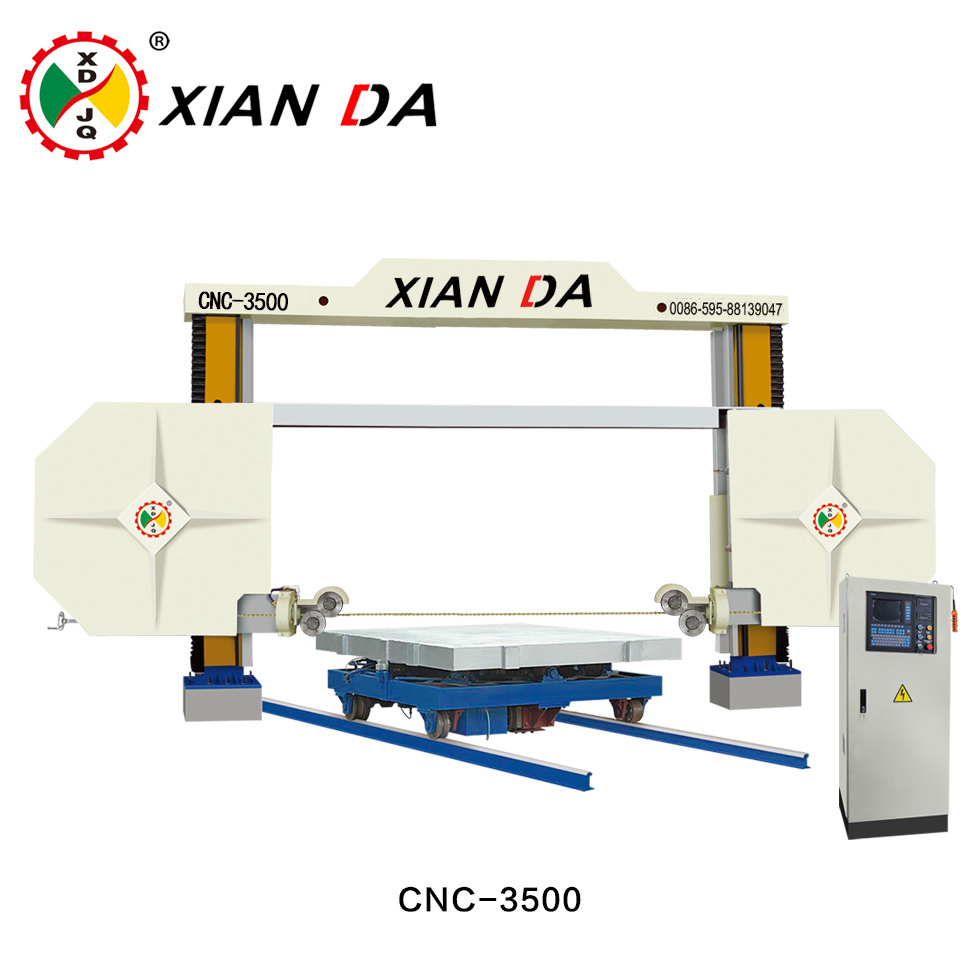

Technical Parameter | Parameter | Unit | BWT-3500 | CNC-3500 |
| Max Processing Size (L×W×H) | mm | 3500×3500×2100 | 3500×3500×2100 |
| Dimension of Worktable (L×W) | mm | 2500×2000 | 2500×2000 |
| Main Motor | kw | 11 | 11 |
| Outline Dimension (L×W×H) | mm | 6800×8900×4700 | 6800×8900×4700 |
| Wire-cutting Speed | m/s | 25-30 | 25-30 |
| Gross Weight | kg | 8000 | 8000 |
| Water Consumption | m³/h | 4 | 4 |
Xianda machinery
Fujian Jinjiang Xianda Machinery Co. Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine, wire saw stone cutting machine, block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company, we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.
Exhibition
Other stone cutting machines we produce:
1) Diamond wire saw machine,
2) Bridge cutting machine, bridge saw
3) a series of stone machine for special shape processing. FAQ
1. Manufacturer Profiles
We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985.
We own 70% China market share at special shape stone cutting machine series.
We are a company which is specially for producing stone machines for exporting.
2. Quality Control
We have our own experienced QC.
Our machine will be strictly inspected.
We will provide a Testing Video for each machines before shipping out if required by customer.
3. Delivery time
Based on order quantity, normally three weeks against payment.
4. Warranty
All the machines have one year warranty.
5. After Services
Our marketing team will response for your question within 24 hours.
Technical support will be available in any time.
Free replacement will provide once the failure confirmed caused by our product quality.
6. Contact
Office Cell: +86-13959953983
Add: Anqi Road, Wuli Industrial Park, Jinjiang City, Fujian, China.
Fujian Xianda Machinery Co., Ltd was established in 1985 and covers an area of 20, 000 Square meters. We are dedicated to the development and production of a series of column making machine, stone machine, wire saw stone cutting machine, block trimming machine, Infrared bridge saw, profiling stone machine.
With rapid development, we have attained ISO9001 certification and won many honorary titles, including International Gold Plant Quality Award, China construction recommend building materials production enterprises.
Our company is located in the rapidly developing overseas Chinese hometown-Quanzhou Anhai Cultural and Historial Town, with convenience transportation, by the well-know Wuli Bridge which was named "No a bridge is longer than Wuli".
Since its foundation in 1985 we keep "Advanced Technology and High Quality" as our aim, Moreover, our company dare innovate and develop, and invite the high quality engineers and own a group of strong team with modern technology. By the effort of the whole stuff, we have developed a range of "Xianda" Brand special shape stone processing machineries which is with good quality, new style, reasonable structure, and sold well around China as well as in South Korean and Southeast Asiaetc, It receives high opinions from customers.
