| Prod Model: |
JH21 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Table Type: |
C-Frame |
| Guides: |
Six-Side Long Rectangle |
| Clutch- Brake: |
Pneumatic Combination Friction clutch-Brake |
| Overload: |
Hydraulic Overload Protection |
| Control System: |
PLC |
| Type: |
General Punching Machine |
| Automatic Grade: |
Automatic |
| Power Source: |
Mechanical Drive |
| Precision: |
Normal Precision |
| Controlling Mode: |
PLC |

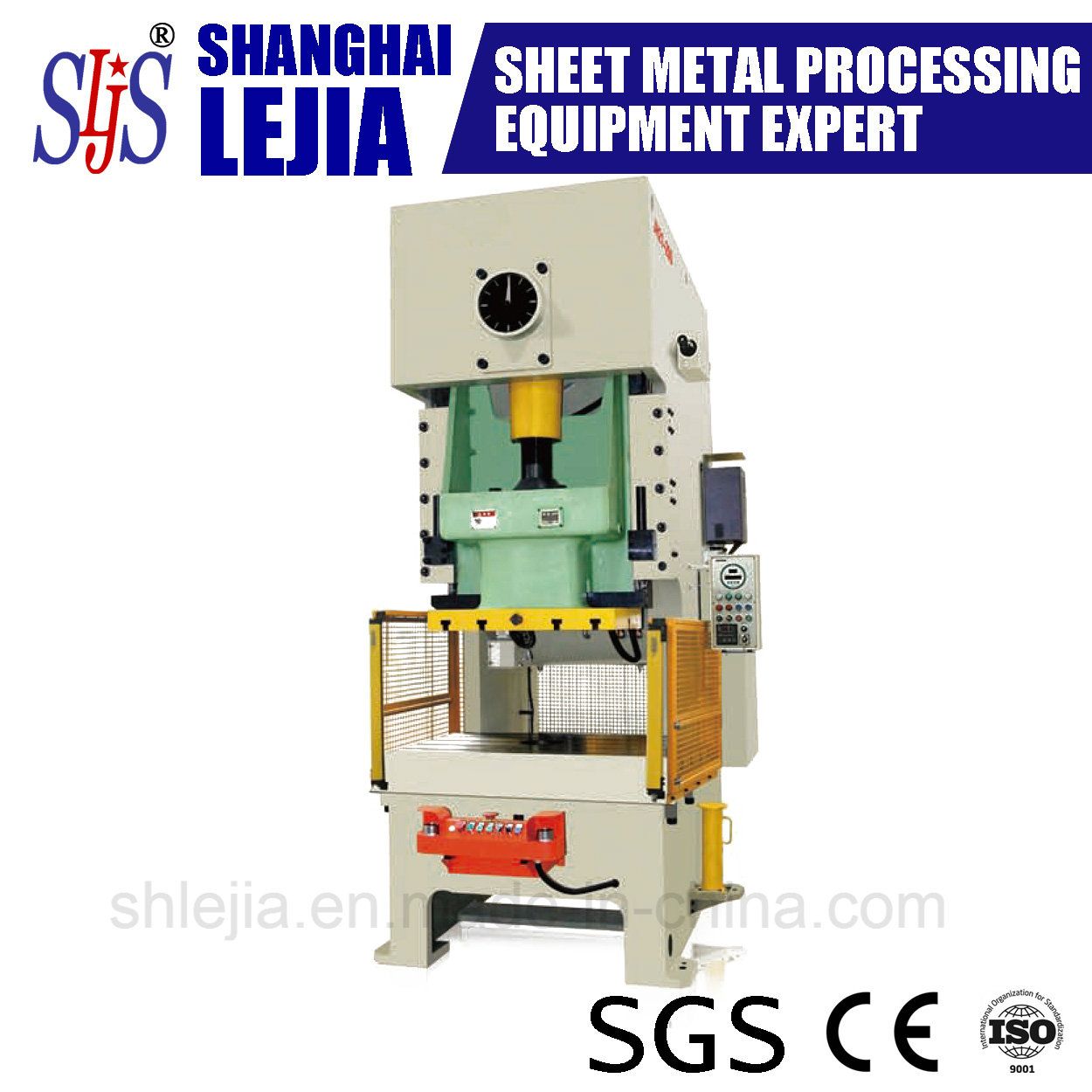

Product Description
Main Structure Features
- High accuracy, reach JIS-Grade 1;
- High rigidity, steel-welded frame;
- High precision, 6-side long guide rail;
- Dry type pneumatic clutch-brake unit;
- Imported safety dual-solenoid valve for clutch;
- High sensitive HOLP;
- Automatic grease lubrication system;
- (FDI) Frequency drive inveter;
- PLC system;
- Optional components: Output shaft, air cushion, slide knockout device, automatic feeder, light curtain, etc.
| Description | Unit | JH21-25 | JH21-45 | JH21-60 | JH21-80 | JH21-110 | JH21-125 | JH21-160 | JH21-200 | JH21-250 | JH21-315 | JH21-400 |
| Nominal Pressure | kN | L | S | L | S | L | S | L | S | L | S | L | S | L | S | L | S | L | S | L | S | L | S |
| Nominal Pressure Stroke | mm | 2.8 | 3.2 | 4 | 4.5 | 5 | 5 | 6 | 6 | 7 | 8 | 8 |
| Stroke of Slide | mm | 80 | 50 | 100 | 70 | 120 | 80 | 140 | 90 | 160 | 100 | 160 | 100 | 180 | 110 | 200 | 130 | 220 | 150 | 250 | 180 | 250 | 180 |
| Strokes Per Minute | Variable | S.P.M | 70~100 | 80~130 | 60~90 | 70~110 | 50~80 | 60~100 | 40~75 | 50~90 | 35~70 | 45~80 | 35~65 | 45~80 | 30~55 | 35~70 | 25~50 | 30~60 | 25~45 | 30~50 | 25~40 | 25~35 |
| Single | S.P.M | 90 | 110 | 80 | 100 | 70 | 90 | 60 | 80 | 60 | 80 | 55 | 70 | 50 | 60 | 45 | 50 | 40 | 45 | 35 | 30 |
| Max. Die Set Height | mm | 250 | 265 | 270 | 285 | 300 | 320 | 320 | 345 | 350 | 380 | 370 | 400 | 400 | 435 | 450 | 485 | 500 | 535 | 550 | 585 | 550 | 585 |
| Die Height Adjustment | mm | 50 | 60 | 70 | 80 | 90 | 90 | 100 | 110 | 110 | 120 | 120 |
| Throat depth | mm | 210 | 230 | 270 | 290 | 350 | 370 | 390 | 420 | 430 | 430 | 430 |
| Distance between columns | mm | 450 | 500 | 520 | 600 | 680 | 710 | 720 | 830 | 850 | 1000 | 1000 |
| Slide bottom size | L-R | mm | 360 | 410 | 480 | 560 | 620 | 620 | 700 | 850 | 880 | 950 | 950 |
| F-B | mm | 250 | 340 | 400 | 430 | 520 | 520 | 580 | 650 | 700 | 700 | 700 |
| Hole for Punch Shank | Diameter | mm | φ40 | φ50 | φ50 | φ60 | φ70 | φ70 | φ70 | φ70 | φ70 | φ70 | φ70 |
| Depth | mm | 60 | 60 | 60 | 80 | 80 | 80 | 100 | 100 | 100 | 100 | 100 |
| Size of table | L-R | mm | 710 | 810 | 870 | 1000 | 1100 | 1120 | 1260 | 1400 | 1500 | 1650 | 1800 |
| F-B | mm | 400 | 440 | 520 | 560 | 680 | 720 | 760 | 820 | 840 | 840 | 840 |
| Thickness | mm | 85 | 110 | 130 | 130 | 160 | 160 | 165 | 165 | 200 | 200 | 200 |
| Hole of the table | Diameter | mm | φ100 | φ150 | φ150 | φ150 | φ160 | φ160 | φ180 | φ200 | φ250 | φ250 | φ250 |
| Single Speed Motor Power | kW | 3 | 5.5 | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 | 22 | 30 | 37 |
| Overall dimensions | L-R | mm | 950 | 1080 | 1200 | 1385 | 1419 | 1480 | 1570 | 1600 | 1750 | 1900 | 2150 |
| F-B | mm | 1350 | 1410 | 1615 | 1915 | 2200 | 2300 | 2380 | 2570 | 2830 | 3350 | 3450 |
| Height | mm | 2160 | 2300 | 2570 | 2820 | 3190 | 3220 | 3375 | 3780 | 3930 | 4100 | 4500 |
| Total weight | kg | 3100 | 4000 | 6000 | 7800 | 11000 | 13000 | 14200 | 21000 | 25000 | 31500 | 35000 |
