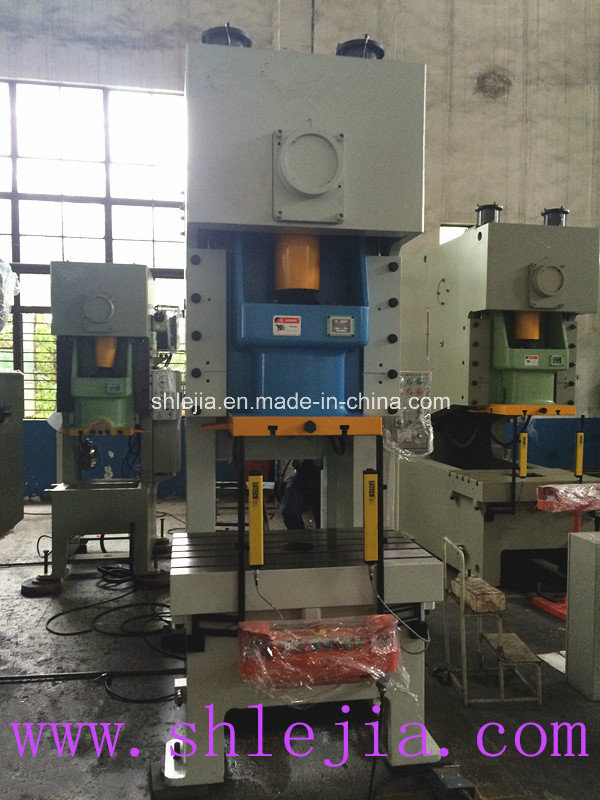

C-Frame Fixed Table Power Press / Plate Press Machine (JH21 Series)

Name: C-Frame Fixed Table Power Press / Plate Press Machine (JH21 Series)
Brand: tool-buy.com
SKU: 730241405
Availability: InStock
Rating: 4.8 (79 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Shanghai Lejia CNC Machine Co., Ltd.

Showroom Product Company Profile

Prod Model:	JH21-125
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frame:	C Type
Long Rectrangle Guides:	Six-Side
Clutch-Brake:	Pneumatic Combination Friction Cluth-Brake
Hydraulic Overload Protection Device:	Auotomatic Grease Lubrication System
PLC:	Imported
Type:	General Punching Machine
Controlling Mode:	CNC
Automatic Grade:	Automatic
Power Source:	Mechanical Drive
Precision:	High Precision

Product Description

Main Structure Features
- High accuracy, reach JIS-Grade 1;
- High rigidity, steel-welded frame;
- High precision, 6-side long guide rail;
- Dry type pneumatic clutch-brake unit;
- Imported safety dual-solenoid valve for clutch;
- High sensitive HOLP;
- Automatic grease lubrication system;
- (FDI) Frequency drive inveter;
- PLC system;
- Optional components: Output shaft, air cushion, slide knockout device, automatic feeder, light curtain, etc.

			JH21-25		JH21-45		JH21-60		JH21-80		JH21-110		JH21-125		JH21-160
			L	S	L	S	L	S	L	S	L	S	L	S	L	S
Nominal capacity		kN	250		450		600		800		1100		1250		1600
Nominal power stroke		mm	2.8		3.2		4		4.5		5		5		6
Slide stroke		mm	80	50	100	70	120	80	140	90	160	100	160	100	180	110
Stroke number	variable-speed mode	S.P.M	70~100	80~130	60~90	70~110	50~80	60~100	40~75	50~90	35~70	45~80	30~65	45~80	30~55	35~70
	Single speed	S.P.M	90	110	80	100	70	90	60	80	60	80	55	70	50	60
Maximum die height		mm	250	265	270	285	300	320	320	345	350	380	370	400	400	435
Die height adjustment		mm	50		60		70		80		90		90		100
Throat depth		mm	210		225		270		290		350		370		390
Distance between columns		mm	450		500		560		590		680		710		800
Slide bottom size	About	mm	360		410		480		560		620		620		700
	Before and after	mm	250		340		400		430		520		520		580
Size of the handle hole	Diameter	mm	φ40		φ50		φ50		φ60		φ70		φ70		φ70
	Depth	mm	60		60		60		80		80		80		100
Size of table	About	mm	710		810		870		1000		1100		1120		1260
	Before and after	mm	400		440		520		560		680		720		760
	Thickness	mm	85		110		130		130		160		160		165
Hole of the table	Diameter	mm	φ100		φ150		φ150		φ150		φ160		φ160		φ180
Motor power of stepless speed regulation		kW	3		5.5		7.5		7.5		11		15		15
Motor power of single speed		kW	3		5.5		5.5		7.5		11		11		15
Overall dimensions	About	mm	950		1080		1200		1385		1419		1480		1573
	Before and after	mm	1350		1410		1615		1915		2200		2300		2355
	Height	mm	2160		2300		2570		2820		3190		3220		3375
Total weight		kg	3100		4000		6000		7800		11000		13000		14200

			JH21-200		JH21-250		JH21-315		JH21-315A		JH21-400		JH21-400A		JH21-500
			L	S	L	S	L	S	L	S	L	S	L	S	L
Nominal capacity		kN	2000		2500		3150		3150		4000		4000		5000
Nominal power stroke		mm	6		7		8		8		8		8		8
Slide stroke		mm	200	130	220	150	250	180	250	180	250	180	250	180	250
Stroke number	variable-speed mode	S.P.M	25~50	30~60	25~45	30~50	25~40		25~40		25~35		25~35		20~30
	Single speed	S.P.M	45	50	40	45	35		35		30		30		25
Maximum die height		mm	450	485	500	535	550	585	500	535	500	585	500	535	550
Die height adjustment		mm	110		110		120		120		120		120		120
Throat depth		mm	430		450		480		420		480		420		420
Distance between columns		mm	900		950		1050		1000		1050		1000		1220
Slide bottom size	About	mm	880		930		1000		950		1000		950		1000
	Before and after	mm	650		700		720		700		720		700		720
Size of the handle hole	Diameter	mm	φ70		φ70		φ70		φ70		φ70		φ70		φ70
	Depth	mm	100		100		100		100		100		100		100
Size of table	About	mm	1400		1590		1700		1650		1850		1800		1820
	Before and after	mm	840		880		940		820		940		820		810
	Thickness	mm	200		200		200		200		200		200		240
Hole of the table	Diameter	mm	φ200		φ250		φ250		φ250		φ250		φ250		φ250
Motor power of stepless speed regulation		kW	22		30		37		37		37		37		55
Motor power of single speed		kW	15		22		30		30		37		37		55
Overall dimensions	About	mm	1630		1750		1950		1900		2200		2150		2250
	Before and after	mm	2690		2830		3400		3350		3500		3450		3900
	Height	mm	3810		3930		4180		4100		4500		4450		5255
Total weight		kg	21000		25000		33500		30000		39000		36000		53000

Shanghai Lejia CNC Machine Co., Ltd. is a national new technological enterprise and national important "Torch Plan" implementation organization with integration of research and development, machinery manufacturing, tools designing and building, sales and import and export authority rigths. We are professional manufacturing company holding many domestic and international certificates.

Manufacture ranges: CNC Press brake Machine, shearing machine, CNC-Punch, and Slotting Machine, Rolling bending machine, Straightening, Unrolling, Shearing Production Line and normal Forging Machinery. And pressbrake tools. Shearing blade. Punch tools, etc. The products are awarded highly by the clients with the fame of those precise, reliable and high qualified products produced by the state -in- art manufacturing techniques, which are of reasonable price and excellent after-sale-service.

Our Company is dedicated to contribution for nation by sustainable promotion and improvement in the field of CNC machinery, CNC Machinery Tools and-Cutter-localization.
