Prod Model: |
30x3x10x48T, 63x2x16x80T, 100x3x22x100T |
Grade: |
Yl10.2, Yg15, Yg15X, Ys2t, Yg6X |
Size: |
30X3.0X10X48t, 63X2.0X16X80t, 63X3.0X16X80t |
Work Piece: |
Hard Wood, Recycle Wood, MDF, Metal |
Performance Grade: |
Top, Middle |
Color: |
Gray |
Quality: |
Top Quality in China |
Raw Material: |
100% |
Shipment: |
FedEx,DHL,TNT,UPS,EMS,etc. |
Tolerance: |
Finish Grind, Mirror Polish |
Surface: |
Ground or Unground |
Saw Type: |
Circular Saw |
Application: |
Metal Saw |
Type: |
Fixed |
Power Source: |
Electricity |
Product Description

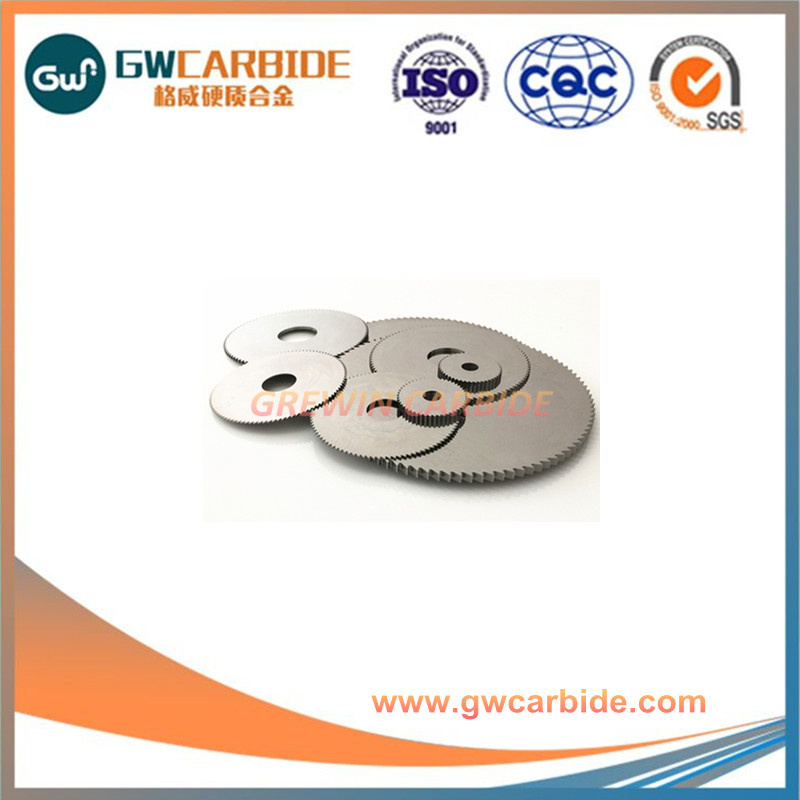

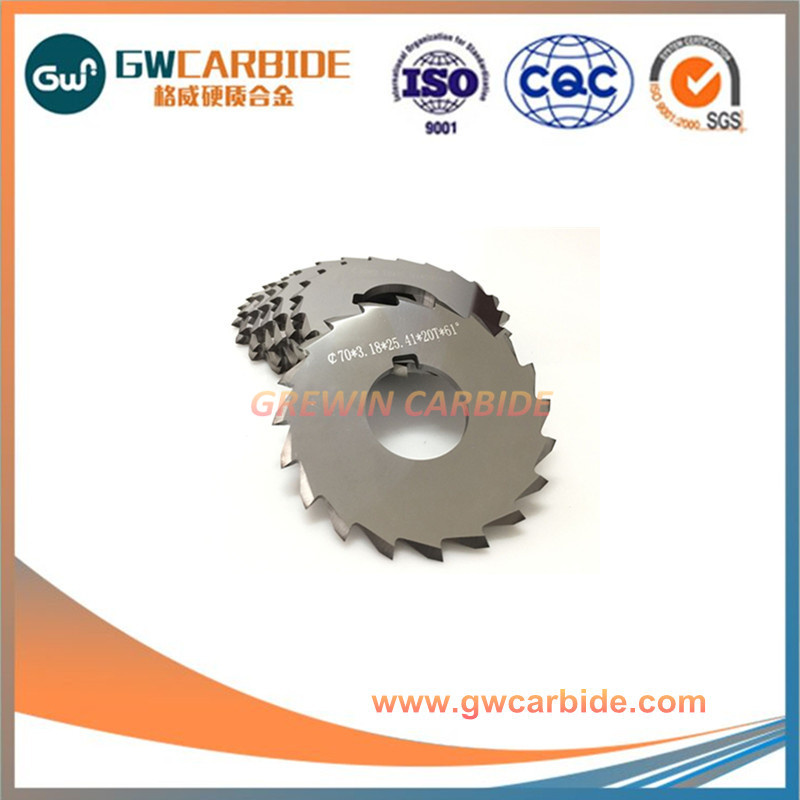

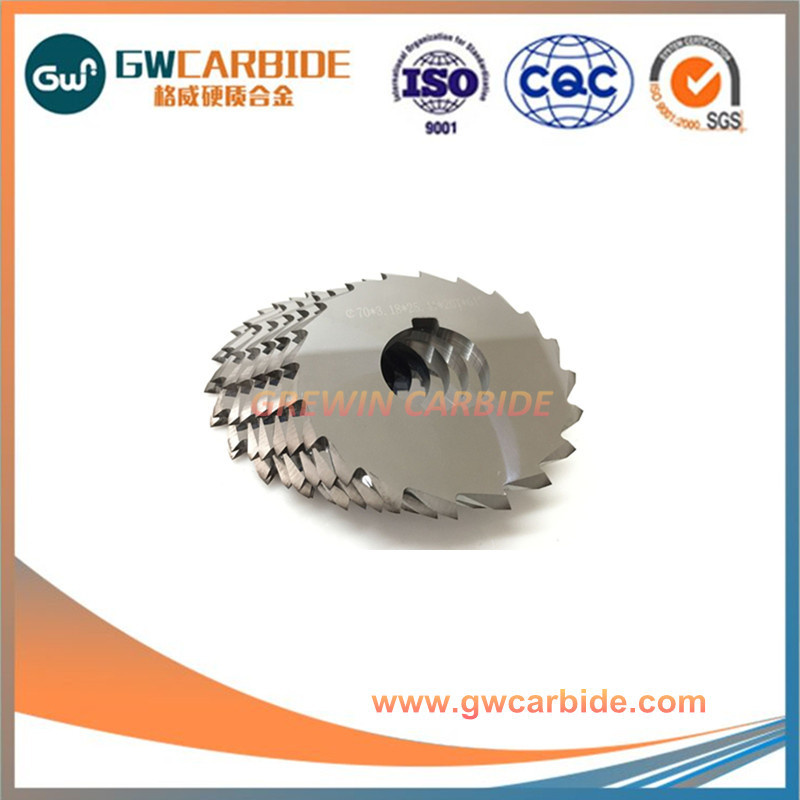

High precision tungsten carbide saw blade1. Our advantage
1 High quality, supper sharp + smooth cutting + long working life
2 100% raw material, HIP-Sintered
3 CNC grinding for teeth, with high precision
4 Various grades for different kinds of cutting material
5 Strict quality control, complete test equipments
6 Competitive price
7 Good after sale service
2. Sizes
External Dia. (mm) | Internal Dia. (mm) | Thickness (mm) | Teeth |
110 | 16 | 1.0~7.0 | 10T |
150 | 20 | 1.0~7.0 | 24T |
180 | 25.4 | 1.0~7.0 | 30T |
185 | 30 | 1.0~7.0 | 36T |
230 | 35 | 3.0~4.5 | 40T |
235 | 40 | 3.0~4.5 | 48T |
250 | 50 | 3.0~4.5 | 60T |
255 | 80 | 3.0~4.5 | 72T |
3. Grade Recommendation
Grade | ISO | Density g/m 3 | Hardness HRA | Bending strength | Performance & Application |
YG6 | K10 | 14.9 | 89.5 | 2150 | Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
YG8 | K30 | 14.6 | 89 | 2320 |
YS2T | M10 | 14.45 | 92.5 | 2800 | Suitable for the finishing and semi-finishing of stainless steel and conventional alloy steel. |
YN8 | | 14.6 | 88.5 | 1710 | Wear corrosion resistance&abrasion, especially used in hyperbaric environment. |
YN9 | | 14.6 | 89 | 1750 |
yg6/K20 | For the cutting of ordinary wood, Recommend to use resistance welding,and the temperature should not be too high |
YG8/K30 | For the cutting of the ordinary wood,also for the aluminum, Recommend to use resistance welding,and the temperature should not be too high |
YK08/K40 | For the cutting of the recycling wood especially for some iron nails and stones in it, Recommend to use resistance welding,and the temperature should not be too high |
JX5/K20 | For the cutting of the hard wood/recycling wood and aluminum, Recommend to use resistance welding,and the temperature should not be too high |
YG6X/K10 | For the cutting of the wood specially, recommend to use the high frequency welding |
YG8X/K10 | For the cutting of the wood and aluminum specially, Recommend to use the high frequency welding |
K10S | For the cutting of the hard wood specially, Recommend to use the high frequency welding |
K20S | For the cutting of the aluminum specially, Recommend to use the high frequency welding |
K10UF | For the cutting of the plywood,board with middle to high density and the compound materials with aluminum and plasic, Use the high frequency welding |
K20UF | For the cutting of the aluminum specially, Use the high frequency welding |
K30UF | For the cutting of the stones specially, Use the high frequency welding |
R06 | For the cutting of the plywood,density board and the sandwich board, Use the high frequency welding |
R03 | For the cutting of the timber such as shaving board,laminated boar,density board and compound material etc, Use the high frequency welding |
YC40 | For the cutting of the large cast materials, Recommend to use the high frequency welding |
YC501 | For the cutting of the steel and the stainless steel, Recommend to use the high frequency welding |
