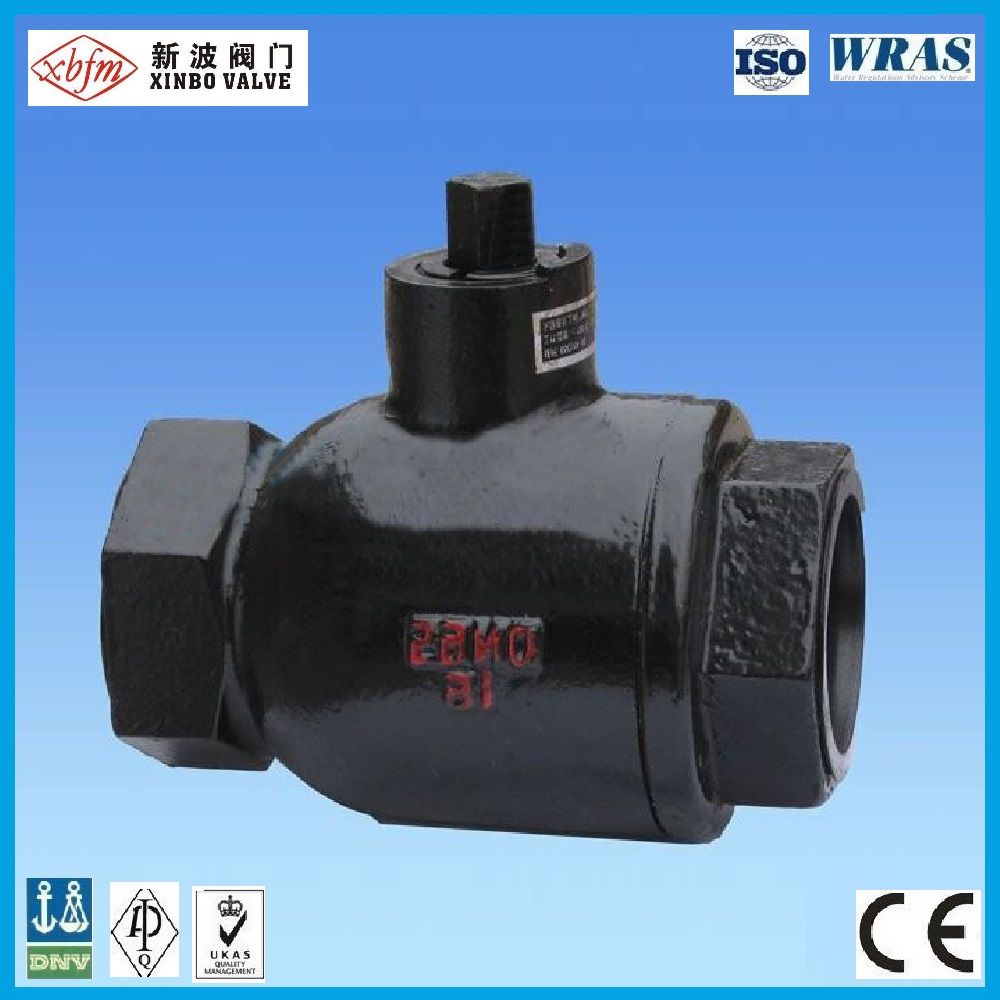

Cast Iron Threaded Ball Valve
| Price: |
US $ 2.5-2.8/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
CBV06 |
| Certificate: |
ISO, API.Ce, Crn |
| Brand: |
OEM /Xb |
| Standard: |
DIN BS ANSI JIS |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
| Material: |
Cast Iron |
| Function: |
Ball Valve |
Product Description
Cast Iron Threaded Ball Valve , Ductile Iron Ball Valve,Cast Iron Ball Valve
SpecificationsBall valve Products flexible from open to shut, no obstruction, connection strong, good sealing performance.Application:1. Face to face is according to ANSI B16.10
2. Flange drilled is according to ANSI B16.1Test:Workingpressure PN10 PN16
TestpressureShell 1.5MPA 2.4MPA
Seat 1.1MPA 1.76MPAComponents:1. Body: Cast iron or Ductile iron
2. Ball: Stainless steel or Brass ,Steel
3. Glandpacking: PTFE
4. Bonnet: Cast iron or Ductile iron
5. Stem: Stainless steel

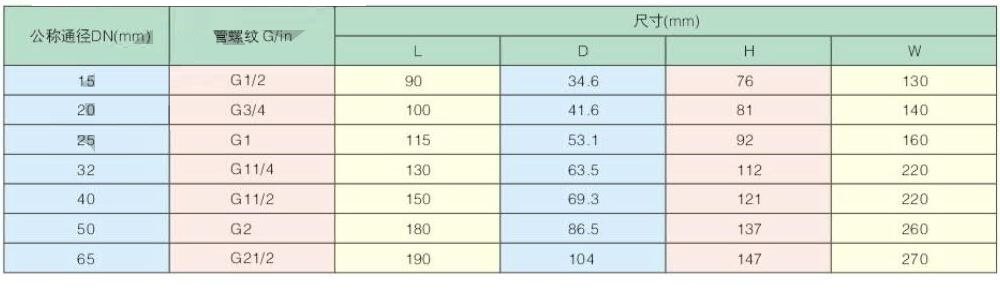

6. Handle: Ductile iron | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | | | | |
| | 1/2" | 3/4" | 1" | 1.25" | 1.5" | 2" | 2.5" | 3" | 4" | | | | |
| L | 90 | 100 | 115 | 130 | 150 | 180 | 190 | 203 | 229 | | | | |
| H | 76 | 81 | 92 | 112 | 121 | 137 | 147 | 170 | 201 | | | | |
| D | 34.6 | 41.6 | 53.1 | 69.3 | 86.5 | 104 | 128 | 131 | 168 | | | | |

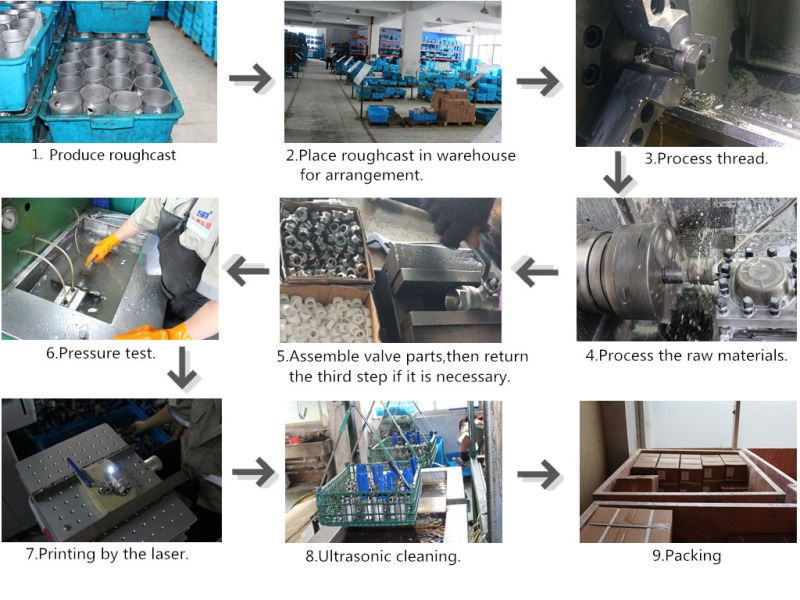

Machining Process
Work Shop
Shipment and packing , transport
Other Porducts Why Choose USWe control the material of PTFE(Teflon) and stainless steel wires per customer's request.
Some are from Japan and Taiwan, some are from China local. Only choose high quality material.
We test leakage of each roll before braiding, then we cut 300mm and crimp it to test
burst pressure after brading.
We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection
tools are all imported from Japan.
We use Techmaflex Crimping Machine which is imported from France. This machine has
accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
