| Prod Model: |
CZ1340G/1 CZ1440G/1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Swing Over Bed: |
300mm 350mm |
| Spindle Diameter: |
38mm |
| Swing Over Gap: |
476mm/500mm |
| Distance Between Centers: |
1000mm |
| Net Weight/Gross Weight: |
500/560kgs |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Double-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Table |
| Precision: |
High Precision |
Product Description

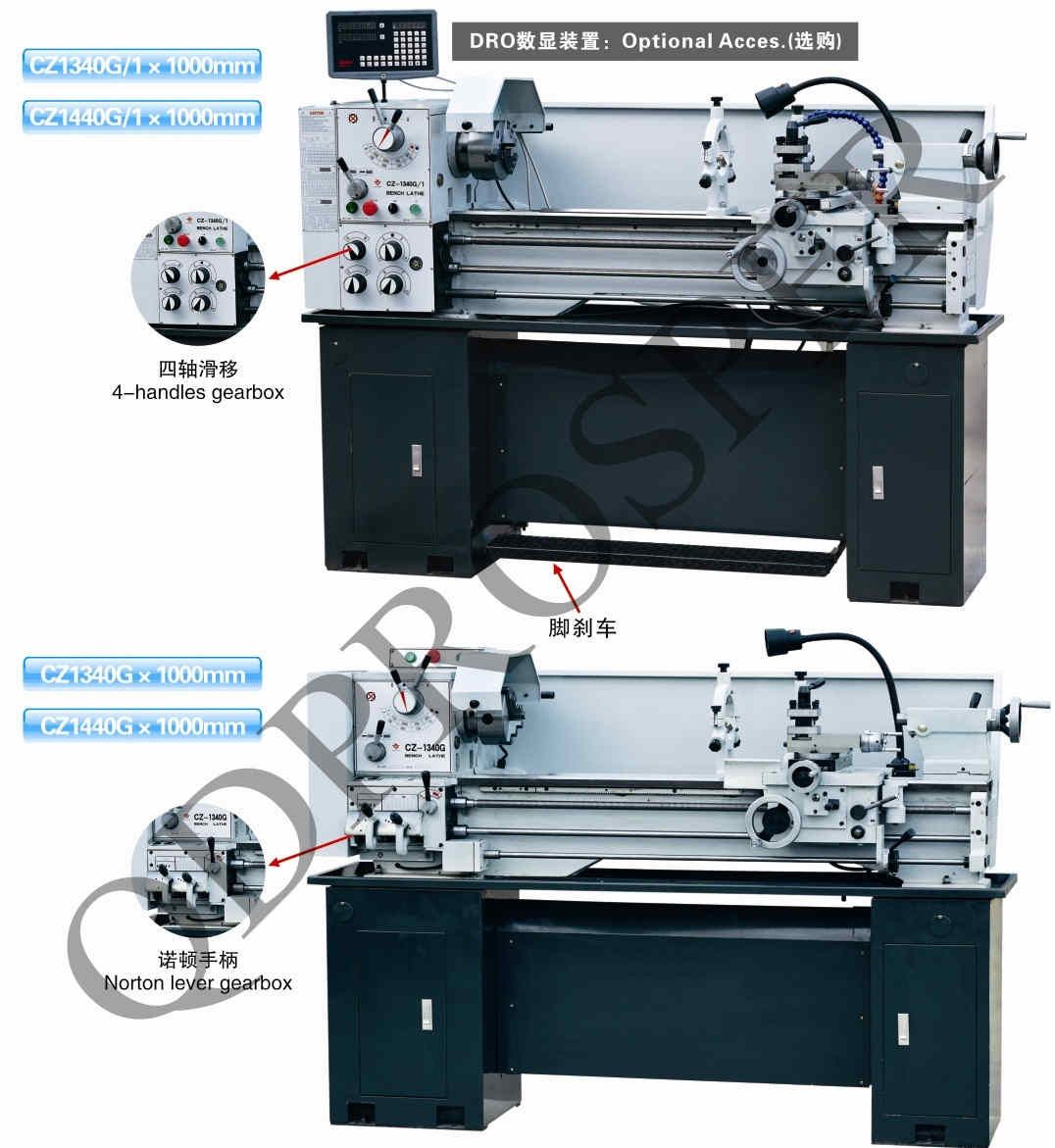

CZ1340G/1 CZ1440G/1 CE High Precision Bench Lathe Machine:
Standard Accessories:
Tool box, Tool post wrench, Allen wrench, Change gears set, 3-jaw chuck and wrench.
Optional Accessories:
Coolant system, working lamp, foot brake, machine stand, splash guard, face plate, 4-jaw chuck with back plate, live center, follow rest, steady rest, quick change toolpost, 2-Axis DRO, Lathe tool, Chuck cover, Tool post cover, Lead screw cover.
ITEM |
| CZ1340G/1 | CZ1440G/1 |
| Swing over bed | mm | φ330 | φ355 |
| Swing over carriage | mm | φ195 | φ220 |
| Swing over gap | mm | φ476 | φ500 |
| Width of bed-way | mm | 186 | 186 |
| Distance between centers | mm | 1000 | 1000 |
| Taper of spindle |
| M.T.5 | M.T.5 |
| Spindle diameter | mm | φ38 | φ38 |
| Step of speed |
| 8 | 8 |
| Range of speed | rpm | 70~2000 | 70~2000 |
| Head |
| D1-4 | D1-4 |
| Metric thread |
| 26kinds (0.4~7mm) | 26kinds (0.4~7mm) |
| Inch thread |
| 34kinds(4~56T.P.I) | 34kinds(4~56T.P.I) |
| Moulder thread |
| 16 kinds(0.35~5M.P) | 16 kinds(0.35~5M.P) |
| Diametral thread |
| 36 kinds(6~104D.P) | 36 kinds(6~104D.P) |
| Longitudinal feeds | mm/r | 0.052~1.392 (0.002"~0.0548") | 0.052~1.392 (0.002"~0.0548") |
| Cross feeds | mm/r | 0.014~0.38 (0.00055"~0.015") | 0.014~0.38 (0.00055"~0.015") |
| Diameter of lead screw | mm | φ22(7/8") | φ22(7/8") |
| Pitch of lead screw |
| 3mm or 8T.P.I | 3mm or 8T.P.I |
| Saddle travel | mm | 1000 | 1000 |
| Cross travel | mm | 170 | 170 |
| Compound travel | mm | 74 | 74 |
| Barrel travel | mm | 95 | 95 |
| Barrel diameter | mm | φ32 | φ32 |
| Taper of center | mm | M.T.3 | M.T.3 |
| Motor power | Kw | 1.5(2HP) | 1.5(2HP) |
| Motor for coolant system's power | Kw | 0.04(0.055HP) | 0.04(0.055HP) |
| Machine(L×W×H) | mm | 1920×750×760 | 1920×750×760 |
| Stand(left) (L×W×H) | mm | 440×410×700 | 440×410×700 |
| Stand(right) (L×W×H) | mm | 370×410×700 | 370×410×700 |
| Machine | Kg | 500/560 | 505/565 |
| Stand | Kg | 70/75 | 70/75 |
| Loading amount |
| 22pcs/20'container | 22pcs/20'container |
Qingdao Prosper Machinery Co., Ltd. is one of the professional suppliers specializing in workshop Machinery and pellet machinery.
With high efficient administrative system and extensive experience, our company export complete plants and single kind of machines to over 40 countries or regions, the total value is up to USD three million every year.
Workshop Machinery: Lathe machines, radial drilling machines, milling machine, slotting machine, welding machines, power hacksaw machines, workshop presses, Hydraulic folding machine, Guillotines, etc.
Pellet Machinery: Pellet mills for poultry feed, pig feed and shrimp feed. Hammer mills, Mixers, Coolers, Sieve, etc.
Biomass pellet mill: Wood pellet mill, Biomass Pellet Mill, Sawdust Pellet Mill, wood hammer mill, pellet cooler, etc.
Welcome all friends from at home and abroad to contact us for business discussion. Our main focus is to ensure that our customers get what they need, not what we think they should need. Our team ensures that every piece of machinery gets to its destination in due time and as economically as possible.
Here is your best choice, we will supply quality products at most competitive prices and good sales service to you.
