| Prod Model: |
CZ1340A CZ1440A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Swing Over Bed: |
300mm 350mm |
| Spindle Diameter: |
38mm |
| Swing Over Gap: |
476mm/500mm |
| Distance Between Centers: |
1000mm |
| Net Weight/Gross Weight: |
500/560kgs |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Double-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Table |
| Precision: |
High Precision |
Product Description

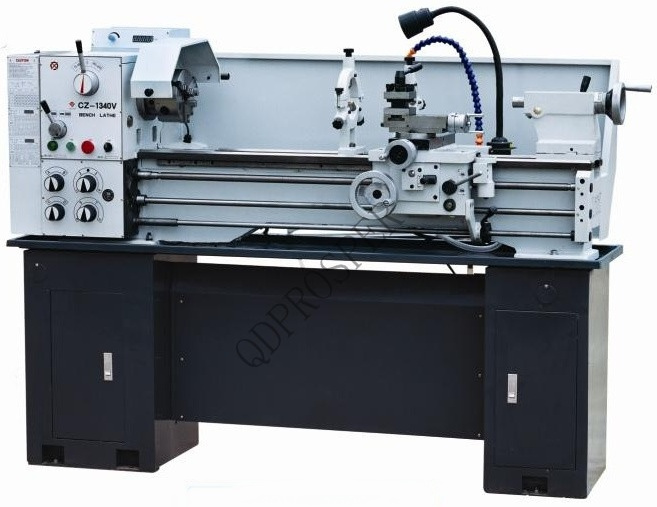

CE TUV Economic Bench Lathe Machine (CZ1340A CZ1440A) :
Standard Accessories:
Tool box, Tool post wrench, Allen wrench, Change gears set, 3-jaw chuck and wrench.
Optional Accessories:
Coolant system, working lamp, foot brake, machine stand, splash guard, face plate, 4-jaw chuck with back plate, live center, follow rest, steady rest, quick change toolpost, 2-Axis DRO, Lathe tool, Chuck cover, Tool post cover, Lead screw cover.
| ITEM |
| CZ1340A | CZ1440A |
| Swing over bed | mm | φ330 | φ350 |
| Swing over carriage | mm | φ195 | φ215 |
| Swing over gap | mm | φ476 | φ500 |
| Width of bed-way | mm | 186 | 186 |
| Distance between centers | mm | 1000 | 1000 |
| Taper of spindle |
| M.T.5 | M.T.5 |
| Spindle diameter | mm | φ38 | φ38 |
| Step of speed |
| 18 | 18 |
| Range of speed | rpm | Low step 60~1100 | Low step 60~1100 |
| High step 85~1500 | High step 85~1500 |
| Head |
| D1-4 | D1-4 |
| Metric thread |
| 26kinds (0.4~7mm) | 26kinds (0.4~7mm) |
| Inch thread |
| 34kinds(4~56T.P.I) | 34kinds(4~56T.P.I) |
| Moulder thread |
| 16 kinds(0.35~5M.P) | 16 kinds(0.35~5M.P) |
| Diametral thread |
| 36 kinds(6~104D.P) | 36 kinds(6~104D.P) |
| Longitudinal feeds | mm/r | 0.052~1.392 (0.002"~0.0548") | 0.052~1.392 (0.002"~0.0548") |
| Cross feed s | mm/r | 0.014~0.38 (0.00055"~0.015") | 0.014~0.38 (0.00055"~0.015") |
| Diameter lead screw | mm | φ22(7/8") | φ22(7/8") |
| Pitch of lead screw |
| 3mm or 8T.P.I | 3mm or 8T.P.I |
| Saddle travel | mm | 1000 | 1000 |
| Cross travel | mm | 170 | 170 |
| Compound travel | mm | 74 | 74 |
| Barrel travel | mm | 95 | 95 |
| Barrel diameter | mm | φ32 | φ32 |
| Taper of center | mm | M.T.3 | M.T.3 |
| Motor power | Kw | 1.5(2HP) | 1.5(2HP) |
| Motor for coolant system's power | Kw | 0.04(0.055HP) | 0.04(0.055HP) |
| Machine(L×W×H) | mm | 1920×760×760 | 1920×760×760 |
| Stand(left) (L×W×H) | mm | 440×410×700 | 440×410×700 |
| Stand (right)(L×W×H) | mm | 370×410×700 | 370×410×700 |
| Machine | Kg | 500/560 | 505/565 |
| Stand | Kg | 70/75 | 70/75 |
| Loading amount |
| 22pcs/20'container | 22pcs/20'container |
