Cemented Carbide Rotary Burrs File
| Price: |
US $ 2.23/Piece |
| Min Order: |
18/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
A-M |
| Model No: |
A0312, B0312, C0312, D0302, E0306, F0313, G0310 |
| Types: |
a, B, C, D, E, F, G, H, J, K, L, M |
| Type Of Cutting: |
Medium Cut, Fine Cut, Double Cut, Aluminum Cut |
| Application: |
Iron, Carbon, Stainless, Alloy Steeel, etc |
| Type: |
Carbide Burrs |
| Processing Methods: |
Cutting Tooth File |
| Section Shape: |
Knife-Shaped |
| Material: |
Tungsten Carbide |
| Usage: |
Metal Debur |
| Shape: |
a, B, C, D, E, F, G, H, J, K, L, M |
| Tooth Pattern: |
Double or Single |
Product Description

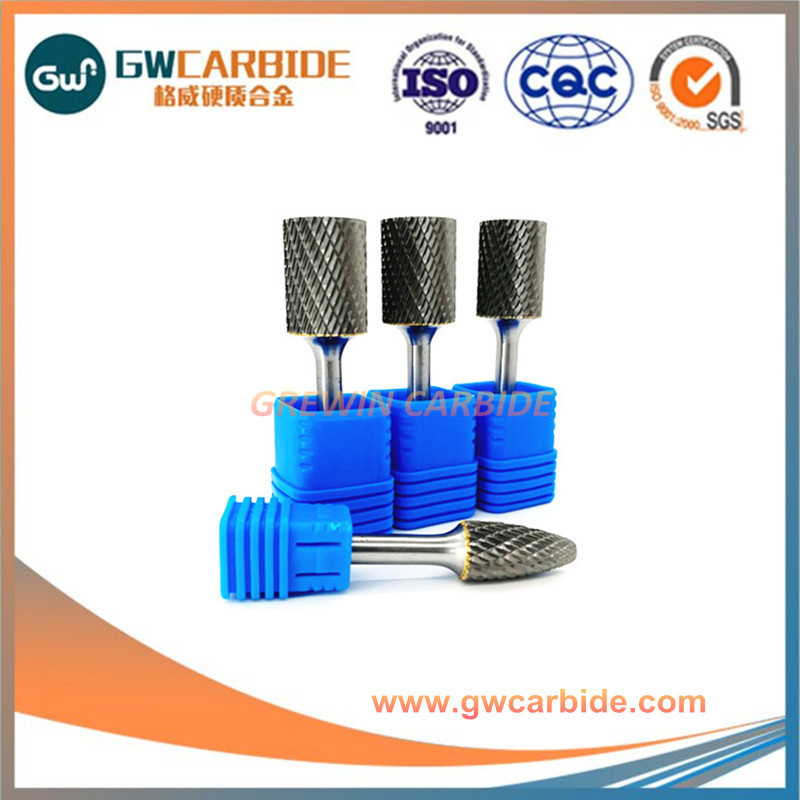

Cemented Carbide Rotary Burrs File
Rotary Burrs also called debur, is a grinding tool used by Pneumatic or electric Grinder, which is used for milling,deburring, break edges, trim process welding seams, and surface processing.
Material of work piece
High-alloy steel, non-rusting steel,acid-resistant steel,heat-resistant steel, stainless steel, aluminium, light alloy,
non-ferrous metal, brass, copper, zinc, and plastic

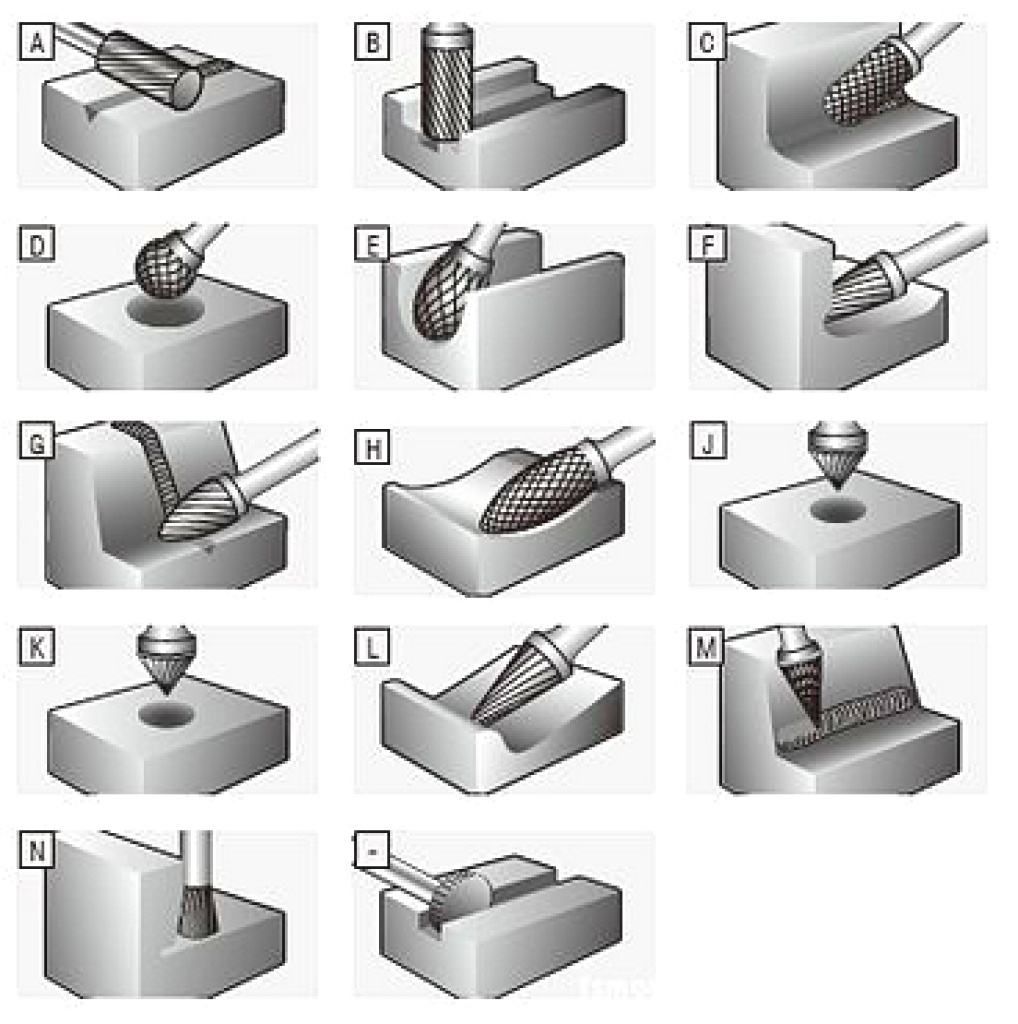

Application
(1) Machining various kinds of metals, including hardened steel HRC65
(2) Increasing production efficiency dozens of times than hand tools, and 3 ~ 5 times than small emery wheels
(3) Long working life, which is 10 times than HHS burrs, and 50 times than small emery wheels
(4) Finish machining various kinds of die cavities, removing burrs of casting, forging and welding spatter
(5 )Chamfering angle, circular bead and flute on mechanical components
(6) Chamfering and burring pipes
(7) Polishing impeller channel
(8) Grinding holes to accurate shape
Standard size| | Sizes |
| Order No. | Blade diameter | Blade Length | Stem diameter | General length |
| A0313M03 | 3 | 13 | 3 | 50 |
| A0413M04 | 4 | 13 | 4 | 50 |
| A0616M06 | 6 | 16 | 6 | 56 |
| A0820M06 | 8 | 20 | 6 | 60 |
| A1020M06 | 10 | 20 | 6 | 60 |
| A1225M06 | 12 | 25 | 6 | 65 |
| A1425M06 | 14 | 25 | 6 | 65 |
| A1625M06 | 16 | 25 | 6 | 65 |
| A0804M06 | 8 | 4 | 6 | 54 |
| A1005M06 | 10 | 5 | 6 | 50 |
| A1205M06 | 12 | 5 | 6 | 50 |
| A1606M06 | 16 | 6 | 6 | 50 |
| C0313M03 | 3 | 13 | 3 | 50 |
| C0413M04 | 4 | 13 | 4 | 50 |
| C0616M06 | 6 | 16 | 6 | 46 |
| C0820M06 | 8 | 20 | 6 | 60 |
| C1020M06 | 10 | 20 | 6 | 60 |
| C1225M06 | 12 | 25 | 6 | 65 |
| C1425M06 | 14 | 25 | 6 | 65 |
| C1625M06 | 16 | 25 | 6 | 65 |
| D0303M03 | 3 | 2.7 | 3 | 50 |
| D0403M04 | 4 | 3.6 | 4 | 50 |
| D0605M06 | 6 | 5.4 | 6 | 55 |
| D0807M06 | 8 | 7.2 | 6 | 57 |
| D1009M06 | 10 | 9 | 6 | 54 |
| D1210M06 | 12 | 10.8 | 6 | 55 |
| D1412M06 | 14 | 12 | 6 | 52 |
| D1614M06 | 16 | 14.4 | 6 | 54 |
| E0610M06 | 6 | 10 | 6 | 60 |
| E0813M06 | 8 | 13 | 6 | 58 |
| E1016M06 | 10 | 16 | 6 | 61 |
| E1220M06 | 12 | 20 | 6 | 60 |
| E1422M06 | 14 | 22 | 6 | 62 |
| E1625M06 | 16 | 25 | 6 | 65 |
| F0313M03 | 3 | 13 | 3 | 50 |
| F0618M06 | 6 | 18 | 6 | 58 |
| F0818M06 | 8 | 18 | 6 | 58 |
| F1020M06 | 10 | 20 | 6 | 60 |
| F1225M06 | 12 | 25 | 6 | 65 |
| F1425M06 | 14 | 25 | 6 | 65 |
| F1625M06 | 16 | 25 | 6 | 65 |
| G0313M03 | 3 | 13 | 3 | 50 |
| G0618M06 | 6 | 18 | 6 | 58 |
| G0817M06 | 8 | 17 | 6 | 57 |
| G1020M06 | 10 | 20 | 6 | 60 |
| G1225M06 | 12 | 25 | 6 | 65 |
| G1425M06 | 14 | 25 | 6 | 65 |
| G1625M06 | 16 | 25 | 6 | 65 |
| H0307M03 | 3 | 7 | 3 | 50 |
| H0618M06 | 6 | 18 | 6 | 58 |
| H0820M06 | 8 | 20 | 6 | 60 |
Call us or email us for catalogue with detail sizes sheet.
Packing
Laser print brand name on cutter shank, 1 pcs in a plastic tube, 10 pcs per group
Delivery time
Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 daysFrom material to your hand
