| Prod Model: |
LGJ170714006 |
| Size: |
Any Size Accepted Customized |
| Grade: |
Yg6,Yg8,Yg15 |
| Surface: |
Polished or Unground |
| Delivery Time: |
15days |
| Applications : |
Cutting Tool |
| Tolerance: |
+/-0.05 |
| Product Name: |
Carbide Sealing Ring |
| Quality: |
100% Virgin Materials. |
| Shiping: |
DHL,FedEx,TNT,UPS,EMS |
| MOQ: |
10 PCS |
| Standard: |
Nonstandard |
| Type: |
Old Craftsman |
Product Description

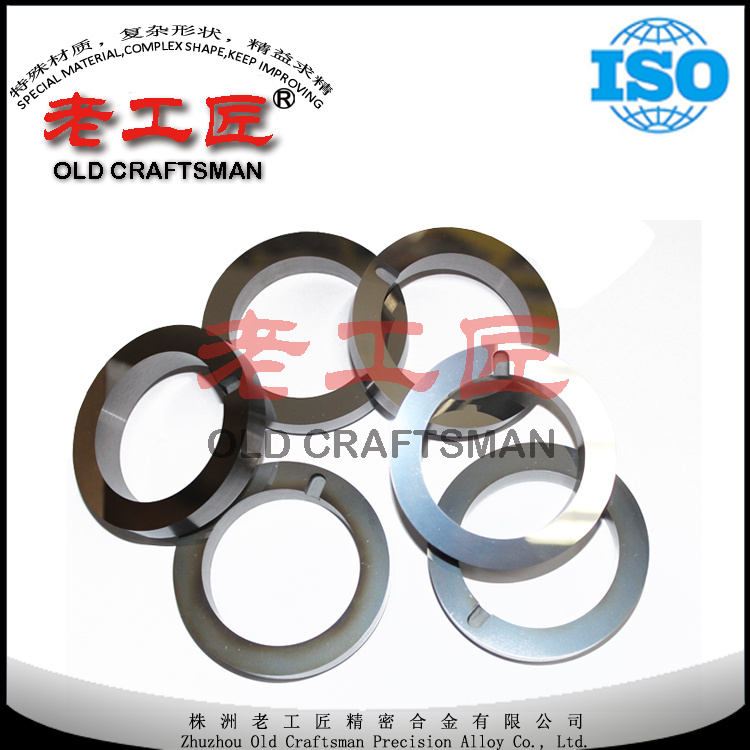

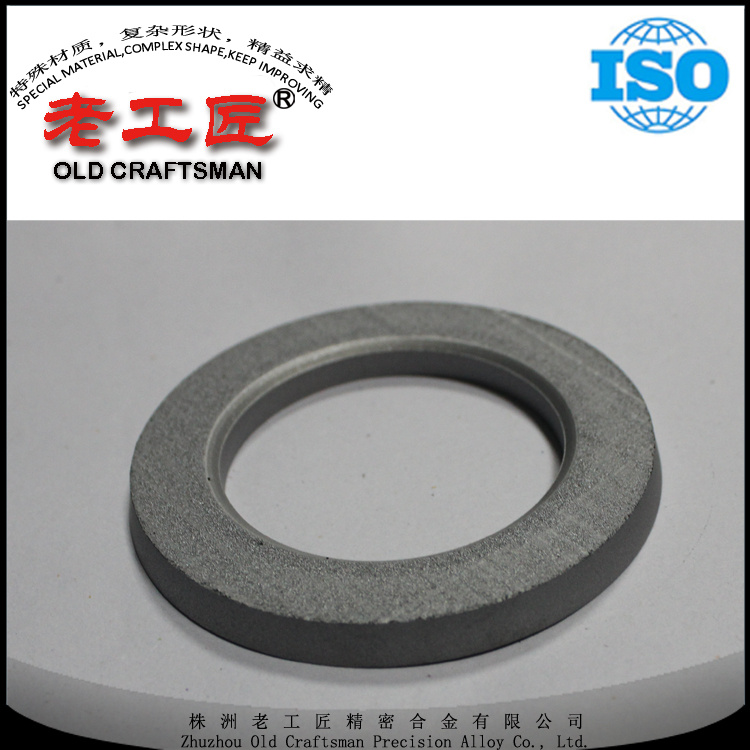

Ungrounded YN6 tungsten carbide Pump wear ring on sales
1. 100% raw material to produce tungsten carbide products.
2. Hip sintered, high hardness, high wear resistance
3. Various sizes and full types available
4. Reasonable price,Fast delivery time
5. OEM Customized(small order accepted,professional technical support)
6.ISO 9001 Certification
More details of specific type, please inform us
Product information
Grade of tungten carbide seal ring
Grade of tungsten carbide material
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (>=N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Grade of non-magnetic cemented carbide material
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (>=N/mm²) |
| YN6 | 6 | 14.7 | 89.5 | 1460 |
| YN6X | 6 | 14.8 | 90.5 | 1400 |
| YN6A | 6 | 14.8 | 91.0 | 1480 |
| YN8 | 8 | 14.6 | 88.5 | 1710 |
Type and size of tungten carbide seal ring
| Variety | Type | Size(mm) |
| D | d | H |
| Flat ring | PHDxdxH | 10~350 | 2~300 | 3~80 |
| Ring with outer shoulder | YTDxdxH |
| Ring with inner shoulder | NTDxdxH |
| Ring with inner-outer shoulder | NYDxdxH |
| Ring with groove | CHDxdxH |
| RTH ring | QTDxdxH |
| LRH RING | LRHxdxH |
| TH ring | THxdxH |
| Other seal ring | RTHxdxH |
Remark:Customed Size Will be welcomed
Applications
Tungsten carbide Seal Ring are used for machenical seal, water pump, oil pump, flow restrictors, servo seat.
Remark:Customed Size Will be welcomed
Company Information

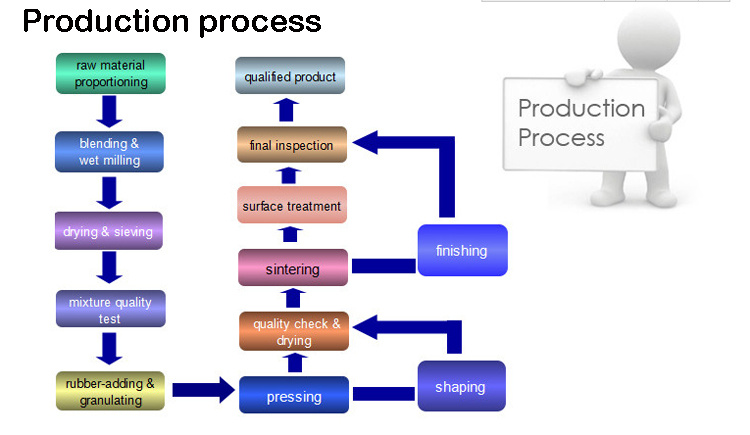

Production process
Applications
Tungsten carbide Seal Ring are used for machenical seal, water pump, oil pump, flow restrictors, servo seat.
Packing and Delivery
Payment terms
FAQ
Q: Are you trading company or manufacturer ?A: We are factory.
Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 25-35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?A: Payment<1000USD, 100% in advance. Payment>1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us!
Zhuzhou Old Craftsman Precision Alloy Co., Ltd, a professional tungsten carbide manufacturer combined with R&D, production, sales, technical services.
Adhering to the spirit of "Craftsman", through the sublimation of cemented carbide traditional crafts and the exploration of modern cutting-edge technology; The application of new materials, new technologies and new methods; Can produce many kinds of carbide products, such as universal carbide products, non-standard carbide products, mold material, wear-resisting parts, Magnetic carbide, carbide tools, vacuum welding carbide and steel, and other diversified products, widely used in machinery, equipment, building materials, oil and gas, mining, electrical, plastic, aerospace and other manufacturing industries.

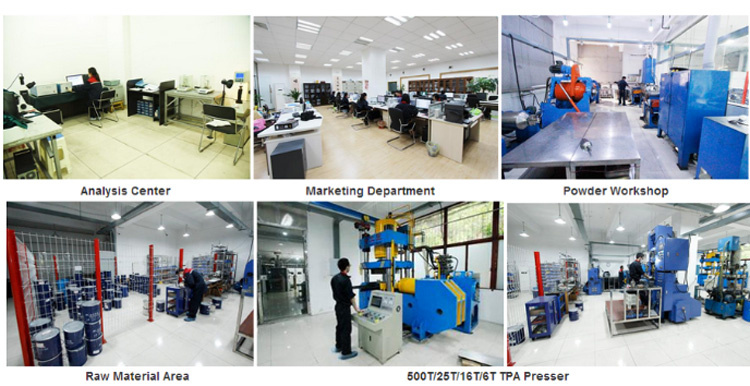

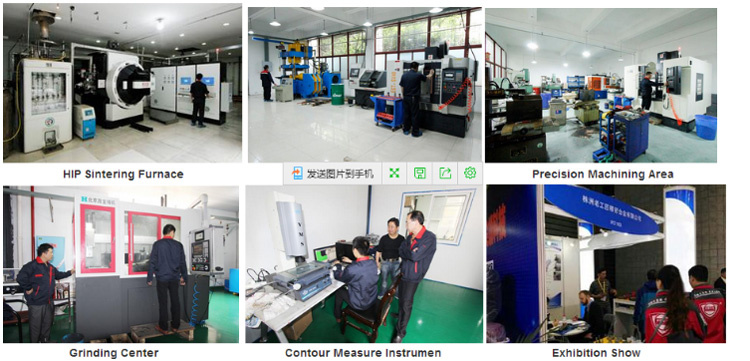

We have a variety of modern first-class alloy production equipment, such as powder-mixing line, mold forming, injection, CNC machining, HIP sintering, vacuum welding, CNC grinding, EDM and so on; Independently designing out dedicated CNC grinding center for tile cutters and rubber crusher. Complete inspection equipments support the comprehensive inspection on density, hardness, strength, metallographic phase.
Our products are produced based on ISO 9001 standard strictly from the beginning of the establishment; Every production process is controlled by ERP and MES system. With the insistent heart, craftsman skill, customer's satisfaction, we manufacture and supply the tungsten carbide products solution. At present, goods are exported to Europe and America, Southeast Asia, Africa, South America, the Middle East etc.
Quality is made when it goes out, and is not tested when it is sent out!
