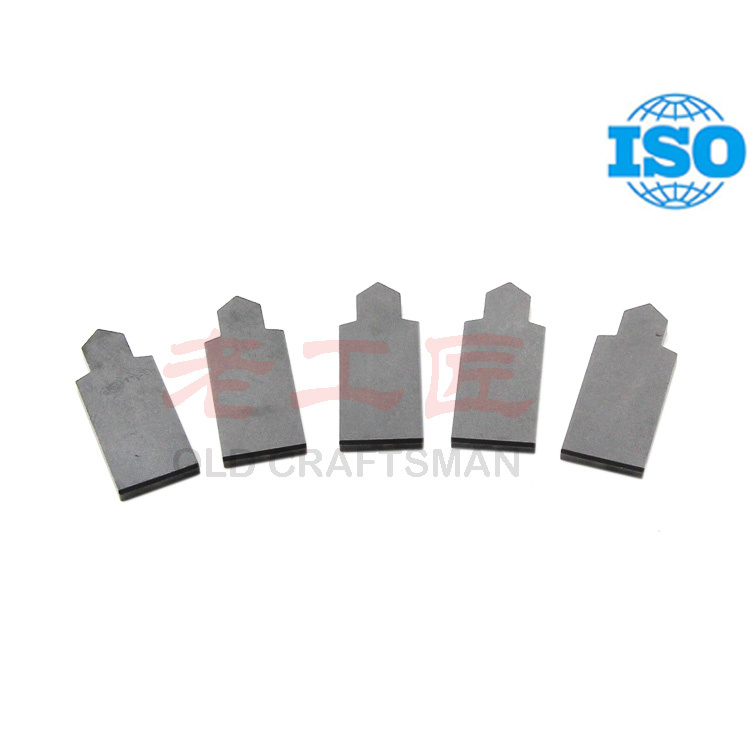

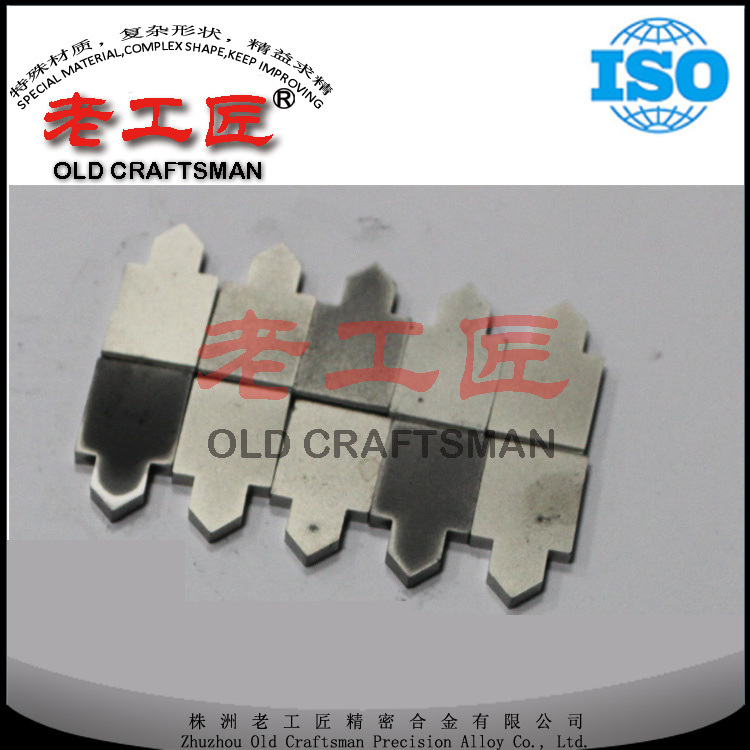

Tungsten Carbide Yt5 E Type Brazed Blade for Lathe
Price: |
US $ 49-52kg |
Min Order: |
10kg |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
LGJ170713016 |
Size: |
Any Size Accepted Customized |
Grade: |
Yg6,Yg8,Yn8,Yn10,Yg15 |
Surface: |
Unground |
Delivery Time: |
15days |
Applications : |
Cutting Tool |
Tolerance: |
+/-0.5 |
Product Name: |
Tungsten Carbide Saw Tips |
Quality: |
100% Virgin Materials. |
Shiiping: |
DHL,FedEx,TNT,UPS,EMS |
MOQ: |
10 Kg |
Type: |
Circular Saw |
Layout: |
Horizontal |
Controlling Mode: |
CNC |
Automatic Grade: |
Automatic |
Precision: |
High Precision |
Certification: |
FDA |
Product Description
cemented carbide for circular saw tip
1. 100% raw material to produce tungsten carbide products.
2. Hip sintered, high hardness, high wear resistance
3. Various sizes and full types available
4. Reasonable price,Fast delivery time
5. OEM Customized(small order accepted,professional technical support)
6.ISO 9001 Certification
More details of specific type, please inform us
tungsten cemented carbide cutting insert information
Grade information
Grade | ISO Code | Density g/cm3 | Hardness HRA | T.R.S MPa | Applications recommended |
YG3 | K05 | 15.10 | 92.0 | 1400 | Suitable for finishing of cast iron and nonferrous metal. |
YG6X | K10 | 14.95 | 92.5 | 2200 | The finishing & semi-finishing of cast iron and nonferrous metals and also for the machining of manganese steel and hardening steel. |
YG6 | K15 | 14.95 | 91.5 | 2400 | Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
YG8 | K20 | 14.80 | 90.0 | 2900 |
YW1 | M10 | 13.30 | 92.5 | 2100 | Suitable for finishing and semi-finishing of stainless steel and conventional alloy steel. |
YW2 | M20 | 13.10 | 92 | 2400 | The grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the machining of railway wheel hubs. |
YT15 | P10 | 11.4 | 92.0 | 2100 | Suitable for the finishing and semi-finishing for steel and cast steel with a moderate feed rate and rather high cutting speed. |
YT14 | P20 | 11.6 | 91.5 | 2100 | Suitable for the finishing and semi-finishing of steel and cast steel. |
YT5 | P30 | 13.0 | 90.5 | 2400 | Suitable for the heavy duty rough turning of and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions. |
Regular size
| Type | Dimensions (mm) | L | t | S | a° | E4 | 4 | 10 | 2.5 | - | E5 | 5 | 12 | 3 | - | E6 | 6 | 14 | 3.5 | 9 | E8 | 8 | 16 | 4 | 9 | E10 | 10 | 18 | 5 | 9 | E12 | 12 | 20 | 6 | 9 | E16 | 16 | 22 | 7 | 9 | E20 | 20 | 25 | 8 | 9 | E25 | 25 | 28 | 9 | 9 | E32 | 32 | 32 | 10 | 9 |
|
|
Applications

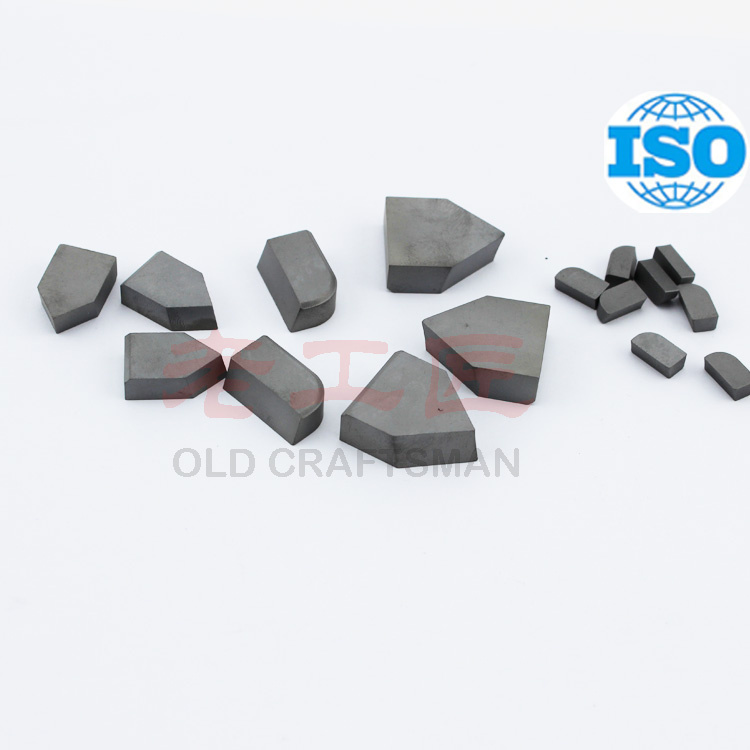

Tungsten carbide brazed insert are Suitable for machining of various types of metal parts

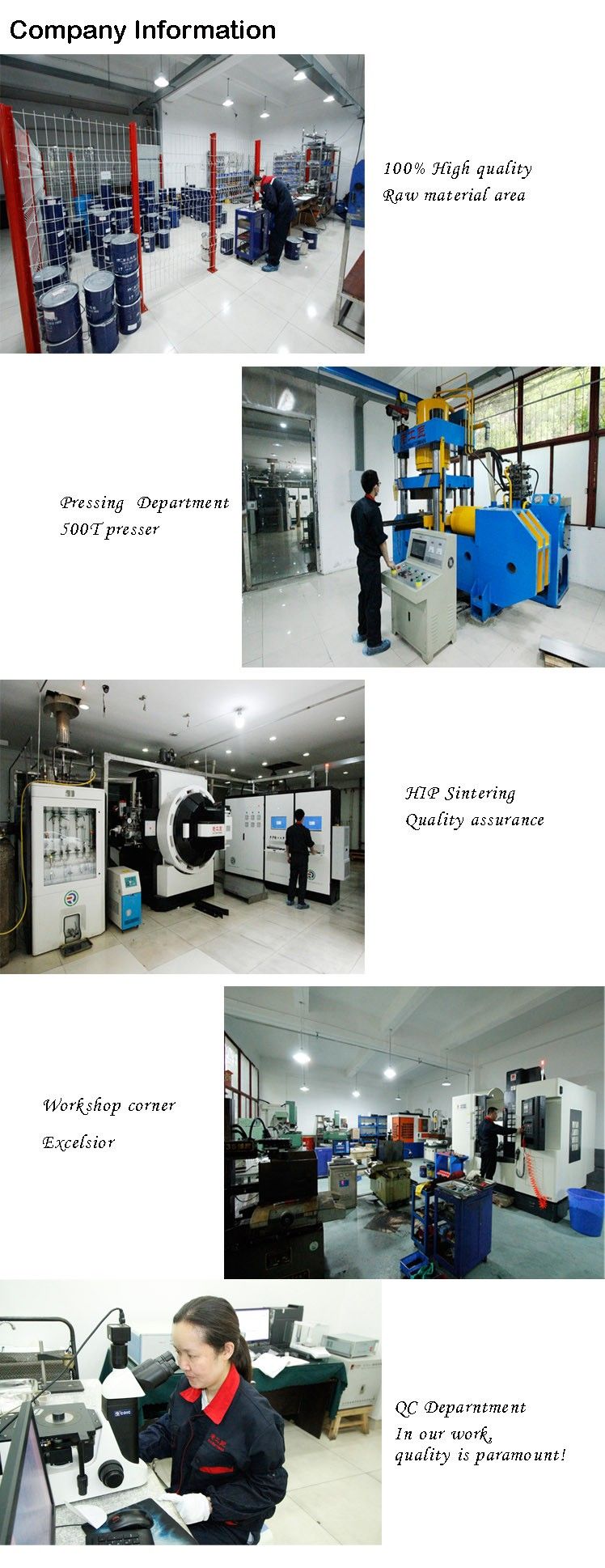

Company Information

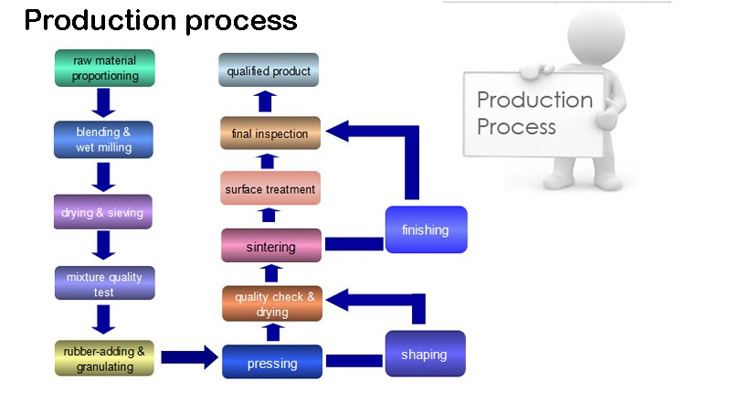

Production process
Packing and Delivery
RAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<1000USD, 100% in advance. Payment>1000USD, 30% T/T in advance ,balance before shippment.
Zhuzhou Old Craftsman Precision Alloy Co., Ltd, a professional tungsten carbide manufacturer combined with R&D, production, sales, technical services.
Adhering to the spirit of "Craftsman", through the sublimation of cemented carbide traditional crafts and the exploration of modern cutting-edge technology; The application of new materials, new technologies and new methods; Can produce many kinds of carbide products, such as universal carbide products, non-standard carbide products, mold material, wear-resisting parts, Magnetic carbide, carbide tools, vacuum welding carbide and steel, and other diversified products, widely used in machinery, equipment, building materials, oil and gas, mining, electrical, plastic, aerospace and other manufacturing industries.
We have a variety of modern first-class alloy production equipment, such as powder-mixing line, mold forming, injection, CNC machining, HIP sintering, vacuum welding, CNC grinding, EDM and so on; Independently designing out dedicated CNC grinding center for tile cutters and rubber crusher. Complete inspection equipments support the comprehensive inspection on density, hardness, strength, metallographic phase.
Our products are produced based on ISO 9001 standard strictly from the beginning of the establishment; Every production process is controlled by ERP and MES system. With the insistent heart, craftsman skill, customer's satisfaction, we manufacture and supply the tungsten carbide products solution. At present, goods are exported to Europe and America, Southeast Asia, Africa, South America, the Middle East etc.
Quality is made when it goes out, and is not tested when it is sent out!
