Ceramic Knife Gate Valve with High Quality
| Price: |
US $ 1000-2000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
LMDZ73TC |
| Applicable Pressure: |
1.0-4.0MPa |
| Applicable Temperature: |
Not Higher Than 150ºC |
| Material Science: |
Customized |
| Color: |
Customized |
| Material: |
Carbon Steel |
| Connection Form: |
Flange |
| Seal Surface: |
Parallel Gate Valve |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Household Usage |
Product Description
Jiangsu Longmai Environmental Protection Equipment Co., Ltd.-Professional Manufacturer of Pneumatic Conveying Products LMDZ73TC

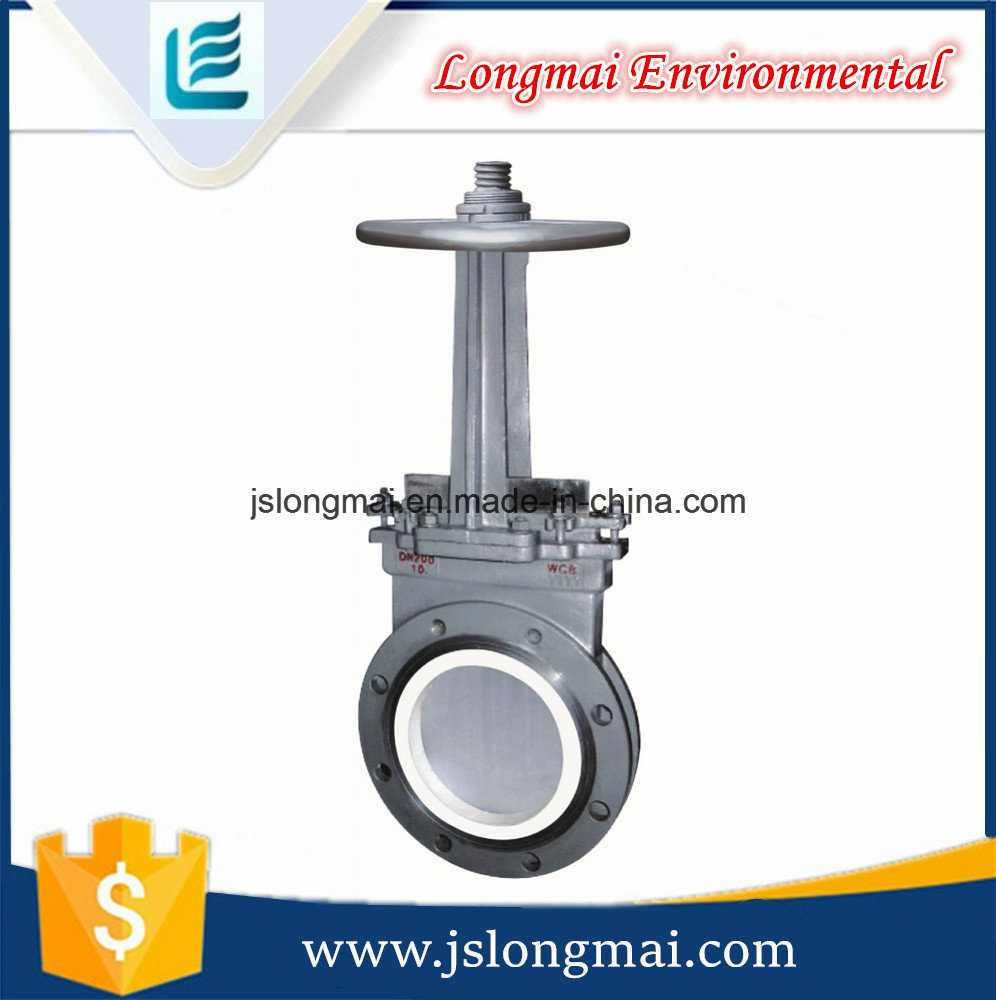

Ceramic Knife Gate ValveFunction and utility- The valve is used in concentrating mills and coal preparation plants for open-close purpose. Suitable medium:dry ash, ash slag, coal furry
- Operating pressure: 1.0Mpa-1.6Mpa
- Operating temperature: not higher than 180°C
Performance characteristics- The valve is used in excessive wear pipeline for open-close purpose. The valve is compact in design, easy to install. Seal seat of the valve adopts (ZTA) ceramic composite sealing form and its hardness (HRC ≥ 90 ) has good toughness , solving the problem of hard and brittle ceramics, effectively ensuring the high wear-resistance and corrosion-resistance. The valve plate is made of high chromium alloy with high wear-resistance, impact -resistance, and it can be used for throttling. Besides, the valve is featured with light and easy opening and little friction, ash deposition and ash clogging will not occurred in valve chamber.
- The valve can be installed horizontally or vertically, not inversely.
- Installation and tough-in dimension
Materials for major components and their names| Number | Name | Material | Number | Name | Material |
| 1 | body | WCB | 5 | packing gland
| WCB |
| 2 | seat | Zirconia Ceramic | 6 | stem | 2Cr13 |
| 3 | Gate disc: | KM TBCr20Mo | 7 | yoke | WCB |
| 4 | Packing | Flexible graphite | 8 | handwheel | QT400-17 |
Research and development longmai has powerful technological force, the R & D department consists of a team over 40 technicians for technical development which is professional, pragmatic and innovative. 30% of them have the Master's degree or above inland famous University. All of them have the experience of painting development for many years.The R & D department have the independent lab equipped with the advanced testing device.

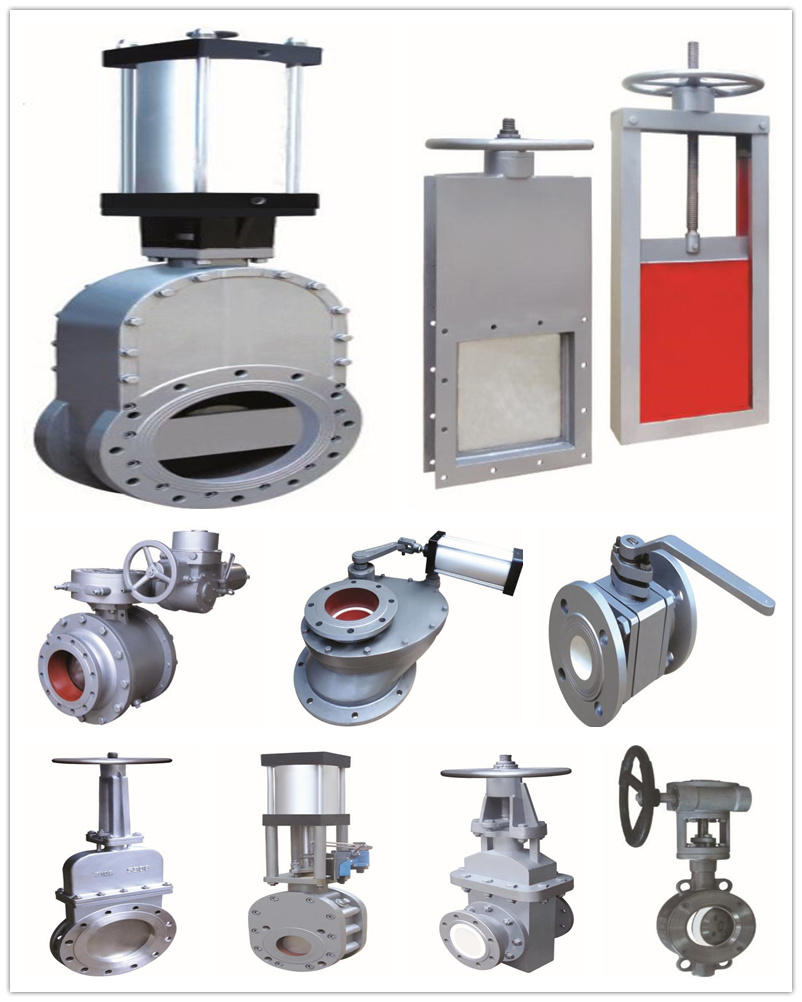

Other products you may need:We can provide you with more service(Consultancy, plan, design, manufacturing, installation, testing and training):
1,Pneumatic ceramic double ram inlet valve
2,Pneumatic metallic double ram valve
3,Inflatable dome valve
4,Pneumatic ceramic rotating inlet valve
5,Pneumatic metallic swing valve
6,Pneumatic pebble coal slag discharge valve
7,High temperature resistant thin type slag discharge valve
8,Anti-wear slag discharge valve
9,Anti-wear ceramic slag discharge valve
10,Ceramic ball valve
11,Wear resistant cast stone valve
12,Pneumatic knife gate valve
13,Three-piece type slurry valve(flat gate valve)
14,Ceramic check valve
15,Ceramic butterfly gate
16,Square flapper door
17,Wear resistant pipe and power plant auxiliary equipment spare parts
18,Double sleeves dense phase positive pressure pneumatic conveying system
Why Choose US1,Diligent and dedicated, Honest and credible, Work together, Reform and innovation, Win-win cooperation
2,Diligence and dedication can let us do down-to-earth things for our customers.
3,Honesty and credibility can help us to get our customer's trusty.
4.,We work together to solve problems quickly for our customers.
5,Reform and innovation can develop us continuously.
6,Win-win cooperation is the target of our customers and ours.

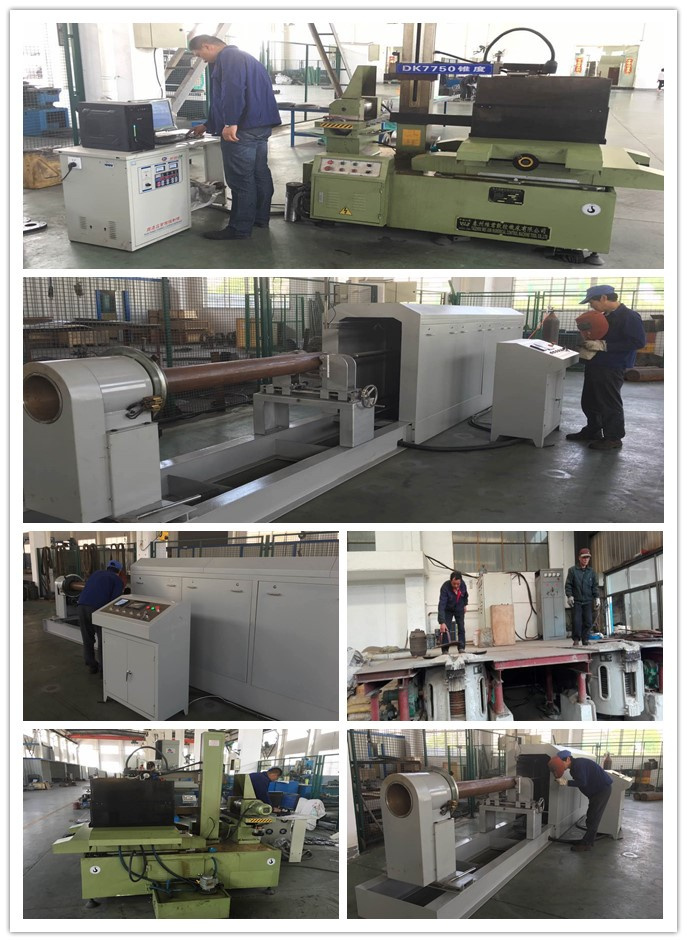

Our Equipment

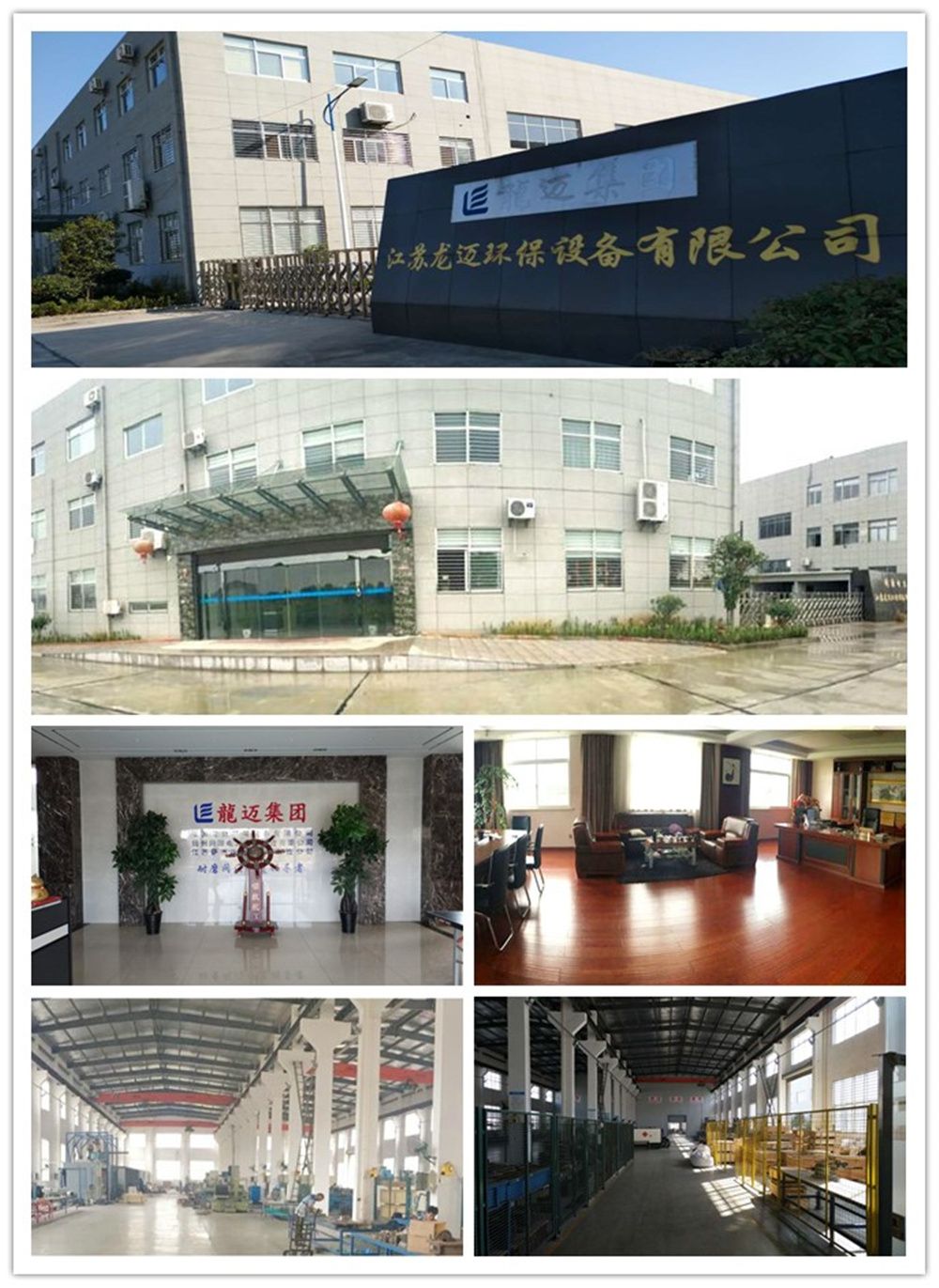

Our Company
