High Quality Ceramic Butterfly Valve for Industry
| Price: |
US $ 1000-2000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
LMD371TC |
| Applicable Pressure: |
1.0-4.0MPa |
| Applicable Temperature: |
Not Higher Than 150ºC |
| Material Science: |
Customized |
| Color: |
Customized |
| Material: |
Carbon Steel |
| Connection Form: |
Flange |
| Seal Surface: |
Parallel Gate Valve |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Household Usage |
Product Description

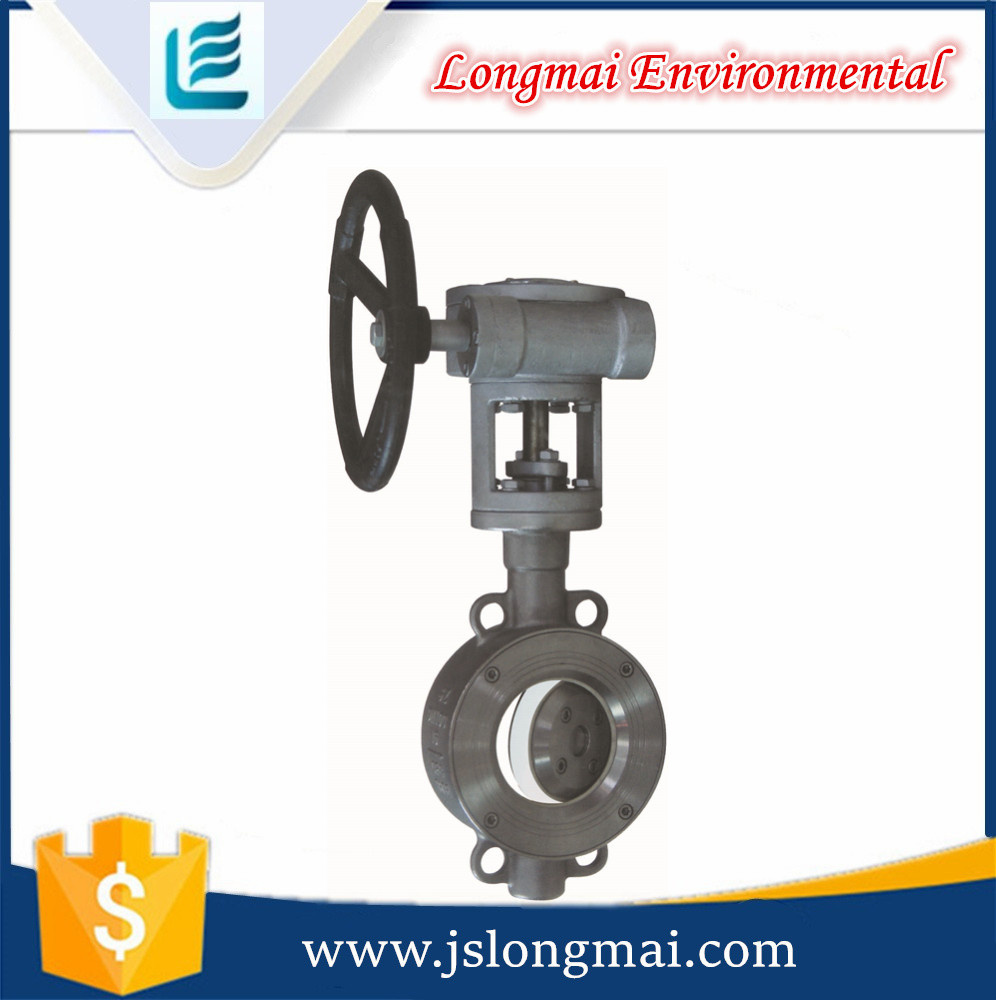

Jiangsu Longmai Environmental Protection Equipment Co., Ltd.-Professional Manufacturer of Pneumatic Conveying Products LMD371TC
Ceramic Butterfly ValveFunction and utility - The valve is used in pipelines in industries such as mining, chemical, thermal power, paper making and other industries for open and close purpose.
- Maximum operating temperature reaches up to 350°C, while maximum operating pressure is up to2.5Mpa.
Performance characteristics- The butterfly valve is a new type of product developed independently by our company, with a ceramic three-eccentric sealing structure and good sealing performance, without mechanical wear and tear. Spherical sealing surface of Butterfly valve disc and the inner circular surface inside seat are manufactured with new wear-resistant ceramic (ZTA) composites materials with good abrasion resistance and self-lubricating, forming linear seal after fine grinding.
- The design above comprehensively improves wear-resistance and sealing performance greatly, ensuring long service life of the valve.
- Driving mode: manual, electric, worm drive, and pneumatic.
Materials for major components and their names| Number | Name | Material | Number | Name | Material |
| 1 | Body | 304(WCB) | 5 | Stem | 2Cr13 |
| 2 | Seat | Zirconia Ceramics | 6 | Packing | Flexible graphite |
| 3 | Sealing surface | Zirconia Ceramics | 7 | Yoke | Q2352 |
| 4 | Disc | 304(WCB+ ZirconiaCeramics) | 8 | Worm | Q235 |
Research and development longmai has powerful technological force, the R & D department consists of a team over 40 technicians for technical development which is professional, pragmatic and innovative. 30% of them have the Master's degree or above inland famous University. All of them have the experience of painting development for many years.The R & D department have the independent lab equipped with the advanced testing device.

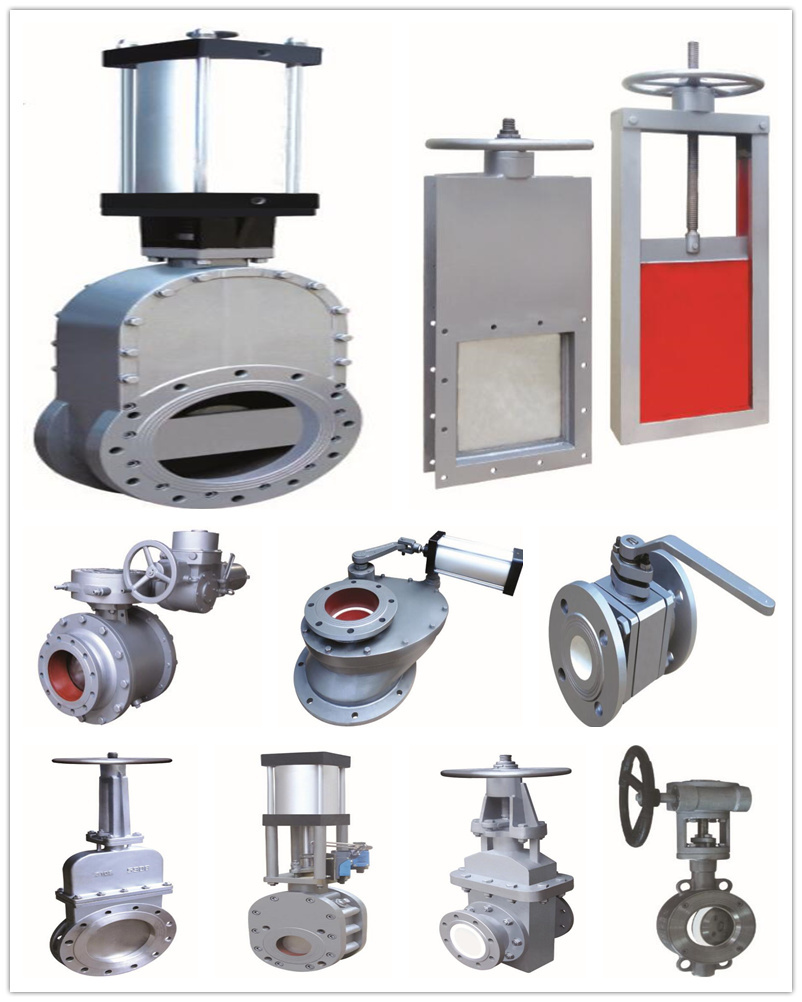

Other products you may need:We can provide you with more service(Consultancy, plan, design, manufacturing, installation, testing and training):
1,Pneumatic ceramic double ram inlet valve
2,Pneumatic metallic double ram valve
3,Inflatable dome valve
4,Pneumatic ceramic rotating inlet valve
5,Pneumatic metallic swing valve
6,Pneumatic pebble coal slag discharge valve
7,High temperature resistant thin type slag discharge valve
8,Anti-wear slag discharge valve
9,Anti-wear ceramic slag discharge valve
10,Ceramic ball valve
11,Wear resistant cast stone valve
12,Pneumatic knife gate valve
13,Three-piece type slurry valve(flat gate valve)
14,Ceramic check valve
15,Ceramic butterfly gate
16,Square flapper door
17,Wear resistant pipe and power plant auxiliary equipment spare parts
18,Double sleeves dense phase positive pressure pneumatic conveying system
Why Choose US1,Diligent and dedicated, Honest and credible, Work together, Reform and innovation, Win-win cooperation
2,Diligence and dedication can let us do down-to-earth things for our customers.
3,Honesty and credibility can help us to get our customer's trusty.
4.,We work together to solve problems quickly for our customers.
5,Reform and innovation can develop us continuously.
6,Win-win cooperation is the target of our customers and ours.

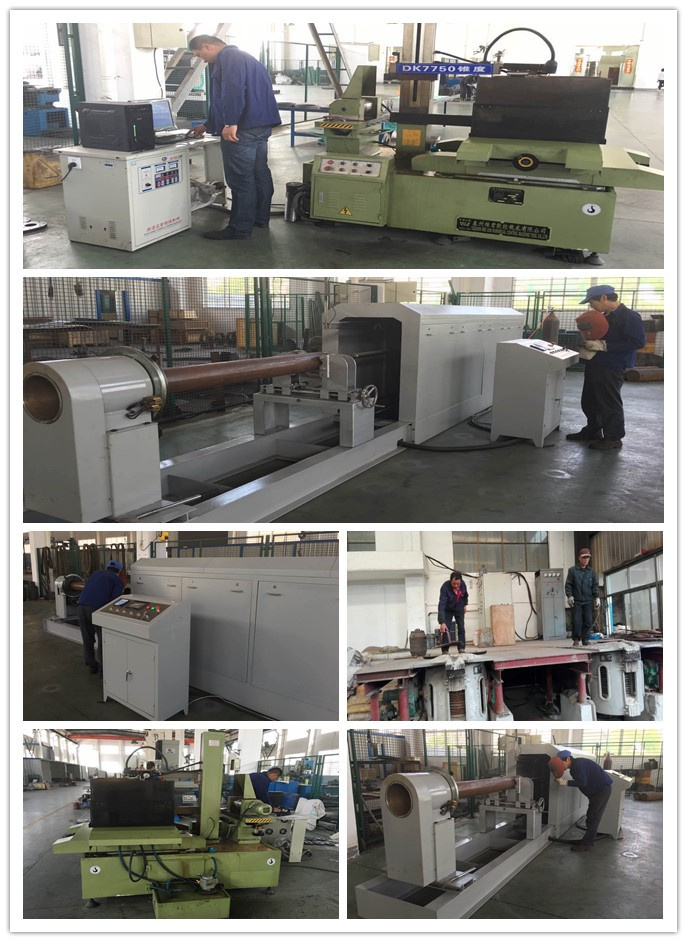

Our Equipment

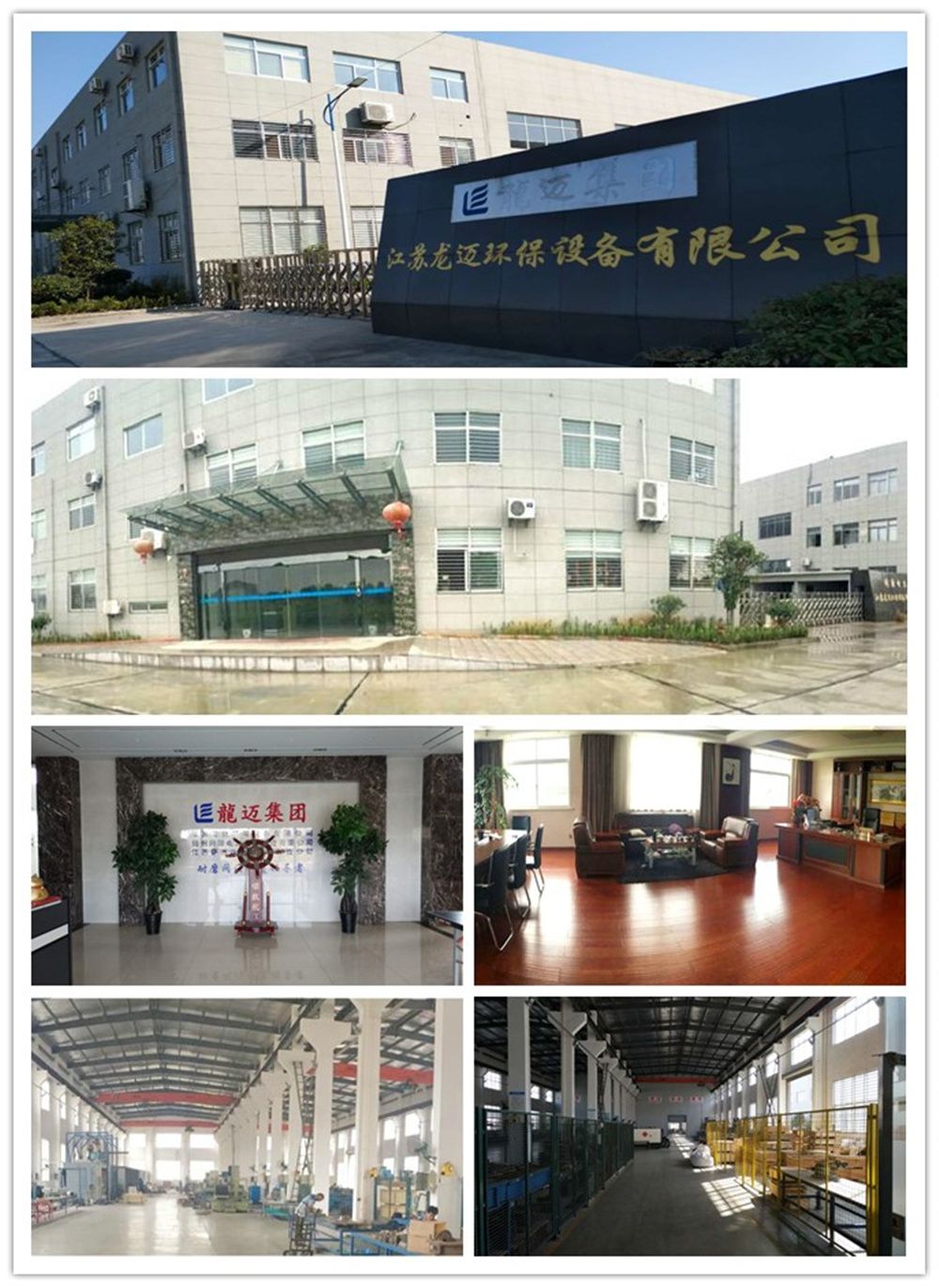

Our Company
Jiangsu Longmai Environmental Protection Equipment Co., Ltd. is located in the world famous historical and cultural city, Yangzhou. With its strong technical force, superior manufacturing equipment and complete testing methods, the company is endeavoring in innovation and developing new products by its modern enterprise management mode and high technology advantages. The products that we have developed and produced, including inflatable dome valve, wear resistant ceramic valve and anti-wear slagging valve, have a high level of popularity and market share in the thermal power industry and steel industry in China. The projects of ash conveying, denitration and dedusting in power plants and cement plants that the Company undertook have received consistent praise from the customers for its good quality, short construction period and excellent service. The Company also provides spare parts of boiler system and ash handling system for thermal power plants. The Company pays much attention to people-oriented idea and rejuvenates the Company through science and technology. By far, the Company owns one patent for invention (full-automatic dredge equipment for raw coal silo) and several patents for utility model (a new type of anti-wear gate valve and etc.). The Company constantly strengthens horizontal cooperation with colleges, universities and research institutes, such as North China Electrical Power University, Xi'an University of Architecture and Technology(the original Xi 'an Institute of Metallurgy), Machinery Research Institute of Yangzhou University and so on, together to make joint research and development of new products. In current intense market competition, the Company has seized the opportunity with our leading technology and management. The Company will continue to innovate, develop new products actively and devote itself to provide quality products and perfect after-sales service to the customers in and abroad.We sincerely look forward to providing service and product to you!
Jiangsu Longmai Environmental Protection Equipment Co., Ltd. is located in the world famous historical and cultural city, Yangzhou. With its strong technical force, superior manufacturing equipment and complete testing methods, the company is endeavoring in innovation and developing new products by its modern enterprise management mode and high technology advantages. The products that we have developed and produced, including inflatable dome valve, wear resistant ceramic valve and anti-wear slagging valve, have a high level of popularity and market share in the thermal power industry and steel industry in China. The projects of ash conveying, denitration and dedusting in power plants and cement plants that the Company undertook have received consistent praise from the customers for its good quality, short construction period and excellent service. The Company also provides spare parts of boiler system and ash handling system for thermal power plants.
The Company pays much attention to people-oriented idea and rejuvenates the Company through science and technology. By far, the Company owns one patent for invention (full-automatic dredge equipment for raw coal silo) and several patents for utility model (a new type of anti-wear gate valve and etc. ). The Company constantly strengthens horizontal cooperation with colleges, universities and research institutes, such as North China Electrical Power University, Xi'an University of Architecture and Technology(the original Xi 'an Institute of Metallurgy), Machinery Research Institute of Yangzhou University and so on, together to make joint research and development of new products. In current intense market competition, the Company has seized the opportunity with our leading technology and management. The Company will continue to innovate, develop new products actively and devote itself to provide quality products and perfect after-sales service to the customers in and abroad.
We sincerely look forward to providing service and product to you!
