| Prod Model: |

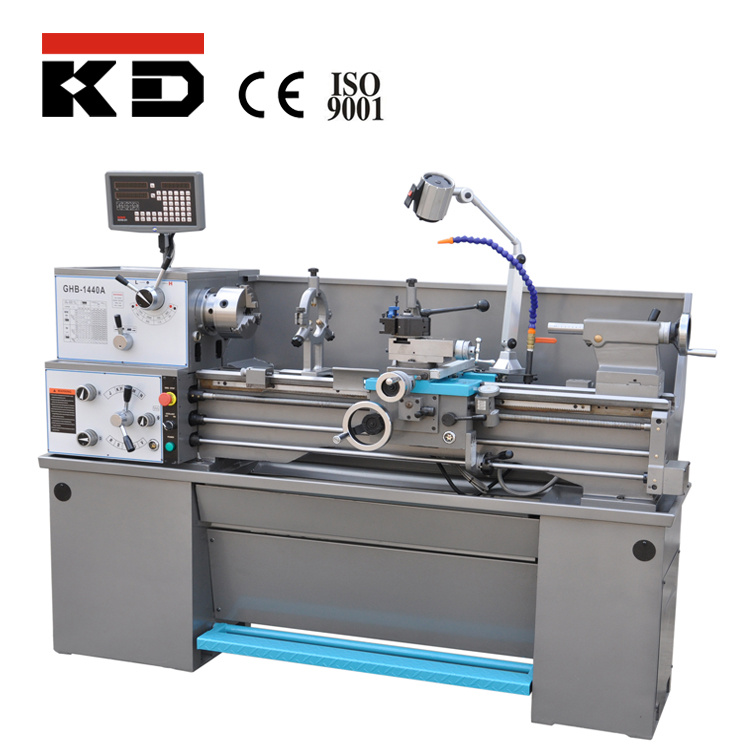

GHB-1440A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
1.5/2.4kw |
| Spindle Bore: |
38mm |
| Gross Weight: |
820kg |
| Swing Over Bed: |
330mm |
| Max.Length Workpiece: |
1000mm |
| Packing Size: |
1920X750X1400(mm) |
| Weight: |
820kg |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Automatic Grade: |
Manual |
| Setting Mode: |
Floor-type |
| Precision: |
Precision |
| Processing Accessory: |
Metal Part Machining |
| Tool Holder: |
4-Way Tool Post |
| Controlling Mode: |
Manually |
Product Description
Specifications:
ITEMS | GHB-1440A |
| Max. swing over bed | 360mm |
| Over slide | 215mm |
| In gap | 506mm |
| Width of bed | 186mm |
| Max. length of workpiece | 1000mm |
| Taper of spindle bore | M.T.NO.5 |
| Dia. of spindle hole | 38mm |
| Number of spindle speeds | 8 |
| Range of spindle speeds | 70-2000rpm |
| Spindle nose | D4 |
| Metric thread | 0.45-10mm |
| Inch thread | 3-1/2-80T.P.I/38 |
| Longitudinal feed range | 0.0018~0.0374in/r |
| Transversal feed range | 0.0006~0.0130in/r |
| Max. travel of tailstock quill | 95mm |
| Taper hole of tailstock quill | M.T.NO.3 |
| Power of main motor | 2HP(1.5KW) |
| Gross weight | 550/680kg |
Standard accessries:
1.160mm 3-jaw chuck;
2.200mm 4-jaw chuck;
3.300mm face plate;
4.10-70mm steady rest;
5.10-50mm follow rest;
6.Foot brake;
7.Working light;
8.Cooling system;
9.Tool box with wrenches,spanners etc.
Optional accessories:
1.Quick change tool post;
2.Digital readout;
3.Taper turning attachment;
4.5C collet;
5.Chuck cover;
6.Tool post cover;
7.Leadscrew cover;
Packing:
1.Sea worthy wooden case with IPPC
2.Size:1920*750*1500(mm)
3.Weight:800/930kg
Warranty:
Factory supplys easy worn-out parts under EXW in free of charge
Delivery: around 45 days after deposit
