China Dadong CNC Power Press Punching Machine with Oversea Service

China Dadong CNC Power Press Punching Machine with Oversea Service
Price: US $ 20000-100000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: HP30
Throat Depth: 1250/1500/1700/2000mm
Size: 5000X4000X2200mm
Station: 12/16/24/32
Servo Motor: Japan Panasonic
Type: High-Speed Punching Machine
Controlling Mode: CNC
Automatic Grade: Automatic
Power Source: Mechanical Drive
Precision: High Precision

Product Description

    DADONG HP30 Series mechanical turret punch machine is a high-tech product set digital technology and precision machinery technology together. It has the advantages of cost-effective, high speed and high accuracy. According to the number of die digit,it can be divided into four types:12stations,16stations,20stations,24stations and 32stations.

This series major used in Curtain wall and big size plate.

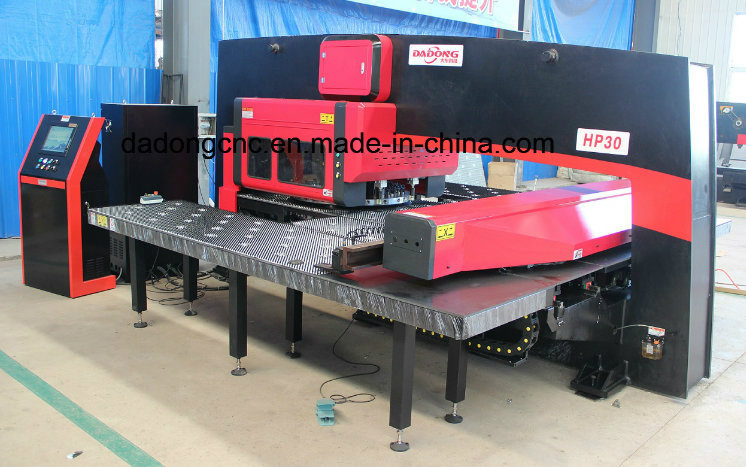

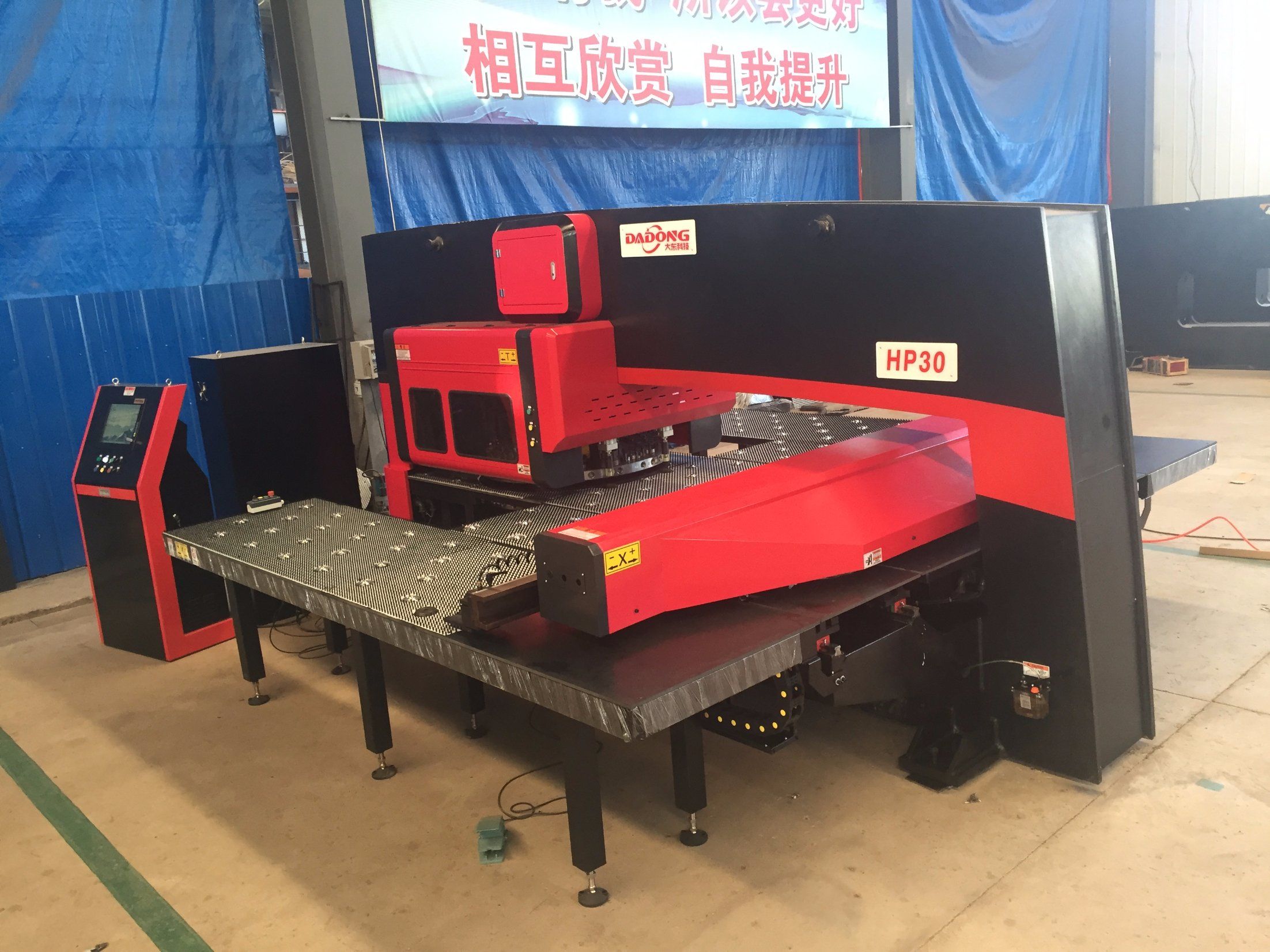

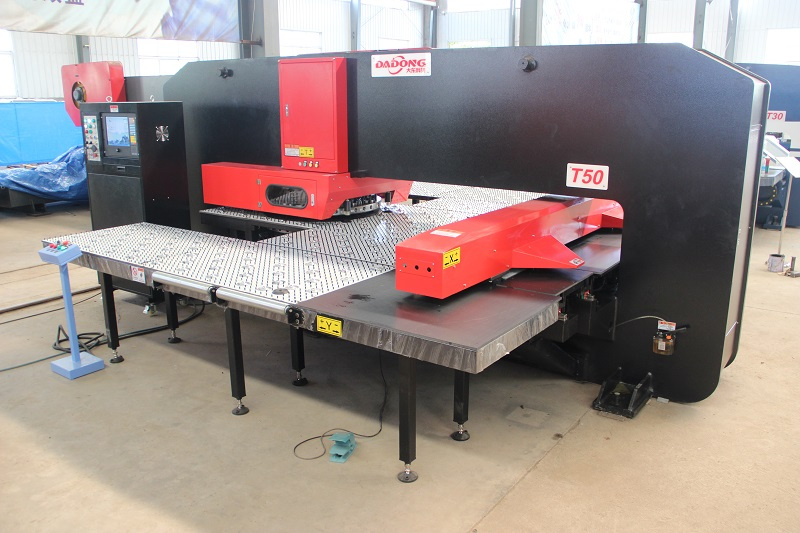

Products pictures:


NO.NameUnitSpecification
1Punch force KN300
2Frame construction O-Frame
3Processing sheet sizemm1250x5000(with one re-positioning)
9Max. sheet processing thickness mm4
10Max. sheet diameter mmΦ88.9
11Max. nibbling speed hpm/min280(stepping distance30mm)
12Max. feeding speedm/min120
13Turret positioning Double cylinder positioning
14No. of rotation stationset12/16/20/24/32
15Die form  Mosaic turret,Long guide mold
16Processing accuracymm±0.10
17No. of controlling axispcs3/4
18Total power kw14/15

Product Advantages

1. High and low speed switching function: The device uses two-speed motor, you can choose from high or low speed according to the punching step;

2. Transmission uses three gear transmission boxes to ensure the accuracy and stability of the turret rotating at high speed;

3. Pulse encoder Semi-closed loop feedback;

4. Panasonic brand of servo motors and drives;

5. Auto CAD drawings automatically converted;

6. CAD drawings provided with mold library selection, and preview the design in a CAD file;

7. Plates can be automatically repeated positioning after the program is finished, positioning accuracy, can achieve high-volume sheet metal processing;

8. When batch processing, enabling one-button operation, convenient;

9. Punch body using steel plate welded structure, body good rigidity, small deformation, large closed height, long mold-oriented, easy to use, reliable, low noise and long life;

10. With automatic centralized lubrication pumps, lubricating oil directly sent into the lubrication point, reducing labor intensity and reducing friction of each deputy campaign to improve life;

11. For over travel and a number of mechanical and electrical faults alarm display;

12. Mold compensation function and break point processing functions.

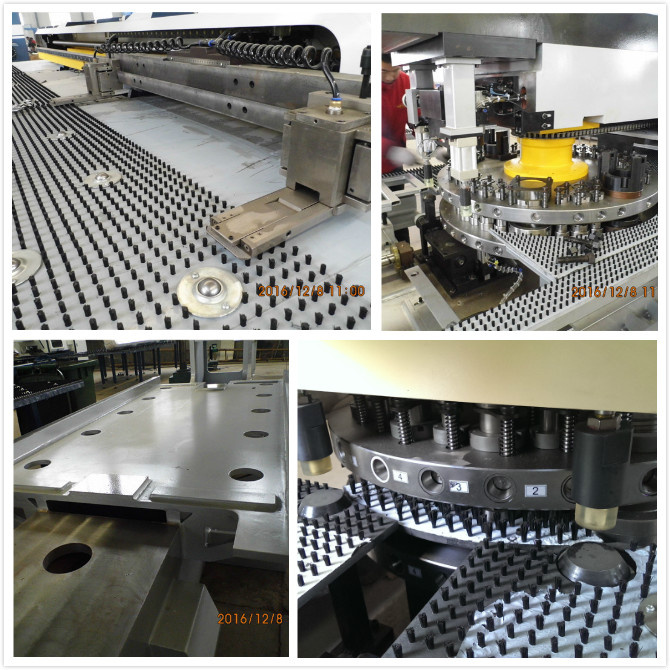

Detail pictures:

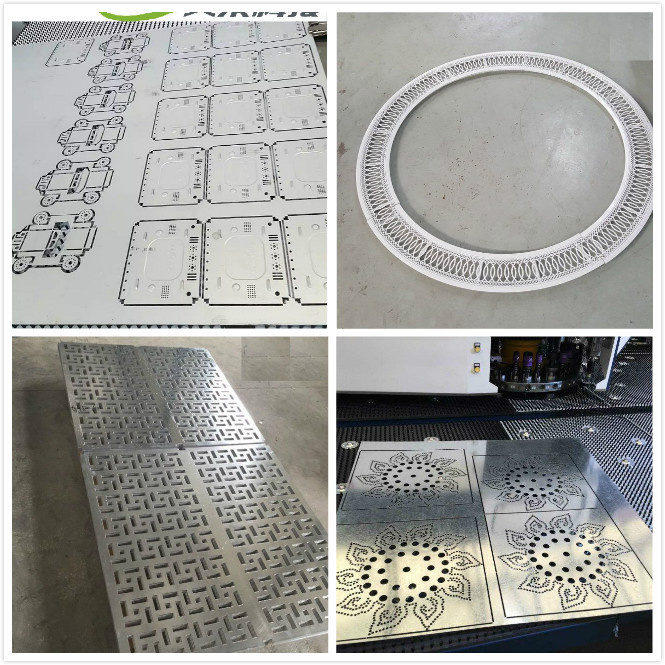

Punching sample:



The Patent:


Choose Dadong, Gain more success!!
Dadong is a high-tech enterprise that specialized in R&D and manufacturing of CNC Turret Punching machines, the company is based at Qingdao China.

Our mission is to offer affordable optimal solution that can fulfil customer's needs without idle but expensive functions.

With the effort of our management and engineering team, who have combined more than 100 years' experience in turret punching industry, we become the market leader in domestic CNC Turret Punch Press industry, in the following years, we aim to service more and more customers globally.
