| Prod Model: |
D-ES300 |
| Weight: |
14t |
| Type: |
Deep Throat Punching Machine |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Power Source: |
Electric |
| Precision: |
±0.1mm |
Product Description

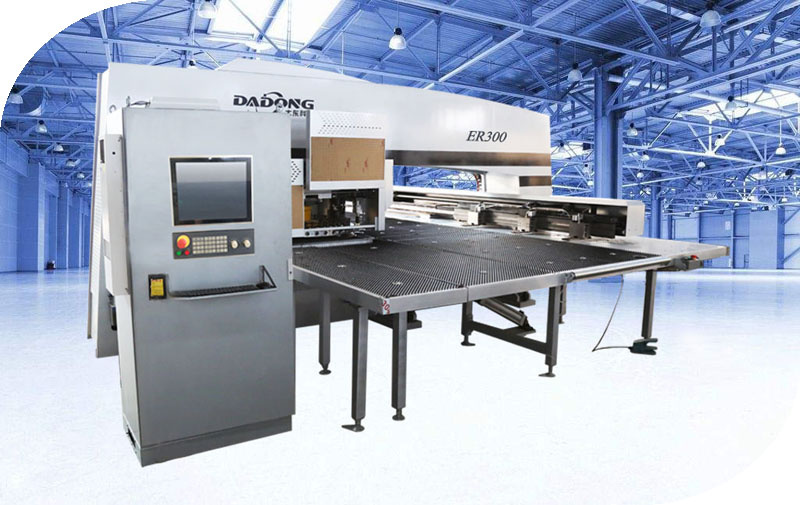

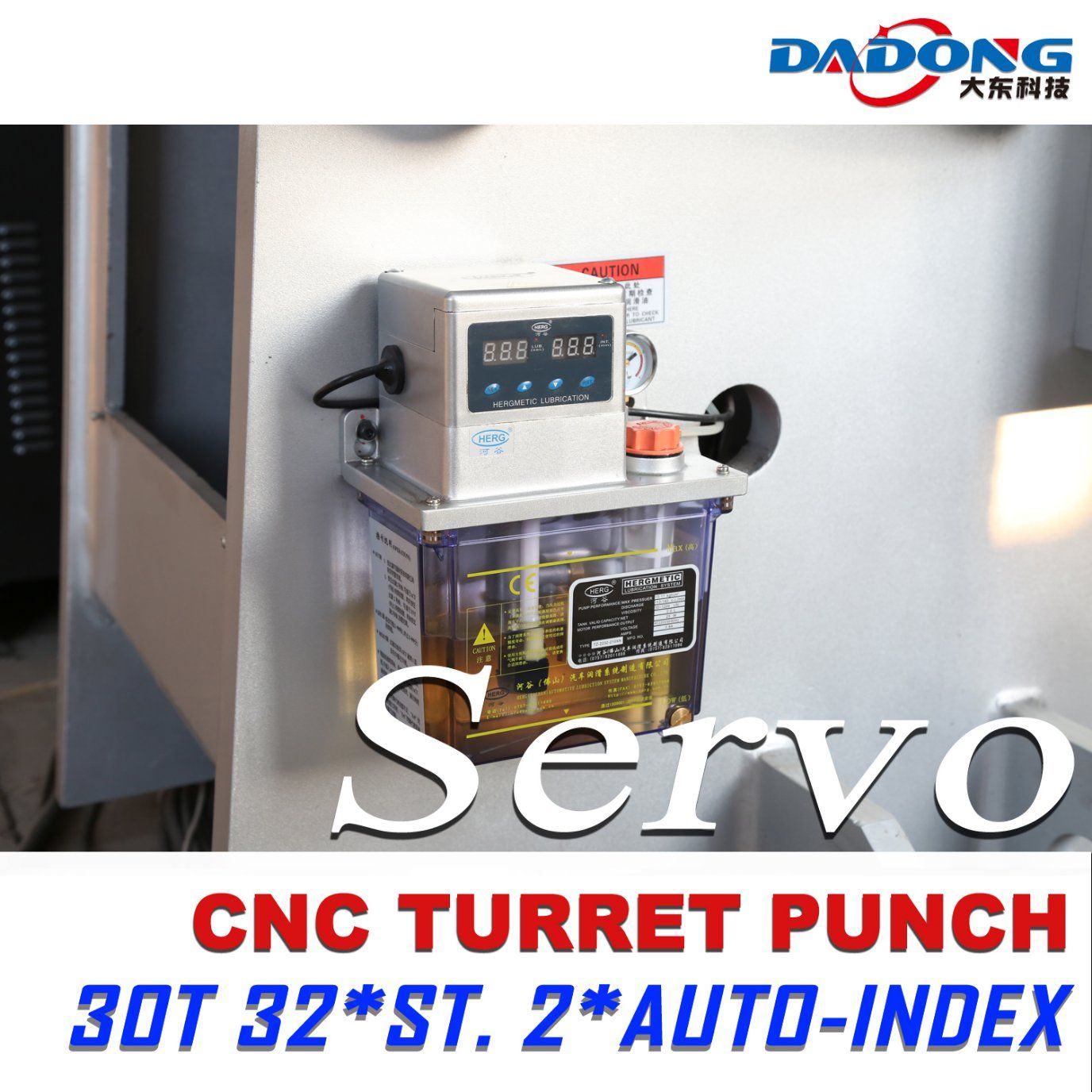

D-ER300 Servo Punching MachineBenefits at a glance1. Super efficient.
2. Low operating cost.
3. Excellent part quality.
4. Eco-friendly and economical
TECHNICAL DATA| No. | Name | Specification | Measure Unit |
| 1 | Punching Force | 300 | KN |
| 2 | Transmission Type | Servo |
| 3 | Frame Construction | O-frame |
| 4 | Max. Sheet size | X axis | 5000 (With one re-positioning) | mm |
| Y axis | 1250 | mm |
| 5 | Maximum Sheet Thickness | 4 | mm |
| 6 | Maximum Diameter | Φ88.9 | mm |
| 7 | Maximum Punching Stroke | 32 | mm |
| 8 | Maximum Nibbling Speed | 1500 | hpm |
| 4mm stroke | 1mm step | 900 | hpm |
| 25.4mm step | 500 | hpm |
| 9 | No. of Clamps | 3 | pcs |
| 10 | No. of Re-positioning Cylinder | 2 | set |
| 11 | Turret Stations (Auto-index station) | 32(2BZ) | pcs |
| 12 | No. of Controlling Axis | 5(X,Y,T,Z,A) | pcs |
| 13 | Tool Distribution | 16A/10B/2BZ/2C/2D |
| 14 | Worktable Structure | Brush and ball mixed |
| 15 | Max. Feeding Speed | X axis | 80 | m/min |
| Y axis | 80 | m/min |
| Simultaneous | 110 | m/min |
| 16 | Turret Speed | 30 | rpm |
| 17 | Rotational Tool Speed | 40 | rpm |
| 18 | Punching Accuracy | ±0.10 | mm |
| 19 | Maximum Sheet Weight | 150 | kg |
| 20 | Air Pressure | 0.6 | mpa |
| 21 | Power | 12 | kw |
| 22 | Air consumption | 0.20 | CL/min |
| 23 | Clamp Dead Area Detection | Yes |
| 24 | Clamp Splint Loose Alarm Device | Yes |
| 25 | Plate Warping Alarm | Yes |
| 26 | Clamp Automatically Float Down | Yes |
| 27 | Roller Auxiliary Feeding | Yes |
| 28 | Overall Size | Length | 5170 | mm |
| Width | 5200 | mm |
| Height | 2300 | mm |
| 29 | Weight | 14000 | kg |
TOOL DISTRIBUTION (GENERAL)| Station | Tool Size | Quantity | Layout |
| A | Φ1.5 - Φ12.7 | 16 |  |
| B | Φ12.7 - Φ31.7 | 12 |
| C | Φ31.7 - Φ50.8 | 2 |
| D | Φ50.8 - Φ88.9 | 2 |
KEY COMPONENTS CONFIGURATION LIST| No. | Name | Manufacture |
| 1 | CNC System | Germany Rexroth |
| 2 | Servo Motor, Amplifier |
| 3 | Servo System |
| 4 | Turret, Tool base | DADONG |
| 5 | Tools | NICE/KETEC |
| 6 | Synchronous Tooth Belt | Germany Continental |
| 7 | Chain | Japan Tsubaki |
| 8 | Coupling | Germany Mayr |
| 9 | Bearing | Germany Leipzig |
| 10 | Line Guider | Germany Rexroth |
| 11 | Ball Screw |
| 12 | Air Source Treatment Quadruple | Taiwan Airtac |
| 13 | SMC |
| 14 | Two-Position Three Way Magnetic |
| 15 | Reduction | Taiwan WAHSHSIN |
| 16 | Breaker | France Schneider |
| 17 | Contactor |
| 18 | Button |
| 19 | Approach Switch | Korea Autonics |
| 20 | Drag Chain | Germany IGUS |

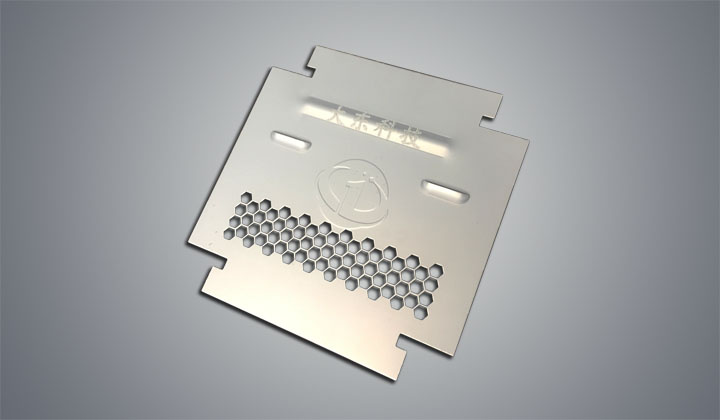

SAMPLE WORKPIECE

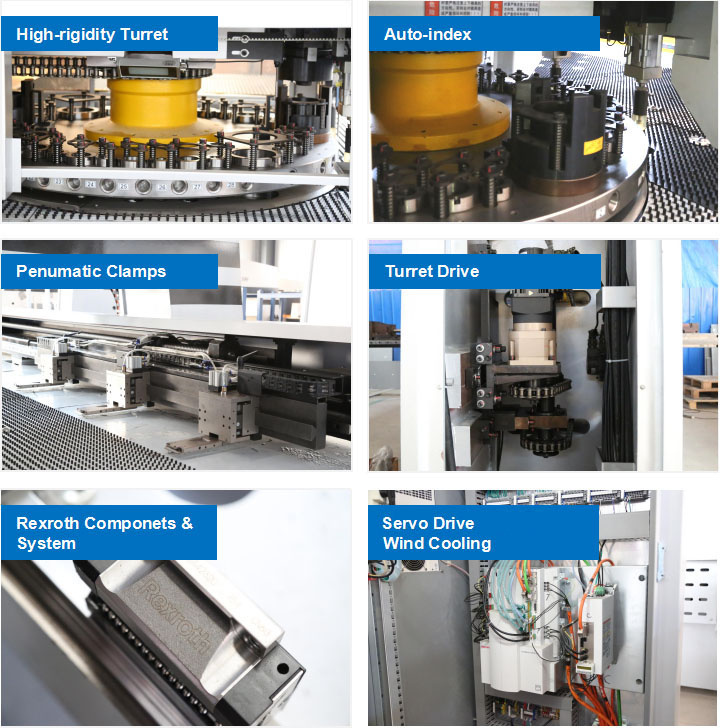

MAIN COMPONENTS
TIPS FOR INQUIRY (CONFIRM OPTIMAL PUNCHING MACHINE)About the machine: 1.Transmission method (mechanical or servo).
2.Tool station quantity (16/24/32).
3.Throat deepth (1250/1500/2000mm).
4.Auto-index quantity (1/2).
Or, about the fabricating requirement if you don't know what configuration is optimal.
a.Sheet material.
b.Sheet thickness.
c.Sheet size.
d.If Auto-index tool is need.
e.If there are requirement for Rolling Shear, Rolling Pincher, Rolling Rib, Rolling Offset fabrication.
