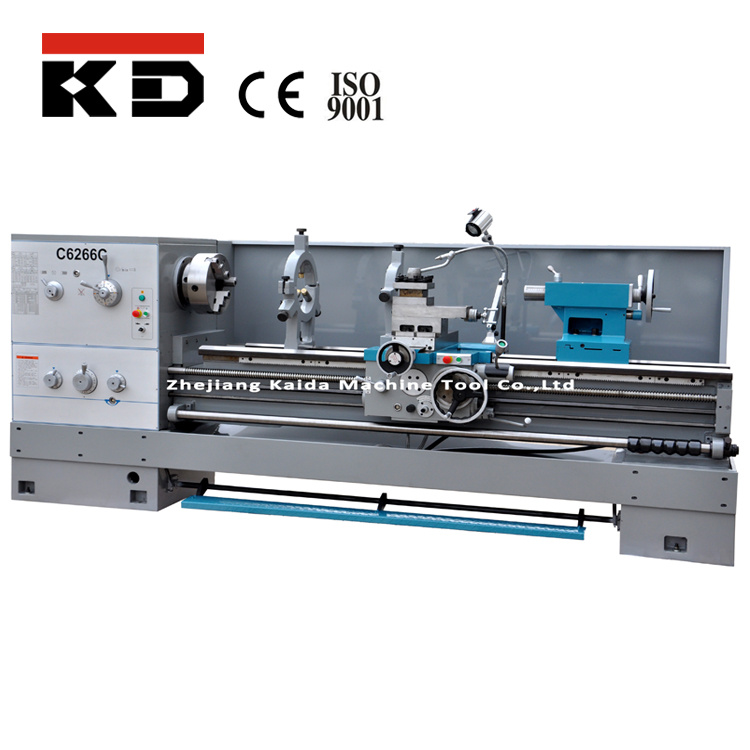

China Engine Lathe Machine C6266c/3000

Name: China Engine Lathe Machine C6266c/3000
Brand: tool-buy.com
SKU: 769352425
Availability: InStock
Rating: 4.9 (21 reviews)

Price:	US $ 13500set
Trade Terms:	FOB,CIF,EXW
Min Order:	1set
Pay Type:	L/C,T/T

Contact Supplier

Zhejiang Kaida Machine Tool Co., Ltd.

Showroom Product Company Profile

Prod Model:	C6266C/3000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	7.5kw
Spindle Bore:	105mm
Gross Weight:	4300kg
Swing Over Bed:	660mm
Max.Length Workpiece:	3000mm
Packing Size:	4630X1150X2150(mm)
3-Jaw Chuck Size:	325mm
Type:	Horizontal Lathe
Power Source:	Electric
Automatic Grade:	Manual
Setting Mode:	Floor-type
Precision:	Precision
Processing Accessory:	Metal Part Machining
Tool Holder:	4-Way Tool Post
Controlling Mode:	Manually

Product Description

Specifications:

ITEMS		C6266C
ITEMS		1000	1500	2000	3000
Max. swing over bed	mm	Φ 660(26" )
Max. swing over carriage	mm	Φ 420(17" )
Max. swing over gap	mm	Φ 870(34" )
Max. turned diameter		Φ 660(26" )
Maximum length of workpiece(two centers)	mm	1000(40" )	1500(60" )	2000(80" )	3000(118" )
Effective length in gap	mm	230(9" )
Spindle nose		D8
Spindle nose	mm	Φ 105(4" )
Spindle taper of bore		Φ 113mm 1: 20
Number of speeds		12
Spindle speed scope	rpm	36-1600
Thread cutting	range/no.	Metric	Inch	D. P.	Module
Thread cutting	range/no.	1~14mm/22	28~2 t. p. i/26	56~4 D. P/24	0.5~7mm/18
Range of feeds for longitudinal	mm	0.063-2.52(0.023" ~0.937" )
Range of feeds for cross	mm	0.027-1.07(0.010" ~0.404" )
Rapid traverse for longitudinal	m/min	4.5
Rapid traverse for cross	m/min	1.9
Max. travel of top slide	mm	145(5-3/4" )
Max. travel of cross slide	mm	360(14-3/16" )
Max. size of tool(WxH)	mm	25× 25(1" × 1" )
Tailstock sleeve dia.	mm	Φ 75(2-61/64" )
Tailstock taper of bore		M. T. No. 5
Tailstock sleeve travel	mm	150(5-29/32" )
Power of main motor	kw	7.5
Overall dimensions(L× W× H) (mm)	mm	2500× 1100 × 1450	3000× 1100 × 1450	3500× 1100 × 1450	4500× 1100 × 1450
Net weight	kg	3000	3200	3400	3900

Standard accessries:
1.325mm 3-jaw chuck;
2.400mm 4-jaw chuck;
3.630mm face plate;
4.20-125mm steady rest;
5.20-100mm follow rest;
6.Foot brake;
7.Working light;
8.Cooling system;
9.Tool box with wrenches,spanners etc.

Optional accessories:
1.Quick change tool post;
2.Digital readout;
3.Taper turning attachment;
4.5C collet;
5.Chuck cover;
6.Tool post cover;
7.Leadscrew cover;

Packing:
1.Sea worthy wooden case with IPPC
2.Size:4630*1150*2150(mm)
3.Weight:3874/4300kg

Warranty:
Factory supplys easy worn-out parts during one year under EXW in free of charge

Delivery: around 45 days after deposit

Zhejiang Kaida Machine Tool Co., Ltd

Zhejiang Kaida Machine Tool Co., Ltd is located in Zhuji City, China.And only 45 minutes away from Hangzhou Airport.

Our company was founded in 1952 and has a history of more than 60 years in manufacturing lathes, also with a total area of 32 hectares and 1000 staff.Through reformation in 1997, we have been changed from a state-owned enterprise to a joint-stock private enterprise.We got ISO9001 certificate in 1997, CE certificate in1999 and ISO14001 certificate in 2005.

We have a wide variety of products, which can meet different customers' needs:Horizontal machining center, vertical machining center, CNC slant bed lathe, CNC flat bed lathe, manual lathe.

We have a full set of equipment including forging, machining, heat-treating, sheet metal processing, assembling and painting.Specialized technicists in every field enable us to assist our customer in use, learning and programming.Efficient service earn us trust and loyalty from customer.

As an established company, professional competence and perfect service make us to exploit and develop a huge international marketing net.Our export experience started from European and America.We have exported to more than 100 countries.Our main markets are Europe, America, South America, India, Southeast Asia, South Africa.

We are fully confident to meet any challenges or opportunities that present to us.
