China Factory Price Socket Wrench Set

Prod Model:	MXTA Series
Maximum Torque:	1898-34079nm
Working Pressure:	700bar
Square Drive:	3/4 or 2-1/2 Inch
Socket Size:	15-50 to 60-255mm
OEM:	Yes
Material:	Steel
Payment:	T/T
Product Name:	China Factory Price Socket Wrench Set
Place Of Origin:	Jiangsu(Mainland), China
Delivery Time:	3-10 Days After Receive Payment

Product Description

                                                China Factory price socket wrench set

 Features:

1.The 360º×180º rotatory oil connection has no limitation in used space and is convenient to be operated.
2.The torque release is used for the actuating shaft, which can fast switch the tightening and dismantling condition.
3.The hydraulic piston and power head have a smart design, light weight, compact structure and small operating space.
4.The output socket rotation angle in single operation which is large and the hydraulic piston has a quick return stroke, high efficiency...
5.The reactive force is on one straight line, which can decrease the inner torque abrasion.
6.The constant torque output provides the high precision for wrench in the whole working process.
7.Simple and easy maintenance, no need special tools for maintenance
8.All the surfaces of the torque wrenches have through the nickel plating treatment, with good corrosion resistant performance

Parameter:

Model	Socket range		Square Drive(In)	Max Nm under 700bar	Socket size
	mm	inch			mm	inch
KET-S1500	15-50	5/8-1 7/8	3/4"	1898	14-24	1"-2-1"
KET-S3000	20-100	7/8-3 7/8	1	4339	17-32	5/8"-1 1/4"
KET-S6000	41-155	1 5/8-6 1/4	1  1/2"	8144	17-32	5/8"-1 1/4"
KET-S11000	41-155	1 5/8-6 1/4	1  1/2"	14914	30-46	1 1/4"-1 3/4"
KET-S25000	60-255	2 3/8-10	2  1/2"	34079	36-85	1 1/2"-2 1/4"

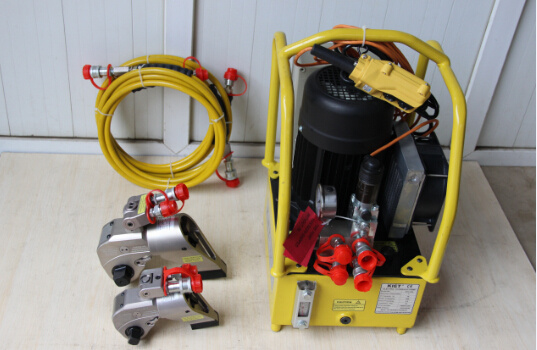

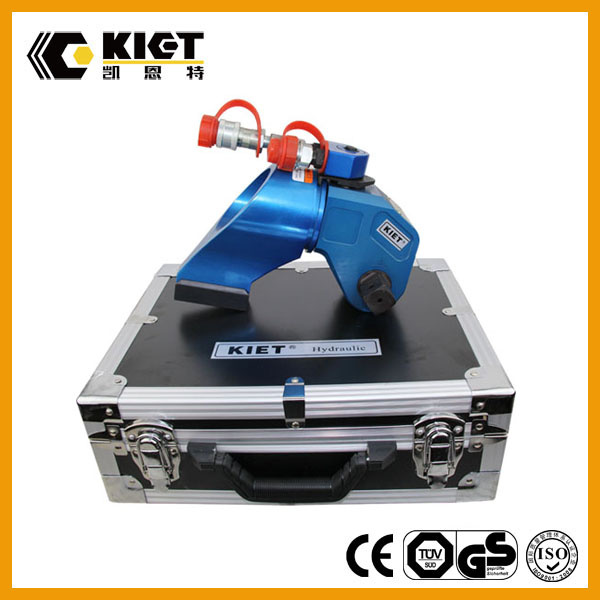

Photos:

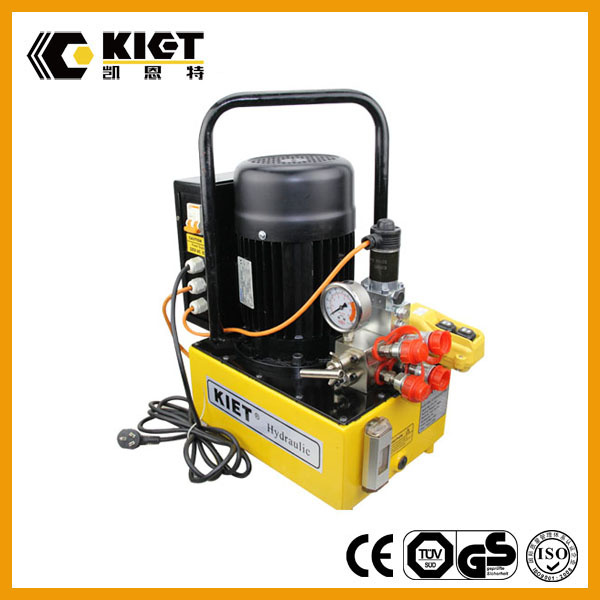

Power  Unit:

Model	Flow(L/min)	Power Motor(kw)	Voltage(V)	Oil Capacity(L)	Working Pressure(MPa)
KET-EPC-220	2	2.2	220	16	70

Packing and Shipping:
Outer Package:wooden case;
Inner Package:aluminum alloy case;
Shipping:By sea,air,express,according to customer request.

Company Information:

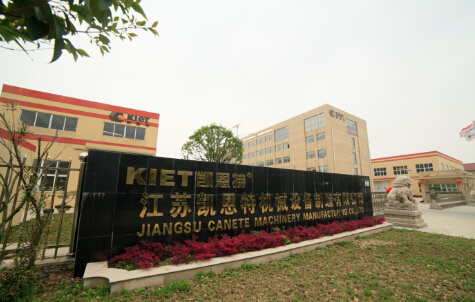

Jiangsu Canete Machinery Manufacturing Co.,Ltd. is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.

Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.


Certificate:
CE&ISO9000:2008
