| Prod Model: |
GH1840ZX |
| Name: |
High Precision Digital Readout Metal Lathe Machine |
| Swing Over Bed: |
460mm |
| Spindle Bore: |
80mm |
| Max. Swing Over Gap: |
700mm |
| Swing Over Carriage: |
290mm |
| Distance Between Centers: |
1000mm |
| Main Motor: |
5.5kw |
| Section Of Turning Tool: |
25*25mm |
| Spindle Speed: |
42~1800 or 25~1800 |
| Max. Cross Slide Travel: |
280mm |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Tool Holder: |
4-Position Tool Post |
| Processing Accessory: |
Chuck |
Product Description

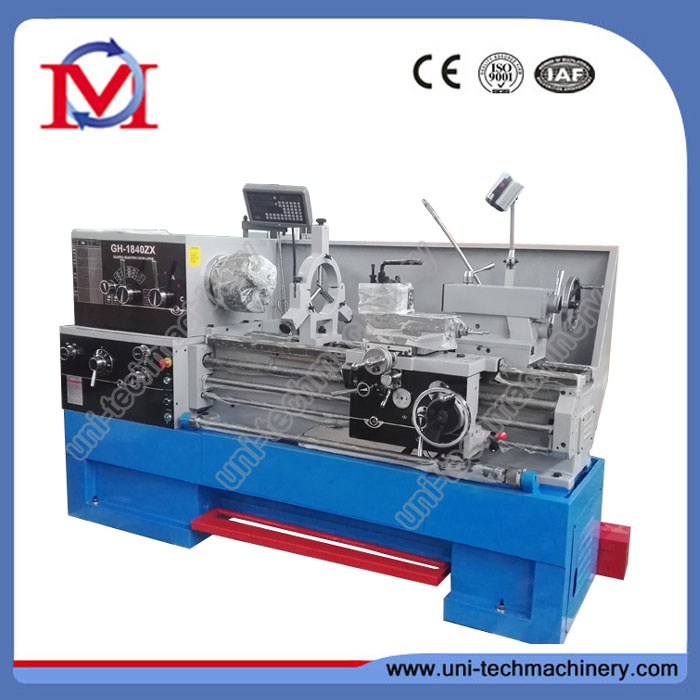

China high precision digital readout metal lathe machine (GH1840ZX)This high precision digital readout metal lathe machine is a machine tool that rotates the workpiece with a turning tool. The lathe machine can also be used drill, reaming drill, reamer, tap, die and knurling tools such as the corresponding processing.
Specification of China high precision digital readout metal lathe machine GH1840ZX:| MODEL | 1880ZX | 1860ZX | 1840ZX |
| Max. swing over bed | mm | Φ460(18") |
| Max. swing over carriage | mm | Φ290(10-4/5") |
| * Max. swing over gap | mm | Φ700(27-1/2") |
| *Max. length of work piece(two centers) | mm | 2000(80") 1500(60") 1000(40") 1500(60") |
| *Effective length of gap | mm | 200(8") |
| Spindle nose | mm | Φ80(3-1/8") |
| Spindle taper of bore | / | M.T.No.7 |
| Number of speeds | / | 12 |
| Range of speeds | rpm | 42~1800 or 25~1800 |
| Thread cutting for Metric pitch threads | Range/No. | 0.5~20mm/24 |
| Thread cutting for Whit-worth pitch threads | Range/No. | 72~1-5/8 t.p.i/61 |
| Thread cutting for Module threads | Range/No. | 96~3-1/4 D.P/45 |
| Thread cutting for D.P. threads | Range/No. | 0.25~10 M.P/20 |
| Range of feeds for longitudinal | mm | 0.04~2.46(0.0015"-0.0913") |
| Range of feeds for cross | mm | 0.02~1.23(0.005"-0.0365") |
| Tailstock sleeve dia. | mm | Φ75(3") |
| Tailstock taper of bore | mm | M.T.No.5 |
| Tailstock sleeve max. travel | mm | 130(5") |
| Max. travel of compound rest | mm | 100(4") |
| Max. cross slide travel | mm | 280 (11") |
| Max. size of tool shank(WxH) | mm | 25×25(1"×1") |
| Power of main motor | kw | 5.5 |
| Overall dimensions(L×W×H) | mm | 3320x1000x 1295 | 2810x1000x 1295 | 2310x1000x 1255 |
| Net weight | kg | 2900 | 2650 | 2350 |
Main features:1)80mm bore spindle is supported by two tapered and one ball bearings
2)Chrome molybdenum headstock gears are hardened, ground and shaved
3)Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
4)Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
5)T-slotted compound slide featuring four-way tool post
6)One piece cast iron base absorbs vibration allowing heavier cuts
7)High quality ANSI Class 50 wear resistant cast iron bed ways are hardened and ground
8)Removable gap allows large diameter work
9)Five position automatic carriage stop increases productivity
10)Attractive chrome levers, dials and knobs complete this impressive package
11)Meehanite Castings
Standard accessories:1.Steady rest.
2.Follow rest.
3.250mm(10'') 3-jaw chuck.
4.320mm(12'') 4-jaw chuck.
5.400mm(16'') face plate.
6.Cross point screwdriver.
7.Flat blade screwdriver.
8.Open ended wrench.
9.Hex socket wrench.
10.Shear pin.
11.Live center.
12.Taper dead center.
13.Spindle sleeve.
14.Chuck wrench.
15.Key for Camlocks.
16.Tool post wrenches.
17.Round nut spanner.
18.Leveling bolts.
19.Fuse.
20.Oil gun.
21.Operation Manual.
22.Test record.
Optional accessories:1.2-axis DRO.
2.3-axis DRO.
3.Taper turning attachment.
4.Chuck guard
5.Tool post guard.
6.Lead screw cover.
7.Quick change tool post
Delivery time: about 45 days after receive deposit.
Payment term: 30% T/T as down payment, 70% T/T before shipment.
Warranty: 12 months since ship date.
During warranty time, if there is any spare parts broken due to non-human factors, we will supply the new spare parts for you within 7 days by free;
Out of warranty, we still can supply the new spare parts for you if you need, just charge with you the reasonable production cost and air express freight cost.
