| Prod Model: |
GH-1440K |
| China Conventional Lathe Machine Price: |
Gh-1440k |
| Swing Over Bed Dia.: |
360mm |
| Bed Width: |
260mm |
| Dbc: |
1000mm |
| Spindle Dia.: |
40mm |
| Spindle Speeds: |
40-1800rpm |
| Spindle Taper: |
Mt5 |
| Main Motor: |
2.4kw |
| Spindle Speed Steps: |
12 Steps |
| Swing In Gap: |
508mm |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Processing Accessory: |
Conventional |
| Tool Holder: |
4 |
Product Description

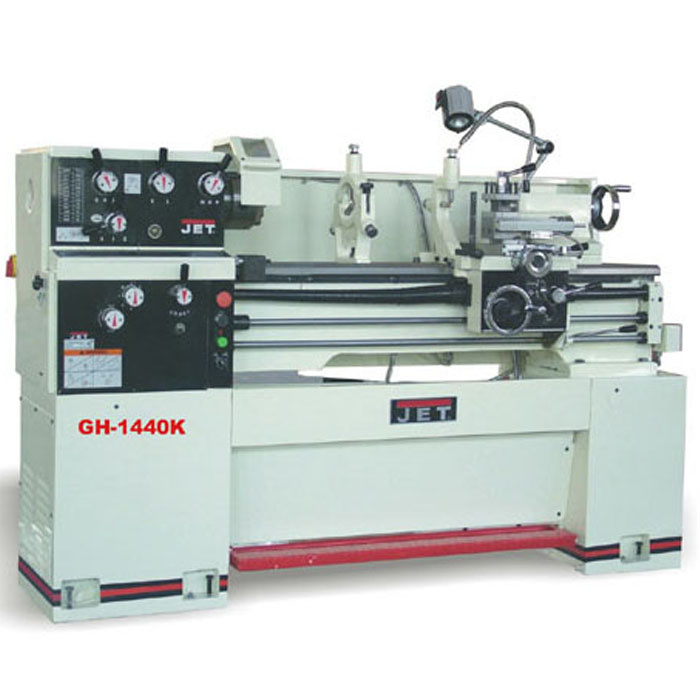

GH-1440K china conventional lathe machine price
1. Hardened and ground bed ways
2. 12 speeds all geared head stock
3. 3HP(2.4kW)three phase motor
4. Foot brake giving rapid braking.
5. Emergency stop button equipped on the front of headstock.
6. Jog button for easy gear engagement and inching spindle.
7. Extra safety switch shuts down machine automatically for changing belt or gear for threading cutting.
1. Induction hardened, precision ground V-way bed.
2. D1-4 spindle is supported by high quality tapered roller bearing.
3. Hardened, precision ground gears in headstock.
4. High precision directly mounting chuck.
5. Carriage mounted spindle control lever.
6. Automatic feed and threading are fully interlocked.
7. Tailstock may be offset for turning tapers.
8. One-piece casting iron base allows heavy cuts.
9. Tolerance test certificate, test flow chart included.
1.STANDARD ACCESSORIES
---Jaw chuck, 4-jaw chuck,
---Face plate, steady rest
---Following rest
---Coolant, work light
---Wrenches.
2.OPTIONAL ACCESSORIES
---DRO
---Quick change tool post
---Chuck cover
| | Model | GH-1340K | GH-1440K |
General Capacity
| Max.Swing.over bed | mm | φ330mm(13) | φ356mm(14) |
| Max.Swing.over cross slide | mm | φ185(7-7/25) | φ210(8-2/8) |
| Max.Swing.over gap | mm | φ480(19) | φ506(20) |
| Bed width | mm | 260(10) |
| Max.Swing.over | mm | 1000(40) |
Spindle
| Taper of spindle bore | | MT#5 |
| spindle bore | mm | φ40(1-1/2) |
| Steps of spindle speeds | | 12steps |
| Range of spindle speeds | r/min | 40-1800rpm |
| Spindle nose | | D-4 |
| Threading & Feeding | Metric thread range | mm | 0.45~7.5(22kinds) |
| Inch screw thread range | TPI | 4~112(40kinds) |
| Range of longitudinal feeds | mm | 0.03-0.688(0.0011-0.0271in/rev) |
| Range of cross feeds | mm | 0.015-0.220(0.0003-0.01in/rev) |
| Leadscrew | Diameter of leadscrew | mm | φ22(7/8) |
| Pitch thread of leadscrew | mm | 4(8T.P.I) |
| Tailstock | Travel of tailstock quill | mm | 120(4-3/4) |
| Diameter of tailstock quill | mm | Φ45(1-25/32) |
| Taper of tailstock quill | | MT#3 |
| Power | Main motor power | Kw | 2.4(3HP) |
| Coolant pump motor power | Kw | 0.04(0.055HP) |
| Overall dimentions of lathe(LxWxH) | mm | 1900x740x1150 |
| Packing size of lathe(LxWxH) | mm | 1970x760x1460 |
| Net Weight | Kg | 960(2112ibs) |
| Gross Weight | Kg | 1090(2398ibs) |
