China High Spindle Motor Power CNC Horizontal Machining Center (H100S/2)

Prod Model:	H100S/2
Brand Name:	Hankui
Model Numbe:	H100s/2
Place Of Origin:	Shandong, China (Mainland)
Power(W):	15-22kw
Dimension L*W*H):	5780*3380*3700mm
Weight:	22000kg
Warranty:	13 Months
After-Sales Service Provided:	Engineers Available to Service Mach
Table Size:	1000*1000mm
Load Capacity:	2000kg
Process Usage:	Metal-Forming CNC Machine Tools
Movement Method:	Linear Control
Control Method:	Closed-Loop Control
Numerical Control:	CNC/MNC
Performance Classification:	Economical CNC Machine Tools

Product Description

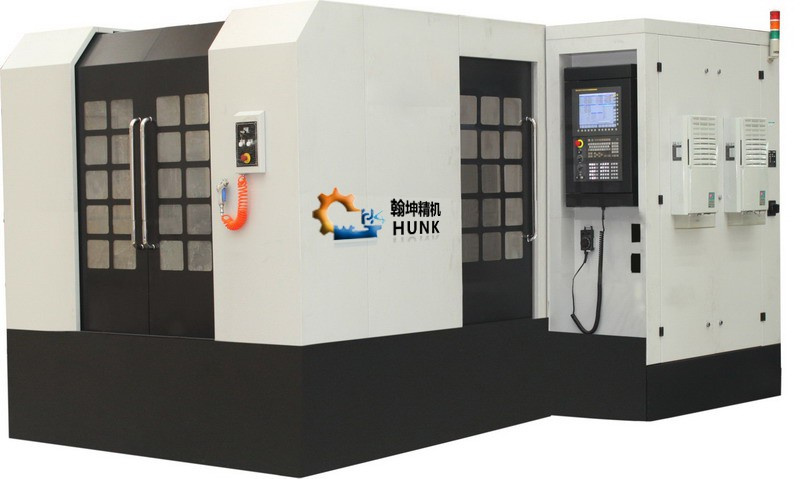

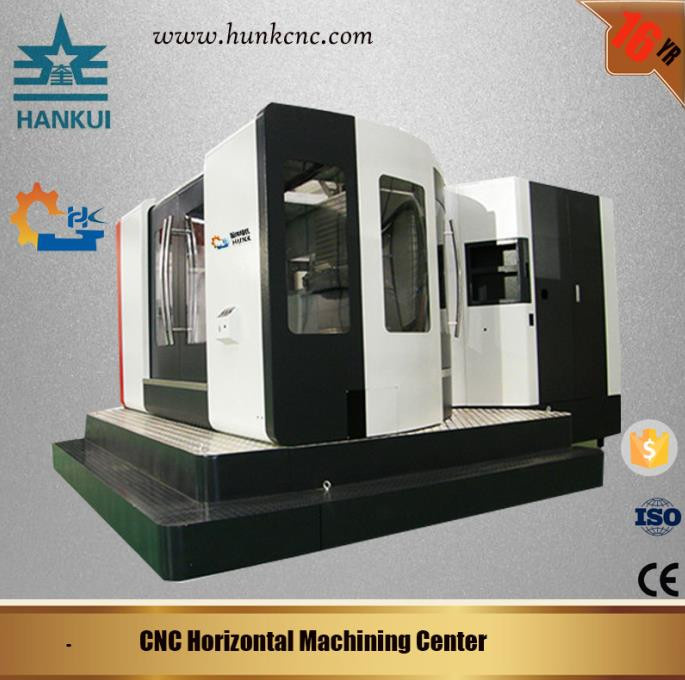

China high spindle motor power CNC horizontal machining center(H100S/2)
  universal cnc horizontal metal milling cutting machine center

ITEM	H100	H100/1	H100/2	H100/3
Worktable size	1000×1000mm	1000×1000mm	1000×1000mm	1000×1000mm
Worktable quantity	1	2	1	2
Indexing unit	1°X360	1°X360	0.001°	0.001°
Max. load	2000kg	2000kg	2000kg	2000kg
Max. workpiece swing dia	2000mm	2000mm	2000mm	2000mm
X axis travel	2200mm	2200mm	2200mm	2200mm
Y axis Headstock travel	1300mm	1300mm	1300mm	1300mm
Z axis column travel	1200mm	1200mm	1200mm	1200mm
Spindle speed (BT50)	6000rpm	6000rpm	6000rpm	6000rpm
Spindle center line to table surface	120~1450mm	0~1300mm	120~1450mm	0~1300mm
Distance between spindle nose to table center	300~1500mm	300~1500mm	300~1500mm	300~1500mm
Spindle servo motor	15-37KW	15~37KW	15~37KW	15~37KW
Rapid speed  (X, Y, Z axis)	36m/min	36m/min	36m/min	36m/min
(B axis )	10r/min	10r/min	10r/min	10r/min
Positioning accuracy (X, Y, Z axis)	0.012	0.012	0.012	0.012
(B axis )	12″	12″	12″	12″
Re-positioning accuracy (X, Y, Z axis)	0.008	0.008	0.008	0.008
(B axis )	6″	6″	6″	6″
Dimension	4325*3380*4000mm	6330*3380*4000mm	4325*3380*4000mm	6330*3380*4000mm
G.W	20000kg	25000kg	20000kg	25000kg

Product Description

1. The casting wood of the lathe adopts with the casting of aluminum wood and the resin sand mould.
2. The workbench is the type of HT300, and the rest are the type of HT250.
3. After twice artificial aging treatment, it has the good stability and high intensity, and the precision is stable and reliable.
4. The lathe chooses the spindle specifications for BT50, diameter is 190 mm.



The characteristics

1.The main motor is located in the center of the spindle box, so the stress and the thermal deformation is symmetrical, and it also has a good thermal stability.
2. Large torque:
BIIP30, which can guarantee the high torque at low speed and high constant power range.
3. Compared with the same specification lathe, it is of large processing range and small covering area.

Our Products:

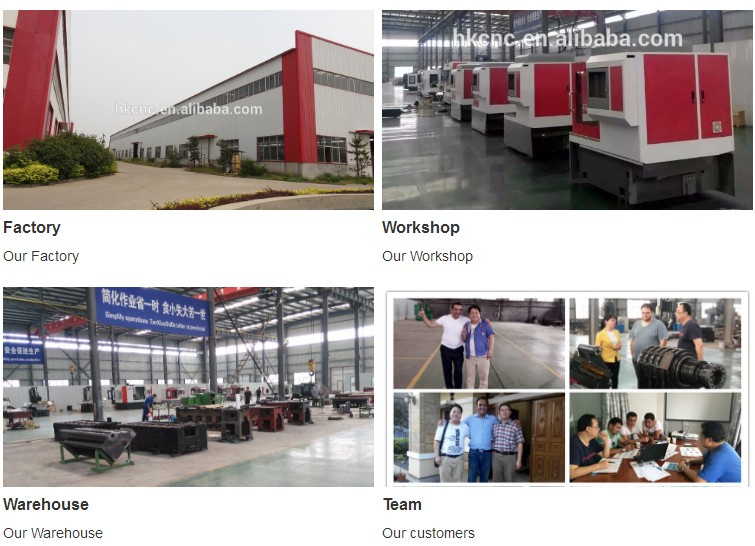

Our Company
     Jinan Hankui international trade co., ltd, which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.



FAQ
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.

Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine

Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable

Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.

Q: What sales terms do you have?
A:T/T, L/C,West Union.

Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,

Q: Once  machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.

Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.

Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD

Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.

Q:  Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
