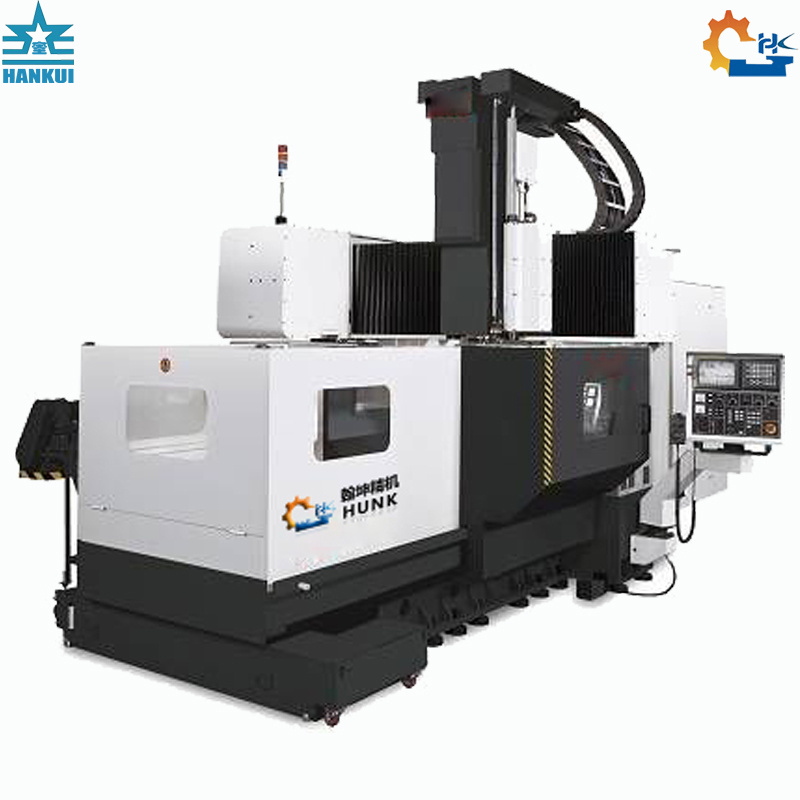

Power Capacity 45kw CNC Gantry Machining Center (GMC4025)

Prod Model:	GMC4025
Table Size:	2000X1300
Load Capacity:	4000
T Slot:	7-22-150
X Axis Travel:	2000
Y Axis Travel:	1600
Z Axis Travel:	800
Tool Shank:	Bt50
Spindle Speed:	6000
Spindle Motor Power:	18.5
Max. Length Of Tool:	250
Carving Material:	Carbon Steel

Product Description

High Precision GMC2016 CNC Gantry Machining Center





I. Main Functions of CNC Horizontal Machining Center

1.CNC horizontal machining center use popular inverted T-shape column structure
2. it is morden machine tool with automatic tool changer and 3/4-axis CNC system.
3. Continous & automatic milling, drilling, expanding, hinges and tapping on 4 surfaces' machining processes after once clamped, suitable for medium batch process all kinds of flat surface, hole, complicated surfaces machining.

II. Main Features of CNC Horizontal Machining Center

1. Rigid base
2. Good durability with cast iron machine bed
3. Advanced guide rail laminating technology
4. High precision, high-rigidity spindle, high speed
5. Automatic lubrication system
6. Row knife structure, high positioning accuracy and simple maintenance
7. X direction is up to 270mm and variety of knife tools
8. Spring chuck with high accuracy and high efficiency
9.  Fully-closed safe glass window
10. Modular design and optional accessories available

III . Main Technical Specifications

CNC Gantry Machining Center



Standard Configuration
Taiwan Spindle
Taiwan Cylinder
Taiwan Ball Screw
Servo Main Motor
Tri-Color Warning Light
Automatic Lubrication
Full Enclosed Cover


 Optional Configuration
Chip Conveyor
40/60 Tools Chain Type Magazine
Full Closed-Loop Control
30 Tools Umbrella Type Magazine
CNC 4th/5th Axis
Hydraulic Indexing Head

 CNC Controller
SIEMENS
FANUC
MITSUBISHI


Item	Unit	GMC1210	GMC1513	GMC2016		GMC2203
Worktable Size	mm	1200x900	1500x1000	2000x1300		1800x3000
T Slot Size	mm	4-22-150	5-22-150	7-22-150		9-22-180
Max. Load	kg	2000	3000	4000		6000
X axis Travel	mm	1200	1500	2000		3000
Y axis Travel	mm	1000	1200	1600		2200
Z axis Travel	mm	800	800	800		1000
Distance from Spindle Nose to Table	mm	50-850 (Direct 140-900)	50-850 (Direct 140-900)	50-970 (According to the needs of users pad 200,250,300)		250-1250
Ditance between Two Columns	mm	1000/1100	1300	1650		2200
Spindle Speed	r/min	6000	6000	6000		6000
Spindle Tapper		BT40/BT50	BT50	BT50		BT50
Motor Power	kw	11	15	18.5		22
X/Y axis Rapid Travel Speed	m/min	20	20	20		20
Z axis Rapid Travel Speed	m/min	15	15	15		15
Cutting Feed	mm/min	5-8000	5-8000	5-8000		5-8000
Guide Way		X/Y/Z linear guide way
X/Y/Z axis Positioning Accuracy	mm	0.022	0.022	0.022	0.022
X/Y/Z axis Re-Positioning Accuracy	mm	0.012	0.012	0.012	0.012
Tool Magazine		24	24	24	24
Tool Max. Diameter/ Length	mm	φ200/350	φ200/350	Φ250/400	Φ300/500
Tool Max. Weight	kg	15	15	15	15
Controller System		FANUC,SIEMENS, Mitsubishi, GSK,KND
Machine N.W	t	9	13	16	30
Dimension	m	4.5x2.8	5x3	5.5x3.5	7.5x4.5





Item	Specification	Unit	GMC4025
Width between Columns	Max. width of parts to be processed	mm	2500
Worktable	Worktable Size	mm	4000*2000
	T slot	mm	22*9
	X axis travel	mm	4100
	Y axis travel	mm	2700
	Z axis travel	mm	1000
	Worktable Max. Load	kg	15000
Spindle	Spidle motor	kw	28KW
	Spindle torque	nm	260/400
	Spindle diameter	mm	Φ190
	Spindle speed	rpm	6000/4000
	Spindle Tapper	ISO/BT	ISO.No50/BT50
	Lubrication system		Oil
	Spinle coolant		Oil cooler
	Spindle rivet		Ms03A
	Spindle cylinder power	T	6
3 axis Feed/ Ball screw/Precision	X axis ball screw Daimeter/Screw pitch/Precision	mm	Φ80/20, 0.008/300
	Y axis ball screw Daimeter/Screw pitch/Precision	mm	Φ63/10, 0.008/300
	Z axis ball screw Daimeter/Screw pitch/Precision	mm	Φ63/10, 0.008/300
Coolant liquid	Tank volume	L	500
	Coolant motor power	kw	0.55
	Coolant flow	L/min	35
	Coolant liquid pressure	kgf/cm²	5
3 axis Structure	X axis guide-way(RGW65CC)		Roller Type linear
	Y axis guide-way (RGW55CC)		Roller Type linear
	Z axis guide-way		T type slide linear
Tool Magazine	Max.tool diameter	m/m	Φ200
	Max.tool weight	kg	25
	Tool change time	sec	16
	Cylinder tool-clipping power		Gas-Oil Cylinder/6T
	Tool clamping force	kg	60±5
	Max. numers of tools		32
Accuracy	X axis positioning accuracy	mm	0.025/4000
	Y axis positioning accuracy	mm	0.02/2700
	Z axis positioning accuracy	mm	0.012/1000
	X axis repeat positioning accuracy	mm	0.015
	Y axis repeat positioning accuracy	mm	0.01
	Z axis repeat positioning accuracy	mm	0.01
	Linear way flatness accuracy	mm	0.010/1000
	Linear way straightness accuracy	mm	0.010/1000
	Parallelism between ram and block	T	0.010/300
	Perpendicularity between ram and block	amm	0.010/300
	Perpendicularity between X and Y axis	mm	0.010/1000
	Perpendicularity between Z and Y axis	mm	0.010/1000
	Perpendicularity between X and Z axis	mm	0.010/1000
	Flatnees between spindle and X axis	mm	0.010/1000
	Spindle inner hole bounce	mm	≤0.005
	Spindle core rod 300mm far -end bounce	mm	0.01
Install Requirements	Power capacity	kw	45
	Air pressure	kgf/cm2	6
	Machine weight	kg	40000
CNC Controller	SIEMENS/FANUC/MITSUBISHI

IV. Standard configuration


(1) Spindle unit 8000rpm

(2) Numerical control system: SIEMENS 828D or 808D

(3)Taiwan round disc or umbrella ATC

(4) Taiwan linear rolling guide;

(5) Rigid tapping;

(6) Mobile hand pulse;

(7) Automatic-controlling  oil lubrication;

(8) Z axis counterweight system;

external cooling system and water tank;

(9) Gas cooling

(10) Simple oil-water separation device;

(11) The protection sheet metal shield and guard rail;

(12) Adjustment the pad iron sleeve;

(13) Tubular work lights,  caution light .

V. Company Information

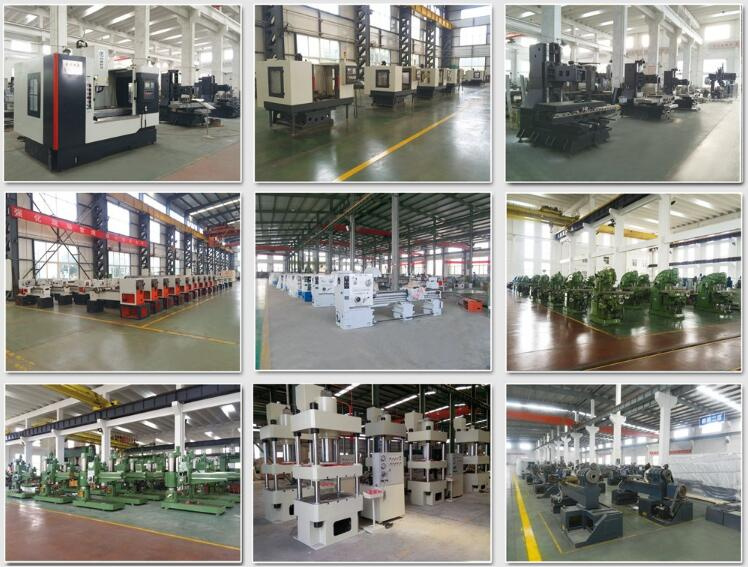

Shandong Hunk Precision Machinery Co., Ltd. is a CNC machine tools company, located in the beautiful capitcal Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.

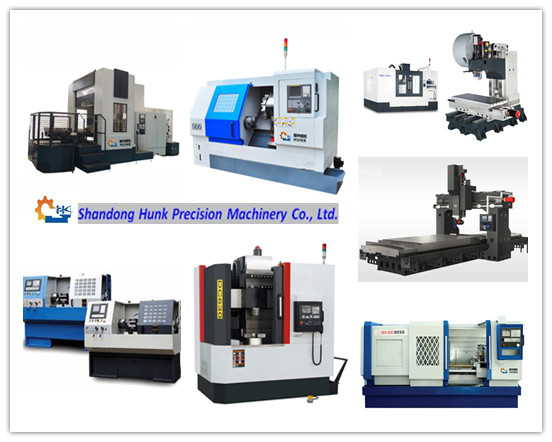

VI.  Product Range of Hunk
(1) CNC Milling Machine
(2) CNC Vertical Machining Center
(3) CNC Turning Lathe
(4) Flat Bed CNC Turning Lathe
(5) CNC Horizontal Turning Lathe
(6) Slant Bed CNC Turning Lathe
(7) CNC Horizontal Machining Center
(8) Gantry Machining Center
(9) Pipe Threading CNC Lathe
(10) CNC Vertical Lathe



VII. FAQ
1. Q: Do you have after sales support?
 A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.

2. Q: Once we've bought a machine from you, are you able to supply us with material?
 A: We can assist you in finding the appropriate materials to suit your machine

3. Q: Do you sell only standard machines?
 A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable

4. Q: Do you have a warranty on your machines?
 A: One year warranty excluding electrical components.

5. Q: What sales terms do you have?
 A: T/T, L/C,West Union.

6. Q: Do you have instruction manuals?
 A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,

 7. Q: What is your delivery time?
 A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
