China HSS W6mo5cr4V2 Circular Saw Blade for Different Cutting

Name: China HSS W6mo5cr4V2 Circular Saw Blade for Different Cutting
Brand: tool-buy.com
SKU: 831716345
Availability: InStock
Rating: 4.8 (24 reviews)

Price:	US $ 1-50/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Zhejiang Kanzo Industrial Co., Ltd.

Showroom Product Company Profile

Prod Model:	W6Mo5Cr4V2 circular saw
Teeth:	Designable
Material:	HSS, Alloy Steel
Other Coating:	Tin,Ticn,Tialn
Quality Gurantee:	Get Replacement

Product Description

Saw blade including metal hot-cutting circular hss circular saw blade, metal cold-cutting circular hss circular saw blade , TCT circular hss circular saw blade , HSS segmental circular hss circular saw blade , and diamond circular saw blank .

Diameter	mm	Bore
1.5"	40	5/8" to 2"
8"	200	5/8" to 2"
10"	250	5/8" to 2"
12"	300	5/8" to 2"
14"	350	5/8" to 2"
15"	400	5/8" to 2"
19"	500	5/8" to 2"

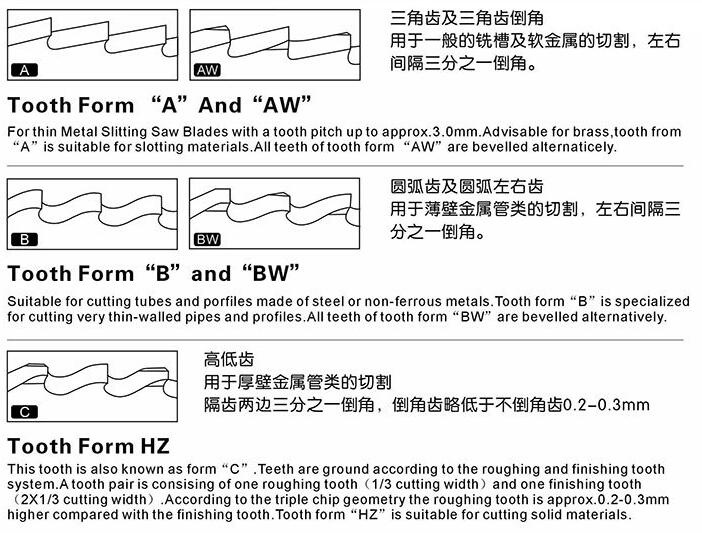

The different kinds of tooth forms are used according to different requirements of cutting.

How to choose the right tooth form?

1.Tooth form "A" and "AW"

For thin Metal Slitting Saw Blades with a tooth pitch up to approx. 3.0mm Advisable for brass, tooth form "A" is
suitable for slotting materials. All teeth of tooth form "AW" are bevelled alternatively.

2.Tooth form "B" and "BW"
Suitable for cutting tubes and profiles made of steel or non-ferrous metals. Tooth form "B" is specialized for cutting very thin walled popes and profiles. All teeth of tooth form "BW" are bevelled alternatively.

3.Tooth form HZ
This tooth is also known as form "HZ". Teeth are ground according to the roughing and finishing tooth system. A tooth pair is consisting of one roughing tooth(1/3 cutting width) and one finishing tooth(2x1/3 cutting width). According to the triple chip geometry the roughing tooth is approx.0.2-0.3mm higher compared with the finishing tooth. Tooth form "HZ" is suitable for cutting solid materials.

4.Tooth Form BR
Tooth form BR is a parrot tooth with chip breaker.This tooth form is sutiable for cutting pipes under high performance conditions because the teeth are side cutting.

HSS/ HSS-E DMo5 circular saw blade M2 M35 DIN 1.3343 DIN 1.3243
Dia*thickness	Hole:From 5mm-32mm-40mm-50mm etc
20x0.2-3	25x0.2-6	32x0.2-6
40x0.2-0.8	75x6.5-7	125x0.8-1.2
40x1-1.5	75x7.5-8.5	125x1.5
40x2	80x0.5-0.8	125x2
40x2.5-3	80x1-1.2	125x2.5-3
40x3.5-4	80x1.5	125x3.5-4
40x4.5-5	80x2	125x5
50x0.5-0.8	80x2.5-3	125x5.5-6
50x1-1.5	80x3.5-4	150x1-1.2
50x2	80x4.5-5	150x1.5
60x0.3-0.4	80x5.5-6	150x2
60x0.5-0.8	80x6.5-7	150x2.5-3
60x1-1.2	80x8	150x3.5-4
60x1.5	100x0.5-0.8	150x4.5-5
60x2	100x1-1.2	150x5.5-6
60x2.5-3	100x1.5	150x6.5-7
60x3.5-4	100x2	150x7.5-8.5
60x4.5-5	100x2.5-3	160x1-1.2
63x0.5-0.8	100x3.5-4	160x1.5
63x1-1.2	100x4.5-5	160x2
63x1.5	100x5.5-6	160x2.5-3
63x2	100x7	160x3.5-4
63x3	100x8	160x4.5-5
75x0.5	110x0.8-1.2	160x5.5-6
75x0.6-0.8	110x1.5	200x1.5
75x1-1.2	110x2	200x2
75x1.5	110x2.5-3	200x2.5-3
75x2	110x3.5-4	200x3.5-4
75x2.5-3	110x4.5-5	200x4.5-5
75x3.5-4	110x5.5-6	200x5.5-6
75x4.5-5	110x7	200x6.5-7
75x5.5-6	110x8	200x7.5-8.5
225x2	250*1.0-2.5	275x1.0-2.5
300x1.2-3.0	315x2.0-3.0	325x2.0-2.5
350x2.0-3.0	370x2.5	400x2.0-3.0
425x3.0	450x3.0	500x3.0-4.0

T.C.T circular saw blade for Aluminum Brass etc
Dia* thickness*hole		Teeth No.BW/BS
250x4.0/5.0/6.0/7.0/8.0x25.4		40/60/80/100/120
255x3.2/2.8/2.0x25.4		60/80/100/120
300x3.0/2.8x25.4		60/80/100/120
305x3.0/2.8x25.4		60/80/100/120
355x3.5/3.2x25.4		60/80/100/120
405x3.8/3.2x25.4		60/80/100/120
455x4.2/4.0x25.4/30		60/80/100/120
500x4.4/4.0x25.4/30		60/80/100/120
510x4.4/4.0x30/40/50		60/80/100/120/144
550x4.4/4.0x32/40/50/80		60/80/100/120/144
560x5.0x32/40/50/80		48/100/120
600x5.0/4.0x32/40/50/80		50/60/80/100/120
650x5.0/4.0x32/40/50/80		60/80/100/120
700x6.0/5.0x32/40/50/80		60/80/100/120
710x6.0/5.0x50/60/80/100		60/80/100/120
750x7.0/6.5x50/60/80/100		60/80/100/120
800x7.0/6.5x50/60/80/100		60/80/100/120
850x8.0/7.5x50/60/80/100		60/80/100/120
900x8.0/7.5x50/60/80/100		60/80/100/120
910x8.0/7.5x50/60/80/100		60/80/100/120
1000x10.0/8.0x50/60/80/100		60/80/100/120
1050x10.0x50/60/80/100		60/80/100/120
1100x10.0/9.0x80/100/120150		60/80/100/120
1200x10.0/9.0x80/100/120/150		60/80/100/120
1250x10.0x80/100/120/150		60/80/100/120
1430x10.0x80/100/120/150		120/150
1450x10.0x80/100/120/150		120/150
1750x11.0x80/100/120/150		150
circular saw blade for cold cutting
160x1.8x40		48T
200x2.0x40		54T
230x2.0x40		60T
250x2.0x32		54/60/72/120
285x2.0x32		60/72/80
315x2.25x32		60/72/80/100/120/140
360x2.6x40		60/80/100/120/130/140
425x2.5x50		80T
425x2.7x50		80/100
460x2.7x50		60/80/100

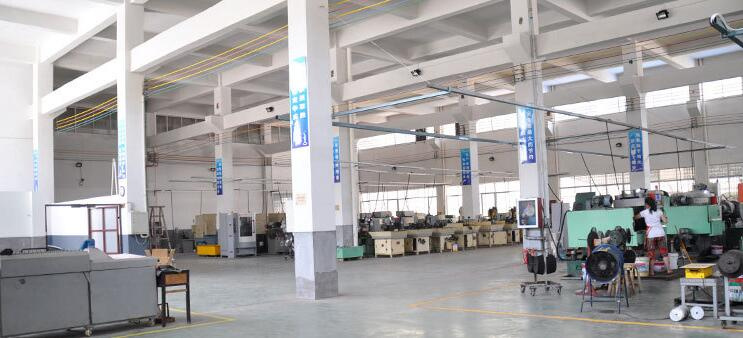

Our factory:

if you are interested or if you have any question ,please feel free to send me email or inquire below: ↓↓↓

Zhejiang Kanzo Industrial Co., Ltd is a professional supplier for casting and machined metal components for 15 years. We have a wide variety of materials, for example, carbon steel, low and high alloy steel, stainless steel, aluminum, copper, ductile cast iron etc., which are widespread used in construction machinery, Automobile electricity Industry, petroleum, agricultural and medical machinery and so on.

KANZO covers various foundries and machining factories based on various casting processes with custom CNC machines. Our CNC machines refers to turning, milling, stamping and so on.

In 2006, KANZO company established its branch and started producing metal cutting circular saw blades and M42 band saw blades. The circular saw blades are supplied in high speed steel of M2 (DIN 1.3343), and cobalt-alloyed steel M35(DIN 1.3243). Diameters vary from 30 to 550 mm in various thickness, tooth forms and number. Beside PVD (physical Vapour Deposition) coating, we can provide these coatings: TiN (Titanium Nitride, TiCN (Titanium Carbon Nitride), and TiALN (Titanium Aluminium Nitride).

At present, We have more than 300 workers and with complete advanced equipment and test machine. Our factory with ISO9001 and ISO/TS16949 certified to keep supplying high quality components. Our products export to worldwide, for example Germany, USA, Canada, South America, Middle East and so on.

Kanzo also have invested in LED lighting industry which company name is ningbo new kanzo electrical. Co., Ltd.
