China Jb Al Parallel-Groove Clamp - China Wire Clamps, Pparallel-Groove Clamp
Price: |
US $ 1-5/Piece |
Min Order: |
1000/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
JBB-1, JBB-2, JBB-3, JBB-4, JBL, JBT, JBTL |
Model No: |
From Jb-10 to Jb-43 |
Usage: |
Overhead Transmission Line |
Antivibration: |
High |
Operation: |
Convenient |
Durability: |
Long |
Quality Rank: |
Higher Than National Electric Criteria |
Color: |
Silver |
Energysaving Property: |
High |
Stability: |
High |
Installation Time: |
Short |
Type: |
Connection Fitting |
Product Description
Product Description
JB Type Parallel Groove Clamps for AAC & ACSR Conductor are suitable for connnect suspension insulators into a string and hang the string in tower or connect strain clamp and insulator string in the straight line tower.

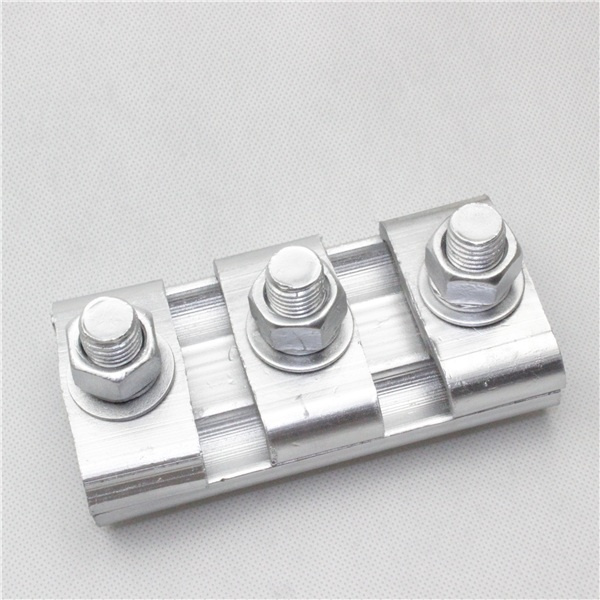

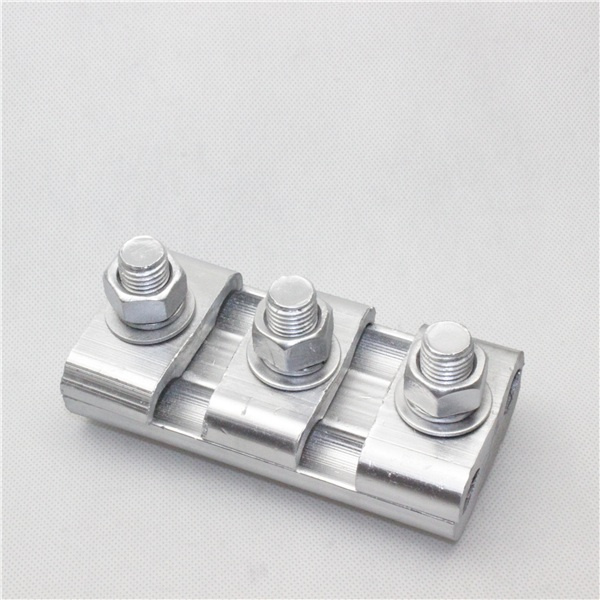

1)JB aluminium parallel-groove clamp
2)security product
JB aluminum parallel groove clamp is used to link a bare conductor on an overhead line of equal nature
Aluminum parallel groove clamp ( parallel-groove connector):
1) used to link a bare conductor on an overhead line of equal nature
2) designed to connect two parallel conductors to tap a secondary line or to close a loop of one conductor to anchor it on an insulator
3) bodies in high strength aluminum alloy
4) ridged grooves without any loose part
5) Circular arc embracing most of the area to provide the conductor uneasy creep and great grip strength
Type no | Conductor Outside Diameter(mm) | Suitable conductor | Bolt Qty | Dimension(mm) |
A | L | R |
JB-0 | 5.1~7.0 | 16-25 | 2-M10*40 | 35 | 72 | 4 |
JB-1 | 7.5~9.6 | 25-50 | 2-M12*45 | 46 | 80 | 5.5 |
JB-2 | 10.8~14.0 | 70-95 | 3-M12*50 | 50 | 108 | 7.5 |
JB-3 | 14.2~17.5 | 120-150 | 3-M16*60 | 62 | 140 | 9 |
JB-4 | 17.5~22.0 | 185-240 | 3-M16*65 | 71 | 144 | 11 |
JB-5 | 22.4~28.0 | 300-400 | 4-M20*85 | 90 | 200 | 14.5 |
JB-6 | 29.0~35.0 | 500-630 | 4-M20*95 | 110 | 230 | 18.5 |

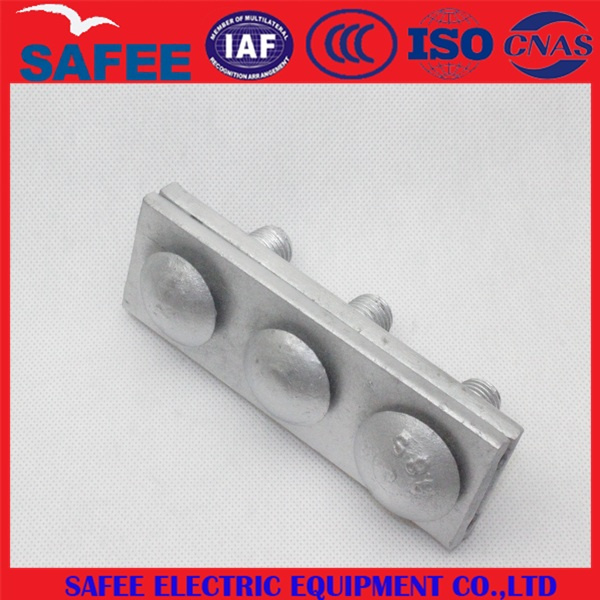

Hot dip galvanized steel parts, to join hardware, used for connecting the fixed power equipment equipment
1. Material:Galvanized Steel
2. Product quality has reached to IEC standard
3. Packing: Standard export seaworthy and plywood case packing or follow buyer's request
4. Delivery: Within 3 weeks after receipt of client's prepayment or L/C.
For opening a new mold then delivery time need undetermined.
SAFEE ELECTRIC EQUIPMENT Co., Limited, founded in 2013, is set research and development in our country, production, sales in the integration of science and technology communication EQUIPMENT, fittings professional manufacturers, the company headquarters is located in hebei province shijiazhuang qiaoxi, branch is located in hebei xingtai guangzong county industrial area, transportation is work, the environment is superior.
The company covers an area of more than 28000 square meters, The company existing staff 200 people, o quality management personnel more than 20 people, to meet The rapid growth of demand, The company established a long - term development planning and recent plan, enables The system to implement effectively, make The company fast and efficient.
My company 's existing: Steel strand, circuit, iron casting, all kinds of standard parts, safety instruments and other electric products, gradually to export products from domestic transformation.
Specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are sold throughout the country, marketing has entered the export-oriented, products are sold to Asia, Africa, Middle East, Western Europe, eastern Europe and South America market, modern management and perfect after-sales service system, to build China's power industry well-known brands, we will be more hard work, adhering to the principle of quality is the enterprise life, to a higher standard, create value for users, with global cooperation, hand in hand and win-win marketing idea is willing to work with new and old customers at home and abroad hand in hand, altogether will create the glorious future, Sincerely welcome to visit our company, we supply superior quality products and excellent service always.
