| Prod Model: |
FD FG |
| Delivery Time: |
15 Days After Confirm The Order |
| Standard: |
ANSI GB IEC DIN JIS |
| Color: |
Silvery White or Customized |
| Used With: |
ADSS/ Opgw |
| Usage: |
Electric Power Construction |
| Material: |
Steel |
| Type: |
Protection Fitting |
Product Description
| Type | Suitable Conductor | Dimension | Wire Size | Weight (KG) |
| Steel Stranded Wire | ACSR & AAC | D | A | H | L1 | L |
| FD-1 | / | 35~50 | 40 | 40 | 40 | 95 | 300 | 7/2.6 | 1.5 |
| FD-2 | / | 70~95 | 46 | 45 | 55 | 130 | 370 | 7/3.0 | 2.4 |
| FD-3 | / | 120~150 | 56 | 60 | 65 | 150 | 450 | 19/2.2 | 4.5 |
| FD-4 | / | 185~240 | 62 | 60 | 70 | 175 | 500 | 19/2.2 | 5.6 |
| FD-5 | / | 300~500 | 67 | 70 | 70 | 200 | 550 | 19/2.6 | 7.2 |
| FD-6 | / | 500~630 | 70 | 70 | 75 | 200 | 550 | 19/2.6 | 8.6 |
| FG-35 | 35 | / | 42 | 45 | 50 | 100 | 300 | 7/3.0 | 1.8 |
| FG-50 | 50 | / | 46 | 45 | 50 | 130 | 350 | 7/3.0 | 2.4 |
| FG-70 | 70 | / | 56 | 50 | 60 | 150 | 400 | 19/2.2 | 4.2 |
| FG-100 | 100 | / | 62 | 60 | 65 | 175 | 500 | 19/2.2 | 5.9 |

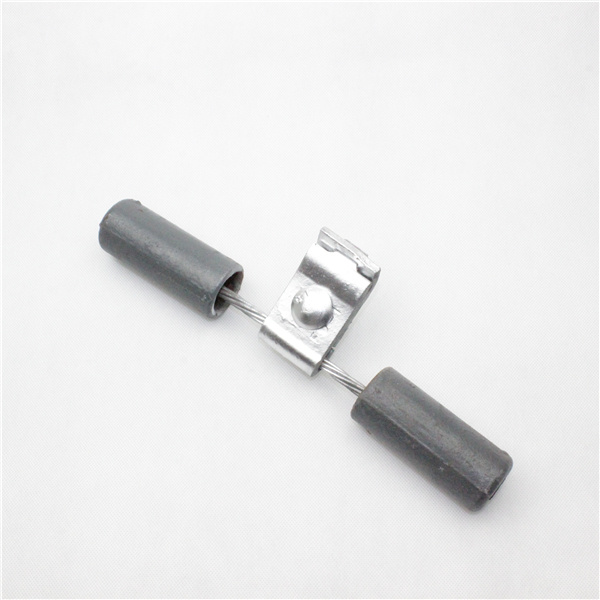

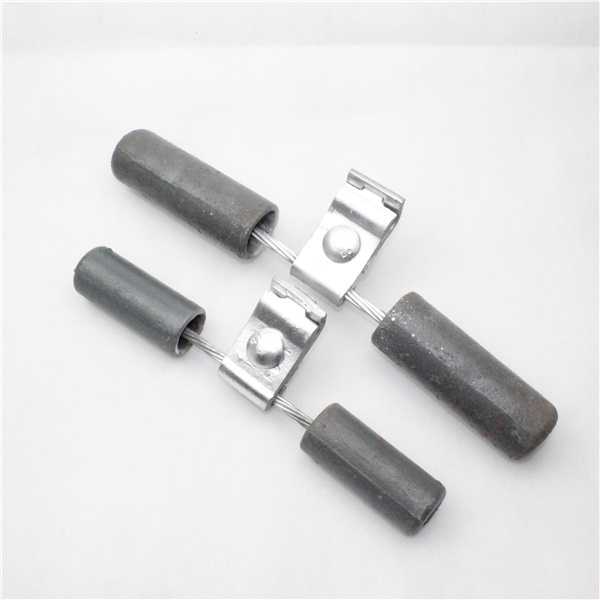

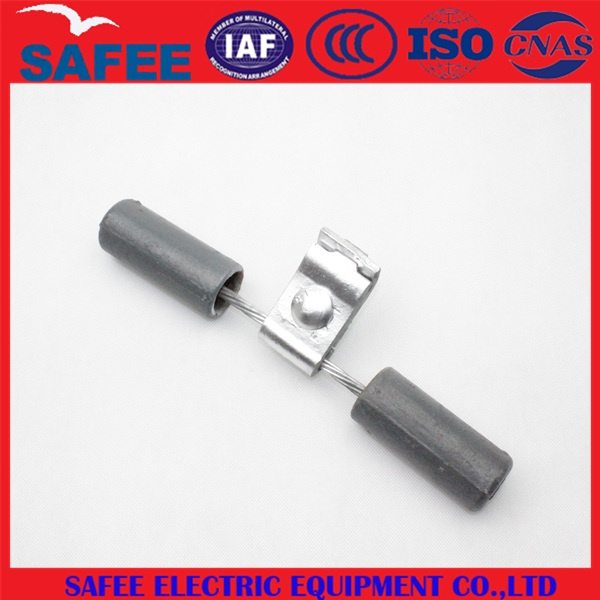

Shock hammer is a kind of power to protect hardware, it is usually used in high voltage transmission lines hanging from above the high tension line to prevent the wind, and the function of external force, prevent cable under the condition of the wind swinging
1. Material:Galvanized Steel
2. Product quality has reached to IEC standard
3. Packing: Standard export seaworthy and plywood case packing or follow buyer's request
4. Delivery: Within 3 weeks after receipt of client's prepayment or L/C.
For opening a new mold then delivery time need undetermined.
Our Services:
Sample1. free sample of our standard products;2. if need open mold for OEM drawing or sizes, we will charge some fee and will back to you when order comes or purchase quantity reach requirement; Delivery Time1. General specifications , small orders, our stock, delivery time is 3-7 days2. Special specifications,or a large number of orders, delivery time is 15-30 days After Sales1. we will follow up the delivery until customer get the parts;2. If quality of the parts have problem,please contact us asap.We will give you the best solution.Contact Us:Contact Person: Ms Nora
Add: West of Shuichan street, Qiaoxi District ,Shijiazhuang City, Hebei Province, China
SAFEE ELECTRIC EQUIPMENT Co., Limited, founded in 2013, is set research and development in our country, production, sales in the integration of science and technology communication EQUIPMENT, fittings professional manufacturers, the company headquarters is located in hebei province shijiazhuang qiaoxi, branch is located in hebei xingtai guangzong county industrial area, transportation is work, the environment is superior.
The company covers an area of more than 28000 square meters, The company existing staff 200 people, o quality management personnel more than 20 people, to meet The rapid growth of demand, The company established a long - term development planning and recent plan, enables The system to implement effectively, make The company fast and efficient.
My company 's existing: Steel strand, circuit, iron casting, all kinds of standard parts, safety instruments and other electric products, gradually to export products from domestic transformation.
Specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are sold throughout the country, marketing has entered the export-oriented, products are sold to Asia, Africa, Middle East, Western Europe, eastern Europe and South America market, modern management and perfect after-sales service system, to build China's power industry well-known brands, we will be more hard work, adhering to the principle of quality is the enterprise life, to a higher standard, create value for users, with global cooperation, hand in hand and win-win marketing idea is willing to work with new and old customers at home and abroad hand in hand, altogether will create the glorious future, Sincerely welcome to visit our company, we supply superior quality products and excellent service always.
