| Prod Model: |
J23-25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Kingball |
| Place Of Origin: |
Jiangsu,China |
| Color: |
All Color Is Available |
| Model Number: |
J23-25 |
| Machine Type: |
CNC Machine |
| Power: |
Hydraulic |
| Dimension(Lxwxh): |
Depend on |
| Weight: |
Depend on |
| Guarantee Period: |
Two Years |
| Type: |
Deep Throat Punching Machine |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Power Source: |
Manual |
| Precision: |
High Precision |
Product Description

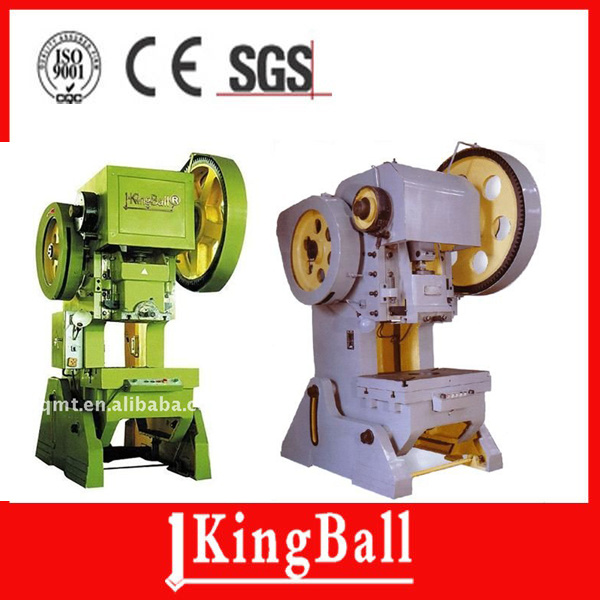

Power press J23 series1. Press punching machine
2. CE, ISO, SGS Certification
3. Economic & practical;
4. High performance, long life
5. High quality with good price
Features and Specifications of power press J23 series
J23 series pressure machines is common type open type can the pressure machine,1. Its structure is simple, operation convenience, function credibility, the usage maintain convenience.
2. J23 series shut type list orders the pressure machine fuselage of airplane srtaight line form design, well balanced to be subjected to dint, constant form, rigid and strong.
3. Extemely high closing height, pack the mould space big, slippery piece the piece six noodles directionn, the accurancy is high, stability good.
4. Outside support type especially the big machine do, exaltation the tool machine install stability, safety, inside place type, oil road, electric circuit, beauty clean and net, have a safety, dependable type more,
5. The hand operation button the switch match pressure machine national security standard...
Except POWER PRESS, we also have the press brakes, shearing machine, rolling machines and other machines.
For more about our products, please contact us. Thanks.
| Type | J23-10 | J23-16 | J23-25 | J23-40 | J23-63 | J23-80 | J23-100 | J23-125 |
| Nominal Force (kn) | 100 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 |
| Worktable Dimension (mm) | 240x360 | 300x450 | 320x530 | 400x650 | 450x710 | 480x750 | 590x890 | 660x980 |
| Slider travel | 50 | 60 | 70 | 100 | 100 | 120 | 130 | 140 |
| Distance from slider center to press body | 120 | 180 | 190 | 230 | 240 | 260 | 310 | 340 |
| Travel times (min-1 ) | 130 | 110 | 70 | 55 | 50 | 50 | 45 | 45 |
| Closing height (mm) | 180 | 220 | 260 | 320 | 330 | 380 | 380 | 400 |
| Die hole size (mm) | 30x50 | 40x60 | 40x60 | 50x70 | 50x70 | 60x80 | 60x80 | 70x90 |
| Worktable thickness (mm) | 35 | 45 | 50 | 80 | 80 | 90 | 100 | 110 |
| Power (kw) | 1.1 | 1.5 | 2.2 | 4 | 4.5 | 7.5 | 7.5 | 11 |
| Weight (kg) | 420 | 760 | 1300 | 2600 | 3300 | 4500 | 5900 | 8800 |
| Dimension LxWxH (mm) | 910x650x1560 | 1100x780x1800 | 1200x900x2050 | 1500x1100x2400 | 1600x1150x2480 | 1750x1300x2600 | 1800x1400x2680 | 1890x1500x2800 |
Nanjing Jinqiu CNC Machine Tool Co., Ltd has been focusing on research and design, manufacturing and sales of better prices with better quality machines such as Press Brakes, Shearing Machines, Rolling Machines, Press Machine, Ironworkers, Pipe Bend Machine, press brake tooling blade and so on, our brand is Kingball, since it was established in 2003. Kingball is a true expert of machine- manufacturing based on more than 10 years experience.
Our Company has got the certification of ISO9001 SGS CE TUV and BV have been exported to more than 60 countries including UK, USA, Italy, Spain, Ireland, India, Thailand, Malaysia, South Africa, and so on.
We have 28, 000 square meters workshop, advanced production equipment, 220 experienced staff, and strictly effective quality assurance system. Kingball selects best material and parts for the machines and the most important is Kingball manufactures most of the parts by itself for better to control the quality. Therefore Kingball brand products win the reputation of practical, reliable and durable.
Nowadays our company is developing the global market, We are currently looking for all agents and powerful cooperation globally to sell our products worldwide. We are glad to try our best to supply Free technical support and related information all of the China Machine. Any advise you have, please do not hesitate to contact with us for your requirement, thank you!
