| Prod Model: |
KET Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
China Hydraulic Bolt Tensioner |
| Inner Diameter: |
51-1002mm |
| Height: |
35-88mm |
| Stroke: |
5-17mm |
| Weight: |
2.5-232kg |
| Outside Diameter: |
110-1180mm |
| Color: |
Customerized |
| OEM: |
Yes |
| Market: |
Global |
| Factory: |
Taizhou, Jiangsu |
Product Description

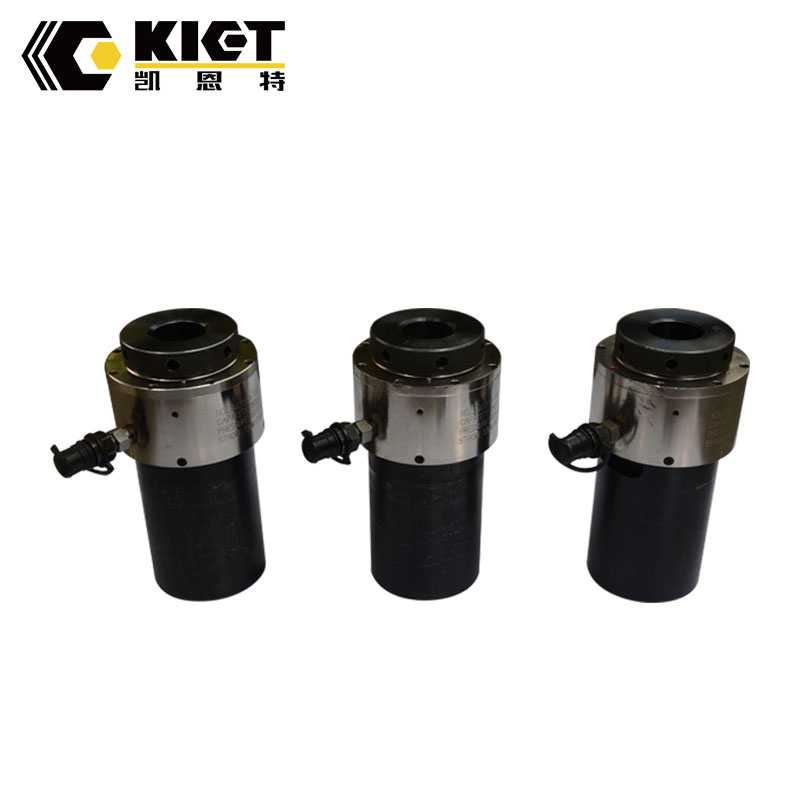

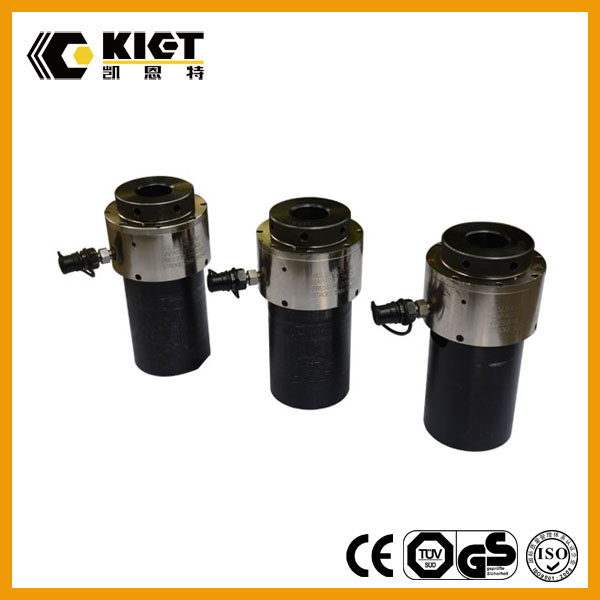

China Manufacture Hydraulic Bolt Tensioner
Product Specifications1. Bolt range: M24-M115
2. Max. Tensile capacity: 223-5860 KN
3. Max. Operating pressure: 1500bar
Feature:
Doublefree, No-Leak, LoFriction Seals.
Overstroke Indicator.
ExtraLong Working Stroke.
Compact and Lightweight Design.
Simple to Operate and Maintain.
Total Quality Assurance.
Dependable Operation.
Collar, Shim or Hydraulic Bolt Styles.
Structure and ApplicationCompany Information
Jiangsu Canete Machinery Manufacturing Co., Ltd. Is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
For more details please contact:
Elena Tan
Tel: 86-523-81569666
Mob: +86 18052606778
Web: www.kaientehydraulic.com | Model | | | | | | Work area(mm²) | |
| Whorl | Outside diameter(mm) | Inner diameter(mm) | Height(mm) | Stroke(mm) | Weight |
| | | | | | (kg) |
| KT11LM50 | M50×1.5 | 110 | 51 | 35 | 5 | 3350 | 2.5 |
| KT11LM55 | M55×2 | 120 | 53 | 35 | 5 | 3980 | 2.6 |
| KT11LM60 | M60×2 | 125 | 61 | 35 | 5 | 4240 | 2.8 |
| KT11LM65 | M65×2 | 131 | 66 | 35 | 5 | 4470 | 3 |
| KT11LM70 | M70×2 | 135 | 71 | 35 | 5 | 4715 | 3.1 |
| KT11LM75 | M75×2 | 139 | 76 | 35 | 5 | 4950 | 3.2 |
| KT11LM80 | M80×2 | 145 | 81 | 35 | 5 | 5150 | 3.5 |
| KT11LM85 | M85×2 | 150 | 86 | 35 | 5 | 5410 | 3.6 |
| KT11LM90 | M90×2 | 156 | 91 | 36 | 5 | 5650 | 4 |
| KT11LM95 | M95×2 | 160 | 96 | 36 | 5 | 5850 | 4.1 |
| KT11LM100 | M100×2 | 166 | 101 | 36 | 5 | 5950 | 4.2 |
| KT11LM105 | M105×2 | 170 | 106 | 36 | 5 | 6050 | 4.5 |
| KT11LM110 | M110×2 | 177 | 111 | 36 | 5 | 6250 | 4.8 |
| KT11LM115 | M115×2 | 180 | 116 | 36 | 5 | 6500 | 5 |
| KT11LM120 | M120×2 | 188 | 121 | 36 | 5 | 6700 | 5.1 |
| KT11LM125 | M125×2 | 190 | 126 | 36 | 5 | 6880 | 5.2 |
| KT11LM130 | M130×2 | 198 | 131 | 36 | 5 | 7150 | 5.5 |
| KT11LM135 | M135×2 | 202 | 136 | 36 | 5 | 7280 | 5.8 |
| KT11LM140 | M140×2 | 205 | 141 | 37 | 5 | 7600 | 6 |
| KT11LM145 | M145×2 | 214 | 146 | 37 | 5 | 7800 | 6.5 |
| KT11LM150 | M150×2 | 220 | 151 | 38 | 6 | 7650 | 6.7 |
| KT11LM155 | M155×3 | 225 | 156 | 38 | 6 | 7990 | 6.9 |
| KT11LM160 | M160×3 | 232 | 161 | 40 | 6 | 8010 | 7.5 |
| KT11LM165 | M165×3 | 238 | 166 | 40 | 6 | 8330 | 7.7 |
| KT11LM170 | M170×3 | 242 | 171 | 41 | 6 | 8660 | 8.4 |
| KT11LM180 | M180×3 | 255 | 181 | 42 | 6 | 8750 | 9 |
| KT11LM190 | M190×3 | 270 | 191 | 42 | 8 | 9250 | 10 |
| KT11LM200 | M200×3 | 280 | 202 | 43 | 8 | 8550 | 11.4 |
| KT11LM205 | Tr205×4 | 288 | 207 | 43 | 8 | 8750 | 12 |
| KT11LM210 | Tr210×4 | 292 | 222 | 43 | 9 | 10425 | 12.5 |
| KT11LM215 | Tr215×4 | 300 | 217 | 44 | 9 | 11550 | 13 |
| KT11LM220 | Tr220×4 | 305 | 222 | 44 | 9 | 11750 | 13.5 |
| KT11LM225 | Tr225×4 | 310 | 227 | 45 | 9 | 12000 | 14.2 |
| KT11LM230 | Tr230×4 | 317 | 232 | 45 | 9 | 12250 | 14.9 |
| KT11LM235 | Tr235×4 | 326 | 237 | 45 | 9 | 12550 | 15.5 |
| KT11LM240 | Tr240×4 | 330 | 243 | 45 | 9 | 12810 | 16.3 |
| KT11LM250 | Tr250×4 | 340 | 253 | 46 | 9 | 13110 | 17 |
| KT11LM260 | Tr260×4 | 355 | 263 | 47 | 9 | 13750 | 19 |
| KT11LM270 | Tr270×4 | 365 | 273 | 48 | 9 | 14220 | 19.8 |
| KT11LM280 | Tr280×4 | 380 | 283 | 48 | 9 | 14650 | 22 |
| KT11LM290 | Tr290×4 | 390 | 293 | 49 | 9 | 15100 | 22.3 |
| KT11LM300 | Tr300×4 | 402 | 302 | 50 | 10 | 15650 | 25 |
| KT11LM310 | Tr310×5 | 410 | 312 | 52 | 10 | 16000 | 27 |
| KT11LM320 | Tr320×5 | 425 | 322 | 53 | 10 | 16500 | 29 |
| KT11LM330 | Tr330×5 | 435 | 332 | 53 | 10 | 17000 | 30 |
| KT11LM340 | Tr340×5 | 450 | 342 | 54 | 10 | 17550 | 31 |
| KT11LM345 | Tr345×5 | 455 | 348 | 54 | 10 | 17800 | 32 |
| KT11LM350 | Tr350×5 | 465 | 352 | 56 | 10 | 18100 | 35.5 |
| KT11LM360 | Tr360×5 | 470 | 363 | 56 | 10 | 18550 | 35.8 |
| KT11LM365 | Tr365×5 | 480 | 367 | 57 | 11 | 18850 | 38 |
| KT11LM375 | Tr375×5 | 485 | 377 | 57 | 11 | 19100 | 39 |
| KT11LM380 | Tr380×5 | 495 | 382 | 58 | 11 | 19500 | 39 |
| KT11LM385 | Tr385×5 | 505 | 387 | 58 | 11 | 19800 | 40 |
| KT11LM400 | Tr400×5 | 520 | 402 | 60 | 11 | 20500 | 45 |
| KT11LM410 | Tr410×5 | 535 | 412 | 60 | 11 | 20800 | 48 |
| KT11LM420 | Tr420×5 | 545 | 422 | 61 | 11 | 21300 | 50 |
| KT11LM430 | Tr430×5 | 555 | 432 | 62 | 11 | 21650 | 52 |
| KT11LM440 | Tr440×5 | 565 | 442 | 62 | 12 | 22000 | 54 |
| KT11LM450 | Tr450×5 | 580 | 452 | 64 | 12 | 22390 | 57 |
| KT11LM460 | Tr460×5 | 590 | 462 | 64 | 12 | 22750 | 60 |
| KT11LM470 | Tr470×5 | 600 | 472 | 65 | 12 | 23150 | 62 |
| KT11LM480 | Tr480×5 | 610 | 482 | 65 | 12 | 23500 | 63 |
| KT11LM490 | Tr490×5 | 625 | 492 | 67 | 12 | 23900 | 65 |
| KT11LM500 | Tr500×5 | 635 | 502 | 67 | 12 | 24320 | 69 |
| KT11LM510 | Tr510×6 | 650 | 512 | 68 | 12 | 24700 | 71 |
| KT11LM520 | Tr520×6 | 655 | 522 | 68 | 13 | 25100 | 74 |
| KT11LM530 | Tr530×6 | 670 | 532 | 69 | 13 | 25500 | 77 |
| KT11LM540 | Tr540×6 | 680 | 542 | 69 | 13 | 26000 | 80 |
| KT11LM550 | Tr550×6 | 690 | 552 | 70 | 13 | 26500 | 84 |
| KT11LM560 | Tr560×6 | 700 | 562 | 70 | 13 | 26800 | 86 |
| KT11LM570 | Tr570×6 | 710 | 572 | 72 | 13 | 27350 | 90 |
| KT11LM580 | Tr580×6 | 720 | 582 | 72 | 13 | 27800 | 95 |
| KT11LM600 | Tr600×6 | 745 | 602 | 73 | 14 | 28200 | 100 |
| KT11LM630 | Tr630×6 | 780 | 632 | 74 | 14 | 28700 | 112 |
| KT11LM650 | Tr650×6 | 805 | 652 | 75 | 14 | 29200 | 114 |
| KT11LM670 | Tr670×6 | 825 | 672 | 76 | 14 | 29700 | 119 |
| KT11LM690 | Tr690×6 | 845 | 692 | 77 | 14 | 30220 | 125 |
| KT11LM710 | Tr710×7 | 870 | 712 | 78 | 15 | 30500 | 135 |
| KT11LM750 | Tr750×7 | 910 | 752 | 79 | 15 | 31200 | 143 |
| KT11LM800 | Tr800×7 | 965 | 802 | 80 | 16 | 31750 | 160 |
| KT11LM850 | Tr850×7 | 1010 | 852 | 82 | 16 | 32300 | 178 |
| KT11LM900 | Tr900×7 | 1075 | 902 | 86 | 17 | 32540 | 201 |
| KT11LM950 | Tr950×8 | 1125 | 952 | 86 | 17 | 33400 | 213 |
| KT11LM1000 | Tr1000×8 | 1180 | 1002 | 88 | 17 | 33950 | 232 |
Web: http://www.kaientehydraulic.com
Welcome to visit our Factory!
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
