Kiet Factory Price Hydraulic Bolt Tensioner for Fastening

Name: Kiet Factory Price Hydraulic Bolt Tensioner for Fastening
Brand: tool-buy.com
SKU: 726596365
Availability: InStock
Rating: 5 (47 reviews)

Price:	US $ 300-2000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Jiangsu Canete Machinery Manufacturing Co., Ltd.

Showroom Product Company Profile

Prod Model:	KT11LM Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outside Diameter:	110-1180mm
Inner Diameter:	51-1002mm
Stroke:	5-17mm
Height:	35-88mm
Weight:	2.5-232kg
Delivery Time:	7-15 Days After Receiving Payment
Product Name:	Hydraulic Bolt Tensioner
Color:	Customize
Application:	Construction
OEM:	Yes

Product Description

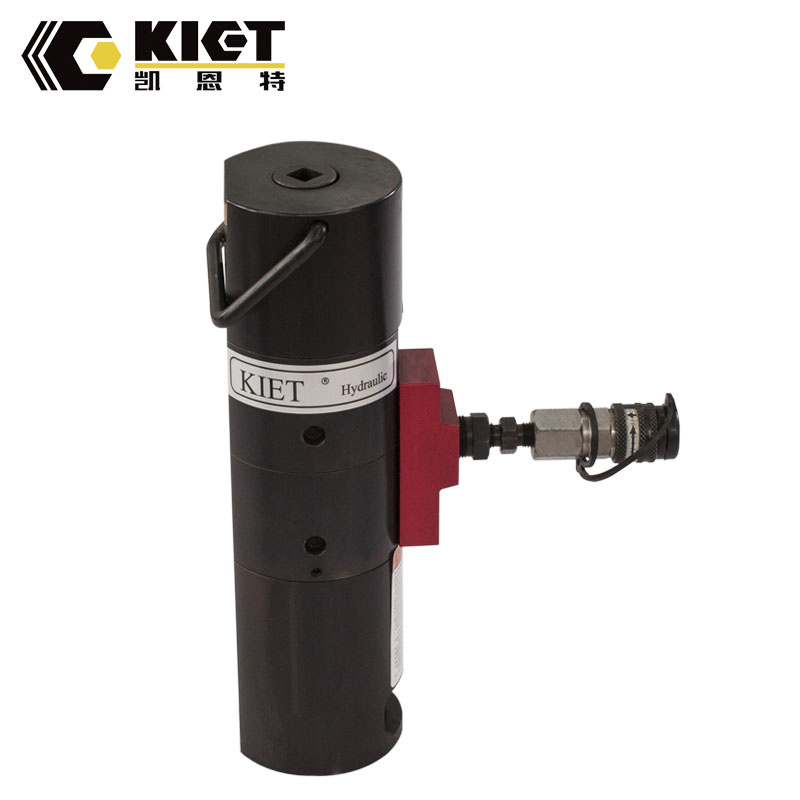

Kiet Factory Price Hydraulic Bolt Tensioner for Fastening

Feature:

Doublefree, No-Leak, LoFriction Seals.
Overstroke Indicator.
ExtraLong Working Stroke.
Compact and Lightweight Design.
Simple to Operate and Maintain.
Total Quality Assurance.
Dependable Operation.
Collar, Shim or Hydraulic Bolt Style

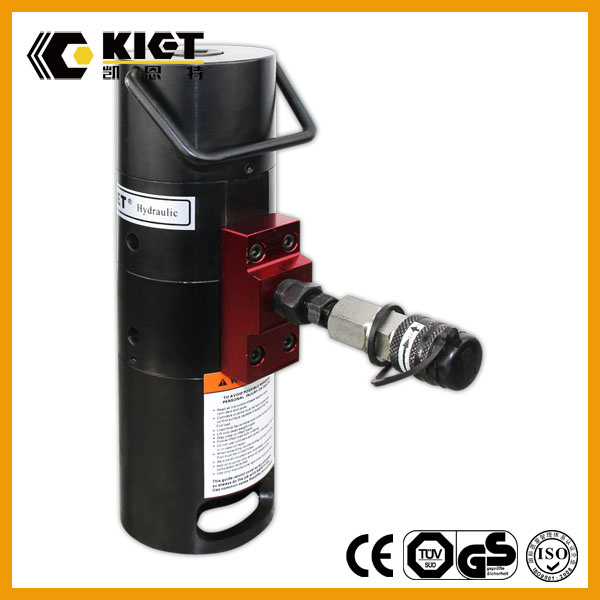

Photos:

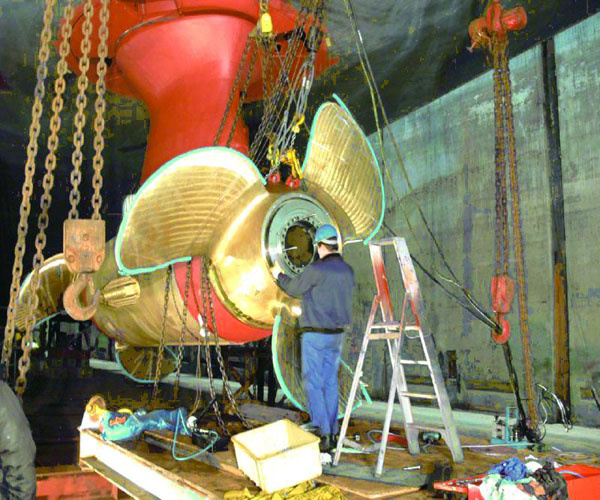

Structure and Application

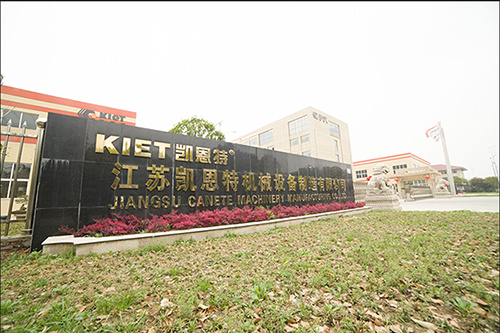

Company Information

Jiangsu Canete Machinery Manufacturing Co., Ltd. is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.

Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

We are a manufacturer in tools, such as:

Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;

Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);

Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)

Hydraulic pumps, manual and electric type (max up to 3000bar);

Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)

Hydraulic nut and couplings. (M50-Tr1000)

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.

Contact Information:

Jiangsu Canete Machinery Manufacturing Co., Ltd

Tel: +86-523-81569666

Web: http://www.chinakiet.com/EN/

Welcome to visit our Factory!

Model						Work area (mm²)
	Whorl	Outside diameter(mm)	Inner diameter(mm)	Height(mm)	Stroke(mm)		Weight
							(kg)
KT11LM50	M50×1.5	110	51	35	5	3350	2.5
KT11LM55	M55×2	120	53	35	5	3980	2.6
KT11LM60	M60×2	125	61	35	5	4240	2.8
KT11LM65	M65×2	131	66	35	5	4470	3
KT11LM70	M70×2	135	71	35	5	4715	3.1
KT11LM75	M75×2	139	76	35	5	4950	3.2
KT11LM80	M80×2	145	81	35	5	5150	3.5
KT11LM85	M85×2	150	86	35	5	5410	3.6
KT11LM90	M90×2	156	91	36	5	5650	4
KT11LM95	M95×2	160	96	36	5	5850	4.1
KT11LM100	M100×2	166	101	36	5	5950	4.2
KT11LM105	M105×2	170	106	36	5	6050	4.5
KT11LM110	M110×2	177	111	36	5	6250	4.8
KT11LM115	M115×2	180	116	36	5	6500	5
KT11LM120	M120×2	188	121	36	5	6700	5.1
KT11LM125	M125×2	190	126	36	5	6880	5.2
KT11LM130	M130×2	198	131	36	5	7150	5.5
KT11LM135	M135×2	202	136	36	5	7280	5.8
KT11LM140	M140×2	205	141	37	5	7600	6
KT11LM145	M145×2	214	146	37	5	7800	6.5
KT11LM150	M150×2	220	151	38	6	7650	6.7
KT11LM155	M155×3	225	156	38	6	7990	6.9
KT11LM160	M160×3	232	161	40	6	8010	7.5
KT11LM165	M165×3	238	166	40	6	8330	7.7
KT11LM170	M170×3	242	171	41	6	8660	8.4
KT11LM180	M180×3	255	181	42	6	8750	9
KT11LM190	M190×3	270	191	42	8	9250	10
KT11LM200	M200×3	280	202	43	8	8550	11.4
KT11LM205	Tr205×4	288	207	43	8	8750	12
KT11LM210	Tr210×4	292	222	43	9	10425	12.5
KT11LM215	Tr215×4	300	217	44	9	11550	13
KT11LM220	Tr220×4	305	222	44	9	11750	13.5
KT11LM225	Tr225×4	310	227	45	9	12000	14.2
KT11LM230	Tr230×4	317	232	45	9	12250	14.9
KT11LM235	Tr235×4	326	237	45	9	12550	15.5
KT11LM240	Tr240×4	330	243	45	9	12810	16.3
KT11LM250	Tr250×4	340	253	46	9	13110	17
KT11LM260	Tr260×4	355	263	47	9	13750	19
KT11LM270	Tr270×4	365	273	48	9	14220	19.8
KT11LM280	Tr280×4	380	283	48	9	14650	22
KT11LM290	Tr290×4	390	293	49	9	15100	22.3
KT11LM300	Tr300×4	402	302	50	10	15650	25
KT11LM310	Tr310×5	410	312	52	10	16000	27
KT11LM320	Tr320×5	425	322	53	10	16500	29
KT11LM330	Tr330×5	435	332	53	10	17000	30
KT11LM340	Tr340×5	450	342	54	10	17550	31
KT11LM345	Tr345×5	455	348	54	10	17800	32
KT11LM350	Tr350×5	465	352	56	10	18100	35.5
KT11LM360	Tr360×5	470	363	56	10	18550	35.8
KT11LM365	Tr365×5	480	367	57	11	18850	38
KT11LM375	Tr375×5	485	377	57	11	19100	39
KT11LM380	Tr380×5	495	382	58	11	19500	39
KT11LM385	Tr385×5	505	387	58	11	19800	40
KT11LM400	Tr400×5	520	402	60	11	20500	45
KT11LM410	Tr410×5	535	412	60	11	20800	48
KT11LM420	Tr420×5	545	422	61	11	21300	50
KT11LM430	Tr430×5	555	432	62	11	21650	52
KT11LM440	Tr440×5	565	442	62	12	22000	54
KT11LM450	Tr450×5	580	452	64	12	22390	57
KT11LM460	Tr460×5	590	462	64	12	22750	60
KT11LM470	Tr470×5	600	472	65	12	23150	62
KT11LM480	Tr480×5	610	482	65	12	23500	63
KT11LM490	Tr490×5	625	492	67	12	23900	65
KT11LM500	Tr500×5	635	502	67	12	24320	69
KT11LM510	Tr510×6	650	512	68	12	24700	71
KT11LM520	Tr520×6	655	522	68	13	25100	74
KT11LM530	Tr530×6	670	532	69	13	25500	77
KT11LM540	Tr540×6	680	542	69	13	26000	80
KT11LM550	Tr550×6	690	552	70	13	26500	84
KT11LM560	Tr560×6	700	562	70	13	26800	86
KT11LM570	Tr570×6	710	572	72	13	27350	90
KT11LM580	Tr580×6	720	582	72	13	27800	95
KT11LM600	Tr600×6	745	602	73	14	28200	100
KT11LM630	Tr630×6	780	632	74	14	28700	112
KT11LM650	Tr650×6	805	652	75	14	29200	114
KT11LM670	Tr670×6	825	672	76	14	29700	119
KT11LM690	Tr690×6	845	692	77	14	30220	125
KT11LM710	Tr710×7	870	712	78	15	30500	135
KT11LM750	Tr750×7	910	752	79	15	31200	143
KT11LM800	Tr800×7	965	802	80	16	31750	160
KT11LM850	Tr850×7	1010	852	82	16	32300	178
KT11LM900	Tr900×7	1075	902	86	17	32540	201
KT11LM950	Tr950×8	1125	952	86	17	33400	213
KT11LM1000	Tr1000×8	1180	1002	88	17	33950	232

Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,

We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.

We are a manufacturer in hydraulic tools, such as:

Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;

Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);

Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)

Hydraulic pumps, manual and electric type (max up to 3000bar);

Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)

Hydraulic nut and couplings. (M50-Tr1000)

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
