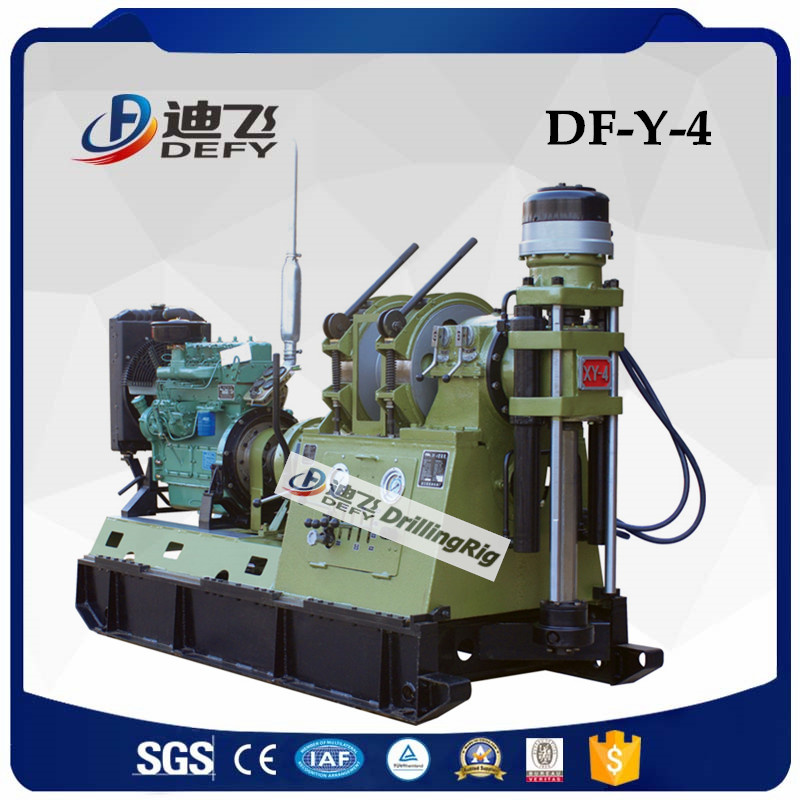

DF-Y-4 mining core exploration drilling rig
Product Description
DF-Y-4 mining exploration drill rig is a new type high speed diamond core drill rig, designed according to the development of geological work in China and developed to meet the requirements of clients. It is also suitable for engineering geological subterranean water explorations as well as explorations of shallow layer oil and natural gas, and can be used to drill holes for ventilation and drainage of main Gallery.
Integrated with different types of drill tower:
Characteristics
1. The rig is in higher rotational speed and rational range of rotational speed; large torque in low speed.
2. The drill is suitable in the mountain area because of light weight for easy transport and convenient dis assembly (to be disassembled into nine parts).
3. With compact structure and reasonable layout, and all exposed,non overlapped components, it is easier for maintenance and repair.
4. It is convenient for you to treat trouble with two reverse speeds. With low center of gravity, the rig is reliable and stable in high speed drilling.
5. The operation levers are concentrated, so the operations are reliable and convenient.
6. Fitted with meters, the circumstances can be controlled easily in hole.
7. The transmission is separately driven for drill rig and mud pump; it is easier for the location arrangement with less space occupying.
Technical parameter
| Drilling capacity | Drilling hole | Drilling depth |
| Φ42mm drill rod | 1000 m(3280 feet) |
| Φ50mm drill rod | 700 m (2296 feet) |
| Angle range | 0°-360° |
| Spindle speed(r/min) | Power machine speed 1500 r/min | Forward | Low speed | 101; 187; 267; 388, |
| High speed | 415;765;1090;1588 |
| reverse | Low speed | 83 |
| High speed | 251 |
| Spindle stroke | 600 mm |
| Spindle lifting capacity | Max. 80 kN |
| Spindle pull down force | Max.60 kN |
| Spindle torque | by power machine 29.4 kW, speed 1500 r/min, 2640;1410;980;660 N·m |
| Spindle I. D. | 68 mm (2.68 inch) |
| Hoist | Lifting capacity(single line) | Max.33kN |
Lifting speed
| By motor 39.4 kW , 1500 r/min | 0.82,1.51,2.16,
3.15m/s |
| By diesel 44.1kW, 2000 r/min | 1.09,2.02,2.89,
4.18m/s |
| Power unit | Electric motor Y200L-4 |
| diesel engine ZH100G43 |
| Dimensions (L×W×H) | 2710*1100*1750mm |
| Weight of drill (without power unit) | 1750kg |
