Prod Model: |
TSY-RD2 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
Material: |
Diamond |
Customized: |
Customized |
Condition: |
New |
Quality: |
Great |
Automation: |
Automatic |
Layout: |
Horizontal |
Control: |
Artificial |
Precision: |
High Precision |
Application: |
Stone Industry |
Certification: |
CE |
Product Description

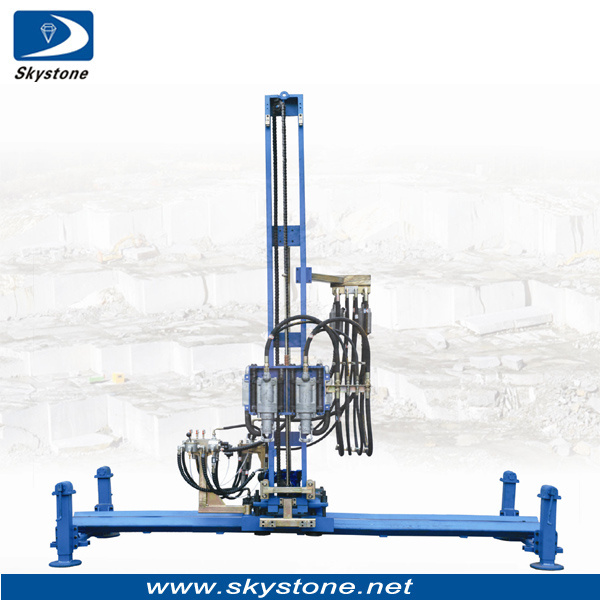

TSY-RD2 High Speed Doule-Hammer Rock Drill
Technical Prameter |
Item No. | TSY-RD2 |
Number of Hammer | 2 |
Working Length of Rock Drill | 2.3 m |
Drilling Diameter | 38mm~45mm |
Drilling Speed | 0.5~0.8m/min |
Shift Travel | 3m |
Air Pressure | 0.5~0.6Mpa |
Air Consumption | ≥10m³/Min |
Water Pressure | 0.4 Mpa |
Wtaer Consumption | 0.5m³*2/h |
Whole Weight | 1300kg |
Function :

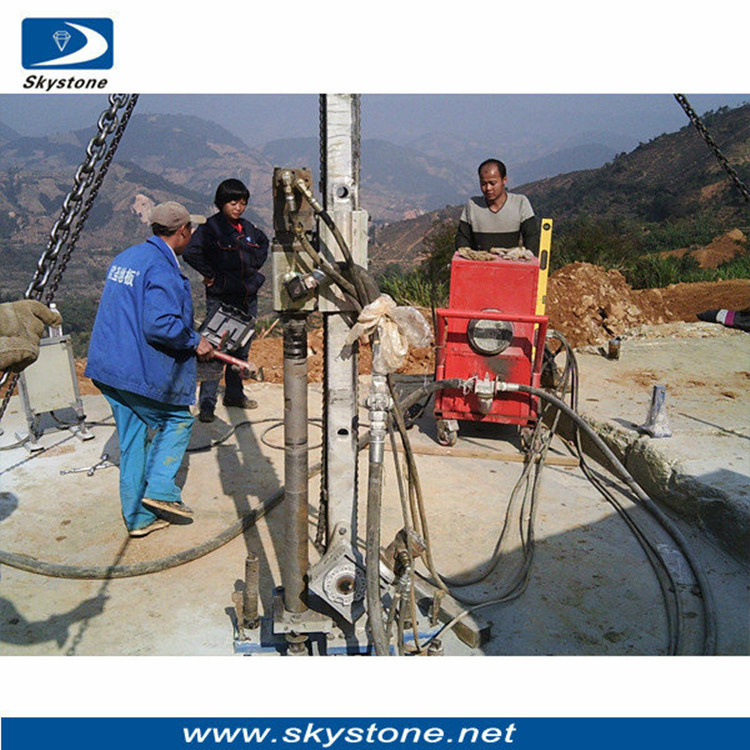

It used for block split ,and vertical,horizontal or slantwise direction drill in stone quarry . The drilling speed is 0.5-0.8m/min.
Features:
1.The machine can make vertical ,horizontal or slantwise drilling;
2.The of machine 4 stilts can be adjusted and fixed separately;
3.The drill is totally pneumatic driven .The rod is cooling by high pressure water , to make sure drilling precision ,and reduce the dust from drilling;
4.The air consumption of drill is small and drilling speed is high .
