| Prod Model: |
TSY-RD2 |
| Material: |
Diamond |
| Customized: |
Customized |
| Condition: |
New |
| Quality: |
Great |
| Automation: |
Automatic |
| Layout: |
Horizontal |
| Control: |
Artificial |
| Precision: |
High Precision |
| Application: |
Stone Industry |
| Certification: |
CE |
Product Description

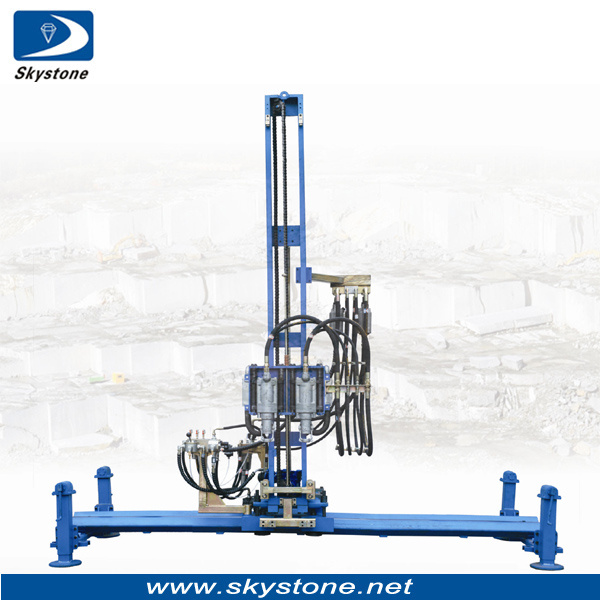

TSY-RD2 High Speed Doule-Hammer Rock Drill
| Technical Prameter |
| Item No. | TSY-RD2 |
| Number of Hammer | 2 |
| Working Length of Rock Drill | 2.3 m |
| Drilling Diameter | 38mm~45mm |
| Drilling Speed | 0.5~0.8m/min |
| Shift Travel | 3m |
| Air Pressure | 0.5~0.6Mpa |
| Air Consumption | ≥10m³/Min |
| Water Pressure | 0.4 Mpa |
| Wtaer Consumption | 0.5m³*2/h |
| Whole Weight | 1300kg |
Function :
It used for block split ,and vertical,horizontal or slantwise direction drill in stone quarry . The drilling speed is 0.5-0.8m/min.
Features:
1.The machine can make vertical ,horizontal or slantwise drilling;
2.The of machine 4 stilts can be adjusted and fixed separately;
3.The drill is totally pneumatic driven .The rod is cooling by high pressure water , to make sure drilling precision ,and reduce the dust from drilling;
4.The air consumption of drill is small and drilling speed is high .
Skystone in Italian stone fair:
Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.
We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
