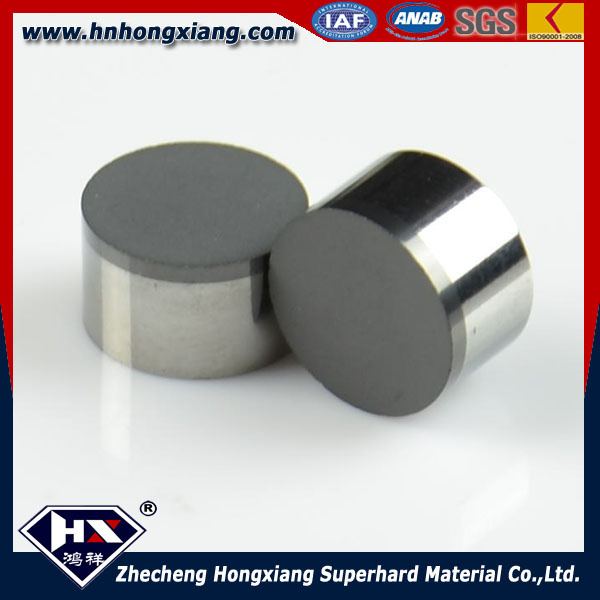

China Polycrystalline Diamond Insert for Drill Bit

Prod Model:	1913
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	PDC for Oil Drilling Industry
Certification:	ISO9001
Factory:	Hongxiang
Address:	Shangqiu ,China
History:	26 Years
Type:	Cutter
Material:	Polycrystalline Diamond
Work Type:	Gear Cutting

Product Description

Introduction
PDC bits uses PDC as main cutting components, with the excellent wear-ability and impact toughness of the PDC.
It has a long useful life, high-efficiency, and good cost performance.
PDC bit is mainly used for drilling soft and big drainage. Company profile Zhecheng Hongxiang Superhard Material Company
Specilizing in synthetic diamond and diamond tools
Synthetic diamond RVD, MBD, SMD, diamond drill bit,
Diamond grinding wheel, diamond saw blade, polishing wheel,
Resin bond diamond fickert, polishing pads, polishing paste
Qualification ISO9001, high repitation in domestic and overseas, high-tech
Market America, England, Egypt, Singapore, India, france, spain,
Iran, Turkey, Russia, Mexico, Vietam, Poland, South Africa
Certificate ISO9001, 2008 Certificate
Business Registering Certificate
Organization Code Certificate



Advantages:
1, It has various shapes to choose
2, Super quality and competitive price
3, The PDC cutter features good thermal conductivity. Its highest bearing temperature can reach 700° C.
4, It has long working life
5, The price is competitive 6, meet the needs of new and old customers All of our business is carried out in full compliance with the ISO9001 Certification. Please contact us if you would like any further information.

Product Number	Diameter (D)(mm)	Height (T) (mm)	Diamond Thickness (t) (mm)	Diamond  Chamfer (mm)
1308	13.44±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1313	13.44±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1608	15.88/16.00±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1613	15.88/16.00±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1908	19.05±0.05	8.00±0.10	2.30±0.20	0.30±0.10
1913	19.05±0.05	13.20±0.10	2.30±0.20	0.30±0.10
1916	19.05±0.05	16.31±0.10	2.30±0.20	0.30±0.10

Zhecheng Hongxiang Superhard Material CO.,LTD was founded in 1990 which in affiliated with Wanke Group. The company is a high-tech enterprise with modern management experience and strong research and development ability. Besides, it has won many national and local awards and obtained several invention patents.
Constant innovation and good faith are our foothold.
Our products has exported to United Kingdom France , Germany, Spain, Italy, USA, Canada, Brazil, Japan, Korea, Thailand, Vietnam, India, Egypt, Iran, Turkey etc 52 countries and participated in many
Domestic and international exhibitions.
Main products:
1.synthetic diamond and diamond powder
2.In 2000,creative product:diamond drill bit,diamond wheel,diamond finger bit etc glass tools.The product is fit for kinds of glass machine,bilaterial machine and numerical control machine etc
3.In 2008,research and development product,Mainly include diamond saw blade ,diamond core bit,diamond abrasive fickert etc stone and ceramices tools.
4.In 2011,selfdevelop PCD ,PDC,etc oil and cutting tools products,which mainly used for oil drilling,coal drilling and geological exploration etc.
