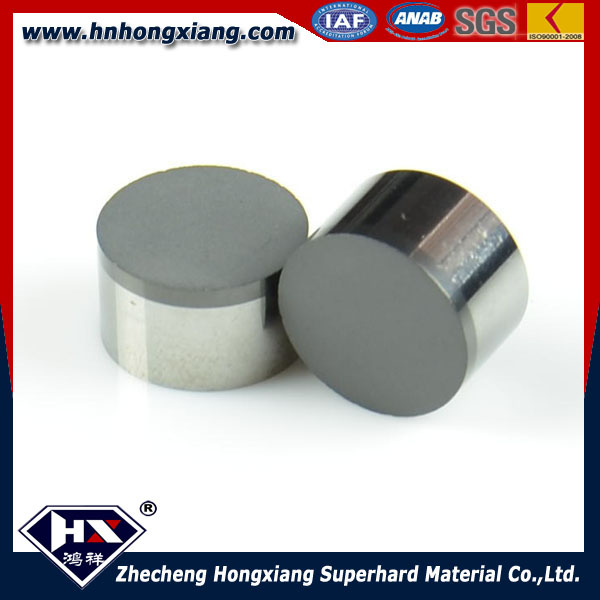

China Polycrystalline Diamond PDC for Drilling Bit

China Polycrystalline Diamond PDC for Drilling Bit
Price: US $ 10/Piece
Trade Terms: EXW,CIF
Min Order: 10/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: 1916
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: PDC for Oil Drilling Industry
Certificate: ISO9001
Factory: Hongxiang
Factory History: 26 Years
Certification: API, BIN
Length: Taper-length
Type: Twist Drill Bit
Material: Diamond
Use: Well Drilling

Product Description

Main products:

1. Synthetic diamond and diamond powder
2. In 2000, creative product: Diamond drill bit, diamond wheel, diamond finger bit etc glass tools. The product is fit for kinds of glass machine, bilaterial machine and numerical control machine etc.
3. In 2008, research and development product, Mainly include diamond saw blade, diamond core bit, diamond abrasive fickert etc stone and ceramices tools.
4. In 2011, selfdevelop PCD, PDC, etc oil and cutting tools products, which mainly used for oil drilling, coal drilling and geological exploration etc.

ADVANTAGES:
1. It has a super long life. The useful life of the PDC Bit is 4~5 times than the diamond bit, 10 times than
The tungsten carbide bit at least.
2. It has high drilling speed.
3. It can be operated with low pressure and low speed.
4. It has a good package protection.
5. It can be used widely, more suitable for drilling in the stratum with hardness coefficient


All of our business is carried out in full compliance with the ISO9001 Certification. Please contact us if you would like any further information.
Product NumberDiameter
(D)(mm)
Height
(T) (mm)
Diamond Thickness
(t) (mm)
Diamond
Chamfer
(mm)
130813.44±0.038.00±0.102.30±0.200.30±0.10
131313.44±0.0313.20±0.102.30±0.200.30±0.10
160815.88/16.00±0.038.00±0.102.30±0.200.30±0.10
161315.88/16.00±0.0313.20±0.102.30±0.200.30±0.10
190819.05±0.058.00±0.102.30±0.200.30±0.10
191319.05±0.0513.20±0.102.30±0.200.30±0.10
191619.05±0.0516.31±0.102.30±0.200.30±0.10


Key words PDC cutter , Polycrystalline diamond compact cutter , Oil drilling bit part PDC
Diameter6mm - 20mm
Thickenss 3mm - 20mm
Diamond Thickness2.5mm , 1.0mm , 1.5mm , 2.0mm , 2.3mm
Application For oil drilling bit ; For coal drilling bit ; For stone cutting ; For mining drilling bit ;
Standard Tolerance0.001mm
BondCobalt based
Grit 1um  - 3um - 5um - 10um - 25um - 50um
Temperature resistant 650 degree
Quality GuaranteeQuality problem , we will exchange new one for you .
Note 1.Mount at temperautres not exceeding 650 degree .
2.Maximu recommend bearing diameter for "soft" nonferrous wire .
" Hard " wire diameter normally should not exceed 65% of this diameter .
Packingplastic bag & carton ; plastic box .
Shipping ways TNT ,DHL,FEDEX,EMS,UPS ,AIR SHIPPING ,SEA SHIPPING
Shipping time5-7 work days
Payment terms 100% prepayment by T/T , western union , Paypal , Credit
Contact PersonMs.Belinda
Factoty ZHECHENG HONGXIANG
Websitewww.hnhongxiang.com
Factory address Shangqiu city , Henan province , China
Factory history26 years
Factory main products 1. PCD die blanks   & PCD die
2. PDC cutter for oil drilling bit
3. PCD cutting tools
4. Diamond powder
Zhecheng Hongxiang Superhard Material Co., Ltd. Affiliated with Wanke Group, is a highly professional and experienced manufacturer of synthetic diamond powder & diamond tools in China. We have specialized in this field over 27 Years and always dedicated to the produce the diamond tools in high quality and good service.

Our products include,

Synthetic diamond

Diamond powder

Diamond saw blade

Diamond drill bit

Poly crystalline Diamond composite ( PDC )

PCD wire drawing dies

Diamond glass tools

Diamond polishing pad

Diamond cutting tools

Diamond grinding tools

Diamond wheels

Diamond tools, etc.

Why choose us?

1. Since 1990, with over 27 years diamond tools manufacturer experience.

2. Rich experience in OEM order

3. Advanced production equipment

4. Own design team, can help you custom the packaging

5. Own provincial engineering technology center

6. D&B and ISO9001 Certificates

We are a professional synthetic diamond powder & diamond tools company integrating development, production and sales. Factory located in middle of China-Henan, with more than 124000 square meters. "High quality products, competitive prices, and classic services" is the soul of our business.

Warmly welcome all partners to join us for mutual benefits cooperation.
