China Reliable Supplier for Alloy Wheel CNC Lathe Machine Tool

China Reliable Supplier for Alloy Wheel CNC Lathe Machine Tool
Price: US $ 12000-14000set
Min Order: 1set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: WRC26
Max.Repair Wheel: 10-32inch
CNC Controller: Syntec
Machine Function: Diamond Cutting Wheel Rims
Motor Power: 5.5kw
Max. Swig Over Bed (mm)(Inch): 700mm
Range Of Spindle Speed (Rpm): 50-2000rpm
Spindle Bore (mm): 60mm
Machine Base(Cast Iron Base): Whole
Stations Of Tool Carrier: 4 Stations
Chuck Size: 320mm
Process Usage: Metal-Forming CNC Machine Tools
Movement Method: Point to Point Control
Control Method: Open-Loop Control
Numerical Control: CNC/MNC
Performance Classification: High-End CNC Machine Tools

Product Description

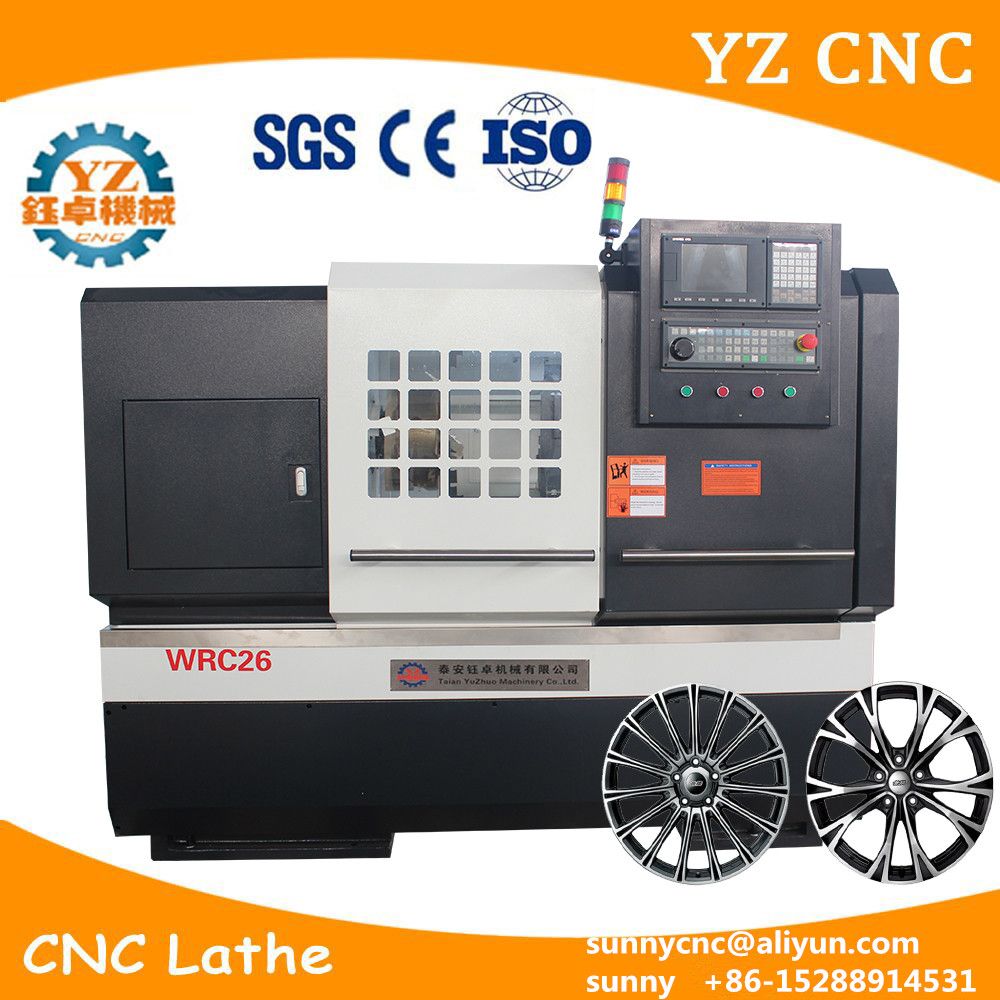

                China Reliable Supplier for Alloy Wheel CNC Lathe Machine Tool




ModelWRC26
Max. swing over bedΦ720mm (28')
Max. swing over cross slideΦ540mm
Max. size of alloy wheel26 INCH
Cross slide travel350mm
Width of the rail330mm
Length of the rail1320mm
Size of the 3-jaw chuck12'
Range of spindle speed50~2000rpm
Spindle speed controlAutomatic
Spindle boreΦ60mm
Taper of spindle boreMT6
Taper of spindle noseA2-6
Max. size of tool post25×25mm
Stations of tool carrier4 position
Min. setting unit of motor(Z) long   0.001mm
(X) cross  0.001mm
Moving speed of post(Z) long    8m/min
(X) cross  4m/min
Motor power7.5kw
Machine baseWhole cast iron base
Machine size (L*W*H)2200*1650*1750mm
Net weight2600kg


Standard Configuration:
1- 3-Jaws Chuck(With Special Soft Jaws)
2- Manual Quick Change Toolpost ,four-station turret,
3- Automatic lubrication system,
4- Turning the cooling system.
5- With probing system (TP300 Pioneer Sensing Probe TP300);
6- Diamond Cutter 1 set
7- CNC controller syntec
8- Full Enclose (Security Guard Door)
9- Specific Digital Optimization Software
10- Training Video CD
11- Work Lighting System

Services:
1- After-sales services: Warranty is one year; we would offer the parts (quality problem) free of charge during this period, freight collect.
2- Alloy Wheel Refurbishemnt Advice from REAL WORLD experts in the Diamond Cutting and Alloy Wheel Refurbishment industry
3- Mechanical Support
4- Software Support
5- Comprehensive Training
6- Probe alloy wheel profile

Just PROBE & Diamond CUT !
Once the machine has automatically probed the wheel profile there is no need for you to waste time programming our Alloy Wheel lathe we have taken care of that for you. Just cut the wheel and store the profile on the system. Build up a library of Alloy wheel profiles.We saved you time so you can cut more wheels!

The Machine Work Steps:

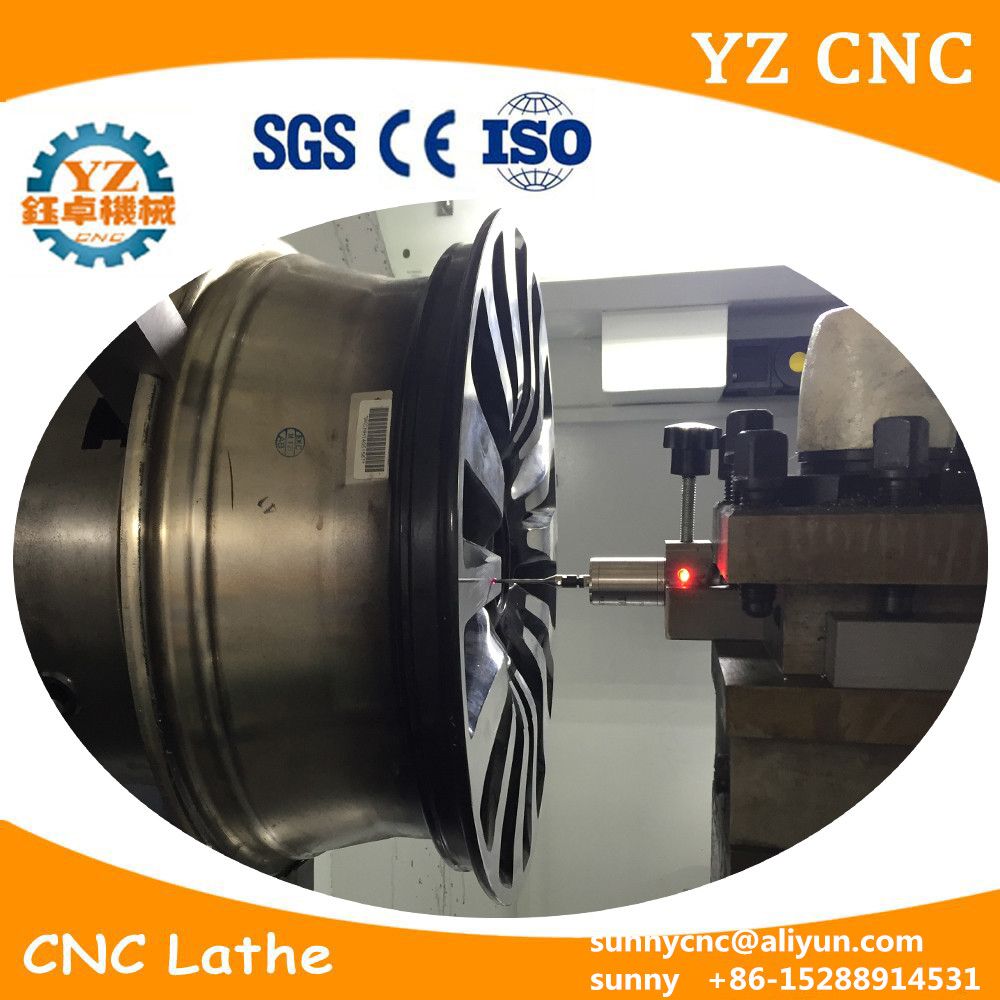

1- Probe alloy wheel profile, transformation G code.

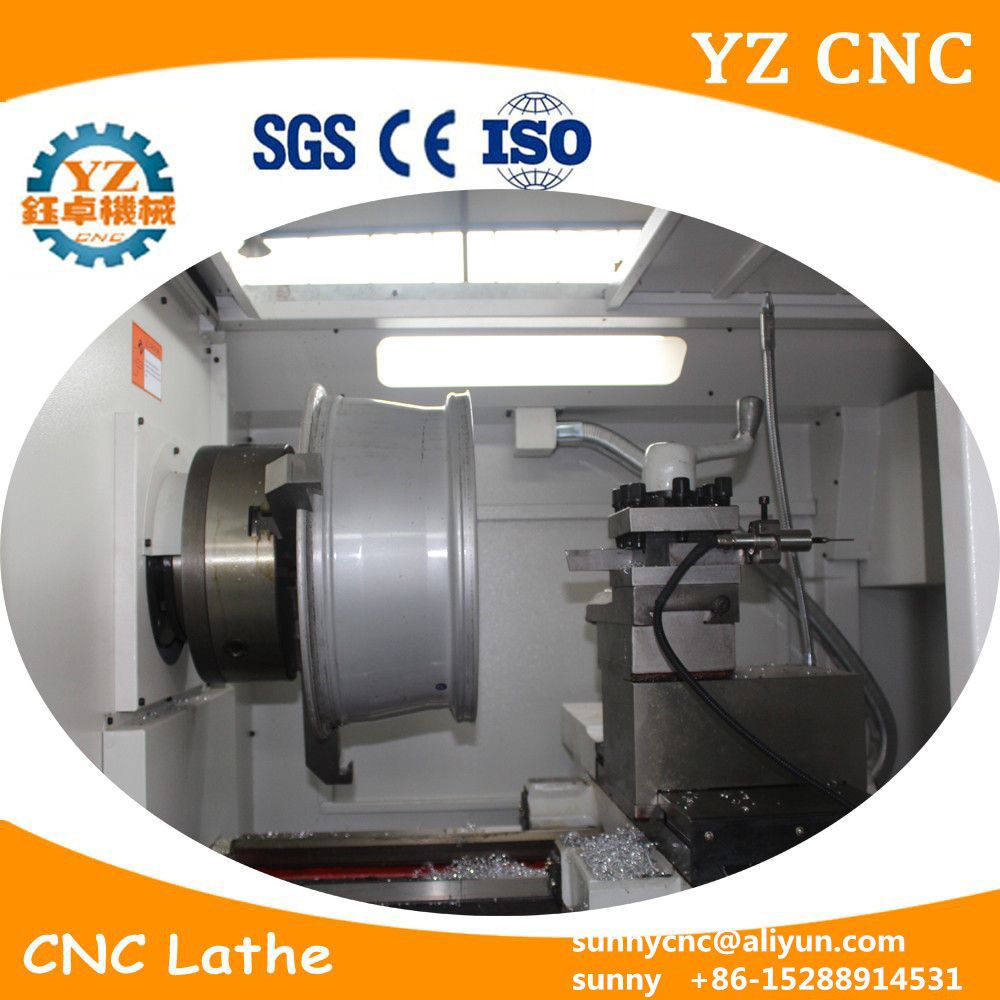

2- Diamond cut the wheel.

We will provide you with everything you need to start diamond cutting:
* YZ CNC wheel repair CNC lathe
* Tooling package
* Probing system
* Programming system
* Training for free







YZ CNC Wheel Lathe - Alloy wheel refurbishment & repair specialist!

If any interest about our YZ wheel repair cnc lathe, please just feel free to contact below:
Sunny
Tel: 0086-152-88914531


Tai'an YuZhuo Machinery Co., Ltd (as for "YZ CNC"), is a company including active and professional teams, specialized in CNC machining Center, CNC Lathe Machine, Wheel Lathe machine. Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.

We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.

Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
